Exotronic Mega/AMG/ANM Fuse 400A
DESCRIPTION
Exotronic Mega/AMG/ANM Fuse: Reliable and Efficient Protection for Your Electrical Systems
Secure your electrical systems with the Exotronic Mega/AMG/ANM Fuse. This robust and efficient device is specifically designed to protect electrical circuits in 12V, 24V, and 48V systems, ensuring reliable operation and effective current limitation.
Visible Window for Easy Inspection

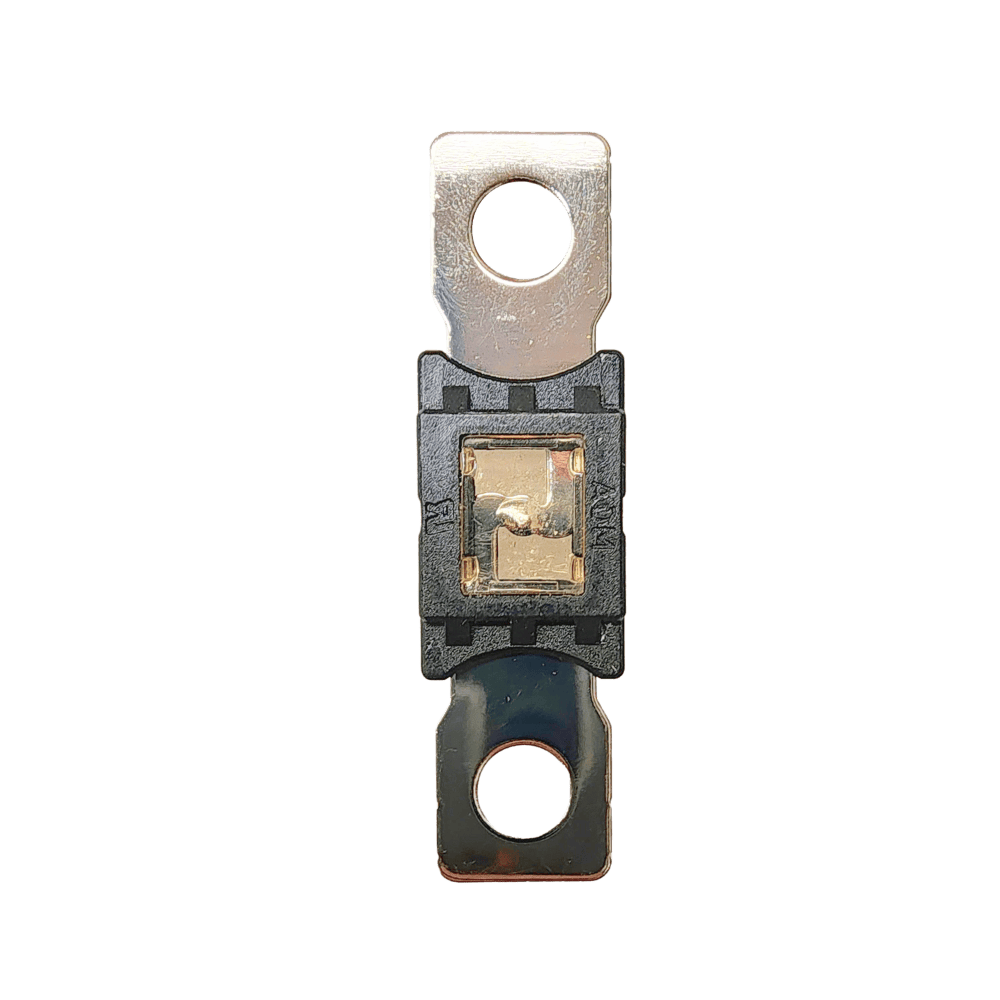

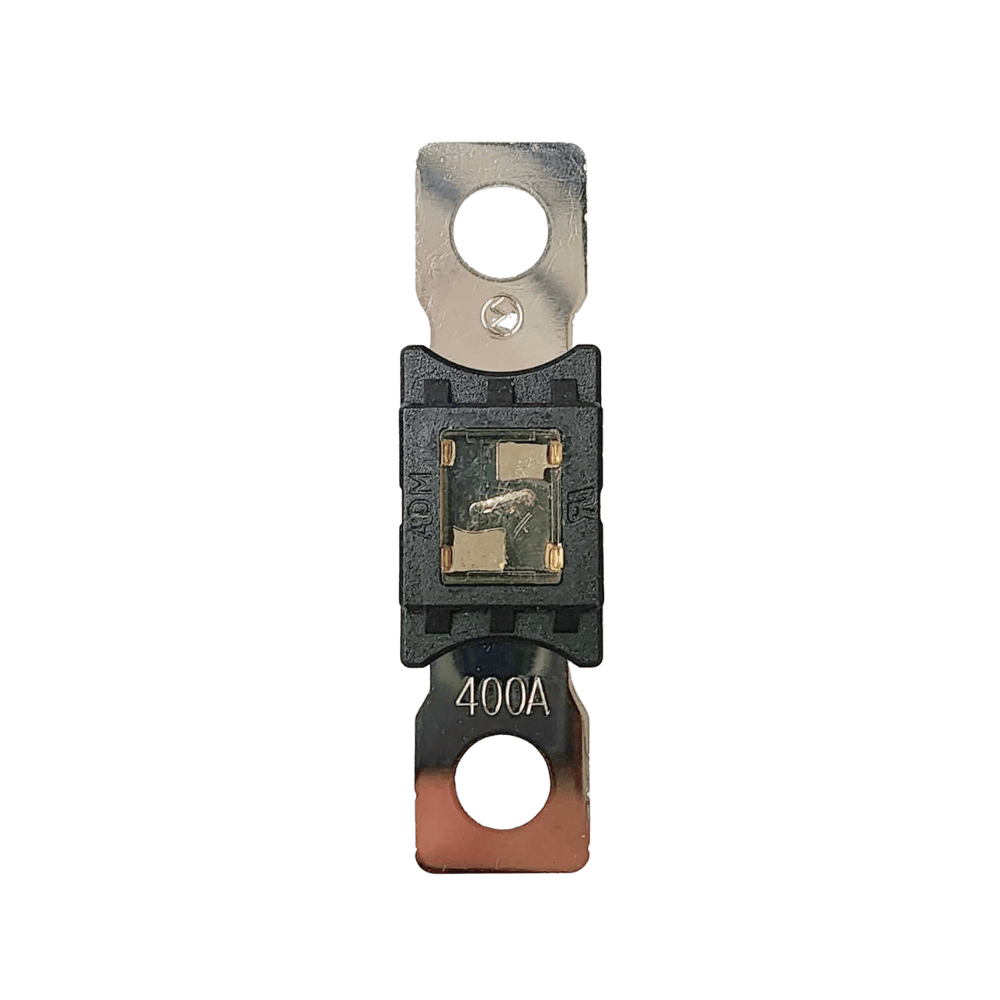

Our Exotronic Mega/AMG/ANM Fuses feature a visible window that allows you to easily check if the fuse has blown. This user-friendly design ensures quick and effortless inspection, enhancing the safety and maintenance efficiency of your electrical system.
High-Quality Material for Optimal Performance
Constructed from a copper alloy with a tinned outside, these fuses offer exceptional durability and electrical conductivity. The use of Polyphthalamide (PPA), a type of high-performance nylon, for the insulating body provides excellent heat resistance and dimensional stability, ensuring reliable operation even under demanding conditions.
Versatile Range for Various Applications

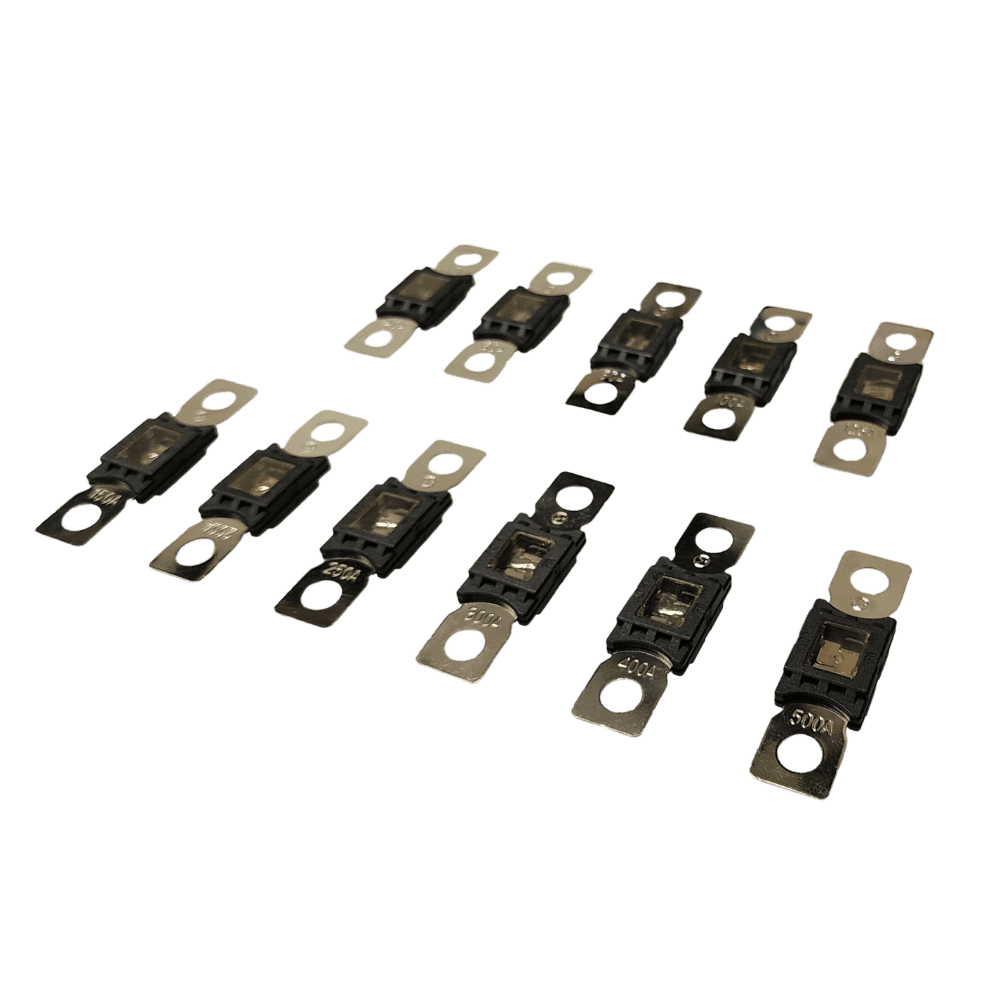

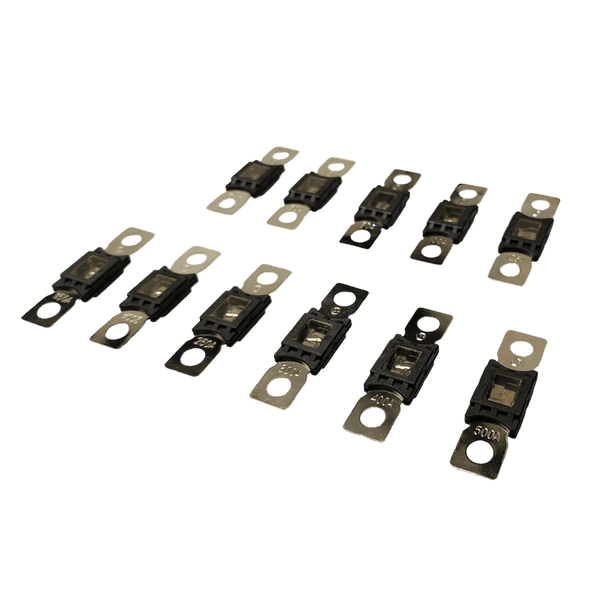

Exotronic Mega/AMG/ANM Fuses are available in a range of amperages from 40A to 500A, ensuring the right fit for your specific needs. Whether you're working with automotive electronics, household appliances, or other high-current applications, these fuses provide reliable and efficient protection for your electrical circuits.
Choose Exotronic Mega/AMG/ANM Fuses for dependable protection of your electrical circuits. Experience the blend of precision, quality, and reliability that only Exotronic can deliver.
SKU: Exo-Fu-Meg-400
SPECIFICATIONS
Specifications
Details | |
| Breaking Force | 2000A@58VDC |
| Voltage Rating | 72VDC |
| Operating Temperature Range | -32C to 125C |
| Terminals | Tin Plated Copper Alloy |
| Housing Material | Polyphthalamide |

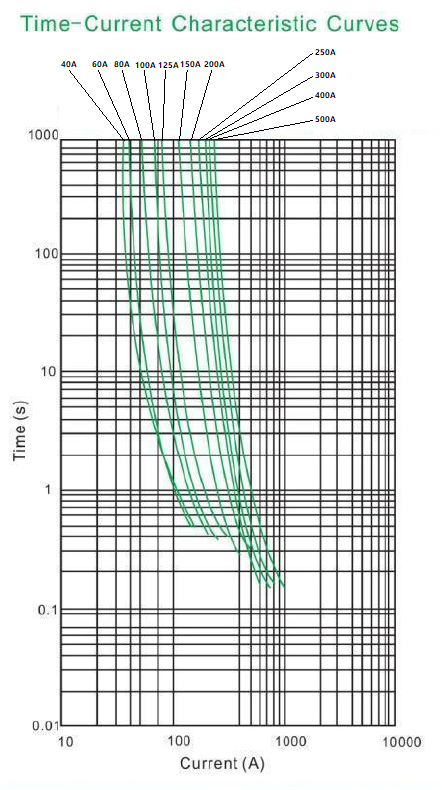

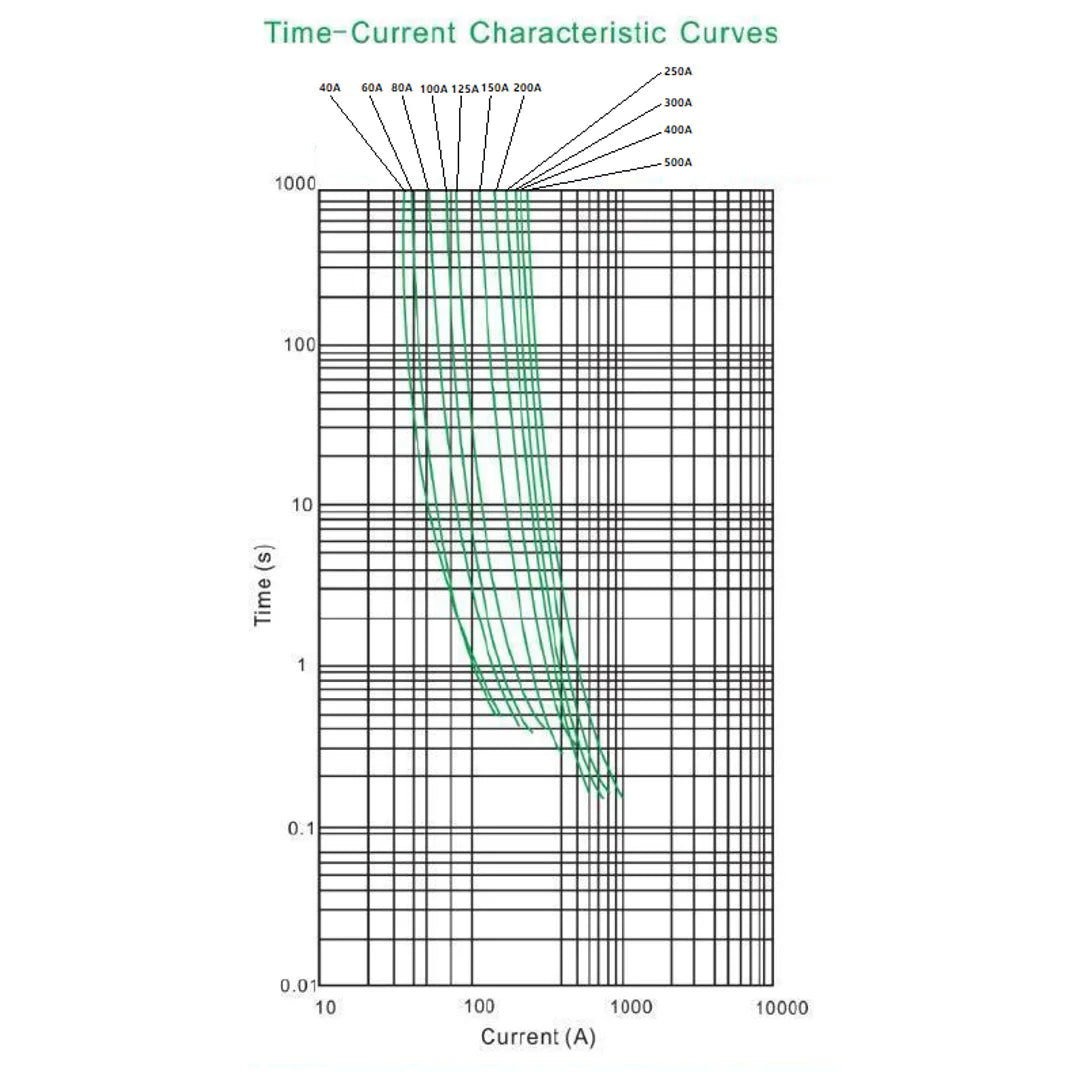

Operating Time 40-250A | ||
| % of Rating | Minimum | Maximum |
| 100 | 4hr | ꝏ |
| 135 | 120s | 30min |
| 200 | 1 | 15s |
| 350 | 0.3s | 5s |
| 600 | 0.1s | 1s |
Operating Time 300-500A | ||
| % of Rating | Minimum | Maximum |
| 75 | 4hr | ꝏ |
| 200 | 1s | 5s |
| 350 | 0.3s | 5s |
| 600 | 0.1s | 1s |
Fuse Range | |
| Part Number | Current Rating |
| Exo-Fu-Meg-040 | 40 |
| Exo-Fu-Meg-060 | 60 |
| Exo-Fu-Meg-080 | 80 |
| Exo-Fu-Meg-100 | 100 |
| Exo-Fu-Meg-125 | 125 |
| Exo-Fu-Meg-150 | 150 |
| Exo-Fu-Meg-200 | 200 |
| Exo-Fu-Meg-250 | 250 |
| Exo-Fu-Meg-300 | 300 |
| Exo-Fu-Meg-400 | 400 |
| Exo-Fu-Meg-500 | 500 |
| SKU: | Exo-Fu-Meg-400 |
| Barcode: | 9361784001036 |
| Model #: | Exo-Fu-Meg-400 |
| MPN: | Exo-Fu-Meg-400 |
