Exotronic 12V Large Control Hub

Exotronic 12V Large Control Hub – High-Capacity Power Distribution for Serious Off-Grid Systems

Centralised 12V Power Management for Caravans, 4WDs, Marine and Off-Grid Installations

The Exotronic 12V Large Control Hub is designed for builds that demand more circuits, more outlets and higher current capability. Housed in a durable aluminium enclosure and engineered for harsh Australian conditions, it delivers tidy, centralised power distribution for caravans, RVs, camper trailers, 4WD canopies, marine vessels, tiny homes and industrial service vehicles. Its integrated layout dramatically reduces wiring clutter and installation time while improving serviceability and fault-finding.

Heavy-Duty Protection for High-Draw 12V Accessories

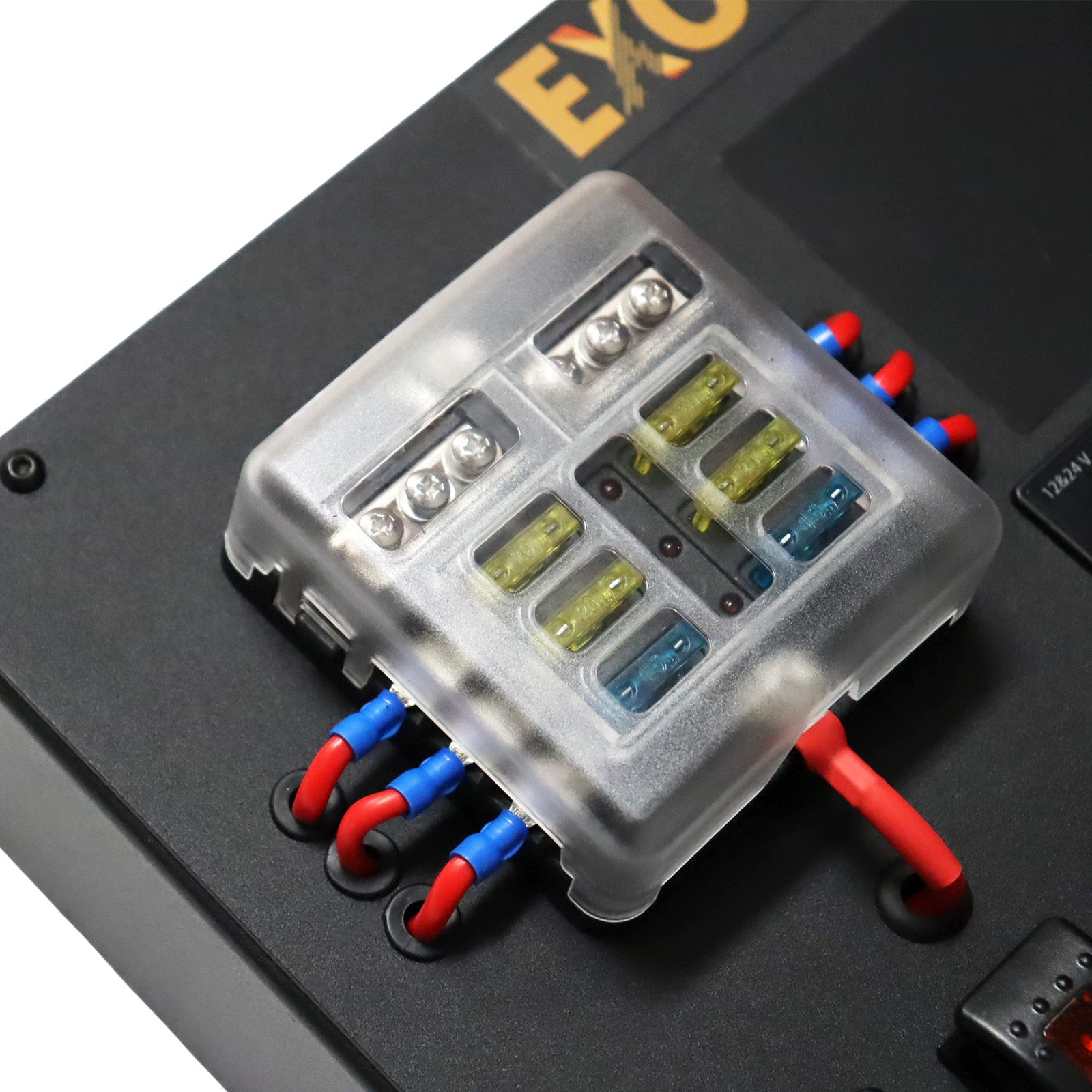

At the heart of the hub is a 6-way fuse block busbar with two 15A and four 20A fused outputs, providing clean, reliable protection for multiple circuits. Five 20A circuit breakers add an extra layer of safety for key loads such as fridges, lighting circuits, water pumps, communications gear and in-vehicle chargers. The built-in voltmeter gives instant feedback on system voltage, helping you monitor battery health and identify issues before they become a problem.

Flexible Connection Options for Modern Touring Setups

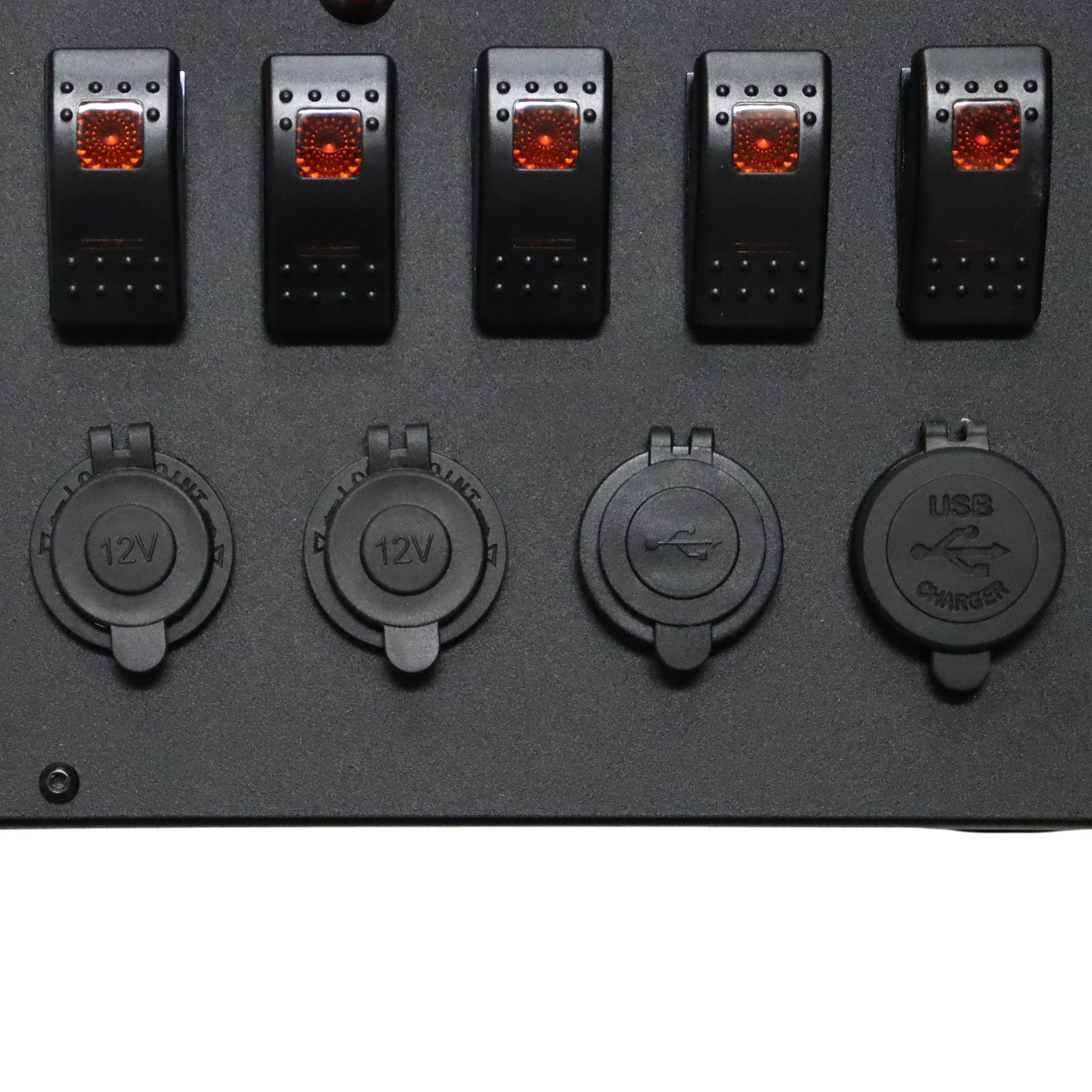

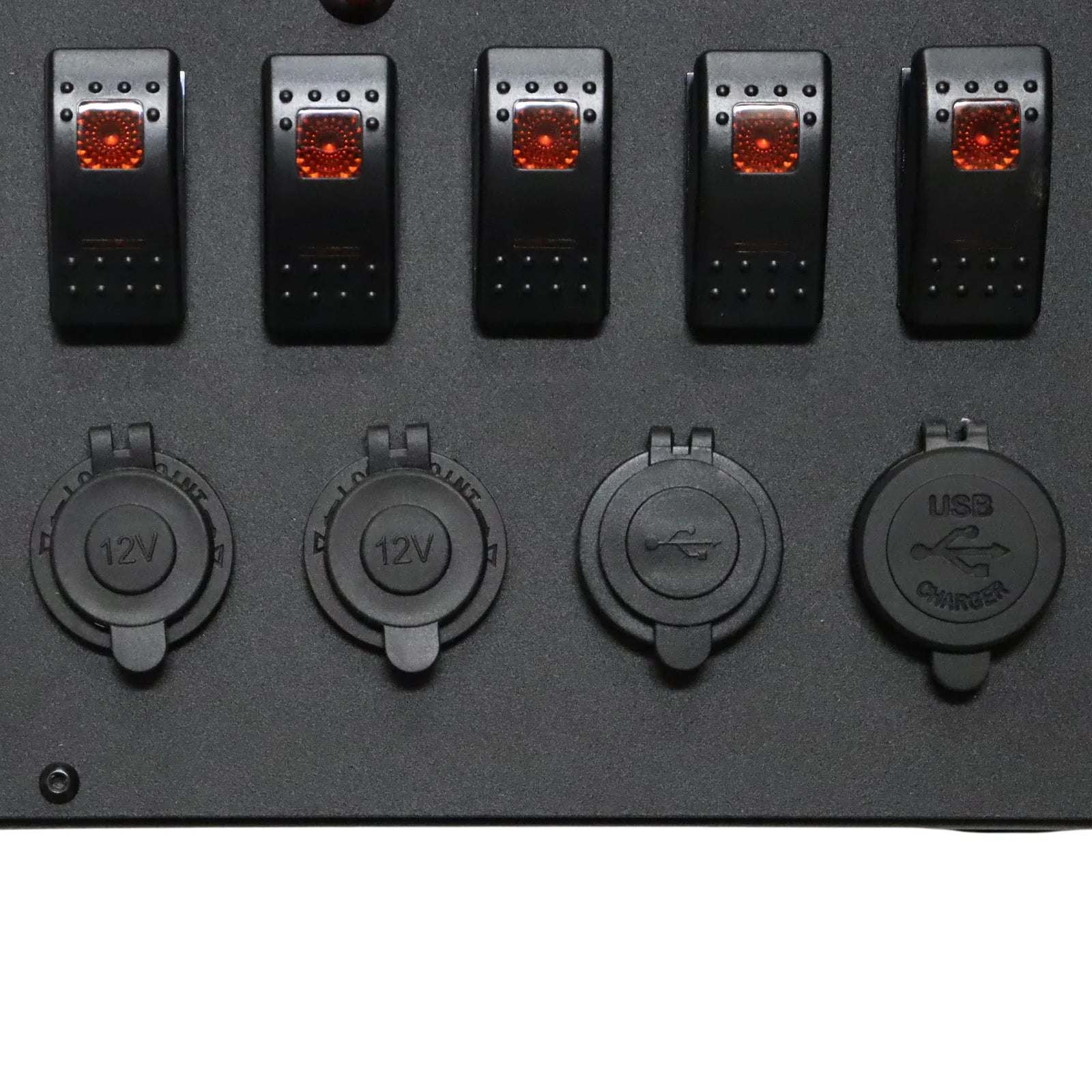

This large control hub is built to support complex 12V systems with multiple inputs and outputs. It includes twin 10A CIG sockets for common accessories, a dual 2.4A USB outlet for phones and tablets, and a dedicated Type-C + QC3.0 fast-charge port for modern devices. Five 50A Anderson plugs and one 3-pin Anderson connector provide robust, low-loss connections for solar input, auxiliary batteries, DC distribution to fridges or inverters, and other high-draw equipment — ideal for advanced dual-battery systems and expandable off-grid power setups.

Robust Aluminium Enclosure for Harsh Environments

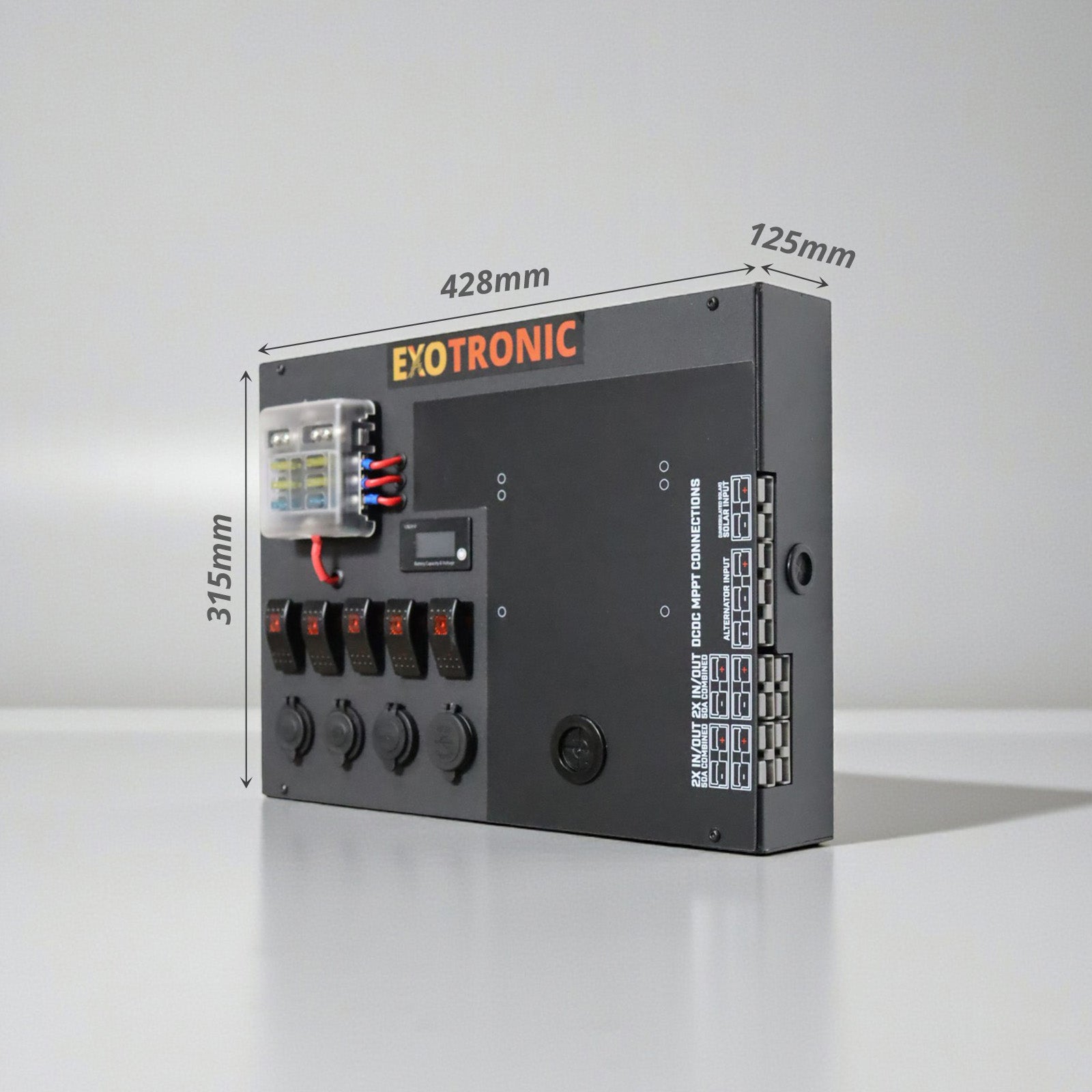

Constructed from aluminium with a practical, space-efficient form factor, the Exotronic Large Control Hub is built to handle vibration, dust, heat and rough roads. With a footprint of 42.8 × 31.5 × 12.5 cm and a weight of 3.6 kg, it provides generous internal space for wiring while remaining compact enough to mount in canopies, under seats, cupboards or service compartments. The integrated wiring board and included mounting accessories help keep installations neat, logical and easy to troubleshoot.

Key Specifications

• 6-way fuse block busbar: 2 × 15A, 4 × 20A
• 5 × 20A circuit breakers for system protection
• 2 × CIG sockets (10A max each)
• 1 × dual USB socket (2.4A + 2.4A)
• 1 × Type-C + QC3.0 fast-charge outlet
• 1 × colourful voltmeter for live system monitoring
• 5 × 50A Anderson plugs for high-output connections
• 1 × 3-pin Anderson plug for additional accessories
• 1 × accessory pack (4 × stainless steel screws + 10 × plugs)
• Premium aluminium construction
• Box size: 42.8 × 31.5 × 12.5 cm
• Weight: 3.6 kg

Built for Complex 12V Power Distribution

This large 12V control hub is ideal wherever you need organised wiring, multiple accessory circuits and dependable over-current protection in one central location. It’s perfectly suited to auxiliary battery systems, canopy fit-outs, off-grid solar installations and marine electrical integration where reliability and serviceability are critical.

Take Control of Your High-Demand 12V System

Upgrade your vehicle, caravan, RV, marine setup, tiny home or off-grid power system with the Exotronic 12V Large Control Hub to enjoy cleaner wiring, safer power distribution and dependable energy control — wherever your journey takes you.
