5m Exotronic 6mm² Twin Solar Extension Cable

Twin MC4 to MC4 Extension


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
141

DESCRIPTION

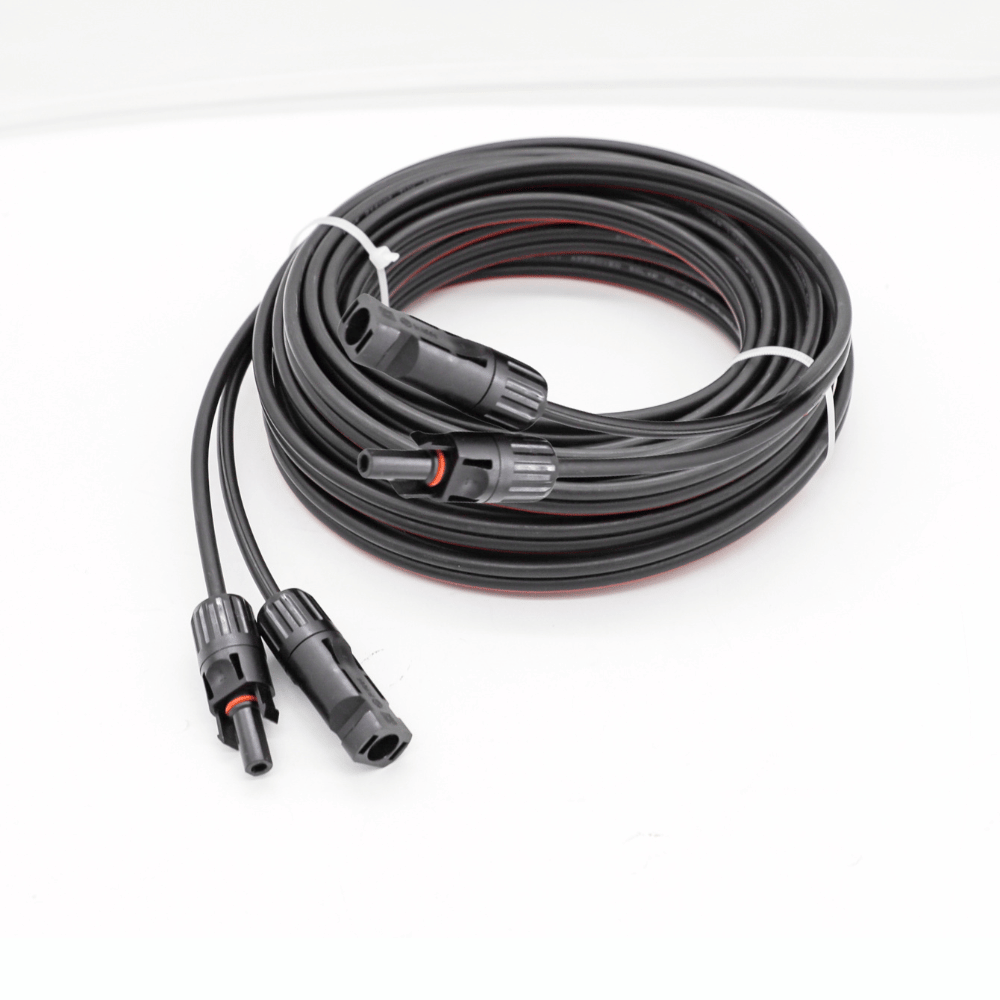

5m Exotronic 6mm2 Twin MC4 Compatible Extension Cable

Elevate your solar energy system with the Exotronic 6mm² Twin MC4 Compatible Extension Cable. Designed for a seamless connection, this 5-metre extension cable is the ultimate solution for expanding your solar setup with ease and flexibility. With its robust design and MC4 compatibility, it's tailored to extend the reach of your solar panel connections effectively.

Key Features:

  • MC4 Compatibility: Outfitted with universal MC4 connectors, this cable delivers a reliable and consistent connection with a variety of solar panels and photovoltaic devices.
  • Superior Conductivity: The 6mm² twin-core cable is optimized for low resistance and high conductivity, ensuring efficient power transmission.
  • Tailored Length: The 5-metre extension is perfectly sized to enhance the placement and arrangement of your solar panels, allowing for optimal sunlight absorption.
  • Durable Construction: Shielded by a robust insulating layer, the cable is built to endure environmental stresses like UV exposure and inclement weather.
  • Straightforward Installation: Pre-installed MC4 connectors make for a hassle-free setup, integrating smoothly into your current solar power system without additional tools.
  • Quality Materials: Crafted from premium components, the cable stands up to outdoor conditions, guaranteeing longevity and consistent operation.

Versatile Use:

This Exotronic extension cable is crafted to accommodate a diverse array of solar energy applications:

  • Extending Roof Solar Cables: Perfect for adding an extra panel to your roof setup using a branch connector, this cable bridges the gap with ease.
  • Portable Solar Solutions: Ideal for lengthening portable solar cable leads, it enhances the usability of mobile solar units.
  • Marine Applications: For marine enthusiasts, it's the go-to choice for connecting removable solar panels to a bimini or similar structures.

Additionally, the cable's adaptable design allows for it to be conveniently split down the middle, offering greater installation flexibility to meet your specific solar energy needs. Whether it's for industrial,marine or mobile installations, the Exotronic 6mm² Twin MC4 Compatible Extension Cable is versatile enough to tackle a wide range of application requirements, making it an essential component of any solar power system.


SKU: Exo-6-MDC-05

SPECIFICATIONS

Specifications MC4

Specification Details
Waterproof and Dustproof (Mated) IP67
Waterproof and Dustproof (Unmated) IP2X
Rated Voltage 1000V DC (IEC)
Contact Material Tinned Copper
Insulation Material PC/PPO
Contact Material Copper Alloy, Tin Plated
Temperature Range –40°C to +90°C (IEC)
Upper Temperature Limit +105°C (IEC)
Degree of Protection (Mated) IP67
Degree of Protection (Unmated) IP2X
Flame Class UL94-V0
Locking System Snap-in
Contact Resistance of Plug Connectors 0.5mΩ
Safety Class II
Test Voltage 6kV (50Hz, 1min)
Salt Mist Spray Test, Severity Degree 5 (according to IEC 60068-2-52)
Rated Current 30A
Connector System Ø 4 mm

SKU: Exo-6-MDC-05
Barcode: 9361784001579
Model #: Exo-6-MDC-05
MPN: Exo-6-MDC-05
