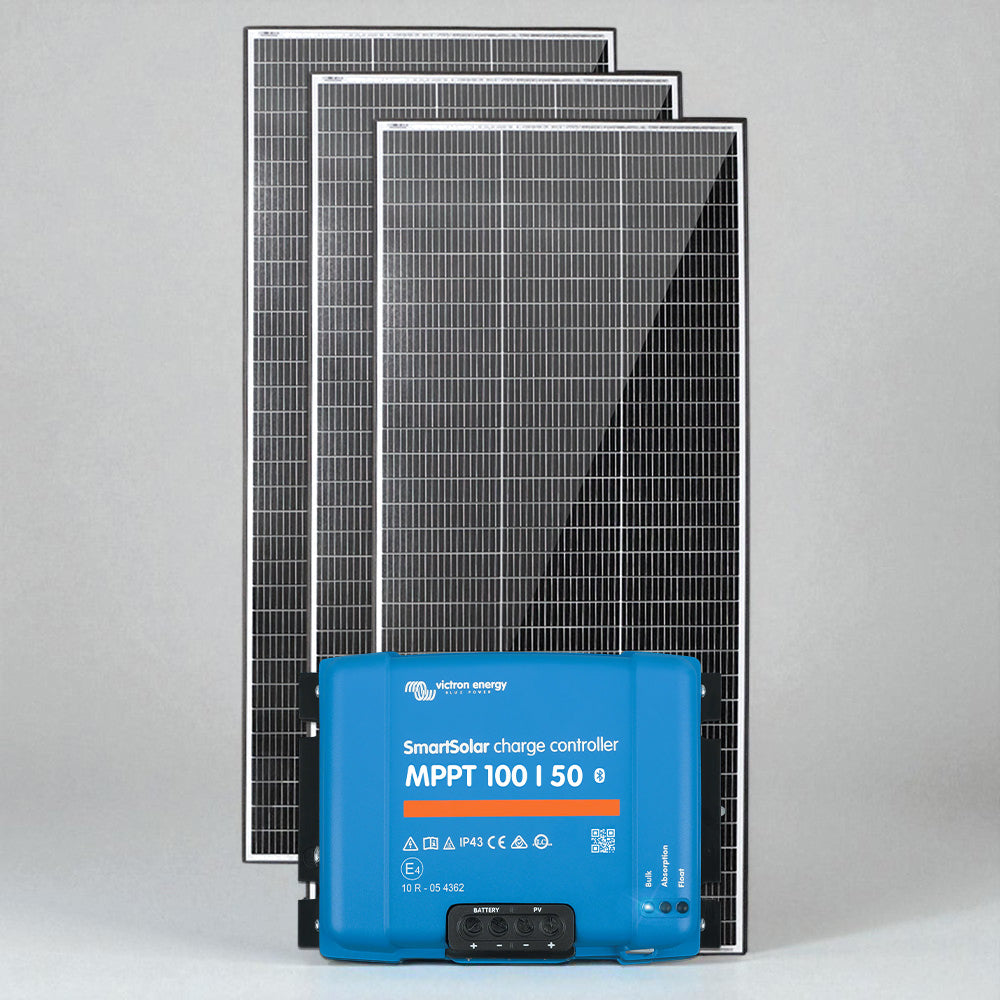

Exotronic 3x 220w Solar Panel & Victron SmartSolar MPPT 100/50 Bundle
660W Kit with 25.2% Efficient TOPCon Panels & Victron MPPT 100/50
DESCRIPTION
Complete 660W Off-Grid Solar Kit with Victron SmartSolar MPPT 100/50
High-Efficiency N-Type TOPCon Panels and Advanced Bluetooth Charge Control for Caravans, RVs, and Marine Applications
This bundle combines three Exotronic 220W Fusion Series solar panels with the Victron SmartSolar MPPT 100/50 Bluetooth charge controller, delivering a robust 660W power solution for demanding off-grid and mobile energy systems. Engineered for Australian conditions, the kit provides reliable, high-yield solar harvesting with intelligent battery management, making it an excellent choice for caravan solar systems, marine solar panels, tiny homes, and remote industrial installations.
Each panel features advanced N-Type TOPCon solar cell technology with a fixed 25.2% cell efficiency, outperforming conventional monocrystalline and PERC modules. This higher efficiency translates to more power per square metre, a critical advantage when roof space is limited. The panels maintain strong output even in low-light and partially shaded conditions, reducing the risk of underperforming arrays during cloudy weather or when shadows from roof hardware are unavoidable.
The Victron SmartSolar MPPT 100/50 charge controller uses ultra-fast Maximum Power Point Tracking to extract the maximum available energy from the array, achieving efficiency consistently above 98%. Its integrated Bluetooth allows wireless monitoring and configuration via the VictronConnect app, giving you real-time visibility of solar yield, battery status, and historical trends. The controller supports 12V and 24V battery banks, with a nominal PV power rating of 700W at 12V and 1400W at 24V, ensuring the 660W array operates well within safe limits for both voltages.
Included mounting bracket kits and Fix15 adhesive sealant simplify installation on various roof types, while the panels’ lightweight 10 kg design and compact 1470x670x25mm dimensions ease handling. The fully potted IP65 junction boxes and MC4-compatible connectors ensure reliable, weather-resistant electrical connections, reducing long-term maintenance concerns in coastal and high-humidity environments.
- 660W total solar capacity from three 220W panels with 25.2% cell efficiency
- Victron SmartSolar MPPT 100/50 with Bluetooth for wireless monitoring and control
- N-Type TOPCon cells offer lower degradation and better low-light performance than PERC
- Lightweight, anodised aluminium frames and tempered glass for durability in mobile use
- Complete installation kit includes mounting brackets and adhesive sealant
- Compatible with 12V and 24V battery systems for flexible system design
Why This Bundle Outperforms Generic Solar Kits
Standard solar kits often pair mid-range panels with basic PWM controllers, leading to significant energy losses, especially in variable weather. This bundle addresses those shortcomings by combining high-efficiency TOPCon panels with a premium MPPT controller. The result is faster battery charging, better performance on overcast days, and extended battery life through adaptive multi-stage charging. The Victron controller’s comprehensive electronic protections—including PV reverse polarity, output short circuit, and over-temperature safeguards—reduce the risk of system damage during installation faults or extreme conditions.
Ideal Applications
This 660W kit is well suited to powering medium to large off-grid setups, including:
- Caravans and motorhomes requiring reliable 12V power for lights, fridges, and electronics
- Marine vessels needing corrosion-resistant, high-output solar for house battery banks
- Tiny homes and cabins where roof space is at a premium
- Remote industrial monitoring stations and telecommunications equipment
- Backup power systems for sheds, workshops, and off-grid work sites
With its blend of cutting-edge panel technology and intelligent charge control, this bundle provides a dependable, long-term energy solution for those who demand more from their off-grid power system.
Take the Next Step Toward Energy Independence
Equip your caravan, boat, or off-grid project with a solar kit engineered for Australian conditions. Order the Exotronic 3x 220W Fusion Series and Victron SmartSolar MPPT 100/50 bundle today and experience the difference that premium components make in real-world performance.
SKU: Exo-Vic-3x220-100-50-00
SPECIFICATIONS
Specifications
Exotronic 220W Fusion TOPCon Solar Panel
Electrical Characteristics |
|||||||||
| Model | Power (W) | Dimensions (mm) | Weight (kg) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | ||
| Exo-SP-TCN-220 | 220 | 1470x670x25 | 10 | 19.8 | 11.11 | 23.1 | 12.1 | ||
Temperature Ratings |
|
| NMOT | 41C +/-3C |
| Temperature Coefficient of Pmax | -0.37%/C |
| Temperature Coefficient of Voc | -0.29%/C |
| Temperature Coefficient of Isc | 0.05%/C |
Maximum Ratings |
|
| Operating Temperature | -40 - +85C |
| Maximum System Voltage | 1000VDC |
| Maximum Fuse Rated Current | 15A |
Mechanical Characteristics |
|
| Front | 3.2mm Tempered Glass |
| Frame | Black Anodized Aluminium Alloy |
| Junction Box | IP65 |
| Connectors | MC4 Compatible |

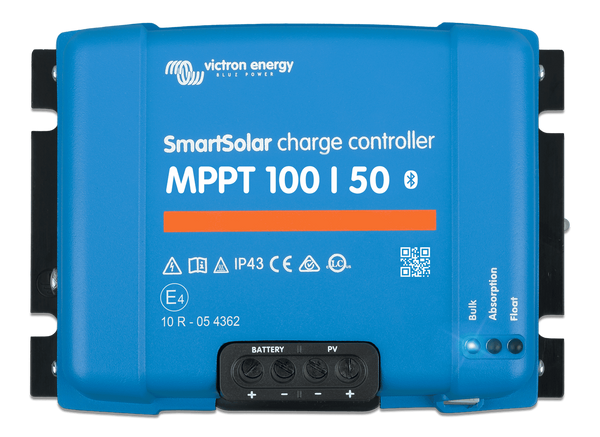

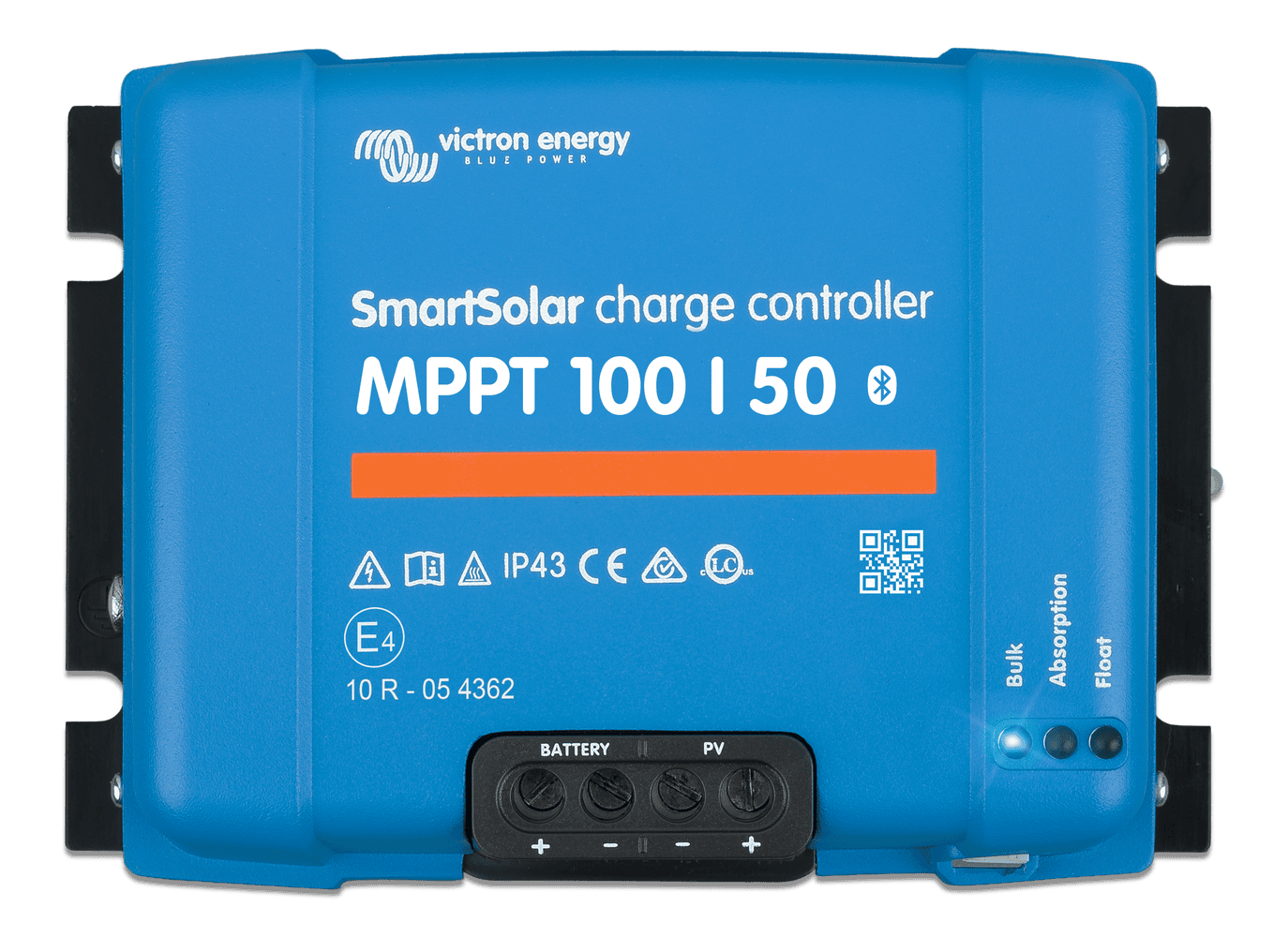

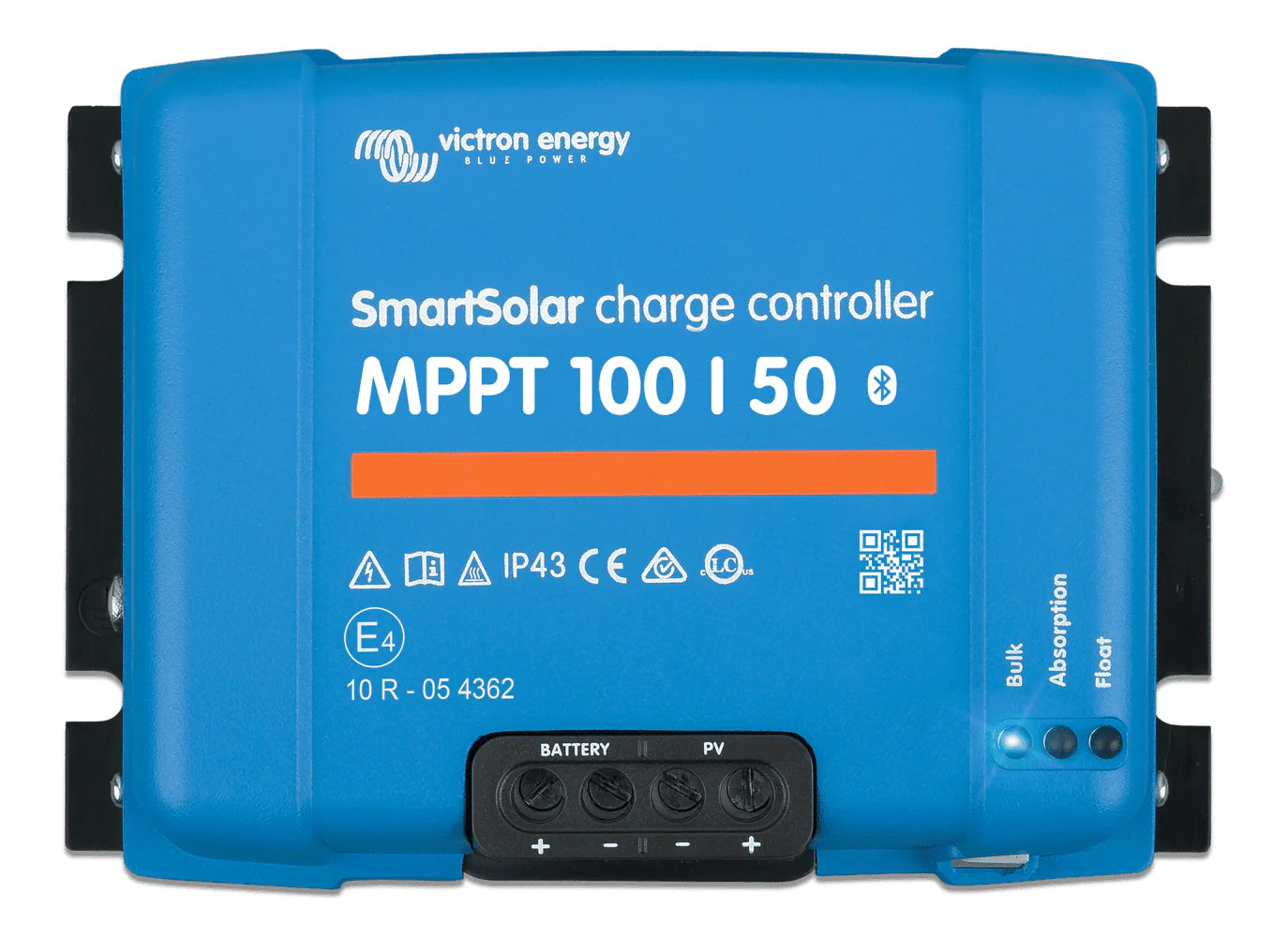

Victron 12/24V 50A SmartSolar MPPT 100/50 Bluetooth Solar Charge Controller
| SmartSolar Charge Controller | MPPT 100/50 |
|---|---|
| Battery voltage | 12/24 V Auto Select |
| Rated charge current | 50 A |
| Nominal PV power, 12 V (1a,b) | 700 W |
| Nominal PV power, 24 V (1a,b) | 1400 W |
| Maximum PV open circuit voltage | 100 V |
| Max. PV short circuit current (2) | 60 A |
| Maximum efficiency | 98 % |
| Self-consumption | 12 V: 30 mA, 24 V: 20 mA |
| Charge voltage 'absorption' | Default setting: 14,4 V / 28,8 V (adjustable) |
| Charge voltage 'float' | Default setting: 13,8 V / 27,6 V (adjustable) |
| Charge algorithm | multi-stage adaptive |
| Temperature compensation | -16 mV / °C resp. - 32 mV / °C |
| Protection | PV reverse polarity, Output short circuit, Over temperature |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
| Data communication port | VE.Direct |
| Enclosure Colour | Blue (RAL 5012) |
| Power terminals | 16 mm² / AWG6 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 1,3 kg |
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
| Safety Standards | EN/IEC 62109- 1, UL 1741, CSA C22.2 |
| Stored Trends Data | Battery voltage, current and temperature, as well as load output current, PV voltage and PV current. |
| Number of days trends data is stored | 46 |
Notes:
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2A PV array with a higher short circuit current may damage the controller.
| SKU: | Exo-Vic-3x220-100-50-00 |
WARRANTY
Exotronic Panel - 5 year warranty - please read full warranty statement for details
Victron - 5 year warranty - please read full warranty statement for details
Wiring kit and accessories - 1 year warranty
