Victron SolarSense 750 Solar Monitor

Standalone PV-installation monitor


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

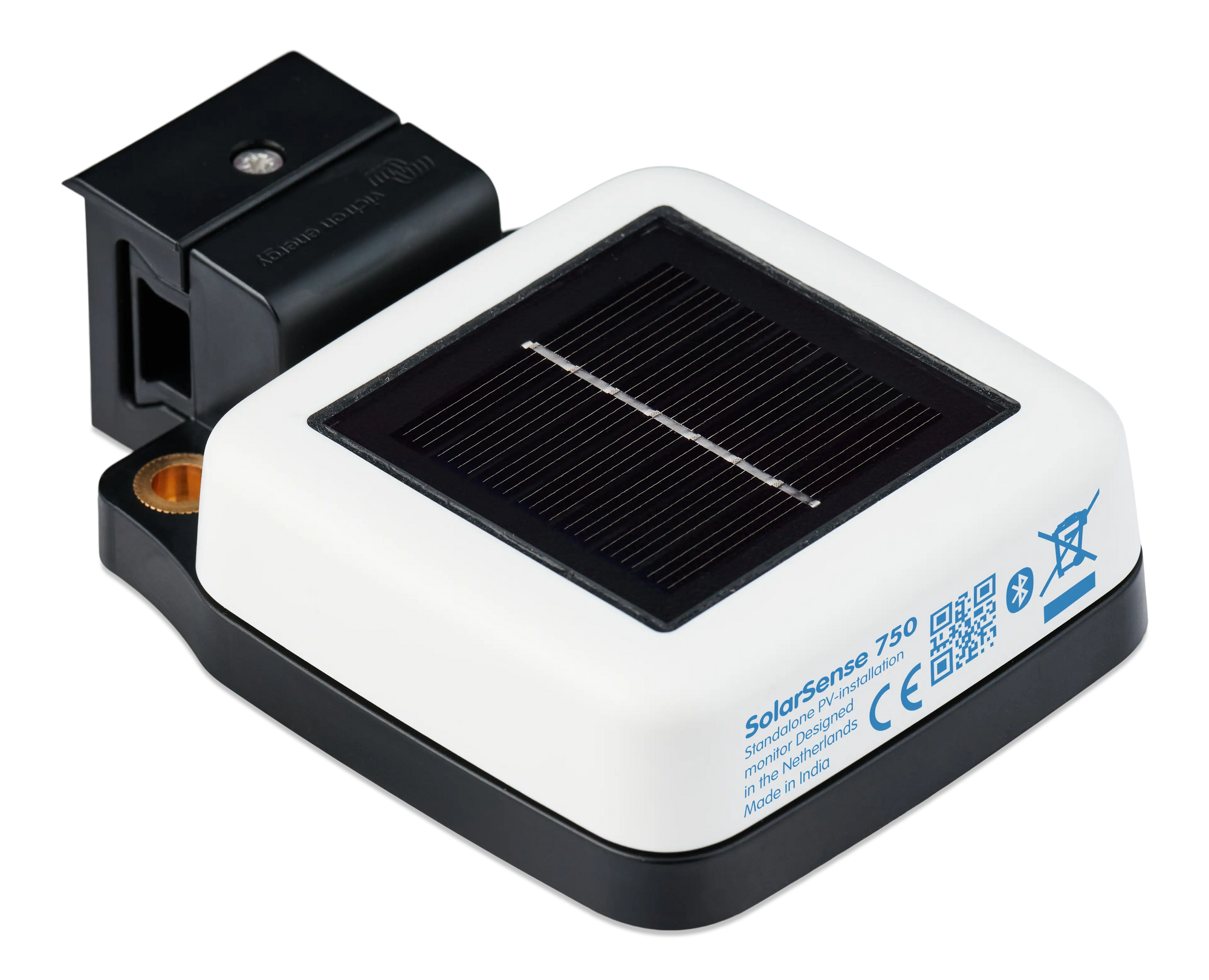

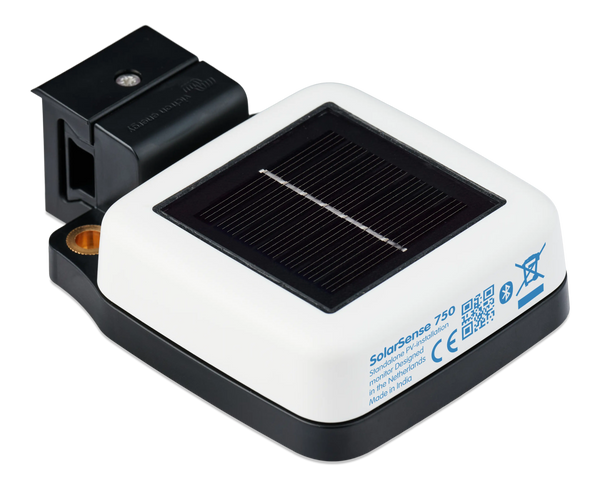

Victron SolarSense 750 - Advanced PV Installation Monitor

Maximise Your Solar Energy Potential

The Victron SolarSense 750 is a standalone, wireless solar monitor designed to optimise photovoltaic (PV) energy usage and monitor the health of your solar installation. Ideal for off-grid and grid-limited systems, it allows you to harness excess PV energy that would otherwise be wasted when batteries are fully charged. The device provides precise real-time data on solar irradiance, estimated solar power, and daily yield, enabling efficient energy management and maximising PV performance.

Optimise Panel Configuration

Acting as a pilot device, the SolarSense 750 helps measure solar output at different locations, orientations, and throughout seasonal changes. This data ensures optimal panel placement and system configuration for maximum energy harvest, supporting both new and expanded PV installations.

Wireless & Self-Powered Design

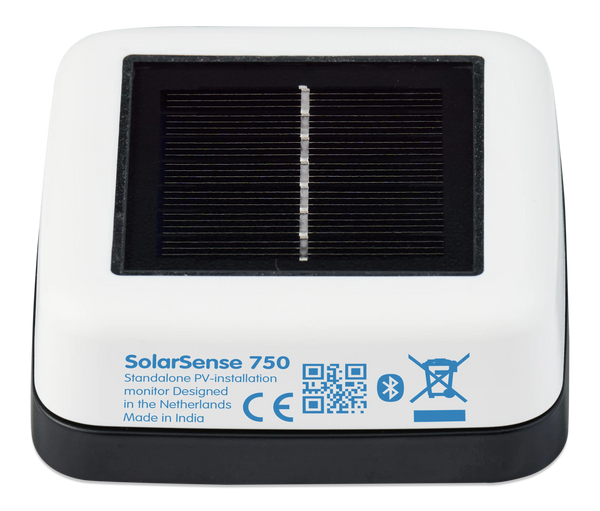

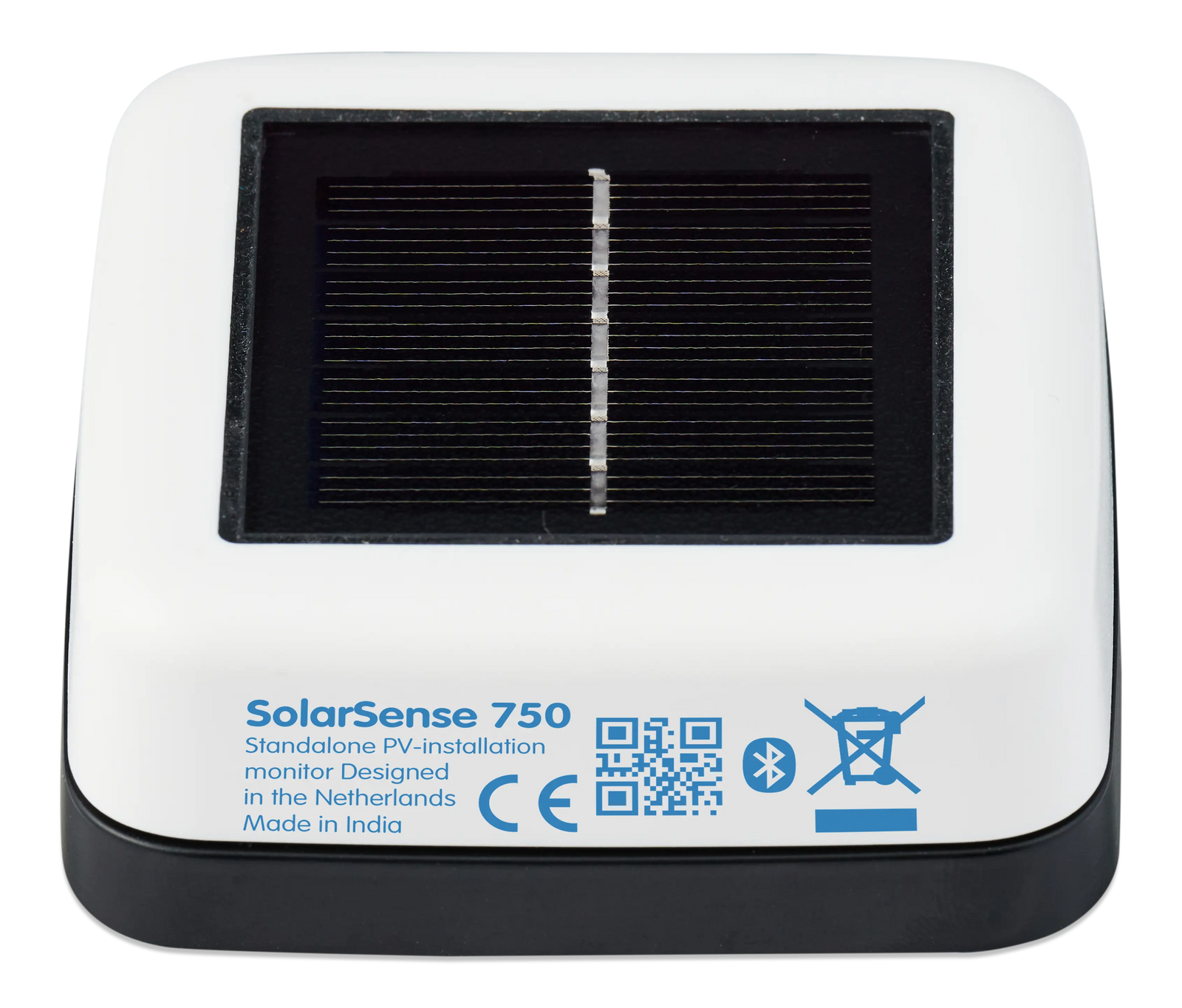

The SolarSense 750 features an integrated solar panel, making it fully self-powered with no external wiring required. Using Instant Readout wireless communication via Bluetooth Low Energy (BLE) advertisements, it provides fast, cable-free installation even in remote or hard-to-reach locations. Its IP65-rated enclosure ensures durability in outdoor environments

Advanced Monitoring & Data Storage

With internal memory, the SolarSense 750 stores:

  • Irradiance, estimated power, and temperature trends for up to 31 days
  • Historical data including max/min daily irradiance, estimated power, temperature, and daily yield for up to 730 days

Monitor your PV system via the VictronConnect app or a GX device, with access to real-time data, historical performance, and trend graphs to optimise energy consumption and detect performance issues.

Installation Made Simple

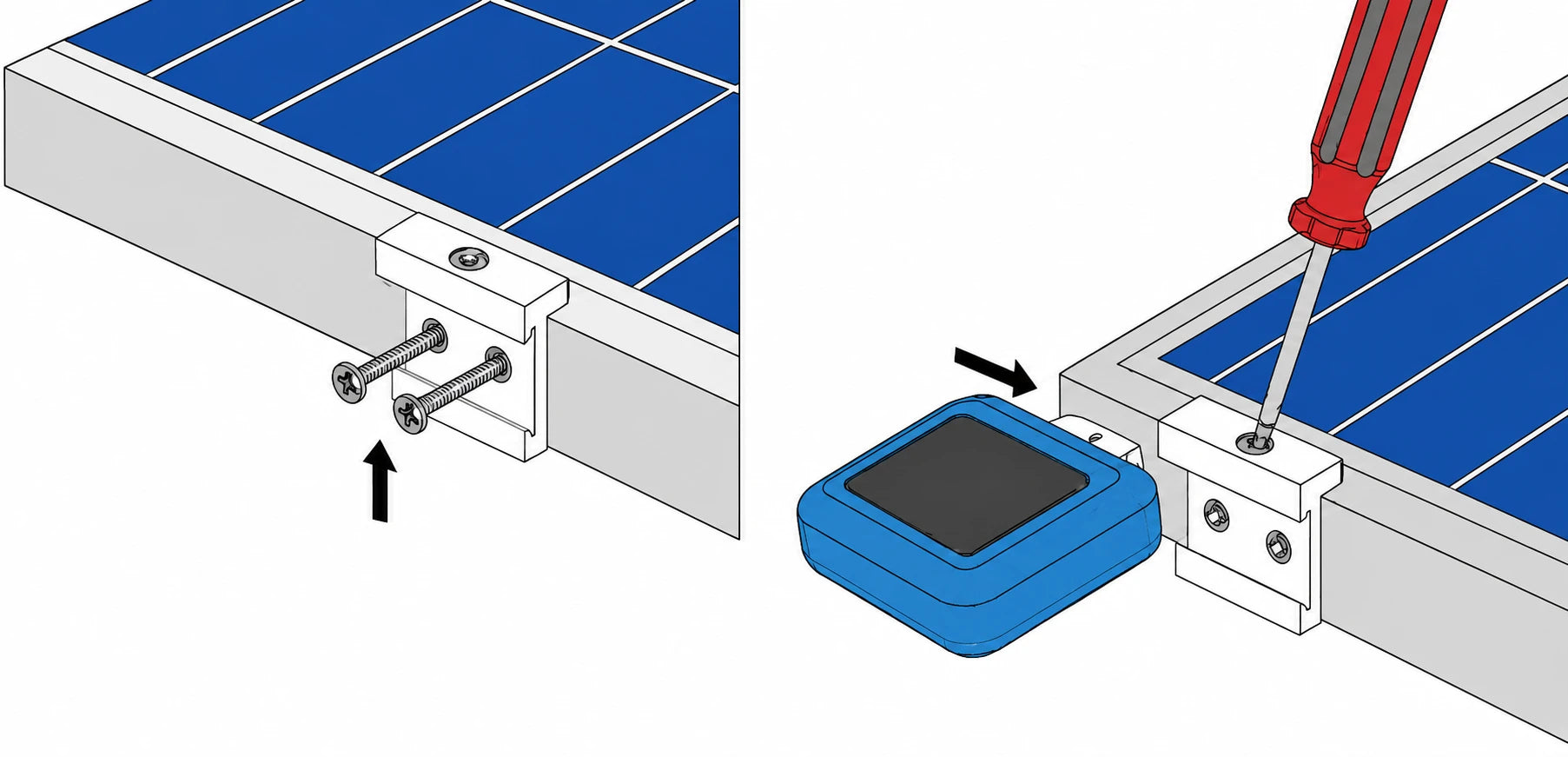

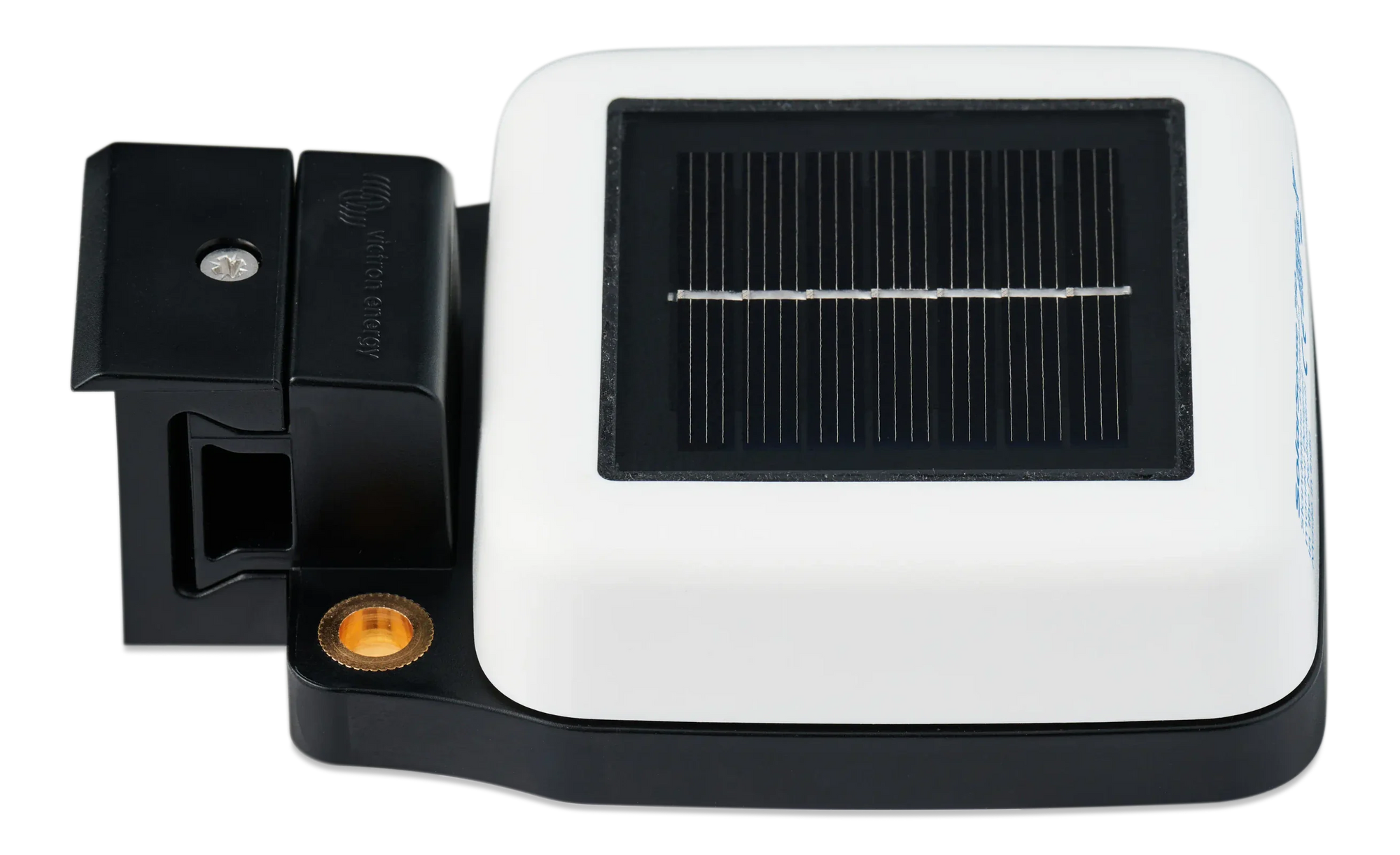

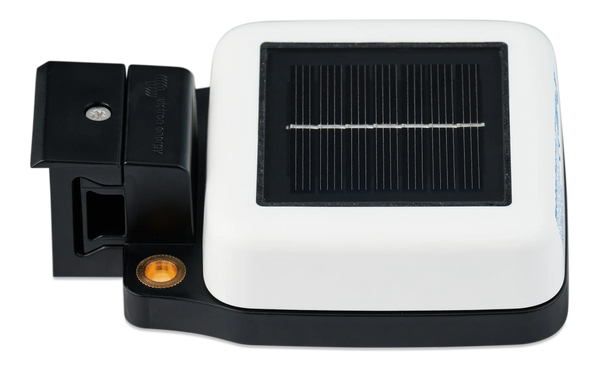

The SolarSense 750 comes with a mounting bracket, alignment ledge, locking screw, and self-drilling screws for secure attachment to solar panel frames. The sensor is easily configured using VictronConnect, where users can set installation peak power and temperature compensation to match system specifications. Monitoring is intuitive with dedicated Status, History, and Trends pages displaying key metrics at a glance.

Applications

  • Off-grid and grid-limited solar systems
  • RVs, caravans, and mobile solar installations
  • Residential and commercial PV installations
  • Energy optimisation for water heating, appliances, and battery management

Maximise the efficiency of your photovoltaic system with the Victron SolarSense 750 – the ultimate wireless PV monitor for smart energy management and performance tracking


SKU: VIC-SLS300175100

SPECIFICATIONS

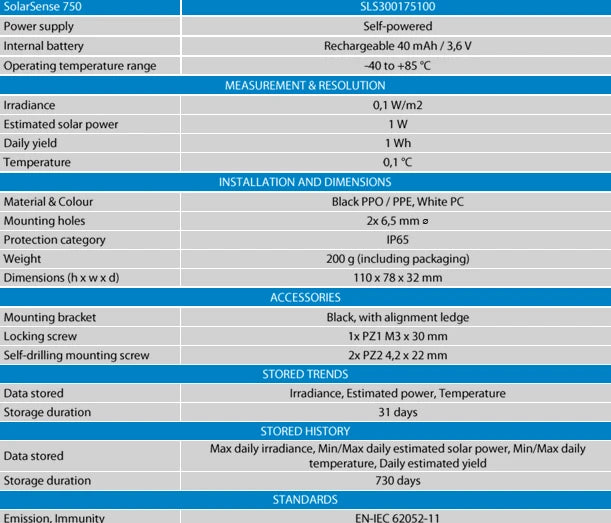

Specifications

Product Victron SolarSense 750 Monitor
Model / Part Number SolarSense 750 (SLS300175100)
Power supply Self-powered
Internal battery Rechargeable 40 mAh / 3.6 V
OPERATING CONDITIONS
Operating temperature range -40°C to +85°C
MEASUREMENT & RESOLUTION
Irradiance resolution 0.1 W/m²
Estimated solar power resolution 1 W
Daily yield resolution 1 Wh
Temperature resolution 0.1 °C
INSTALLATION & DIMENSIONS
Material & Colour Black PPO / PPE, White PC

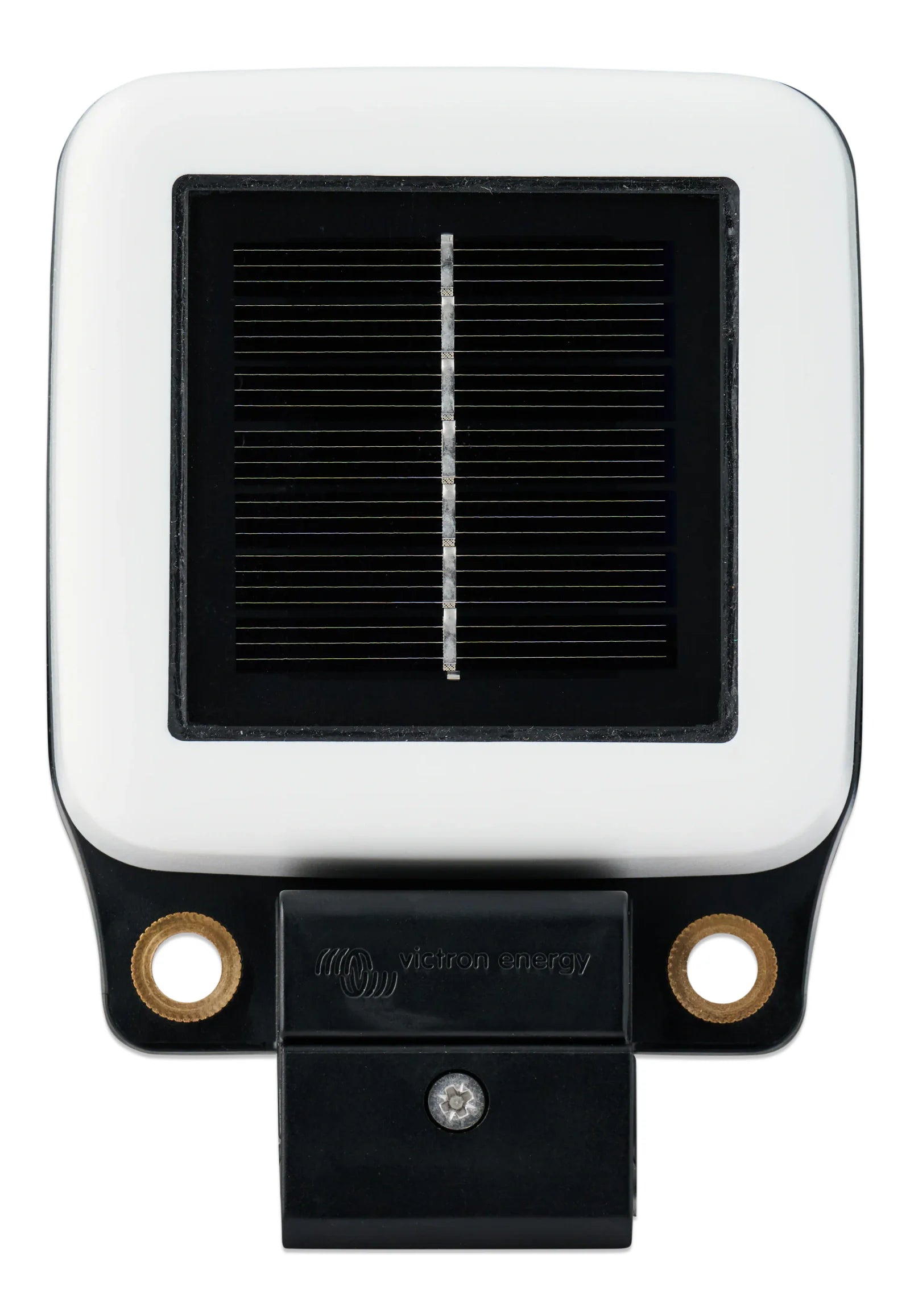

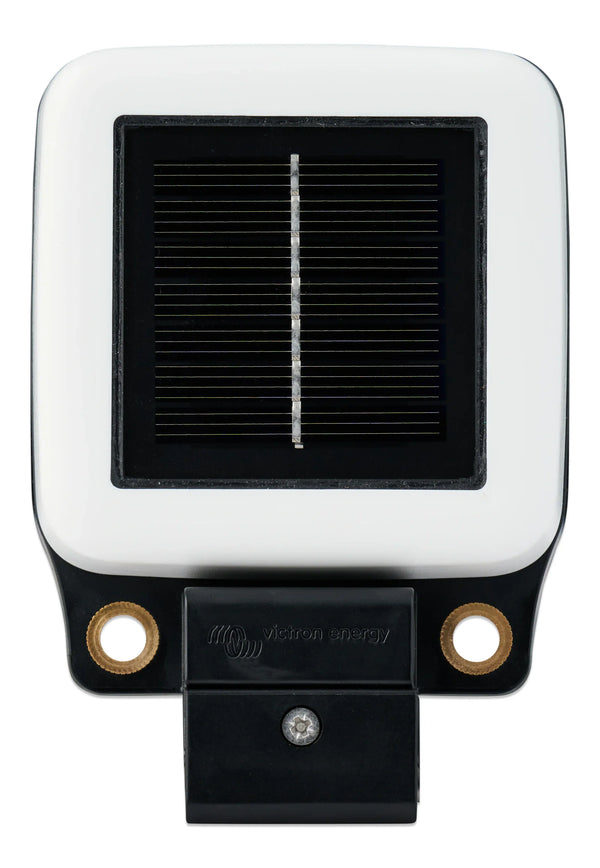

Mounting holes 2 × 6.5 mm ⌀
Protection category IP65

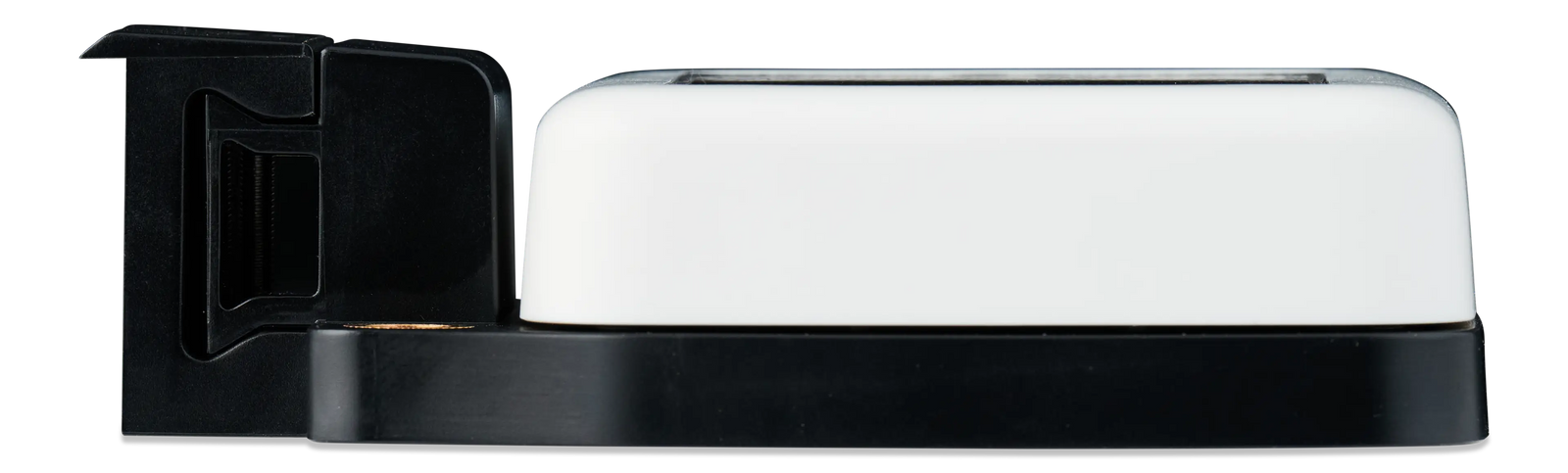

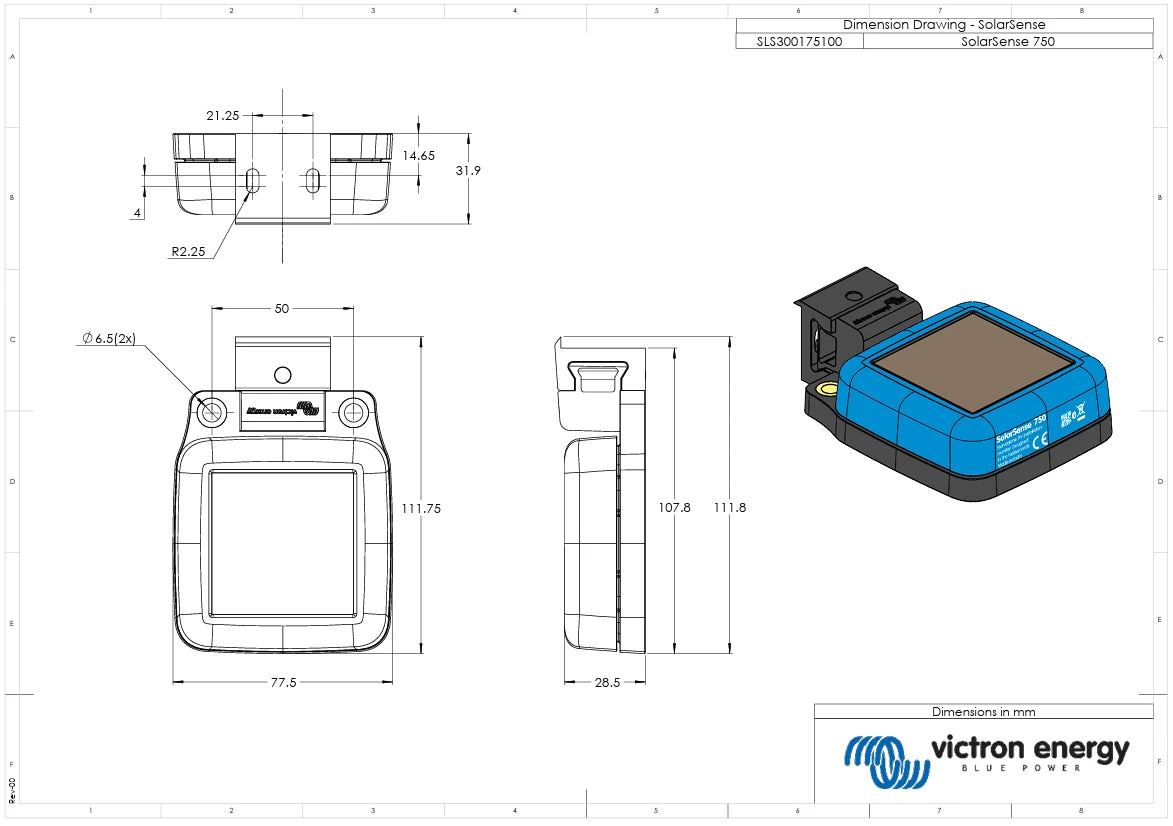

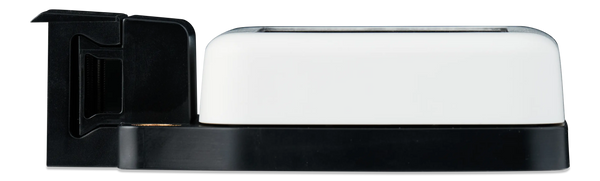

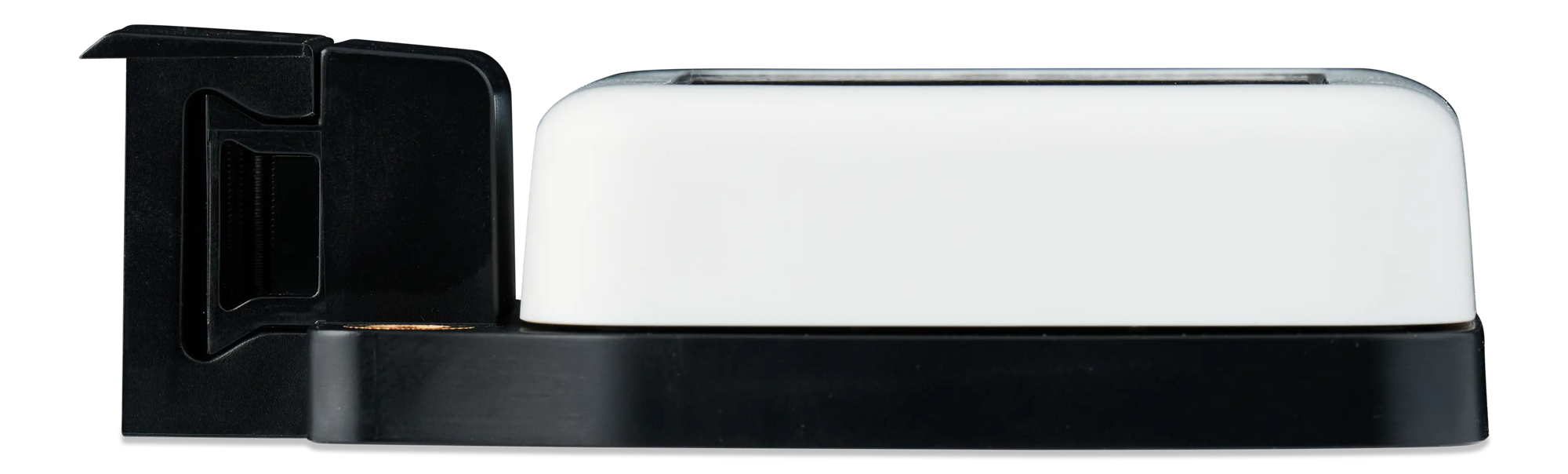

Dimensions (h × w × d) mm 110 × 78 × 32
Weight 200 g (including packaging)
ACCESSORIES (INCLUDED)
Mounting bracket Black, with alignment ledge
Locking screw 1 × PZ1 M3 × 30 mm
Self-drilling mounting screw 2 × PZ2 4.2 × 22 mm
STORED TRENDS
Data stored Irradiance, Estimated power, Temperature
Storage duration 31 days
STORED HISTORY
Data stored Max daily irradiance, Min/Max daily estimated solar power, Min/Max daily temperature, Daily estimated yield
Storage duration 730 days
STANDARDS
Emission, Immunity EN-IEC 62052-11

SKU: VIC-SLS300175100
Barcode: 8719076065685
Model #: SLS300175100
MPN: SLS300175100
