Exotronic 3x 250w Solar Panel & Victron SmartSolar MPPT 100/50 Bundle
High-Capacity Off-Grid TOPCon Solar Power Bundle
DESCRIPTION

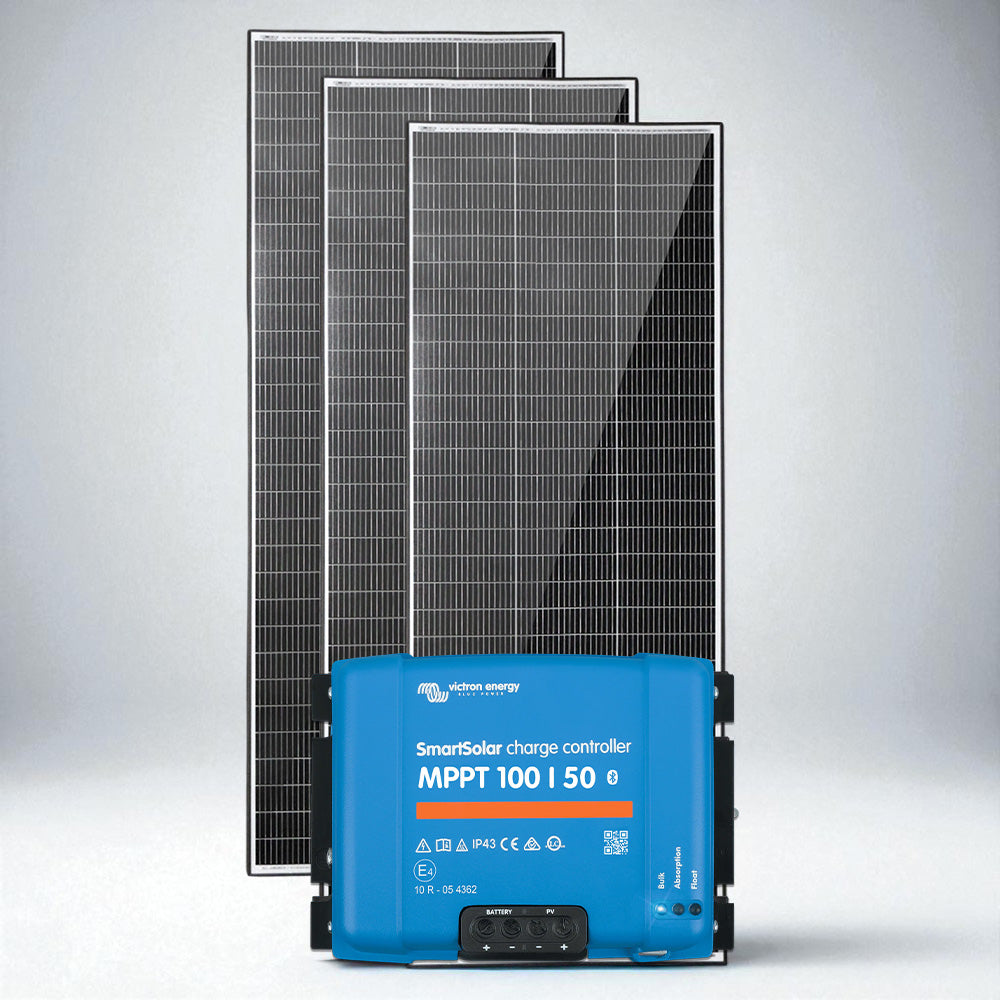

Exotronic 3x 250W Solar Panel & Victron SmartSolar MPPT 100/50 Bundle
Complete Bundle Pack Includes:
- 3x Exotronic 250W Fusion Series TOPCon Solar Panels
- Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller
- 3x Mounting Bracket Kits
- 1x Fix15 Adhesive Sealant (White)
High-Efficiency, High-Capacity Solar Bundle for Off-Grid & Mobile Power Needs
The Exotronic 3x 250W Fusion Series Bundle pairs three powerful 250W N-Type TOPCon solar panels with the advanced Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller, offering exceptional performance, reliability, and maximum efficiency for caravans, RVs, marine vessels, tiny homes, and industrial off-grid applications. Engineered specifically for Australian environments, this bundle provides reliable, efficient energy wherever you need it most.

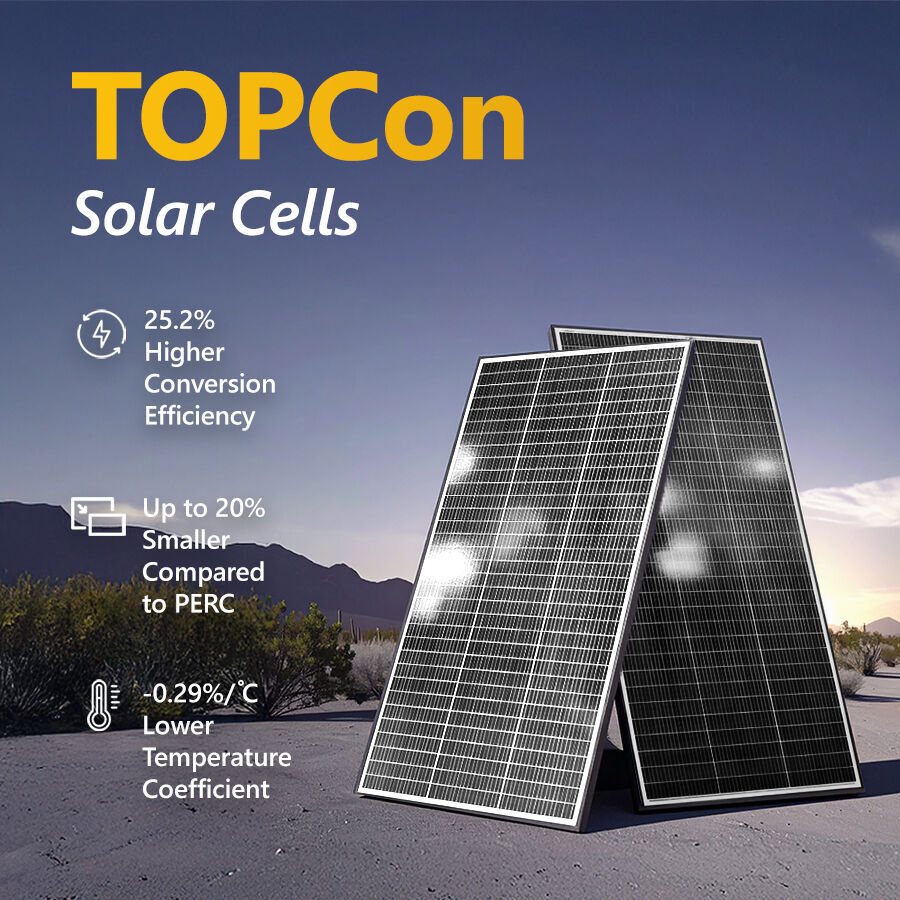

Exotronic 250W Fusion Series TOPCon Solar Panels (3 Panels Included)
These high-performance solar panels feature next-generation N-Type TOPCon cells, achieving an outstanding cell efficiency of 25.2%, significantly surpassing conventional monocrystalline and standard PERC modules. With exceptional low-light and shading performance, these panels ensure maximum energy generation in various environmental conditions, making them ideal for both mobile and stationary off-grid systems.
Key Advantages of Exotronic 250W Fusion Series Panels:
- High-efficiency 25.2% N-Type TOPCon solar cells maximize power generation
- Lightweight yet robust construction rated for extreme wind.
- Compact and easy-to-install for mobile or limited-space applications

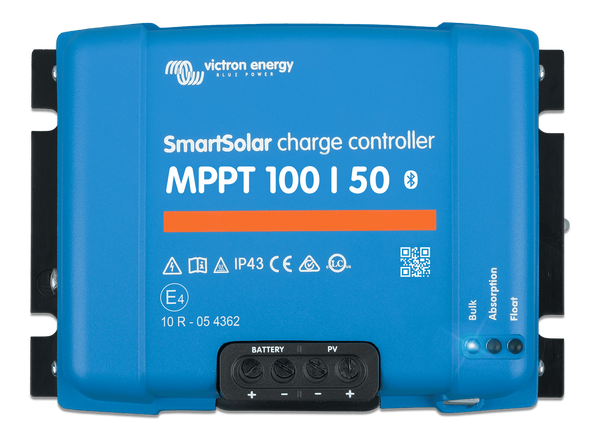

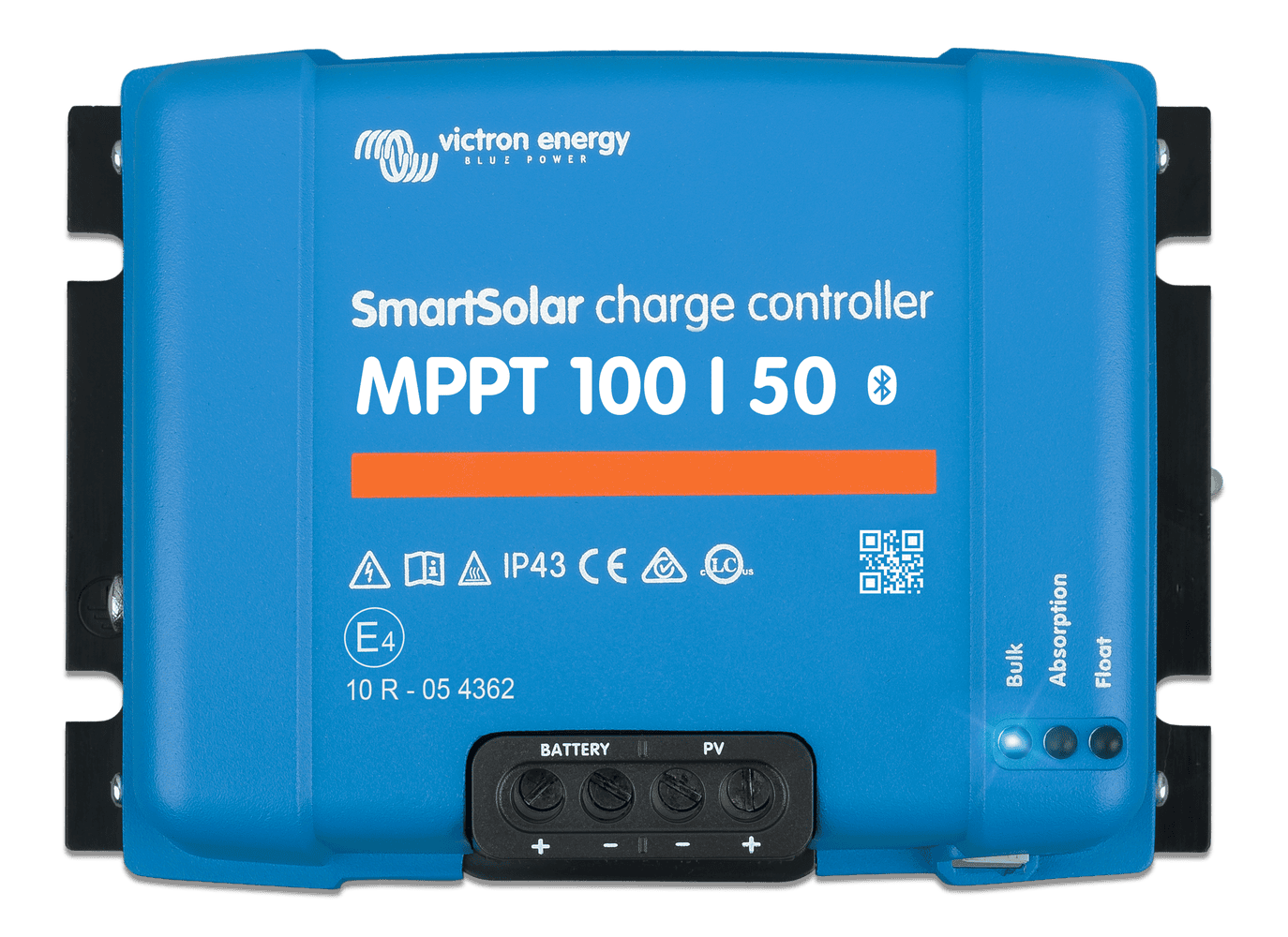

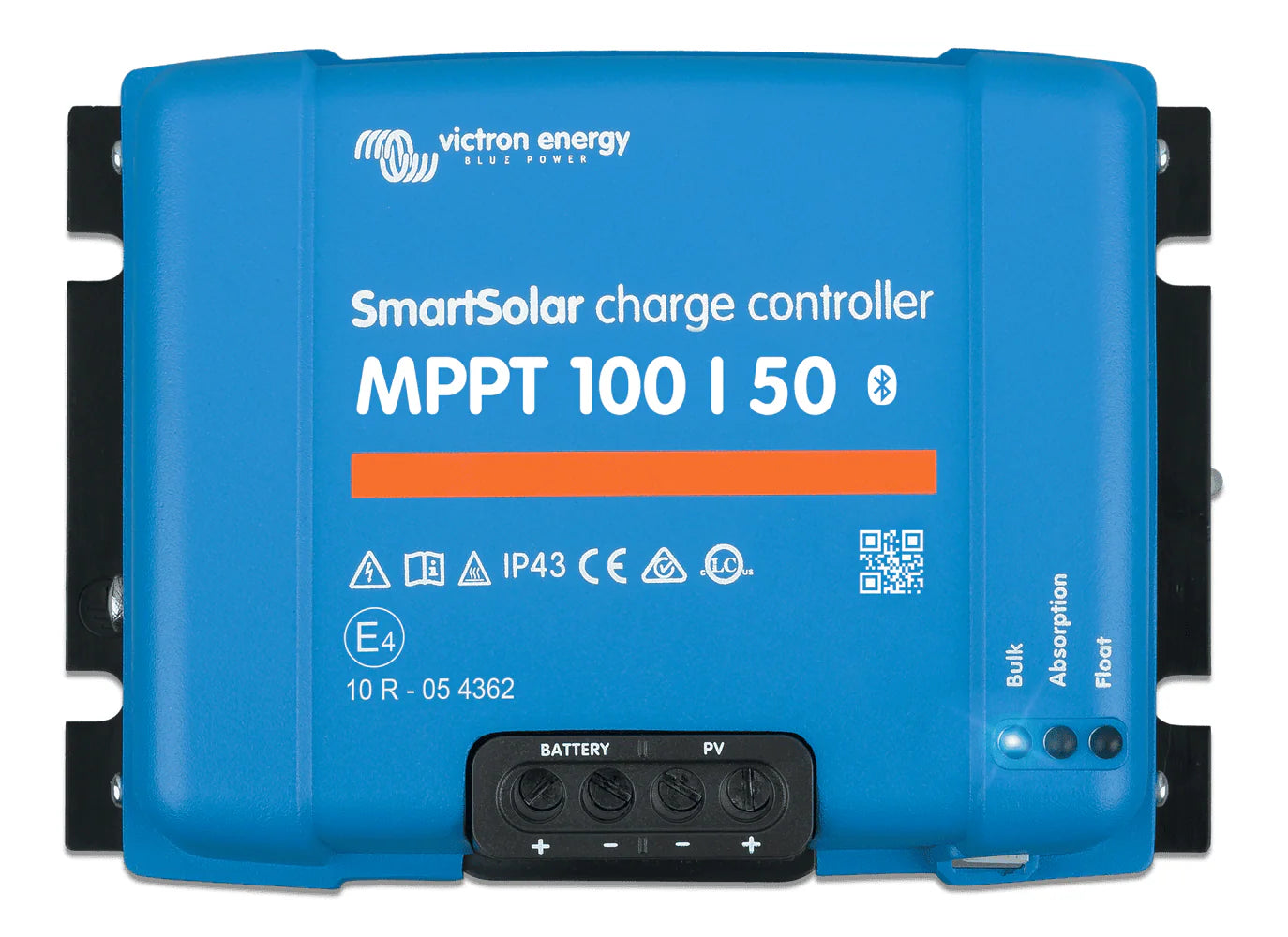

Victron 12/24V SmartSolar MPPT 100/50 Bluetooth Charge Controller
The included Victron SmartSolar MPPT 100/50 Charge Controller efficiently captures and manages solar energy, providing up to 30% greater energy yield compared to traditional PWM controllers. Integrated Bluetooth connectivity allows easy system monitoring and control from your smartphone, ensuring optimized charging performance and extended battery life.
Key Benefits of Victron SmartSolar MPPT 100/50 Controller:
- Ultra-fast MPPT technology optimizes solar energy capture
- Built-in Bluetooth enables real-time wireless monitoring and management
- Outstanding efficiency consistently exceeding 98%
- Fully customizable charge profiles tailored to battery requirements
- Comprehensive electronic protection against overheating, short circuits, and reverse polarity
Ready to Power Your Next Off-Grid Adventure?
Invest in the Exotronic 3x 250W Fusion Series Bundle today and experience exceptional solar power efficiency, durability, and reliability, no matter where your off-grid journey takes you.
SKU: Exo-Vic-3x250-100-50-00
SPECIFICATIONS
Specifications
Exotronic 250W Fusion TOPCon Solar Panel
Electrical Characteristics |
|||||||||
| Model | Power (W) | Dimensions (mm) | Weight (kg) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | ||
| Exo-SP-TCN-250 | 250 | 1715x670x25 | 11.2 | 18.6 | 13.44 | 21.7 | 14.7 | ||
Temperature Ratings |
|
| NMOT | 41C +/-3C |
| Temperature Coefficient of Pmax | -0.37%/C |
| Temperature Coefficient of Voc | -0.29%/C |
| Temperature Coefficient of Isc | 0.05%/C |
Maximum Ratings |
|
| Operating Temperature | -40 - +85C |
| Maximum System Voltage | 1000VDC |
| Maximum Fuse Rated Current | 15A |
Mechanical Characteristics |
|
| Front | 3.2mm Tempered Glass |
| Frame | Black Anodized Aluminium Alloy |
| Junction Box | IP65 |
| Connectors | MC4 Compatible |
Victron 12/24V 50A SmartSolar MPPT 100/50 Bluetooth Solar Charge Controller
| SmartSolar Charge Controller | MPPT 100/50 |
|---|---|
| Battery voltage | 12/24 V Auto Select |
| Rated charge current | 50 A |
| Nominal PV power, 12 V (1a,b) | 700 W |
| Nominal PV power, 24 V (1a,b) | 1400 W |
| Maximum PV open circuit voltage | 100 V |
| Max. PV short circuit current (2) | 60 A |
| Maximum efficiency | 98 % |
| Self-consumption | 12 V: 30 mA, 24 V: 20 mA |
| Charge voltage 'absorption' | Default setting: 14,4 V / 28,8 V (adjustable) |
| Charge voltage 'float' | Default setting: 13,8 V / 27,6 V (adjustable) |
| Charge algorithm | multi-stage adaptive |
| Temperature compensation | -16 mV / °C resp. - 32 mV / °C |
| Protection | PV reverse polarity, Output short circuit, Over temperature |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
| Data communication port | VE.Direct |
| Enclosure Colour | Blue (RAL 5012) |
| Power terminals | 16 mm² / AWG6 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 1,3 kg |
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
| Safety Standards | EN/IEC 62109- 1, UL 1741, CSA C22.2 |
| Stored Trends Data | Battery voltage, current and temperature, as well as load output current, PV voltage and PV current. |
| Number of days trends data is stored | 46 |
Notes:
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2A PV array with a higher short circuit current may damage the controller.
| SKU: | Exo-Vic-3x250-100-50-00 |
WARRANTY
Exotronic Panel - 5 year warranty - please read full warranty statement for details
Victron - 5 year warranty - please read full warranty statement for details
Wiring kit and accessories - 1 year warranty
