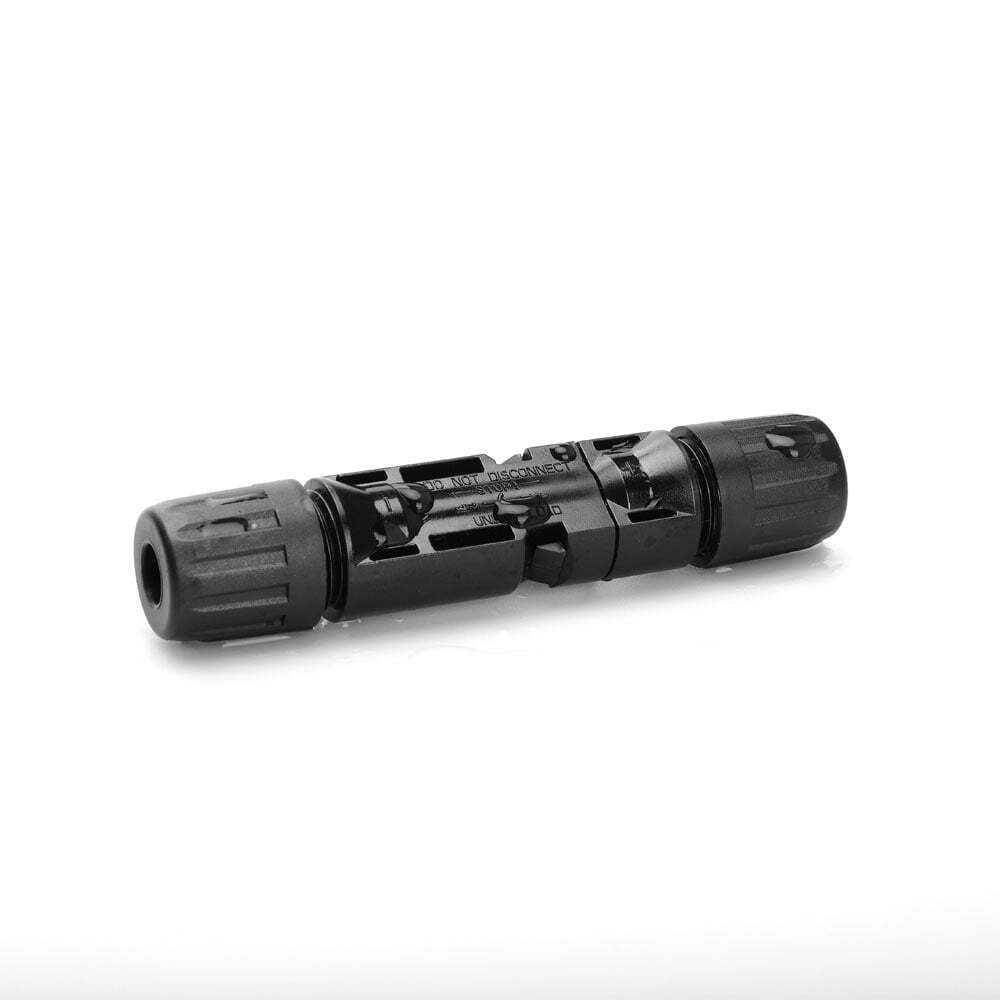

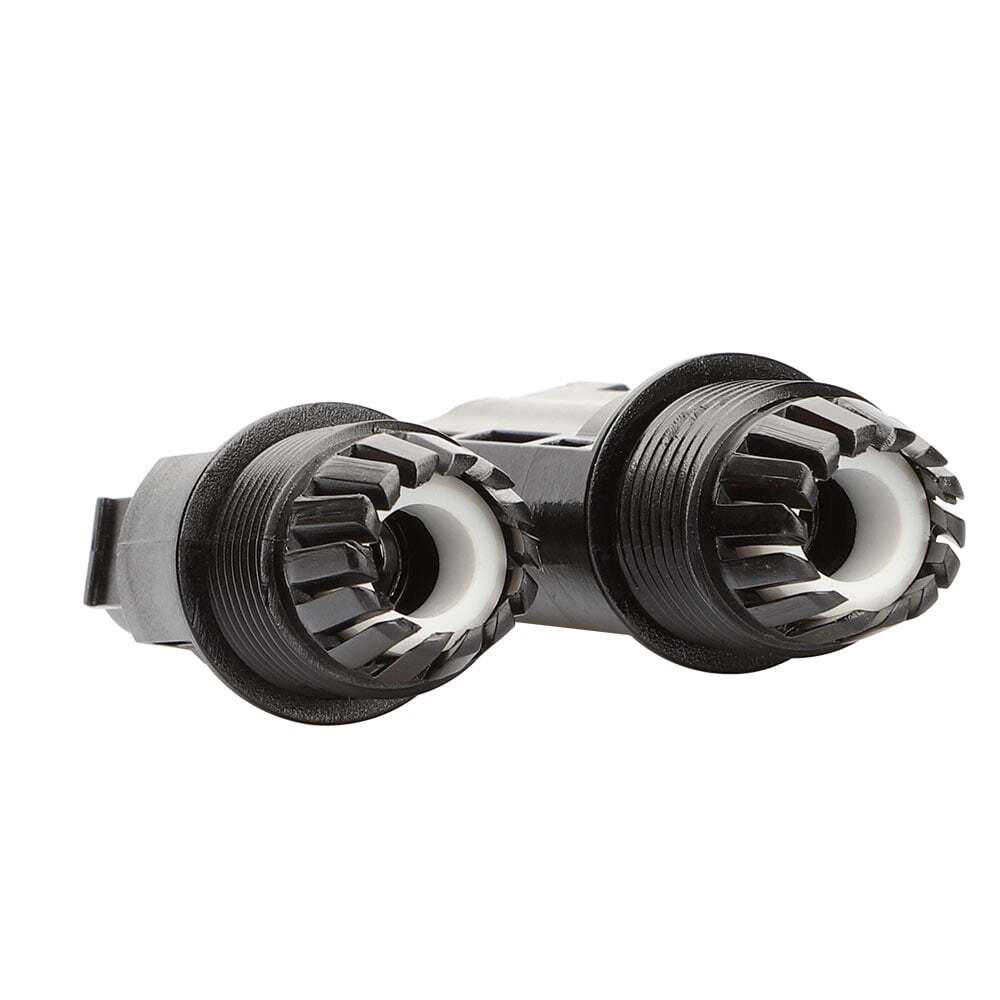

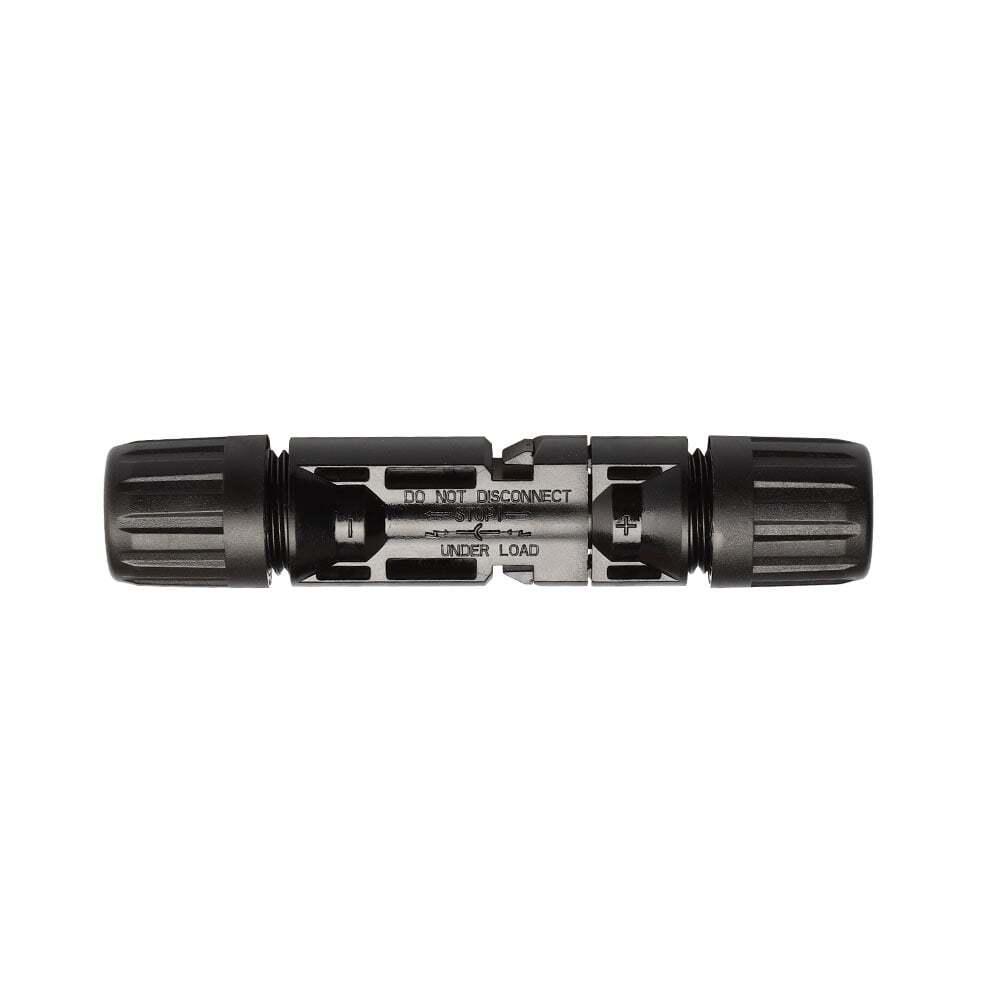

Exotronic Solar Connector Pair

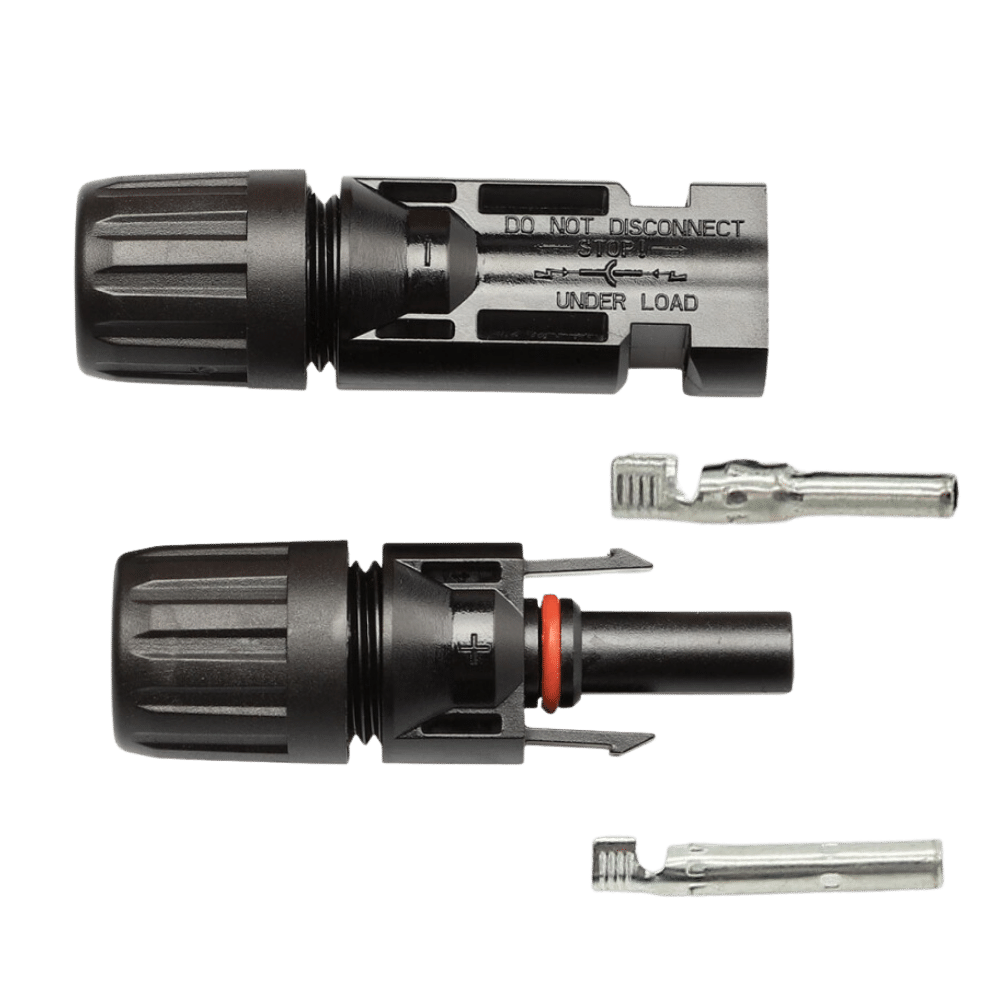

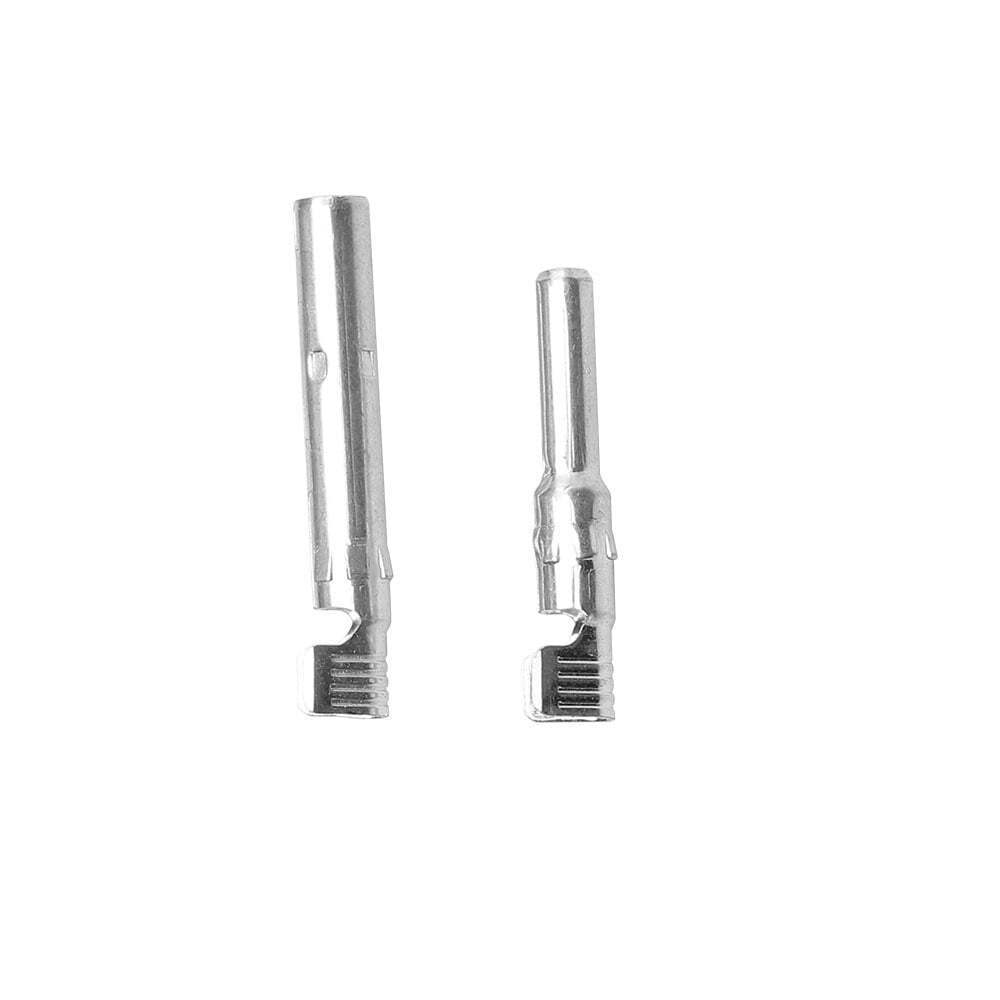

1 Pair = 1 Male & 1 Female incl. Contacts


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
7117

DESCRIPTION

Exotronic MC4 Compatible Connector Pair: The Ideal Choice for Solar Panel Connectivity

Introducing the Exotronic MC4 Compatible Solar Connector Pair – your reliable solution for secure and efficient solar panel connections. These connectors are expertly designed to meet the demands of any solar power system, from small RV setups to large-scale off-grid installations.

Weather-Resistant Design for Uninterrupted Power Supply

Featuring a robust IP67 waterproof and dustproof rating, these connectors ensure a consistent power flow even in harsh weather conditions. The high withstand voltage of DC 1000V makes them suitable for a variety of solar applications. Constructed with top-quality tinned copper, these connectors provide excellent conductivity and corrosion resistance.

Durable Materials for Long-Lasting Solar Connections

The use of PC/PPO as insulation material enhances durability, while the copper alloy with tin plating ensures a stable and long-lasting connection. The connectors operate efficiently within a wide temperature range of –40°C to +90°C, making them versatile for different climates.

Advanced Safety Features for Reliable Solar Installations

Safety and reliability are paramount with these connectors. They come with a snap-in locking system for secure attachment, have a low contact resistance of 0.5mΩ, and meet the UL94-V0 flame class standard. Rated for currents up to 30A, these connectors are compatible with a range of wire sizes, making them a flexible choice for your solar energy needs.

Choose the Exotronic MC4 Compatible Solar Connector Pair for a seamless solar experience, ensuring your panels are connected safely, efficiently, and reliably.


SKU: Exo-MC4-1000V

SPECIFICATIONS

Specifications

Specification Details
Waterproof and Dustproof (Mated) IP67
Waterproof and Dustproof (Unmated) IP2X
Rated Voltage 1000V DC (IEC)
Contact Material Tinned Copper
Insulation Material PC/PPO
Contact Material Copper Alloy, Tin Plated
Temperature Range –40°C to +90°C (IEC)
Upper Temperature Limit +105°C (IEC)
Degree of Protection (Mated) IP67
Degree of Protection (Unmated) IP2X
Flame Class UL94-V0
Locking System Snap-in
Contact Resistance of Plug Connectors 0.5mΩ
Safety Class II
Test Voltage 6kV (50Hz, 1min)
Salt Mist Spray Test, Severity Degree 5 (according to IEC 60068-2-52)
Rated Current 17A (1.5mm²), 22A (2.5mm²; 14AWG), 30A (4mm², 6mm²; 12AWG, 10AWG)

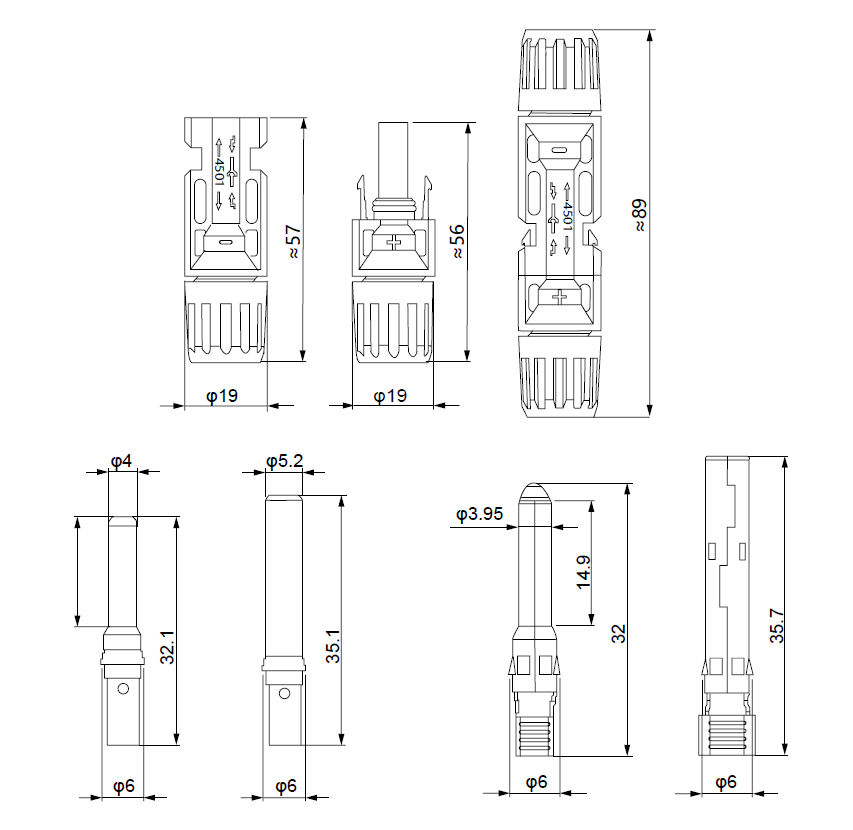

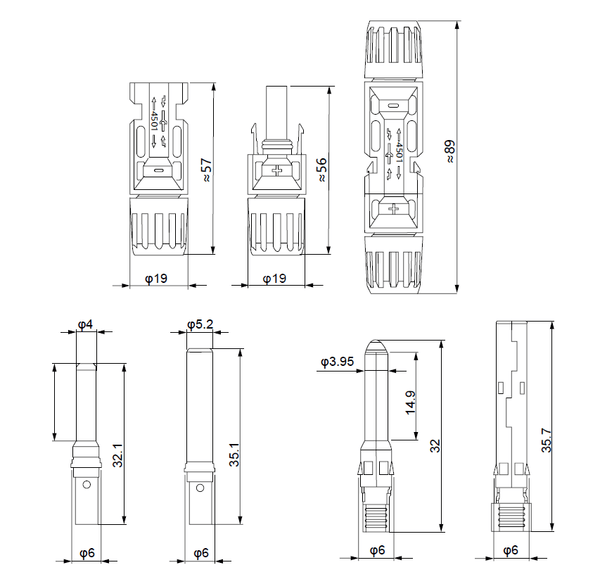

Connector System Ø 4 mm

SKU: Exo-MC4-1000V
Barcode: 9361784001272
Model #: Exo-MC4-1000V
MPN: Exo-MC4-1000V
