Exotronic 4-Way MIDI & 2-Way MEGA Fuse Holder
Dual MEGA Slots for Inverters & Accessories
DESCRIPTION

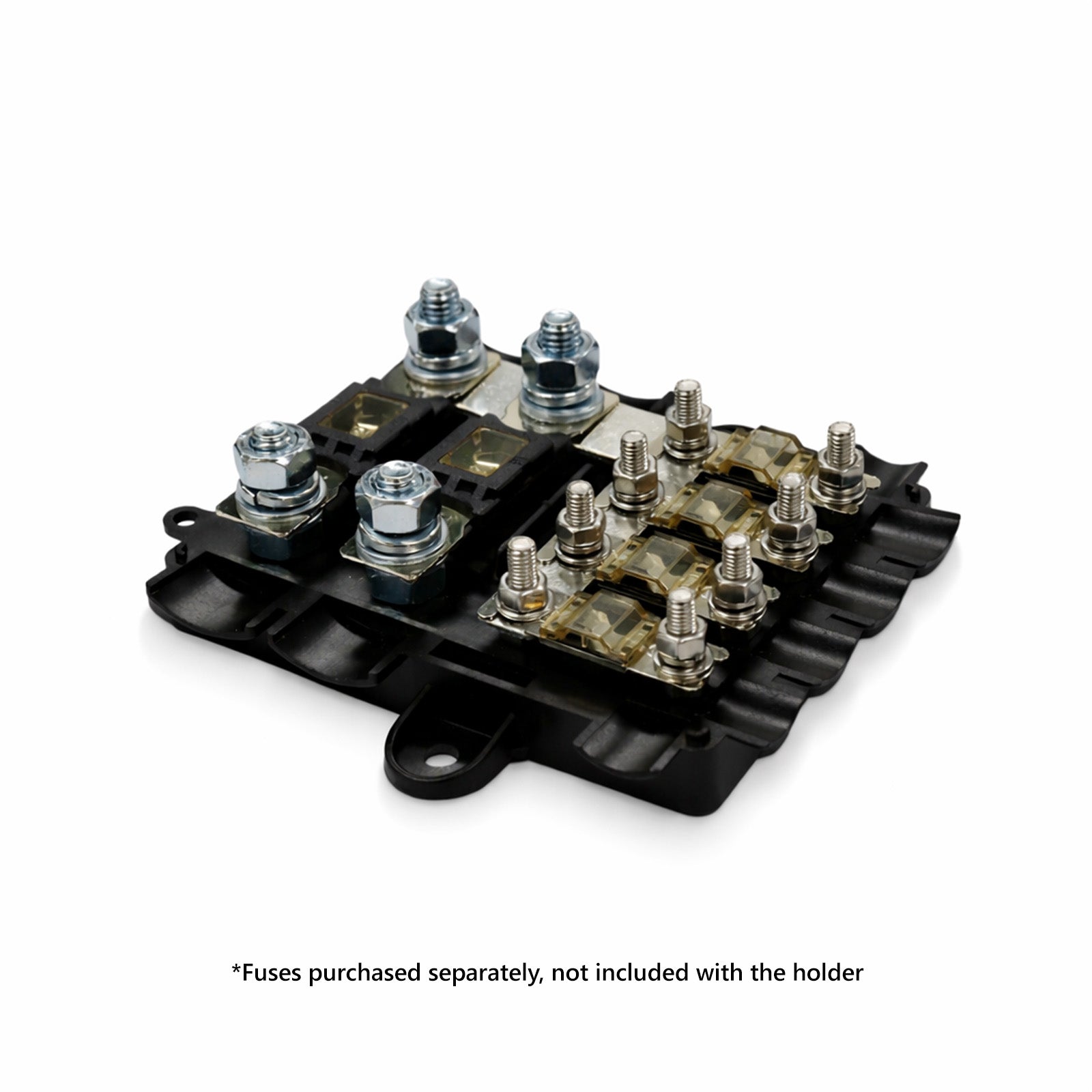

Exotronic 4-Way MIDI & 2-Way MEGA Fuse Holder
Complete High-Power Distribution Hub
Maximize your system's potential with the Exotronic 4-Way MIDI & 2-Way MEGA Fuse Holder. This expanded hybrid unit takes power distribution to the next level by offering two high-amperage MEGA fuse positions alongside four MIDI circuits. It is the ultimate solution for complex dual battery systems, allowing you to protect your main charging input and run a high-draw appliance (like an Inverter) from a single, compact unit.
Key Features
High-Quality Construction

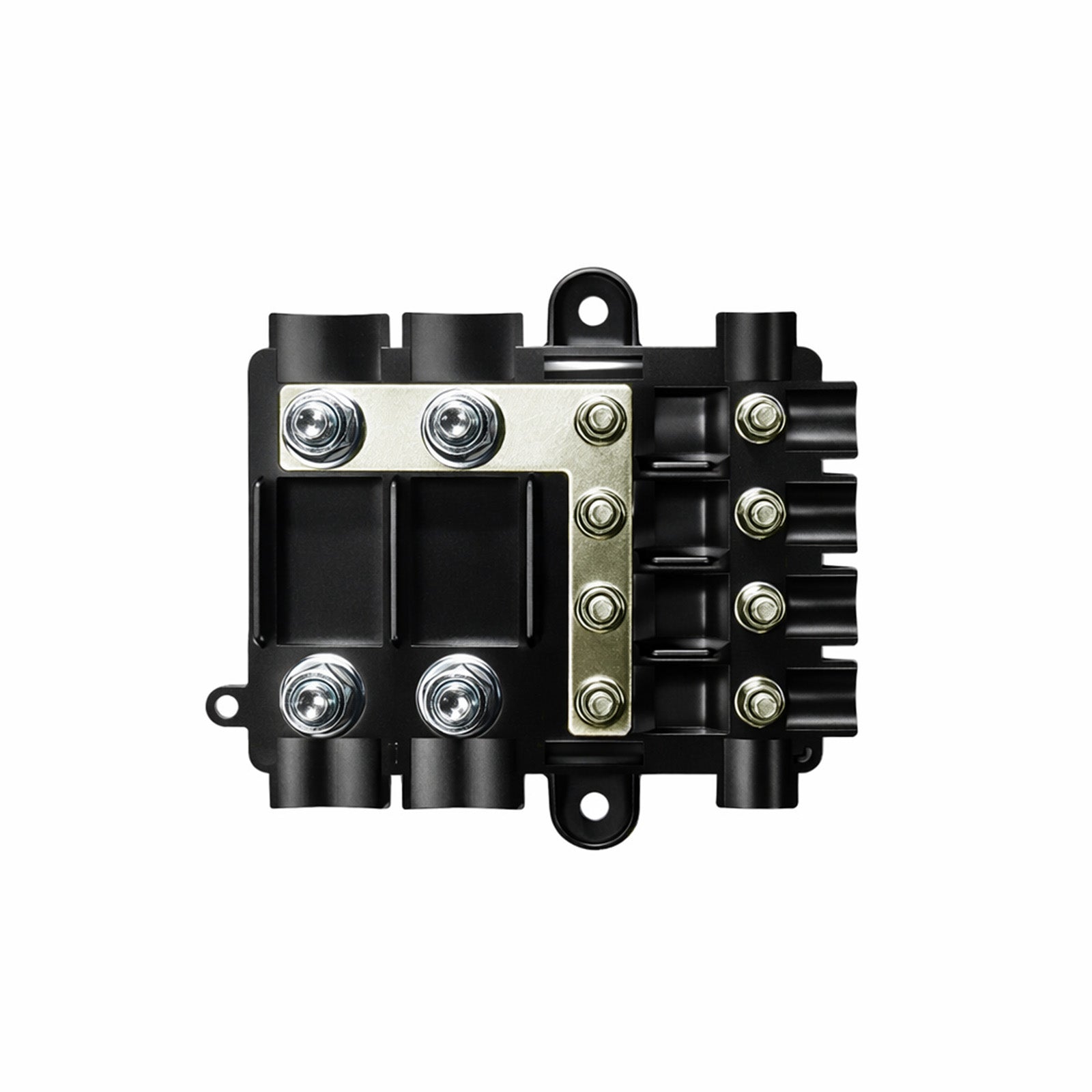

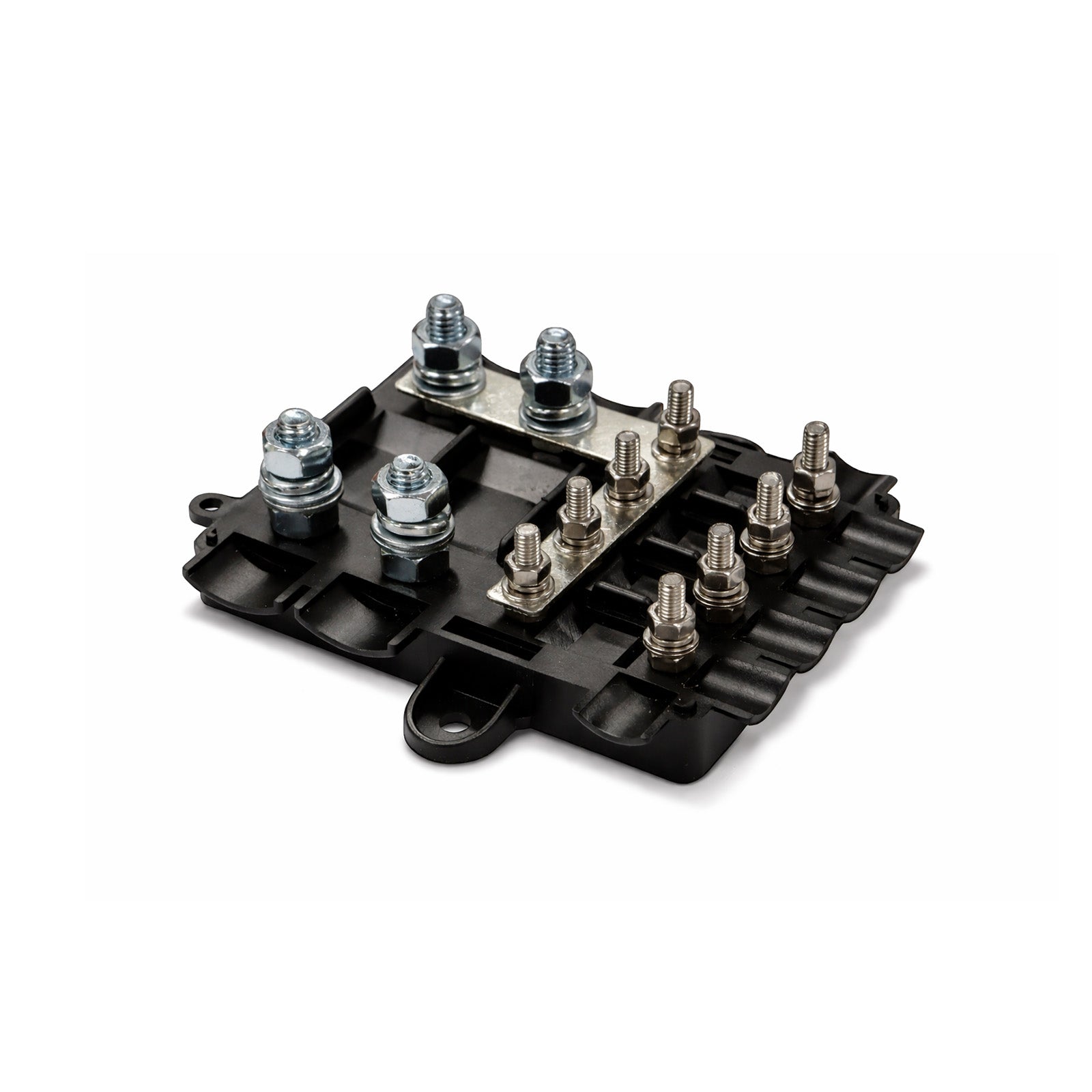

- Tinned Copper Busbar: Features a high-conductivity tinned copper busbar for excellent electrical performance and corrosion resistance, suitable for marine and harsh environments.
- Durable Housing: Made from robust, heat-resistant nylon materials designed to withstand the conditions of engine bays and off-road travel.

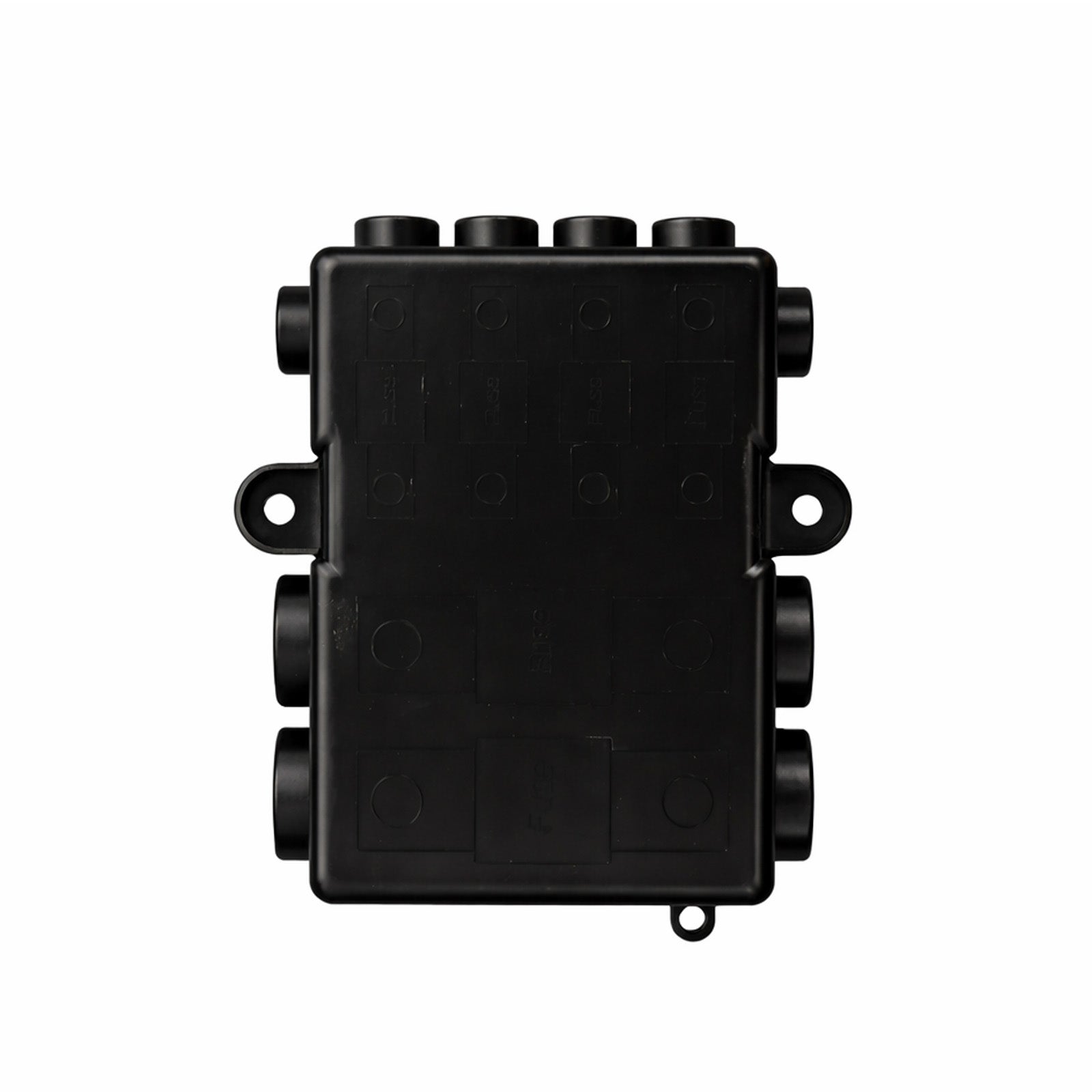

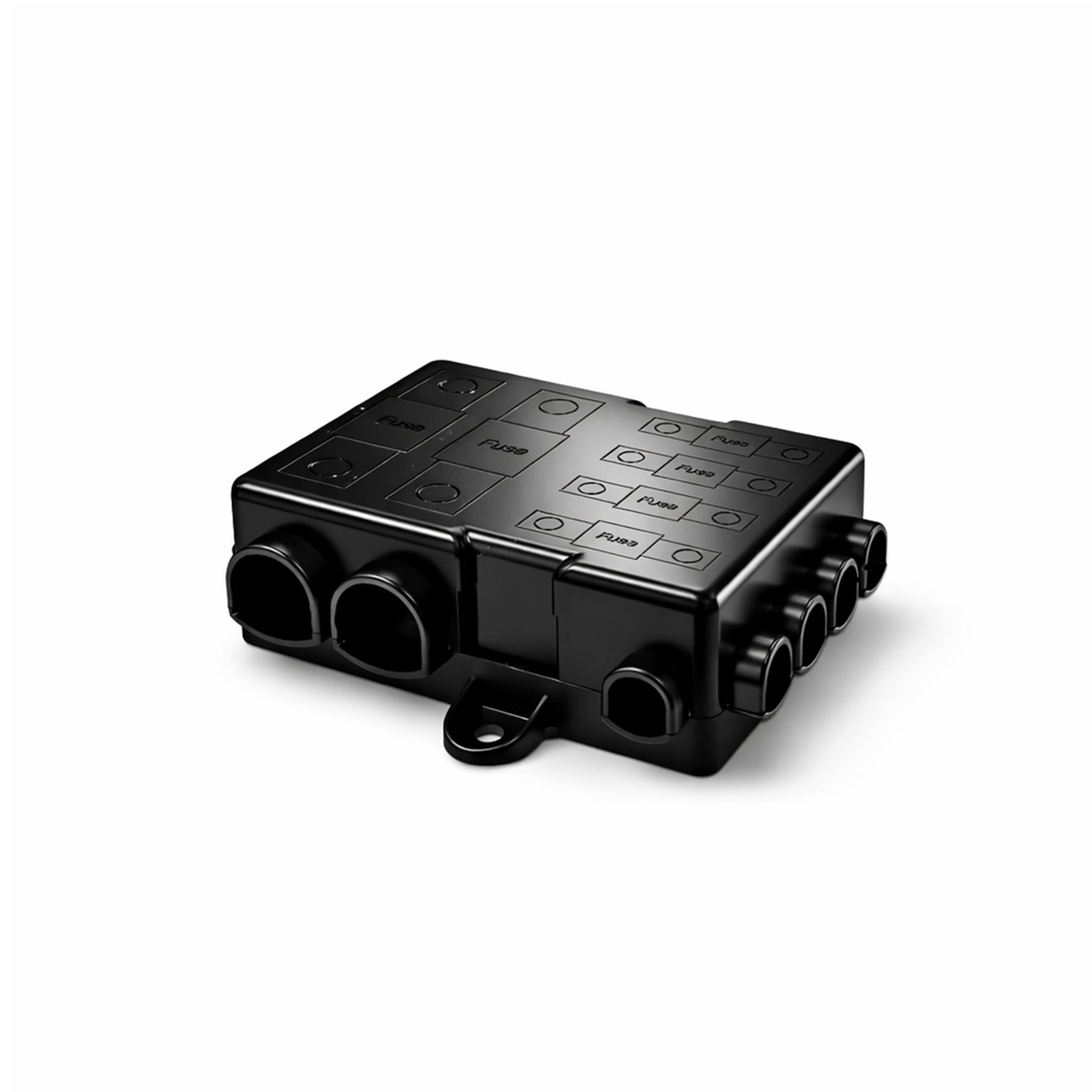

- Protective Cover: Includes a clip-on protective cover to prevent accidental shorts and shield connections from debris.
Expanded Hybrid Configuration
-
Dual MEGA Fuse Slots:
- Primary Use: Ideal for fusing the Main Input (Battery Source) and a High-Current Output (e.g., Inverter or Winch) simultaneously.
- 4-Way MIDI Output: Distributes power via the busbar to four separate MIDI fuse circuits, perfect for DC-DC chargers, fridges, fuse boxes, or lighting circuits.
- High Current Capacity: Rated for a maximum continuous current of 250A, ensuring it handles the load of modern lithium systems and heavy-duty equipment.
Safety and Convenience
- Centralized Power: Eliminates the need for separate fuse holders for your Inverter and Accessories, saving space and reducing cabling.
- Secure Connections: Features heavy-duty threaded studs to ensure cables remain tight and vibration-proof.
Ideal Applications
- Complex 4x4 Setups: Run your main power in, an Inverter out, and all your canopy accessories from one spot.
- Marine: Tinned copper components ensure reliable power distribution on boats where corrosion is a concern.
- Camper Vans: The cleanest way to wire a lithium battery bank to a 2000W inverter and a 12V distribution panel.
Upgrade your power distribution setup with the Exotronic 4-Way MIDI & 2-Way MEGA Fuse Holder. Ensure safety, efficiency, and reliability for all your high-power electrical needs.
Note: MIDI and MEGA Fuses sold separately.
Order now and secure your electrical system with the best in the market!
SKU: Exo-FH-Mid-MI2-4
SPECIFICATIONS
Product Specifications
| Max. Voltage Rating | 32V DC |
| Max. Continuous Current | 250A |
| Busbar Material | Tinned Copper |
| Stud Configuration | 3x M8 (MEGA Input/Output) / 8x M5 (MIDI Output) |
| Operating Temperature | -40°C to +125°C |
| Recommended Torque | M8: 12-15Nm / M5: 4-5Nm |
| Base Material | UL 94V-0 Glass-Filled Nylon |
| Stud/Nut Material | Zinc-Plated Steel |
| SKU: | Exo-FH-Mid-MI2-4 |
| Model #: | Exo-FH-Mid-MI1-4 |
| MPN: | Exo-FH-Mid-MI1-4 |
