Exotronic ANL Fuse 500A
DESCRIPTION
Exotronic ANL Fuse: Superior Protection for Your Electrical Systems
Enhance the safety and efficiency of your electrical systems with the Exotronic ANL Fuse. This robust and reliable fuse is specifically designed to protect electrical circuits up to 125VDC, ensuring reliable operation and effective current limitation.
High Breaking Force and Temperature Range
Our Exotronic ANL Fuses offer a high breaking force of 6000A@58VDC, providing reliable protection in overcurrent scenarios, ideal for large lithium battery banks. They are designed to operate within a wide temperature range of -32C to 125C, ensuring consistent performance across diverse conditions.
Quality Material for Optimal Performance
Constructed from gold-plated copper alloy terminals and a ceramic housing, these fuses offer exceptional durability, electrical conductivity, and heat resistance. The bolt-on, slide on/off style allows for easy installation and removal, enhancing the maintenance efficiency of your electrical system.
Versatile Fuse Range for Various Applications
Exotronic ANL Fuses are available in a range of current ratings from 40A to 600A, ensuring the right fit for your specific needs. Whether you're working with automotive electronics, household appliances, or other high-current applications, these fuses provide reliable and efficient protection for your electrical circuits.
Choose Exotronic ANL Fuses for dependable protection of your electrical circuits. Experience the blend of precision, quality, and reliability that only Exotronic can deliver.
SKU: Exo-Fu-ANL-500
SPECIFICATIONS
Specifications
Details | |
| Breaking Force | 6000A@58VDC |
| Voltage Rating | 125VDC |
| Operating Temperature Range | -32C to 125C |
| Terminals | Gold plated copper alloy |
| Housing Material | Ceramic |

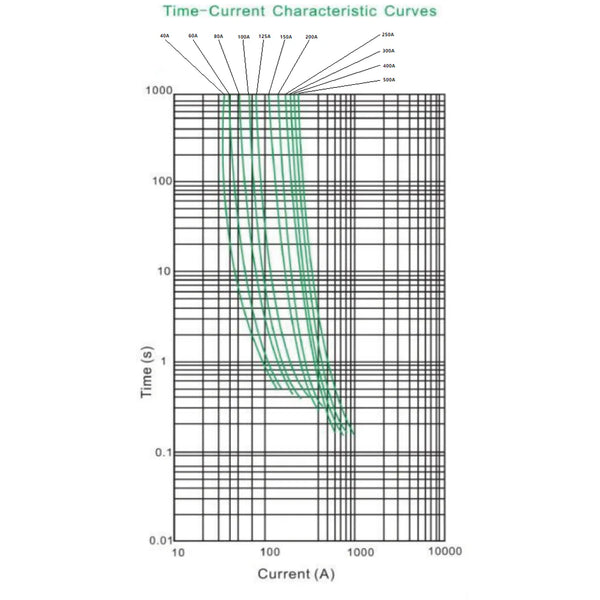

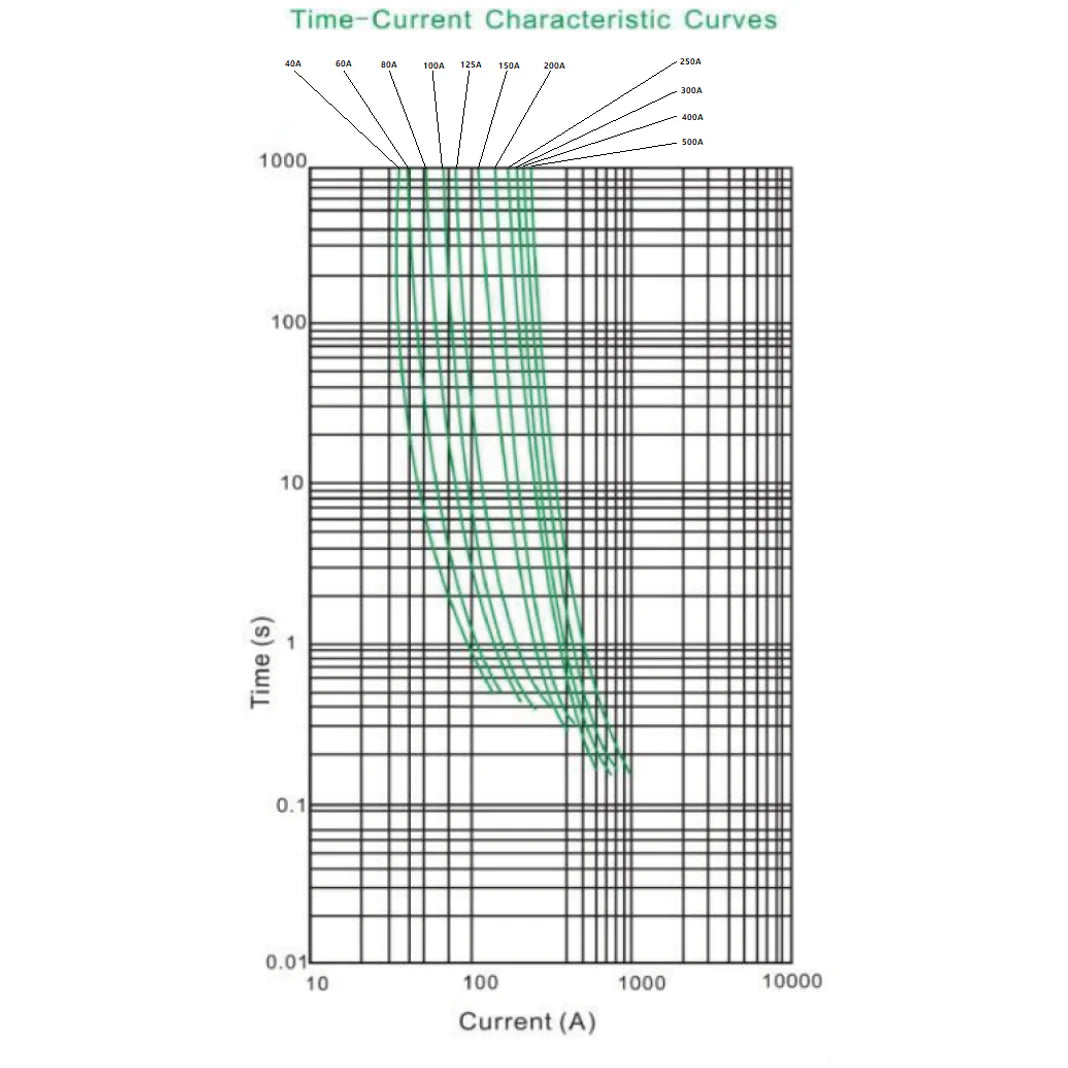

Operating Time 40-200A | ||
| % of Rating | Minimum | Maximum |
| 150 | 1hr | ꝏ |
| 220 | 2s | 60s |
| 250 | 0.8s | 10s |
| 400 | 0.2s | 2s |
Operating Time 250-600A | ||
| % of Rating | Minimum | Maximum |
| 160 | 60s | ꝏ |
| 220 | 2s | 60s |
| 250 | 0.8s | 10s |
| 400 | 0.2s | 2s |
Fuse Range | |
| Part Number | Current Rating |
| Exo-Fu-ANL-040 | 40 |
| Exo-Fu-ANL-060 | 60 |
| Exo-Fu-ANL-080 | 80 |
| Exo-Fu-ANL-100 | 100 |
| Exo-Fu-ANL-125 | 125 |
| Exo-Fu-ANL-150 | 150 |
| Exo-Fu-ANL-175 | 175 |
| Exo-Fu-ANL-200 | 200 |
| Exo-Fu-ANL-250 | 250 |
| Exo-Fu-ANL-300 | 300 |
| Exo-Fu-ANL-400 | 400 |
| Exo-Fu-ANL-500 | 500 |
| Exo-Fu-ANL-600 | 600 |
| SKU: | Exo-Fu-ANL-500 |
| Barcode: | 9361784001845 |
| Model #: | Exo-Fu-ANL-500 |
| MPN: | Exo-Fu-ANL-500 |
