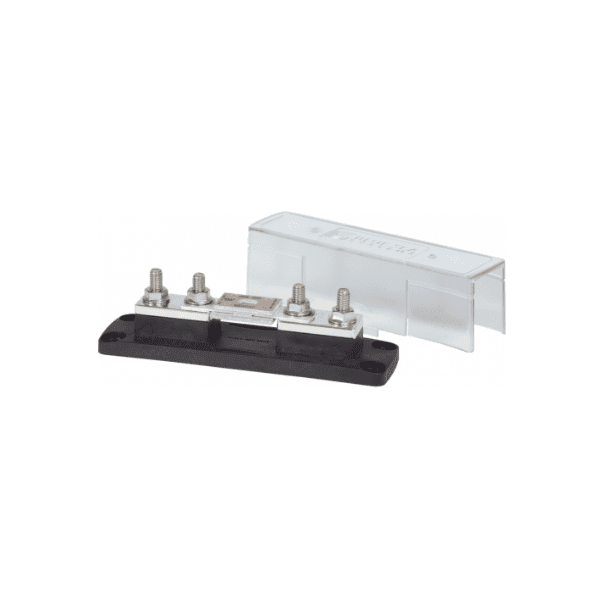

Blue Sea ANL Fuse Holder 35-750A with Cover
Max 750A 32V
3
DESCRIPTION
Efficient and Reliable Fuse Holder with Swing Out Design
Equip your electrical system with our durable fuse holder designed for optimal performance and convenience. With a swing out design, this fuse holder facilitates effortless fuse replacement without the need to remove fasteners, ensuring a seamless maintenance process.
Exceptional Features:
- Comprehensive Coverage: Comes complete with a cover for added safety and protection.
- Compatibility: Accepts 5/16" (M8) ring terminals, providing versatility in use.
- Designed for DC Systems: Suitable for use on systems up to 32 Volts DC.
- Corrosion Resistant: Features stainless steel studs that resist corrosion and allow high torquing for excellent electrical contact.
- High Heat Resilience: The UL 94-V0 base resists high heat, ensuring durability and longevity.
- Secure Fuse Mounting: Comes with insert molded studs that ensure a secure mounting of the fuse.
- Compliance with Standards: The insulating cover satisfies ABYC/USCG requirements for safety.
- Flexible Wire Access: Features cover breakouts that allow wire access in any direction, providing installation flexibility.
Please note that the fuse is sold separately.
Enhance your system's safety and performance with this durable and efficient fuse holder.
SKU: BS-5503B
SPECIFICATIONS
Specifications | |
|---|---|
| Maximum Voltage | 32V DC |
| Stud Size | 5/16" |
| Base Material | Reinforced Polycarbonate |
| Fuse Mounting Blocks | Tin-Plated Copper |
| Maximum Cable Size | 4/0 AWG |
| Maximum Torque | 107 in-lb (12.09 Nm) |
| Stud Torque | 107 in-lb (12.09 Nm) |
| Terminal Stud Size | 5/16" - 18 (M8) |
| Weight | 1.06lb (0.48 kg) |
| SKU: | BS-5503B |
| Model #: | BS-5503B |
| MPN: | BS-5503B |
WARRANTY
12 Month Warranty
