Victron VE.Direct to RS232 Interface: Reliable Data Communication for Energy Monitoring

Seamless Connectivity Between Victron Devices and RS232 Hosts

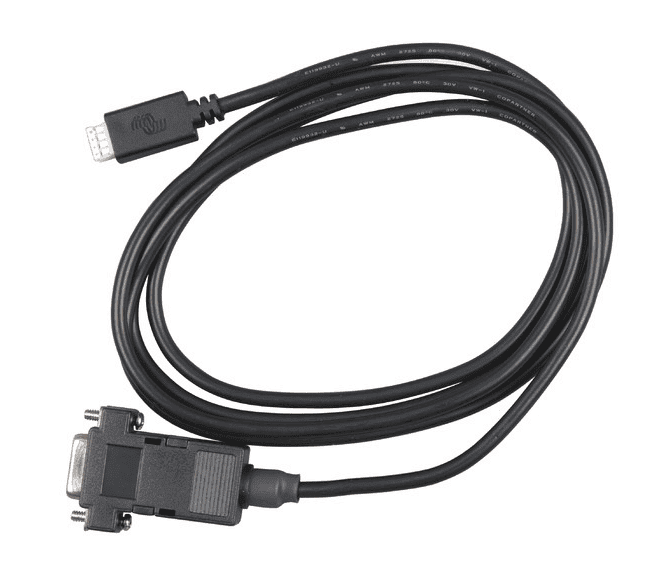

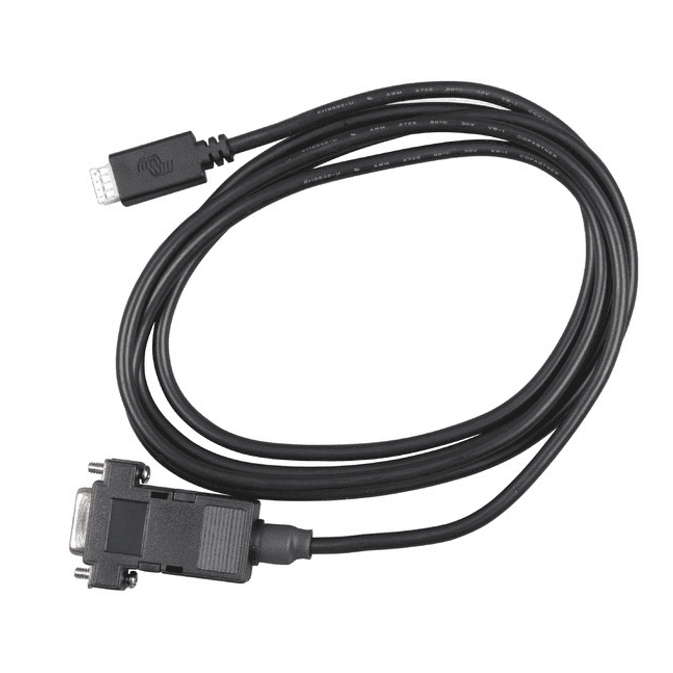

The Victron VE.Direct to RS232 Interface (part number ASS030520500) enables direct, galvanically isolated communication between Victron products with a VE.Direct port and any RS232-compatible host, such as a PC, PLC, or industrial controller. This cable is essential for system integrators, off-grid installers, and marine electricians who require stable, interference-free data transfer for monitoring and control.

Unlike generic USB-to-serial adapters, this interface provides galvanic isolation between the VE.Direct device and the host, protecting sensitive electronics from ground loops and voltage transients. This is particularly valuable in mobile and marine environments where electrical noise and potential differences can corrupt data or damage equipment.

Engineered for Industrial and Mobile Applications

The interface draws power from the VE.Direct port on one side and from the RS232 DTR and RTS pins on the other, eliminating the need for an external power supply in most setups. A wide auxiliary voltage range (5 V to 12 V DC) offers flexibility for custom installations. The moulded housing protects the internal logic-level shifter, ensuring long-term reliability in harsh conditions.

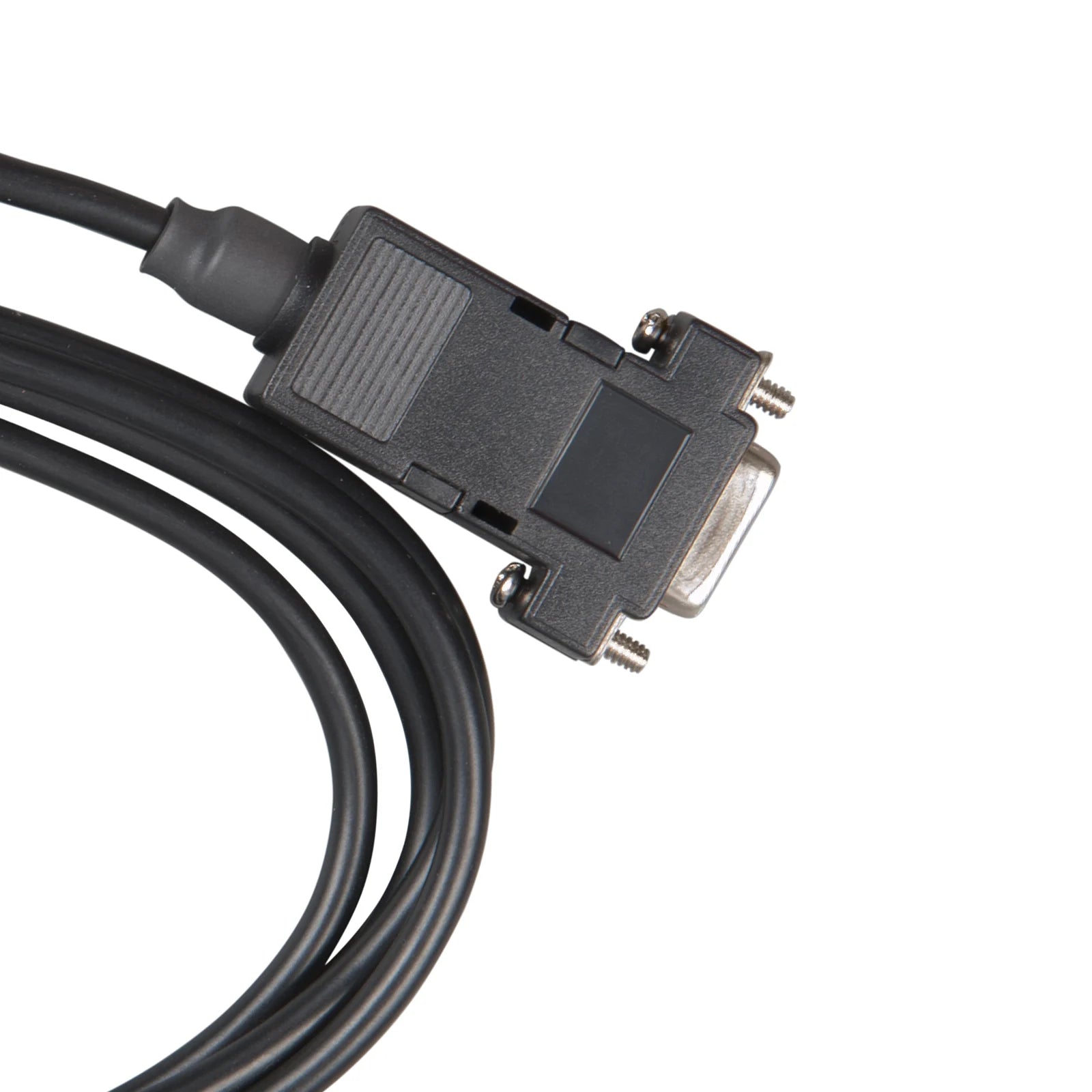

With a fixed baud rate of 19200, 8 data bits, no parity, and 1 stop bit, the interface is pre-configured for Victron’s standard communication protocol, simplifying setup. The DB9 female connector uses pins 2, 3, and 5 for TX, RX, and GND, while pins 4 (DTR) and 7 (RTS) must be driven high to power the isolated side—a detail clearly documented for straightforward integration.

Key Features

• Galvanic isolation prevents ground loops and protects connected equipment
• Plug-and-play with Victron VE.Direct devices—no driver installation required
• Robust moulded enclosure withstands vibration and moisture in mobile and marine settings
• Bus-powered design draws from VE.Direct and RS232 handshake lines, no external adapter needed
• Standard DB9 female connector for direct connection to legacy RS232 ports

Applications

This interface is ideal for:

• Connecting a Victron BMV battery monitor or MPPT solar charger to a PC for data logging and firmware updates
• Integrating Victron devices into industrial control systems using RS232
• Marine and RV installations where isolation is critical to prevent corrosion and signal errors
• Remote monitoring setups requiring reliable serial communication over longer distances than USB allows

Why Galvanic Isolation Matters

In systems where multiple power sources and grounds exist—such as a vehicle chassis, solar array, and shore power—ground loops can introduce noise, measurement errors, and even hardware damage. The built-in isolation in this interface breaks those loops, ensuring accurate data from your Victron equipment and extending the lifespan of connected electronics.

Get Reliable Data from Your Victron System

Add the Victron VE.Direct to RS232 Interface to your toolkit today and ensure clean, protected communication between your Victron devices and RS232 hosts. Whether you're commissioning a new off-grid system or upgrading an existing installation, this cable delivers the dependable performance professionals expect.
