Victron 24V 100Ah SuperPack NG Lithium Battery

Next Generation Lithium


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

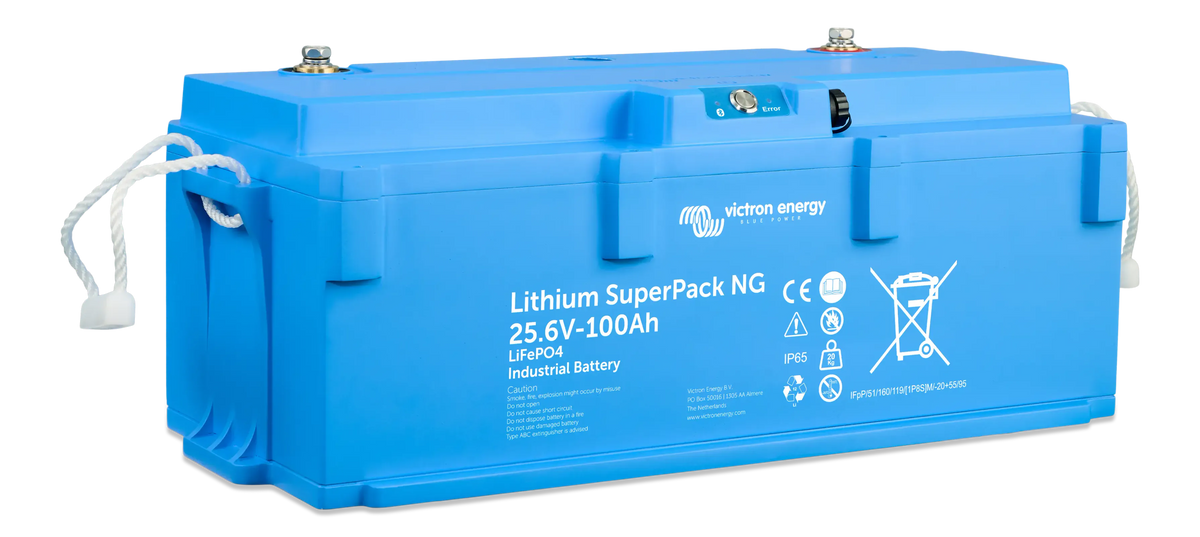

Victron Lithium SuperPack 25.6V 100Ah

Efficient Lithium Iron Phosphate (LiFePO₄) Energy Storage

The Victron Lithium SuperPack 25,6V/100Ah is a high-performance LiFePO₄ battery engineered for mobile, off-grid, and industrial energy applications. With a nominal voltage of 25,6V and a capacity of 100Ah, it delivers 2560Wh of energy while maintaining a 93% round-trip efficiency. Its form factor ensures easy installation in RVs, commercial vehicles, marine setups, and industrial systems, offering a compact and reliable alternative to traditional lead-acid batteries.

Advanced Battery Management System (BMS) & Safety

Safety and durability are integral to the Victron Lithium SuperPack:

  • Integrated BMS with overvoltage, undervoltage, overcurrent, and temperature protection
  • Self-restoring safeguards for short circuits and overcurrent events
  • Configurable discharge floor to protect battery life while preserving reserve energy
  • External Feedback Signal (EFS) output for system monitoring or triggering alarms and external devices.

These protections make it ideal for high-demand applications in off-grid solar, industrial equipment, and mobile power solutions.

Smart Bluetooth Monitoring & Control

The VictronConnect app allows full control and monitoring:

  • Instant readout of voltage, current, state of charge (SoC), battery temperature, and amp-hours consumed
  • Push-button On/Off control to safely enable storage mode, minimizing self-discharge to under 3% per month
  • LED indicators for Bluetooth connectivity, warnings, alarms, and firmware updates
  • EFS connectivity for triggering audible or visible alarms during low SoC or protection events.

This intelligent interface ensures users can monitor battery performance remotely and in real time.

High Performance & Flexible Installation

Designed for demanding systems, the Victron Lithium SuperPack 25,6V/100Ah supports:

  • Continuous discharge currents up to 2C (200A peak) and maximum charge currents of 1C (100A)
  • Parallel connections for unlimited energy expansion, with total system current limited to safe operation
  • Operation in temperatures ranging from -30°C to 60°C, including self-heating for cold-climate charging
  • IP65-rated enclosure for dust and water protection, suitable for mobile, off-grid, and industrial environments.

Applications

Ideal for:

  • RVs, caravans, and mobile off-grid energy systems
  • Marine and boating applications
  • Industrial backup power and remote monitoring systems
  • Off-grid solar energy storage
  • Tiny homes and mobile living setups

Upgrade to the Victron Lithium SuperPack 25.6V 100Ah today for advanced battery management, high-efficiency energy storage, and reliable off-grid power


SKU: VIC-BAT524110740

SPECIFICATIONS

Specifications

Battery Model SuperPack 25.6V/100Ah NG
Part Number BAT524110740
Nominal Voltage 25.6 V
Nominal Capacity @ 25°C 100 Ah
Nominal Energy @ 25°C 2560 Wh
Capacity Loss <1%
Energy Loss <1%
Round Trip Efficiency 93%
Discharge Current ≤1C Yes
CYCLE LIFE
80% DoD 2500 cycles
70% DoD 3000 cycles
50% DoD 5000 cycles
DISCHARGE
Max Continuous Discharge 200 A
Recommended Discharge Current 100 A
End of Discharge Voltage 22.4 V
Internal Resistance 4 mΩ
CHARGE
Recommended Charge Voltage 28 V
Float Voltage 27 V
Charge Voltage Range 27 – 28.4 V
Max Continuous Charge 100 A
FEATURES
Hardware Protection Short circuit protection (>800 A)
Software Protections Overvoltage, Undervoltage, Overtemperature, Undertemperature, Overcurrent
Wired Communication External Feedback Signal (EFS)
Bluetooth Yes, via VictronConnect
User Interface Push button (On/Off), BLE LED, Error LED
Self-heating Max Power 65 W
OPERATING CONDITIONS
Parallel Configuration Yes (unlimited energy expansion, system current limits apply)
Series Configuration No
Operating Temperature Charge & Discharge: -30°C to +60°C
Humidity (non-condensing) <90% RH
Storage Temperature Recommended 10°C – 35°C (Expanded -40°C to +65°C)
Max Storage Time @ 25°C 1 year (with SoC >50%)
Protection Class IP65
MOUNTING
Power Connection M8 threaded inserts
Mounting Options Upright or on its long side (flat horizontal support required)
Dimensions (L x W x H) mm 345 x 173 x 240
Weight 23 kg
STANDARDS
Safety Cells: UL1973, UL9540A, IEC62619 (pending)
EMC EN 61000-6-3, EN 61000-6-2
Performance IEC62620 (pending)
Transportation UN38.3
Automotive ECE R10 (pending)

SKU: VIC-BAT524110740
Barcode: 8719076073765
Model #: BAT524110740
MPN: BAT524110740
