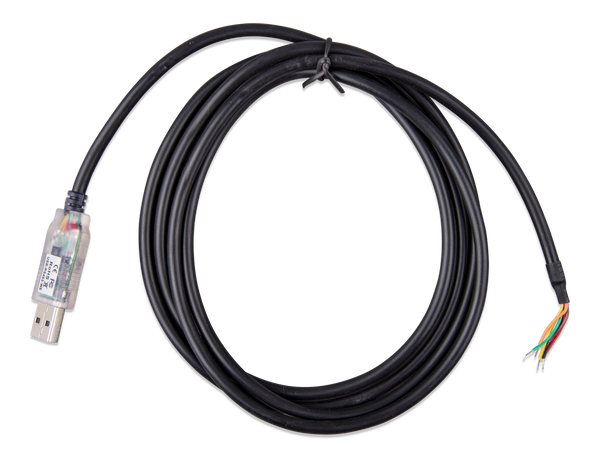

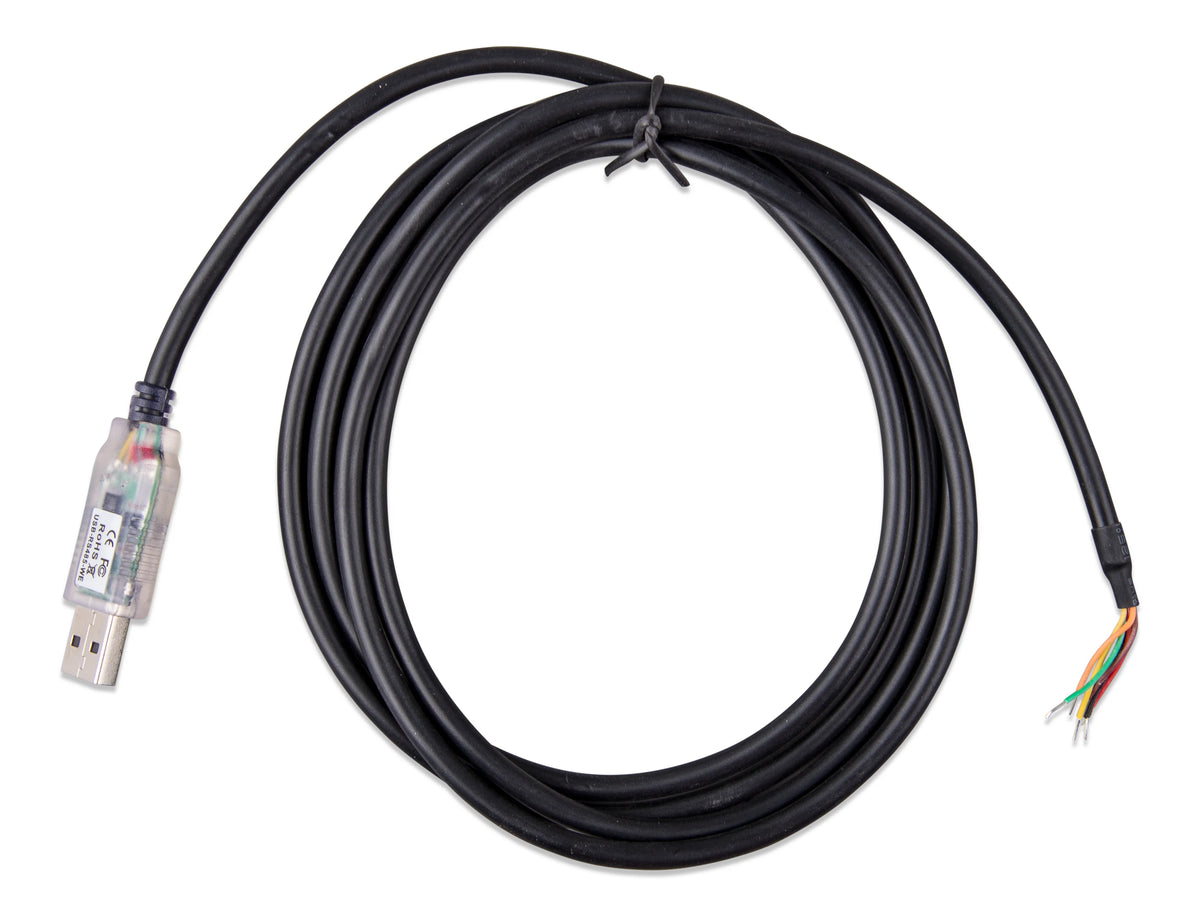

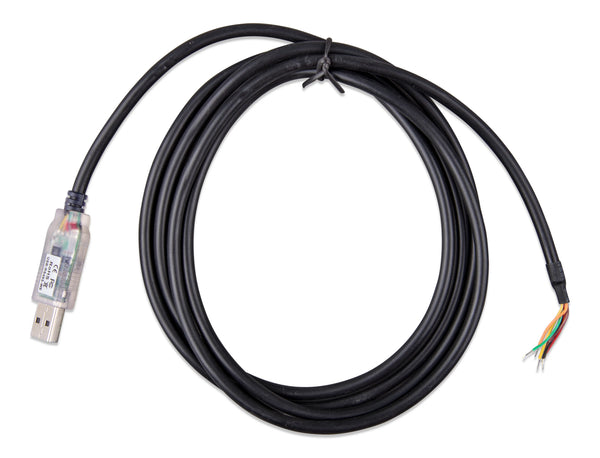

Victron RS485 to USB Interface 1.8m Cable

Victron RS485 to USB Interface Cable: Reliable Data Communication for Energy Monitoring

Purpose-Built for Victron Energy Meters and GX Devices

The Victron RS485 to USB Interface 1.8m Cable provides a direct, wired connection between Victron Energy Meters and GX monitoring devices. This cable enables stable, real-time data transfer for precise energy monitoring in off-grid, marine, and industrial power systems. Unlike generic USB-to-serial adapters, this interface is engineered specifically for the Victron ecosystem, ensuring seamless compatibility and reducing the risk of communication dropouts or data corruption.

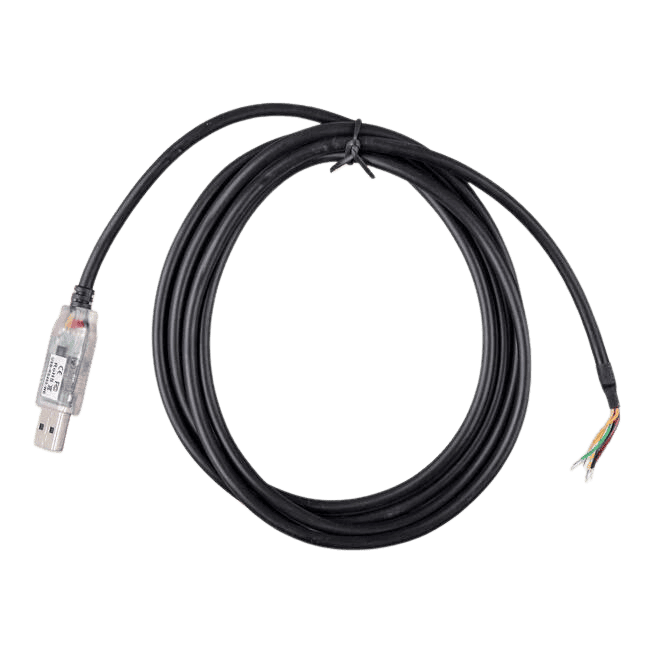

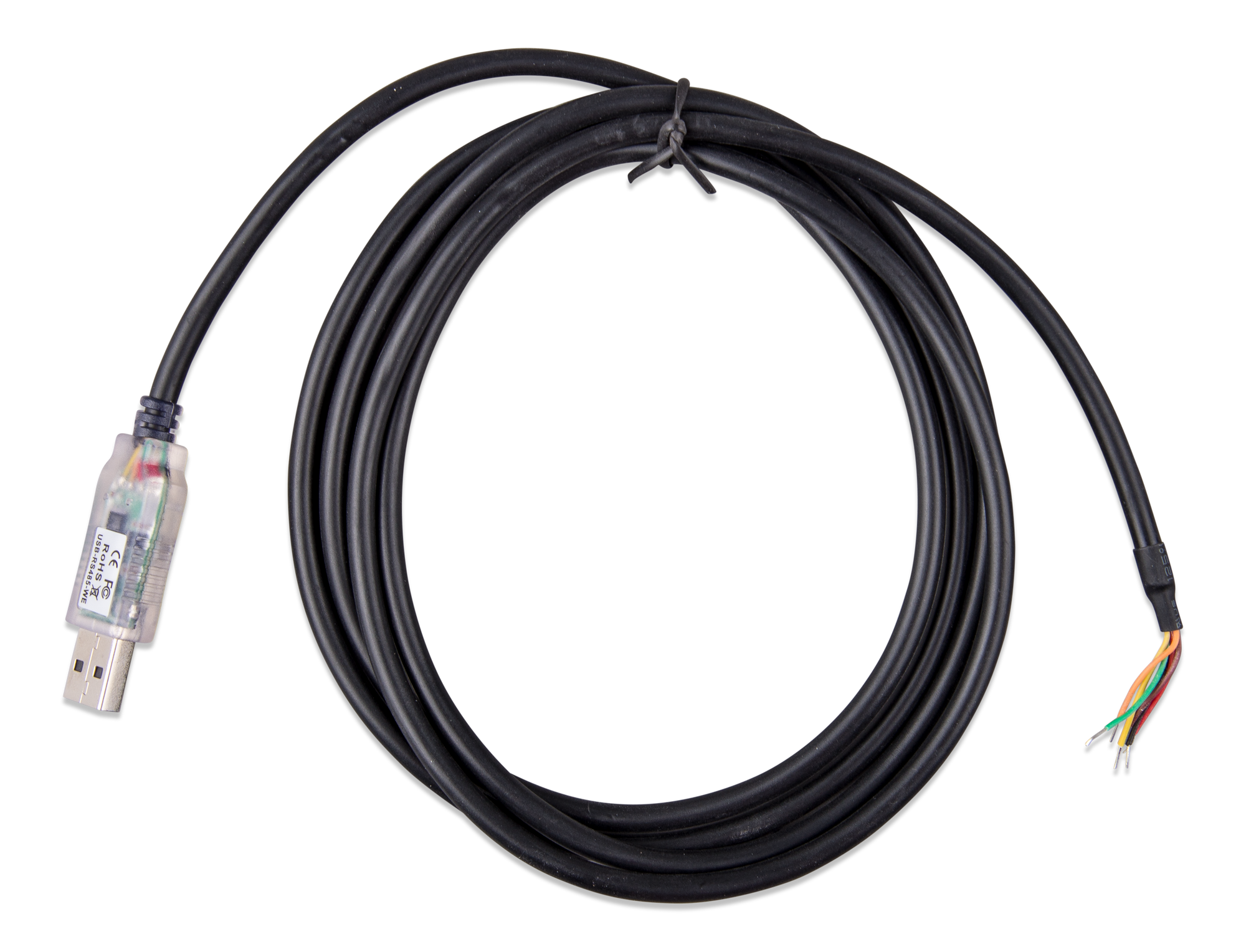

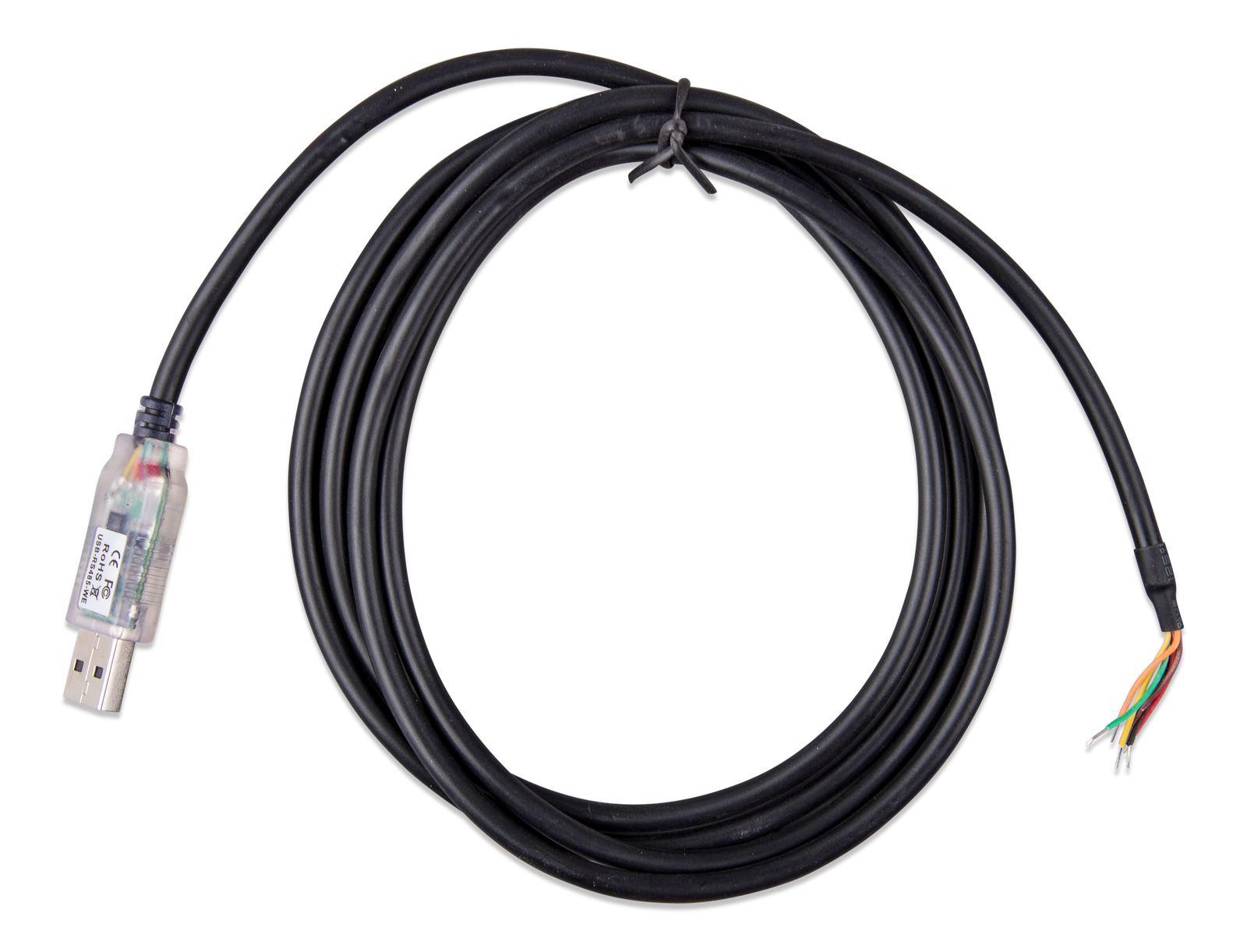

With a 1.8-metre length, the cable offers practical flexibility for routing within enclosures or between components. The wire-ended design allows direct termination into screw terminals, eliminating the need for additional connectors and simplifying installation.

Engineered for Industrial Environments

Built with a 6-core UL2464 24 AWG (approx. 0.205 mm²) cable, this interface withstands harsh conditions. The operating temperature range of -40 °C to +85 °C ensures reliable performance in extreme heat or cold, making it suitable for engine rooms, outdoor cabinets, and remote installations. FCC, CE, and RoHS compliance confirms adherence to international safety and environmental standards.

The integrated USB 2.0 full-speed interface supports data rates up to 3 Mbaud, providing responsive, low-latency communication. This is critical for systems where accurate, timely data from energy meters informs battery management and load decisions.

Key Features

• Direct connection for Victron Energy Meters to GX devices via RS485 protocol
• 1.8-metre cable length for flexible installation without excess slack
• Wire-ended termination with colour-coded conductors for straightforward wiring
• 6-core UL2464 24 AWG (approx. 0.205 mm²) construction for durability and signal integrity
• USB 2.0 full-speed interface with data rates up to 3 Mbaud
• Wide operating temperature range: -40 °C to +85 °C
• FCC, CE, and RoHS compliant for global use
• Supports extension up to 100 metres between GX device and energy meter

Simplified Integration with Victron Systems

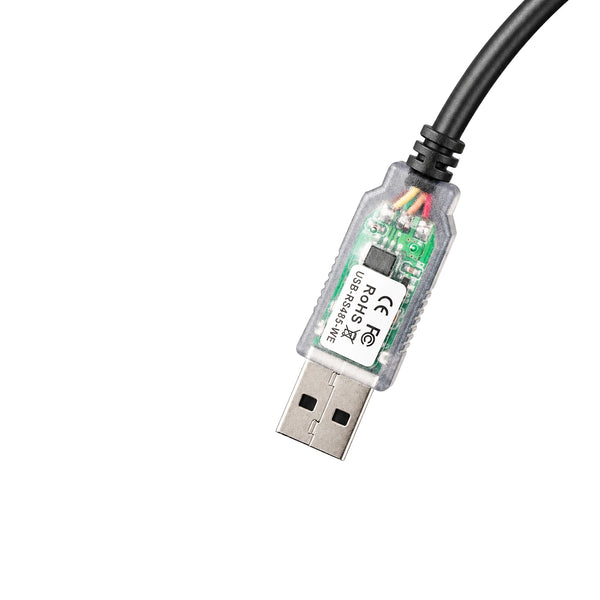

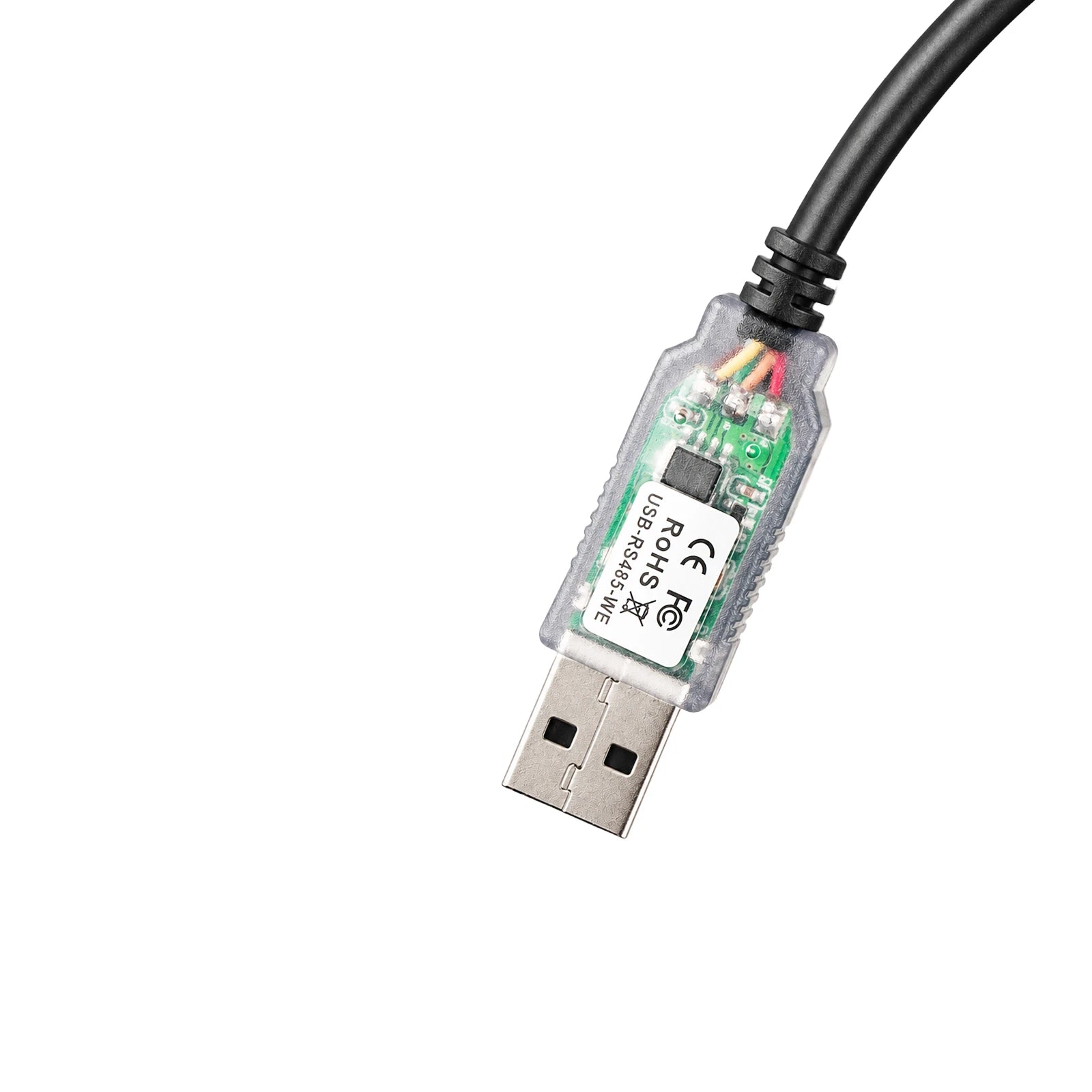

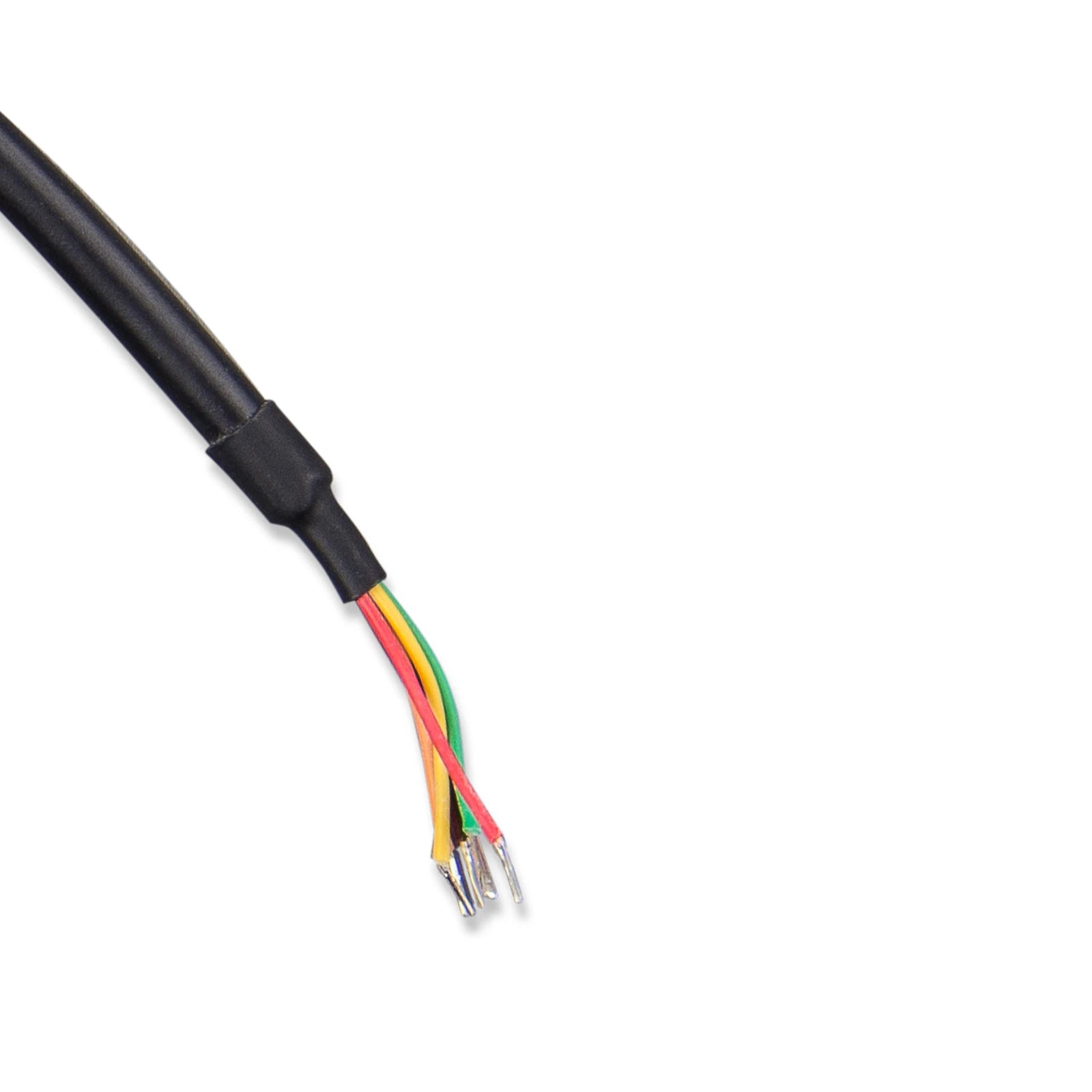

This cable is designed for plug-and-play operation with Victron GX devices such as the Cerbo GX and Color Control GX. The USB-A connector houses the RS485 interface electronics, while the stripped wire ends connect directly to the energy meter terminals. The colour coding follows Victron’s standard: orange (Data +), yellow (Data -), and black (GND). Three additional wires (red, green, brown) are included for future use or specific meter configurations, providing versatility without clutter.

For larger installations, the RS485 bus can be extended up to 100 metres using appropriate twisted-pair cabling, allowing energy meters to be placed far from the GX device without signal loss.

Why Choose a Victron Interface Over Generic Adapters?

Generic USB-to-RS485 converters often lack the precise impedance matching and signal conditioning required by Victron’s communication protocol. This can lead to intermittent data errors, unrecognised devices, or complete communication failure. The Victron interface is tested and validated for use with their energy meters, reducing troubleshooting time and ensuring data integrity from day one.

By using the correct interface, you protect your investment in Victron monitoring equipment and avoid the hidden costs of system downtime or inaccurate energy readings.

Applications

• Connecting Victron Energy Meters (VM-3P75CT, VM-3P75CT-2, etc.) to Cerbo GX or Color Control GX
• Marine and RV power monitoring systems requiring reliable data links
• Off-grid solar installations with remote energy metering
• Industrial battery monitoring and energy management

Get Your Victron System Communicating Reliably

Ensure your energy data is accurate and your system operates at peak efficiency. Add the Victron RS485 to USB Interface 1.8m Cable to your setup today and experience seamless integration with your Victron components.
