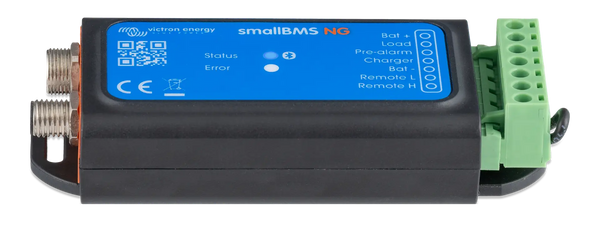

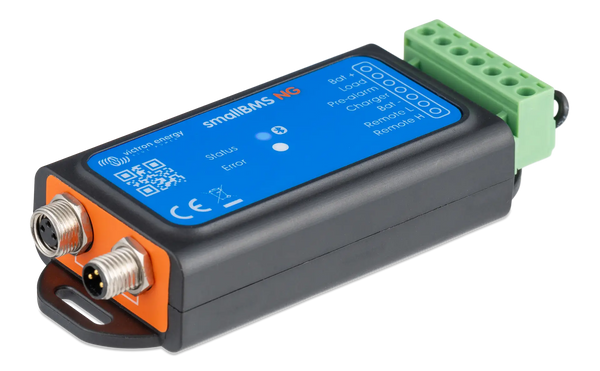

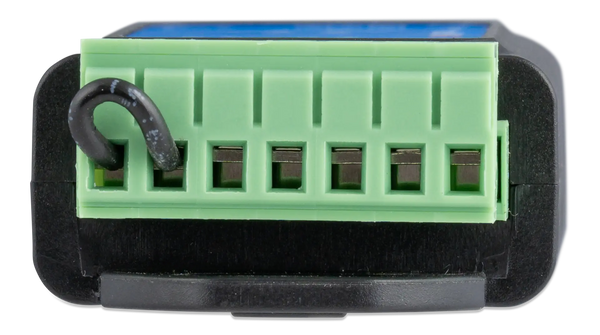

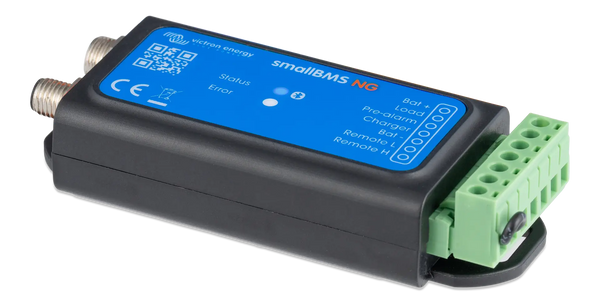

Victron miniBMS /smallBMS NG

Use when there is no MultiPlus in the system


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
1

DESCRIPTION

Victron miniBMS: Simple, Cost-Effective Battery Management

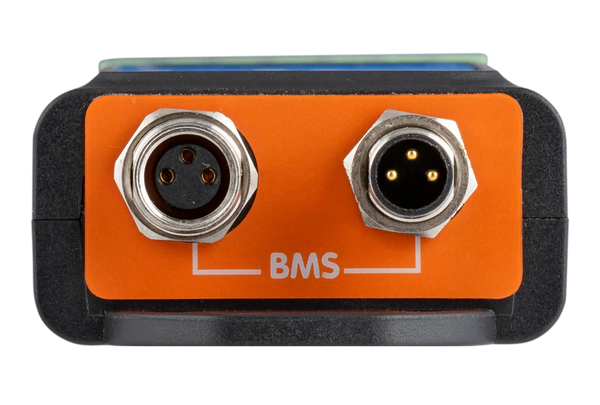

The Victron miniBMS is a compact, cost-effective battery management solution designed to protect Victron Smart LiFePO₄ batteries with M8 circular connectors. It delivers essential battery protection functions but has no VE.Bus interface, so it is not suitable for controlling VE.Bus MultiPlus or Quattro inverter/chargers.

Load Disconnect Output

The Load Disconnect output is normally high and becomes free-floating when cell under-voltage is detected to help prevent deep discharge. Maximum output current is 1 A (not short-circuit protected).

  • Drive a high-current relay or contactor (via suitable interfacing).
  • Control remote on/off inputs of devices such as BatteryProtects, inverters, DC-DC converters, or other loads (some devices may require specific on/off cabling).

Pre-Alarm Output (Early Warning)

The Pre-Alarm output provides an early warning of imminent under-voltage. It is normally free-floating and becomes active during low-voltage conditions, with a minimum 30-second delay before load disconnect occurs. Maximum output current is 1 A (not short-circuit protected).

Charge Disconnect Output

The Charge Disconnect output is normally high and becomes free-floating when cell over-voltage or over-temperature conditions are detected. It is a signal output only, with a maximum current of 10 mA, and is not suitable for powering inductive loads such as relay coils.

  • Remote on/off control of compatible chargers.
  • Control of Cyrix-Li-Charge relays and Cyrix-Li-ct battery combiners.

System On/Off Input

A Remote L / Remote H input allows external on/off control (e.g., switch or relay contact). When set to “off”, both load and charge outputs are placed in the free-floating state to disable loads and charging.

Wide Voltage Compatibility

Designed for 12 V, 24 V, and 48 V systems, with an operating supply range of 8–70 V DC.

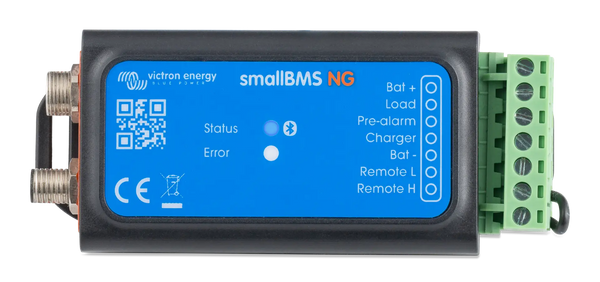

LED Indicators

  • Load ON (Blue): Load output is high and cell voltage is above the configured threshold.
  • Temp or OVP (Red): Charge output is free-floating due to temperature limits (high or low) or over-voltage protection being active.

If you’d like, share the exact product page name/URL on your site and I can tailor the tone to match your usual style (e.g., more sales-focused vs. more technical) while keeping the specs correct.


SKU: VIC-BMS400100300

SPECIFICATIONS

Product smallBMS NG
Operating voltage (Vbat) 8 – 70 Vdc
Power supply cable and fuse (not supplied)
Recommended fuse size 0.3 A - 2.5 A, dependent on devices connected to Load disconnect and pre-alarm output
Current consumption, remote on 3mA (excluding Load and Charge disconnect output current)
Current consumption, low cell voltage 1.2 mA
Current consumption, remote off 1.2 mA
Load disconnect output Normally high (Vbat – 0.1 V)
Source max current: 1 A (not short circuit protected)
Sink current: 0 A (output free floating)
Charge disconnect output Normally high (Vbat – 0.1 V)
Source max current: 500 mA (not short circuit protected)
Sink current: 0A (output free floating)
Pre-alarm output Normally free-floating (low)
In case of alarm: output voltage Vbat -0.1 V
Maximum output current: 500 mA (not short circuit protected)
Remote on/off: Remote L and Remote H Use modes:
1. ON when the L and H terminal are interconnected
2. ON when the L terminal is pulled to battery minus (V < 3.5 V)
3. ON when the H terminal is high (2.9V < VH < Vbat)
4. OFF in all other conditions
GENERAL
Operating temperature range -20 to +50 °C (0 – 120 °F)
Humidity Max. 95 % (non-condensing)
Protection grade IP20
ENCLOSURE
Material and colour ABS, matt black
Weight 0.1 kg
Dimensions (h x w x d) 106 x 42 x 23 mm
STANDARDS
Safety EN 60950
Emission EN 61000-6-3, EN 55014-1
Immunity EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive Regulation UN/ECE-R10 Rev.4 - pending

SKU: VIC-BMS400100300
Barcode: 8719076063537
Model #: BMS400100300
MPN: BMS400100300
