Victron 12V 100Ah SuperPack NG Lithium Battery

Next Generation Lithium


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

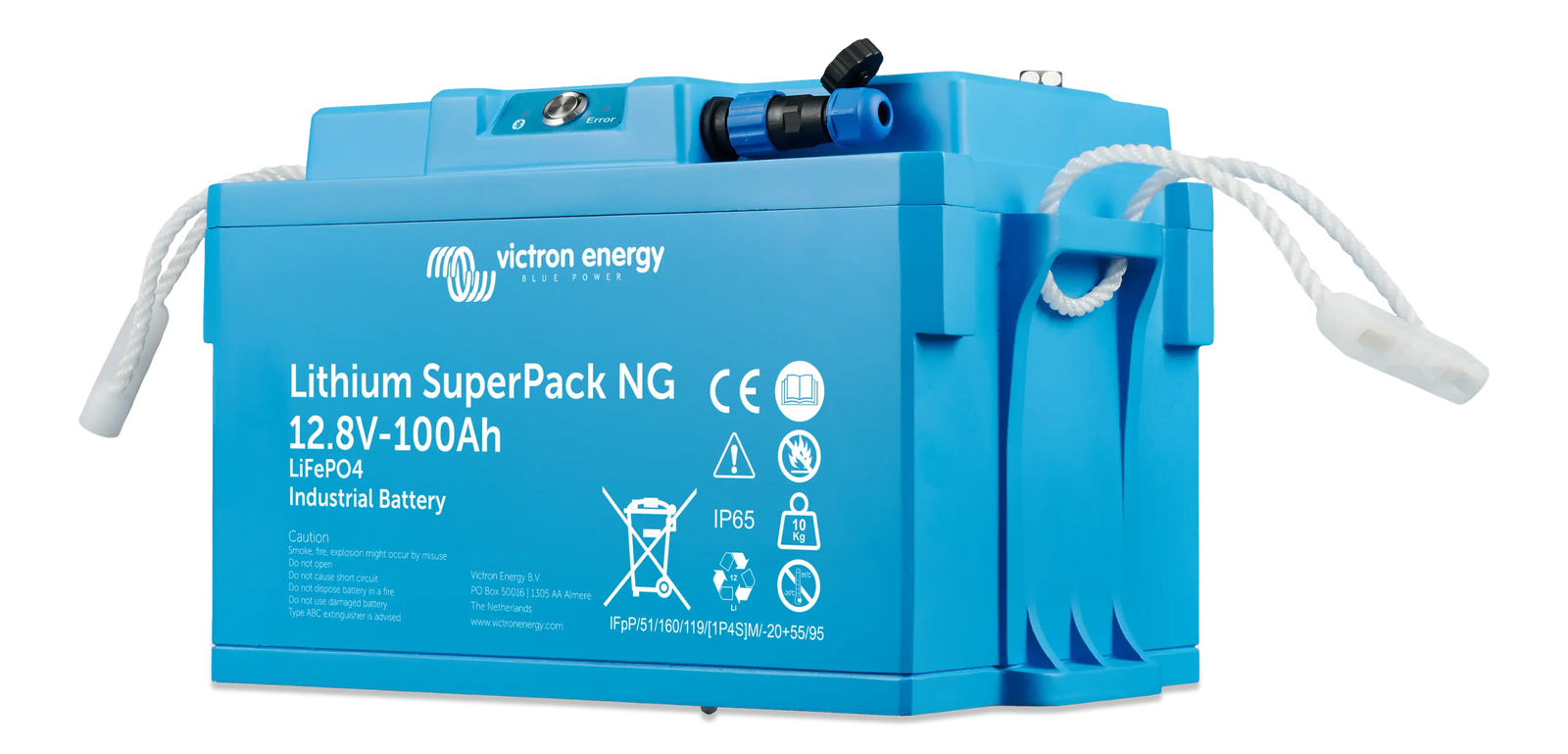

Victron Lithium SuperPack 12V 100Ah - High-Performance Lithium Battery

Reliable Lithium Iron Phosphate (LiFePO₄) Technology

The Victron Lithium SuperPack 12,8V/100Ah is a cutting-edge Lithium Iron Phosphate (LiFePO₄) battery engineered for superior energy storage and extended off-grid use. With a nominal voltage of 12,8V and 100Ah capacity, this battery delivers 1280Wh of energy while maintaining an impressive round-trip efficiency of 93%. Its compact form factor, lightweight design at just 10.7 kg, and BCI Group 49 compatibility make it a perfect drop-in replacement for traditional lead-acid batteries in RVs, caravans, trucks, and other mobile applications.

Advanced Battery Management System (BMS) & Safety Features

Safety and longevity are built-in with a state-of-the-art Battery Management System. Key protective features include:

  • Overvoltage, undervoltage, overcurrent, and temperature safeguards
  • Self-restoring protection mechanisms for short circuits and overcurrent events
  • Configurable discharge floor to maintain reserve energy and prevent deep discharge damage
  • Integrated external feedback signal (EFS) for monitoring or triggering alarms.

These safeguards ensure reliable operation in high-demand environments, from tiny homes to marine and industrial systems.

Intelligent Monitoring & Control via Bluetooth

Monitor your battery in real-time using the VictronConnect app. Features include:

  • Instant readout of voltage, current, state of charge (SoC), temperature, and consumed amp-hours
  • Push-button On/Off control with storage mode to reduce self-discharge below 3% per month
  • LED indicators for Bluetooth connectivity, warnings, and firmware updates
  • Ability to trigger external devices via EFS, such as audible or visible alarms.

This smart integration provides unmatched control and insight into your battery system wherever it is installed.

High Performance & Flexible Installation

Engineered for demanding applications, the Victron Lithium SuperPack 12,8V/100Ah supports:

  • Continuous discharge currents up to 2C (200A peak) and continuous charge currents of 1C (100A)
  • Parallel connections for unlimited energy expansion, with system current limited to safe operation
  • Operation in extreme temperatures from -30°C to 60°C, with self-heating capabilities to enable charging in cold climates
  • IP65-rated enclosure for protection against dust and water jets, suitable for off-grid and mobile environments.

Applications

This battery is ideal for:

  • Caravan and RV systems for reliable off-grid power
  • Marine and boating applications
  • Off-grid solar energy storage
  • Industrial power backup and remote monitoring equipment
  • Tiny homes and mobile living setups

Upgrade your system with the Victron Lithium SuperPack 12,8V/100Ah today to enjoy long-lasting, high-efficiency power and advanced battery intelligence


SKU: VIC-BAT512110740

SPECIFICATIONS

Specifications

Battery Model SuperPack 12.8V/100Ah NG
Part Number BAT512110740
Nominal Voltage 12.8 V
Nominal Capacity @ 25°C 100 Ah
Nominal Energy @ 25°C 1280 Wh
Capacity Loss / Energy Loss <1% (per 100 cycles, @ 25°C, 100% DoD)
Round Trip Efficiency 93%
Discharge Current ≤1C Yes
CYCLE LIFE
Cycle Life @ 80% DoD 2500 cycles
Cycle Life @ 70% DoD 3000 cycles
Cycle Life @ 50% DoD 5000 cycles
DISCHARGE
Max Continuous Discharge 200 A
Recommended Discharge Current 100 A
End of Discharge Voltage 11.2 V
Internal Resistance 2 mΩ
CHARGE
Recommended Charge Voltage 14 V
Float Voltage 13.5 V
Charge Voltage Range [13.5 - 14.2] V
Max Continuous Charge 100 A
FEATURES
Hardware Protection / System Max Current Short circuit above 800 A
Software Protections Overvoltage, Undervoltage, Overtemperature, Undertemperature, Overcurrent
Wired Communication External Feedback Signal (EFS)
Bluetooth Yes, VictronConnect App
User Interface Push button (On/Off), BLE LED, Error LED
Self-heating Max Power 65 W
OPERATING CONDITIONS
Parallel Configuration Yes, unlimited energy expansion (power expansion limited to system max current)
Series Configuration No
Operating Temperature Charge and discharge: -30°C to +60°C
Humidity (non-condensing) <90% RH
Storage Temperature Recommended [10 - 35] °C, Expanded [-40 to +65] °C
Max Storage Time @ 25°C 1 year (with at least initial remaining SoC >50%)
Protection Class IP65
MOUNTING
Power Connection (threaded insert) M8 female, 20 mm including nut screws
Mounting Options Upright and on its long side, maintain flat horizontal support
Dimensions (L x W x H) mm 273 x 173 x 173
Weight 10.7 kg
External Feedback Signal (EFS) Connector Included – Victron part number: SPR00310
STANDARDS
Safety Cells: UL1973, UL9540A, IEC62619. Battery: IEC62619 (pending)
EMC EN 61000-6-3, EN 61000-6-2
Performance IEC62620 (pending)
Transportation UN38.3
Automotive ECE R10 (pending)

SKU: VIC-BAT512110740
Barcode: 8719076069430
Model #: BAT512110740
MPN: BAT512110740
