Victron 8-80V 10A XLR Charger Tester

Victron Energy XLR Charger Tester

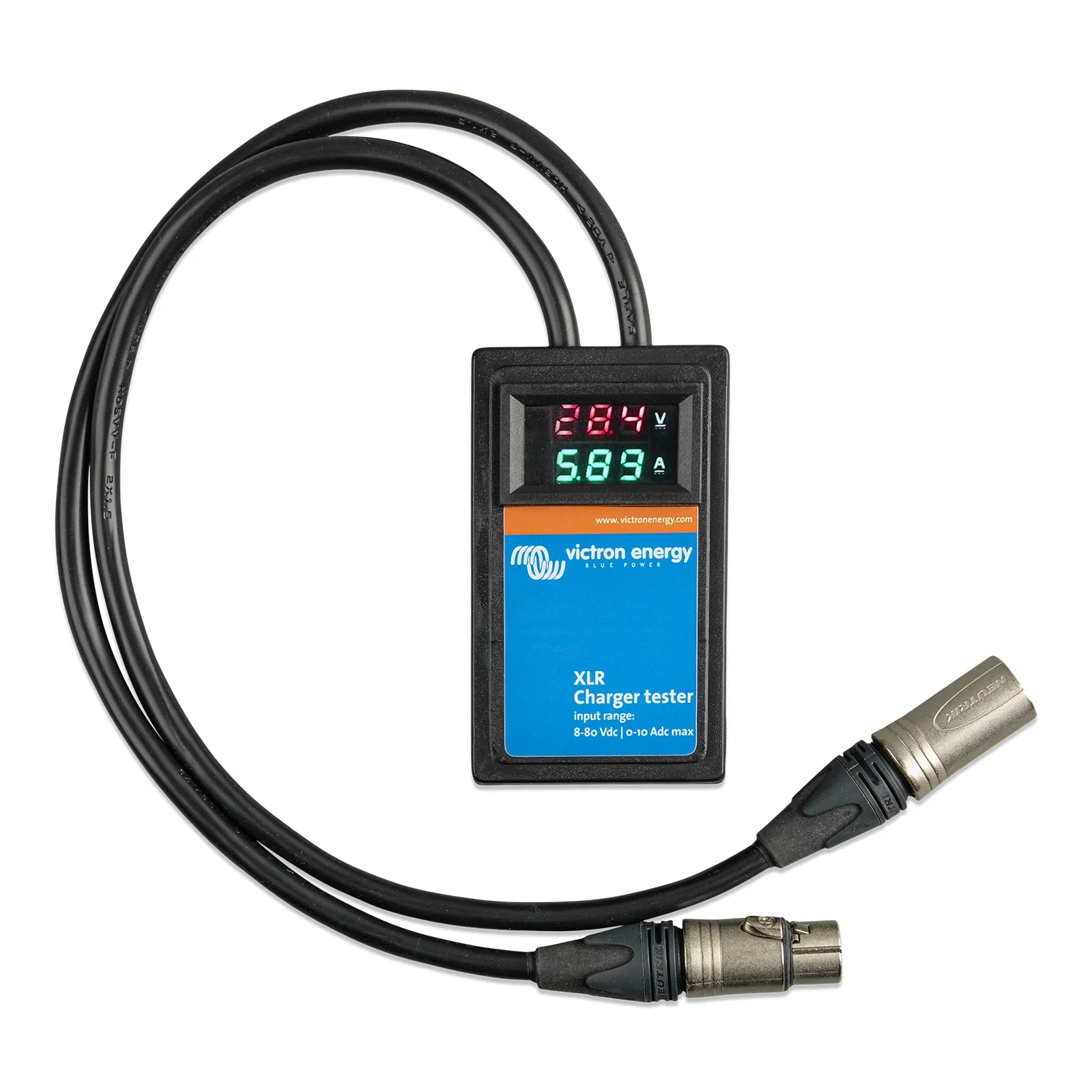

The Victron Energy XLR Charger Tester is a specialised, in-line diagnostic module engineered to monitor the charging and discharging processes of wheelchair and mobility aid batteries. By providing real-time data on battery voltage and current, this tester assists technicians and users in ensuring that charging systems are operating efficiently and safely.

Accurate Diagnostics for Mobility Aids

Mobility scooters and power wheelchairs rely heavily on consistent charging to maintain battery health and reliable operation. This tester simplifies the maintenance process by accurately measuring DC voltage and current flow. It is designed to be inserted directly into the connection between the charging device and the wheelchair's charge port, eliminating the need for complex multi-meter setups or exposed wiring.

Key Features and Specifications

Built for utility and precision, this unit covers the standard operational ranges required for most mobility battery systems. The robust construction and standard connector types make it well suited to daily diagnostic use.

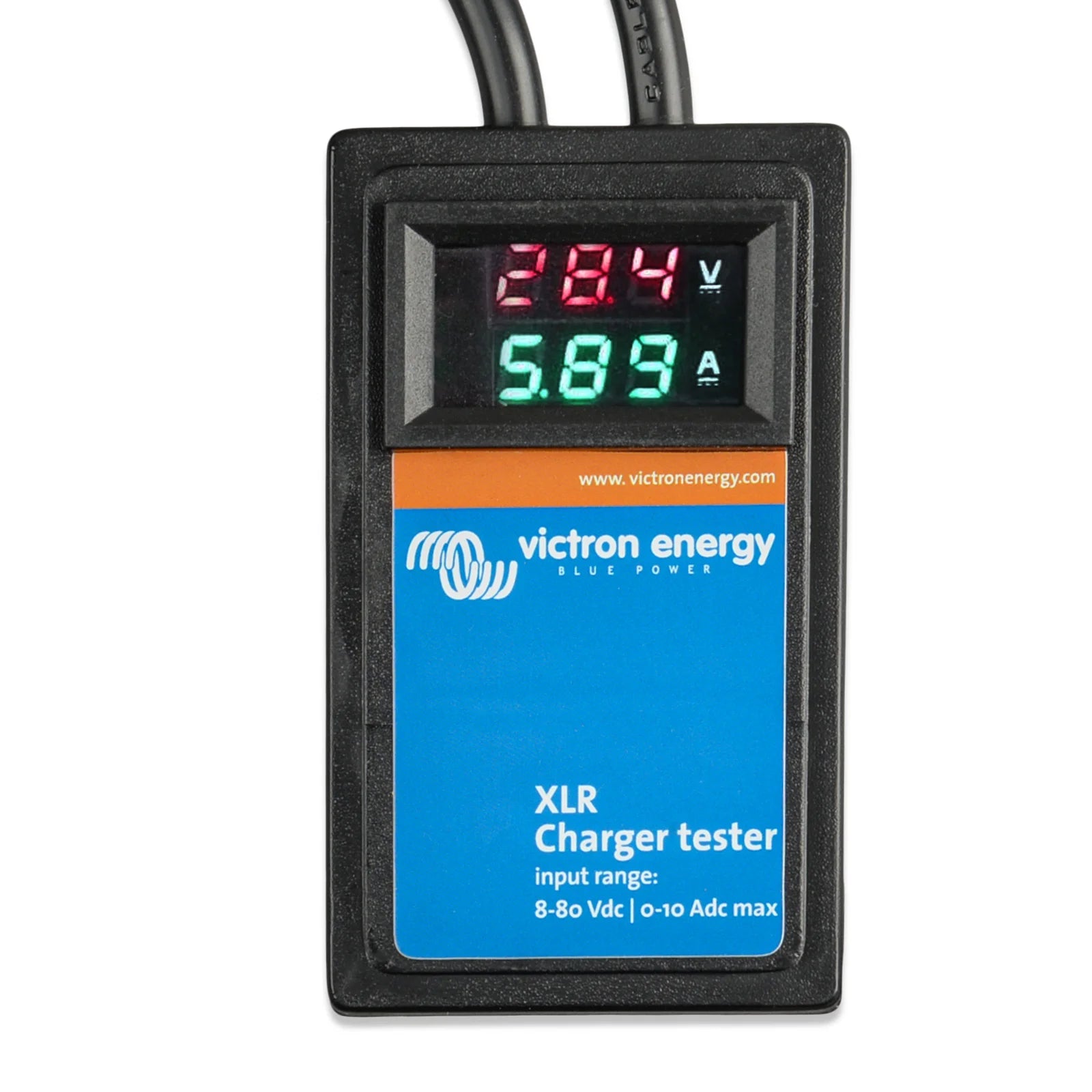

• Versatile Measurement Range: Safely measures battery voltage from 8.0V to 80.0V DC and charge/discharge current from 0.0A up to 10.0A DC.

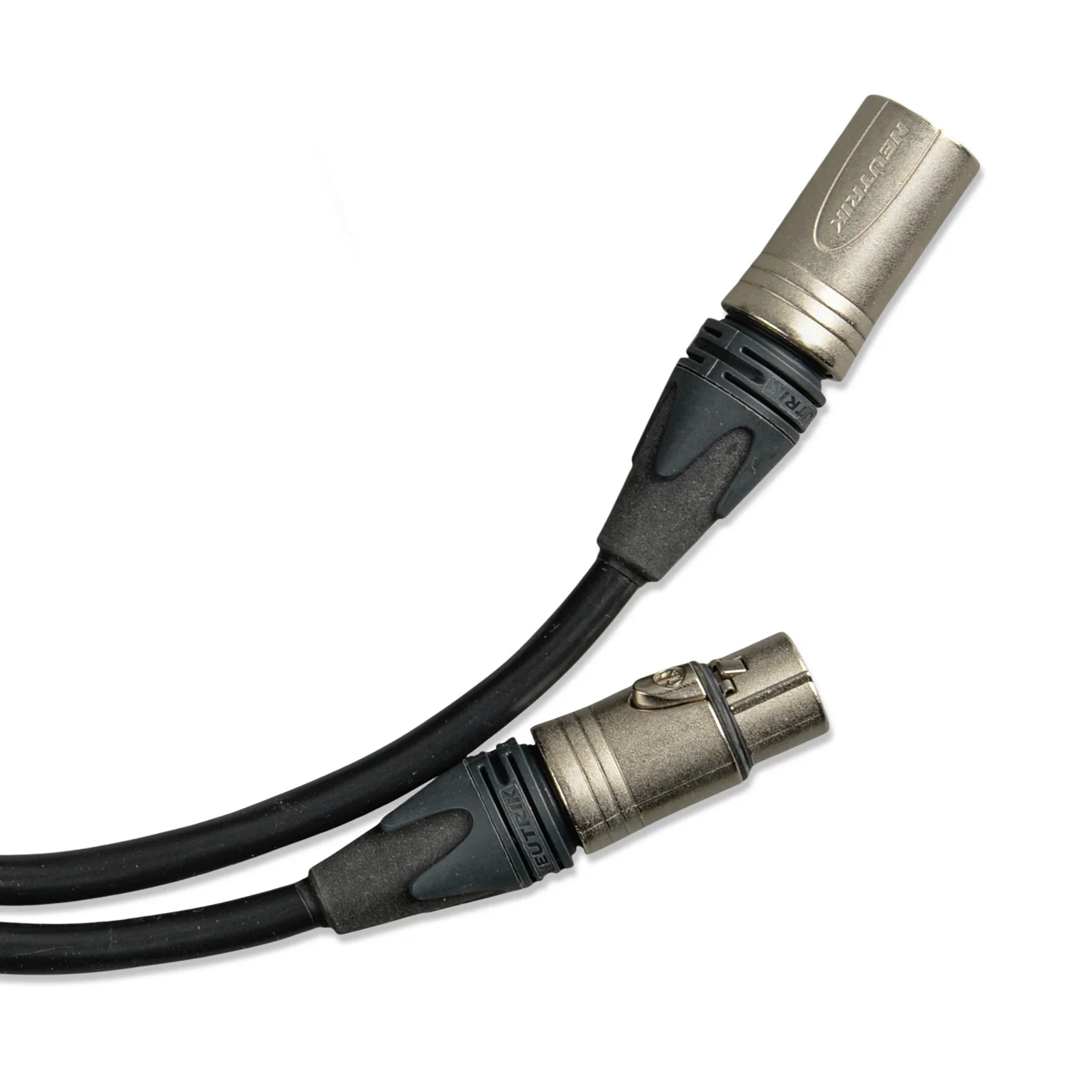

• Easy Integration: Features male and female Neutrik XLR plugs for simple, plug-and-play insertion between the charger and the mobility aid.
• Accurate Monitoring: Delivers precise readings to help evaluate the efficiency of the charging cycle and the general health of the battery system.
• Compact Design: Lightweight and highly portable, making it an excellent addition to any mobility technician's toolkit.

Simple In-Line Operation

Using the XLR Charger Tester requires no specialised training. The integrated Neutrik connectors ensure a secure, industry-standard fit with existing mobility chargers. Once connected in-line, the module immediately begins providing the critical voltage and current readings necessary to diagnose potential charging faults or to verify that a replacement charger is delivering the correct output.

For those managing mobility equipment maintenance or diagnosing charging irregularities, this specialized Victron tester provides a reliable and straightforward diagnostic solution.
