Victron 100A:50mA Current Transformer for MultiPlus-II (20m Wire-End)

Victron | Current Transformer 100A:50mA for MultiPlus-II (20m Wire-End)

The Victron Energy Current Transformer 100A:50mA is explicitly designed to expand the capabilities of your MultiPlus-II or MultiGrid-II inverter/charger. Measuring external current with high precision, this transformer is a vital component for those looking to implement advanced grid features and accurately measure external loads within their energy storage systems.

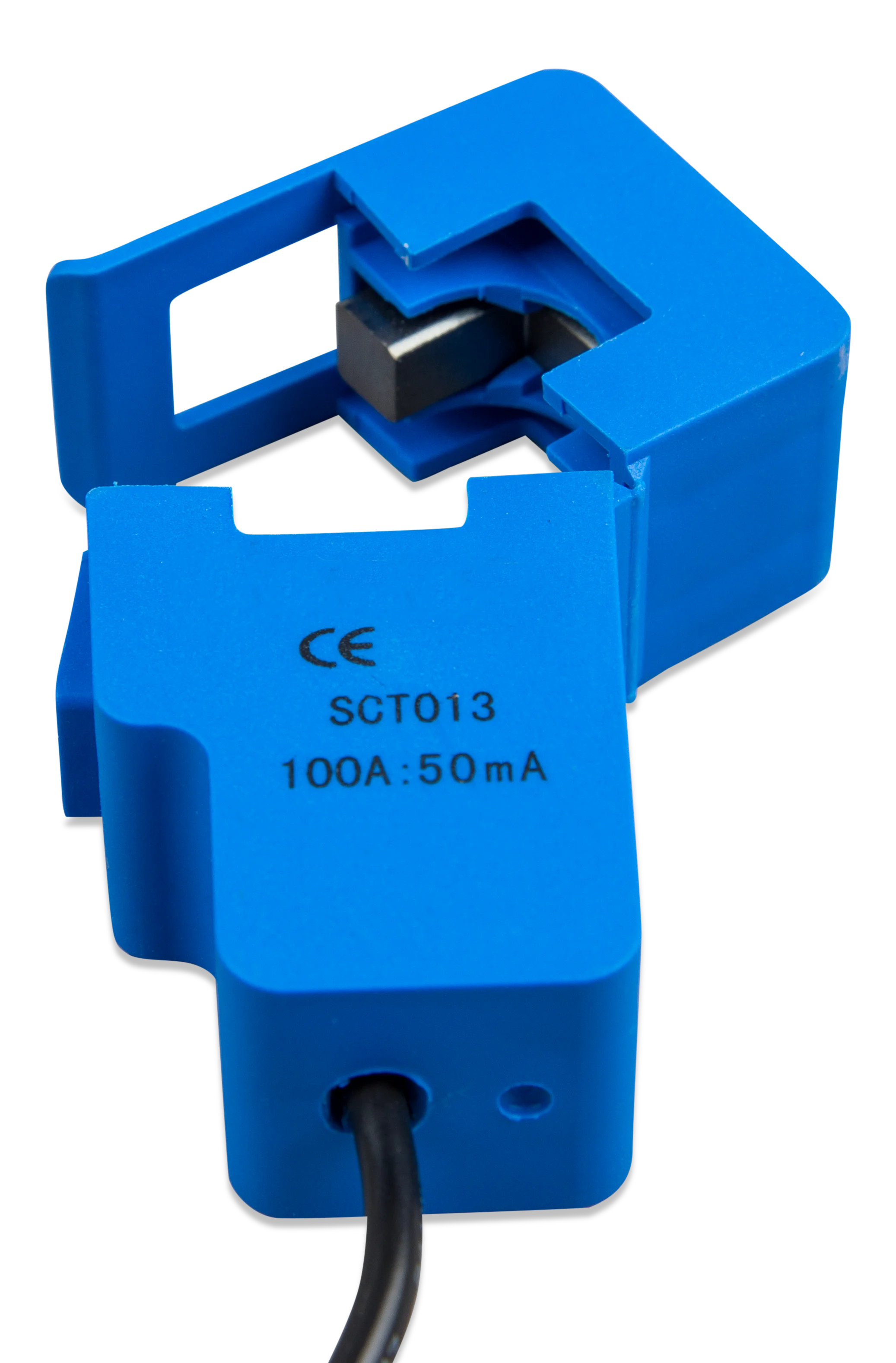

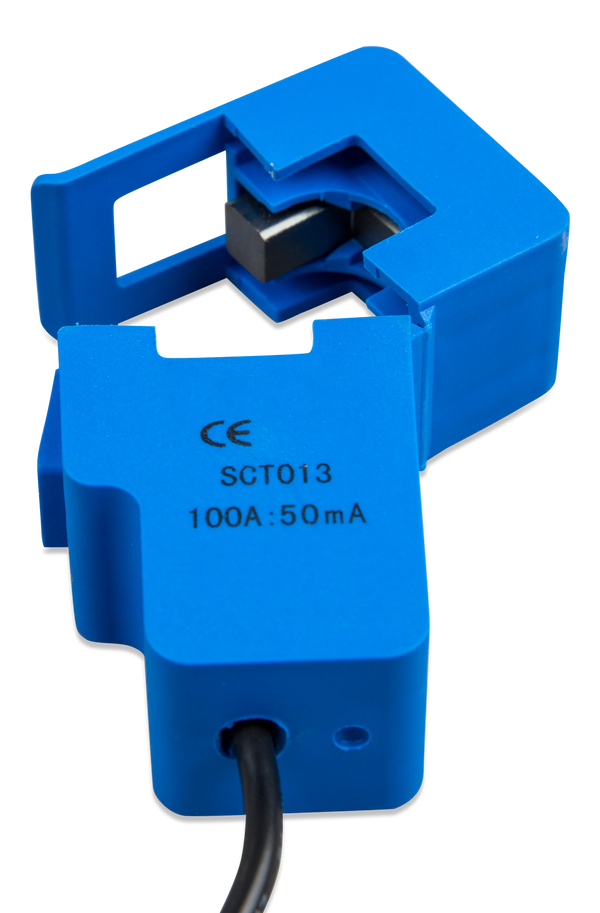

Accurate External Current Sensing

By sensing current externally, this unit enables critical features such as PowerControl and PowerAssist. It acts as the central measuring component that directs your MultiPlus-II system to adjust its power output or draw based on real-time grid conditions, effectively optimising self-consumption and preventing grid overload when combined with a properly configured energy storage system.

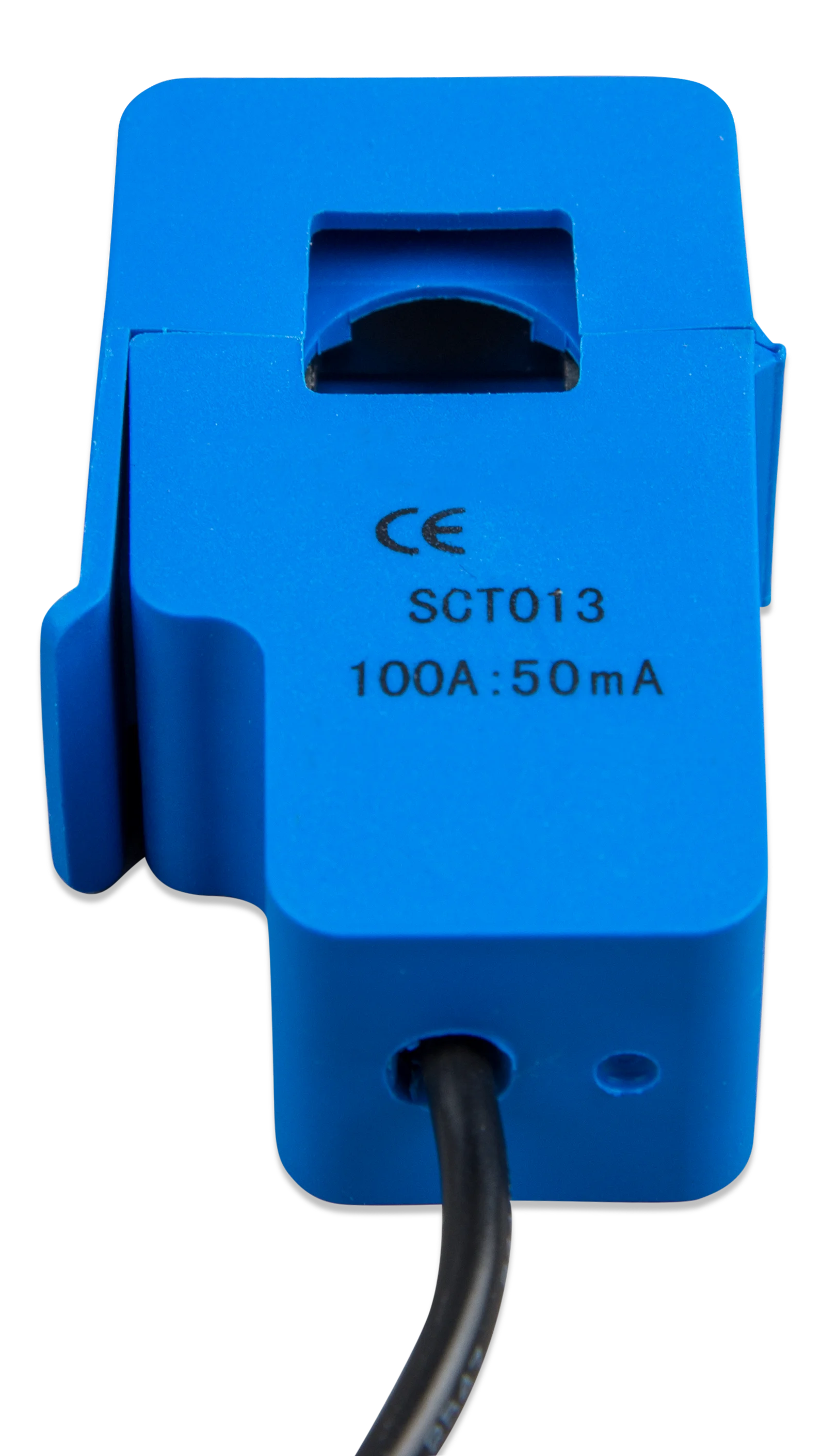

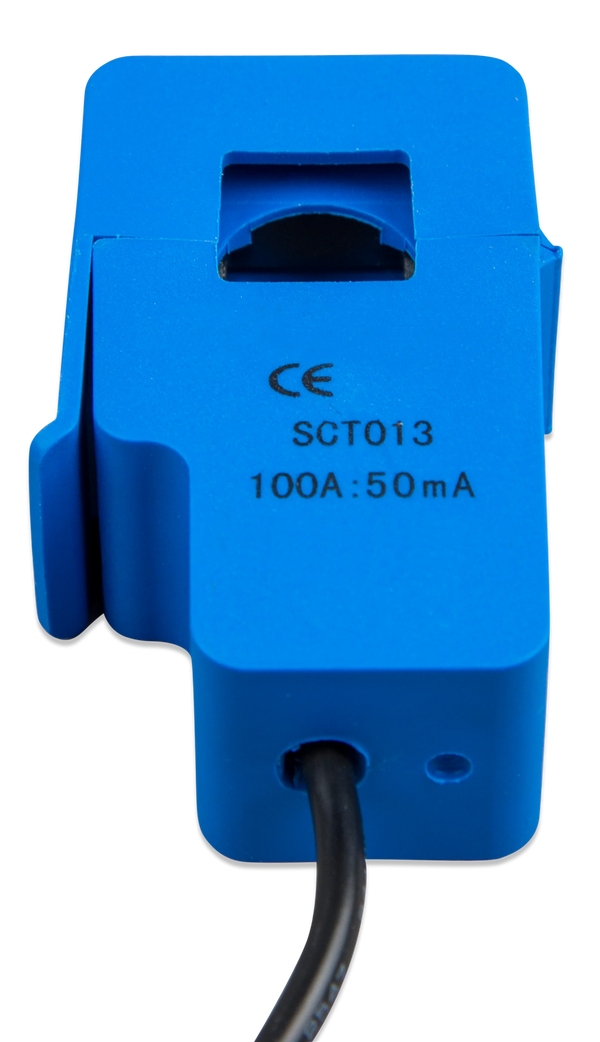

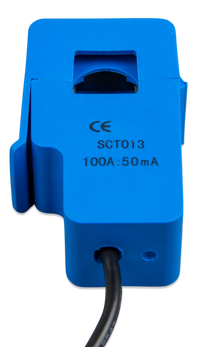

• High Precision Measurement: 100A to 50mA ratio ensures highly accurate current sensing for precise system control.
• Generous Cable Length: 20-metre cable allows for flexible installation across larger residential or commercial layouts.

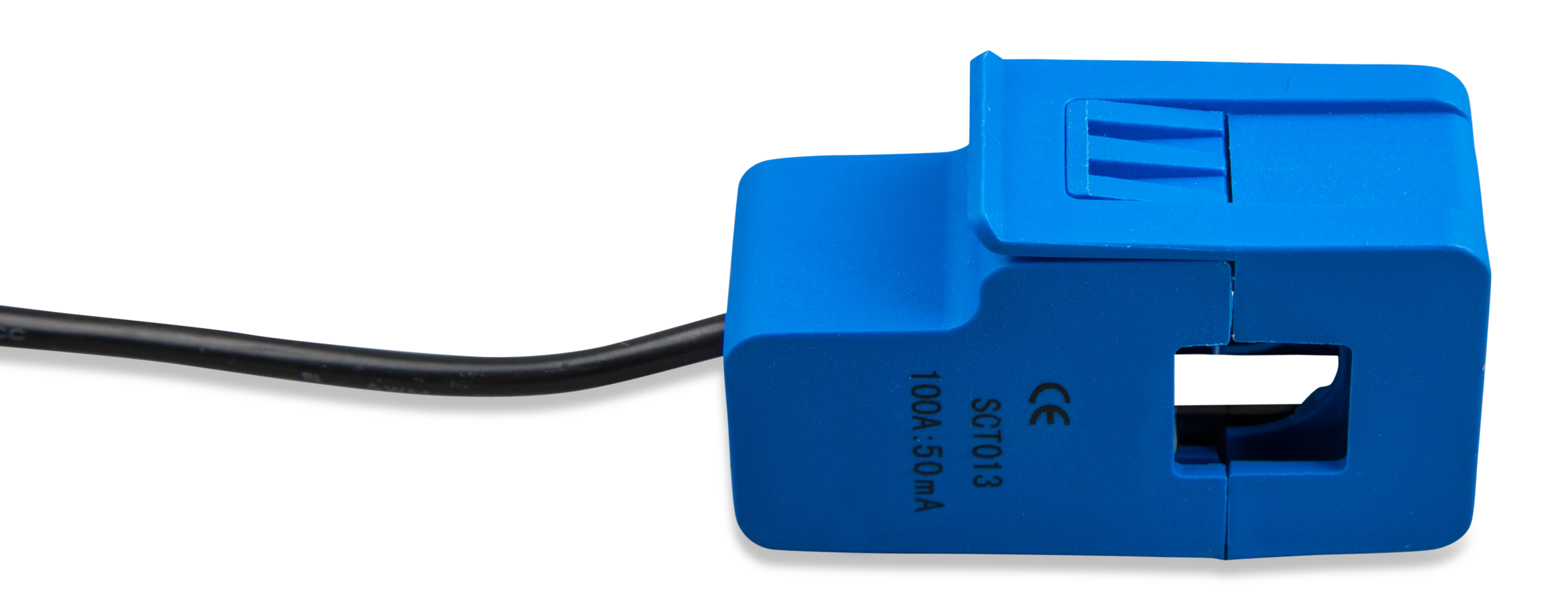

• Secure Connection: Wire-end termination provides a reliable hardwired connection directly to the inverter terminals.
• Feature Enablement: Required to properly implement PowerControl and PowerAssist on compatible MultiPlus-II systems.
• Optimised Self-Consumption: Enhances the efficiency of your solar and battery setup by closely monitoring grid exchange.

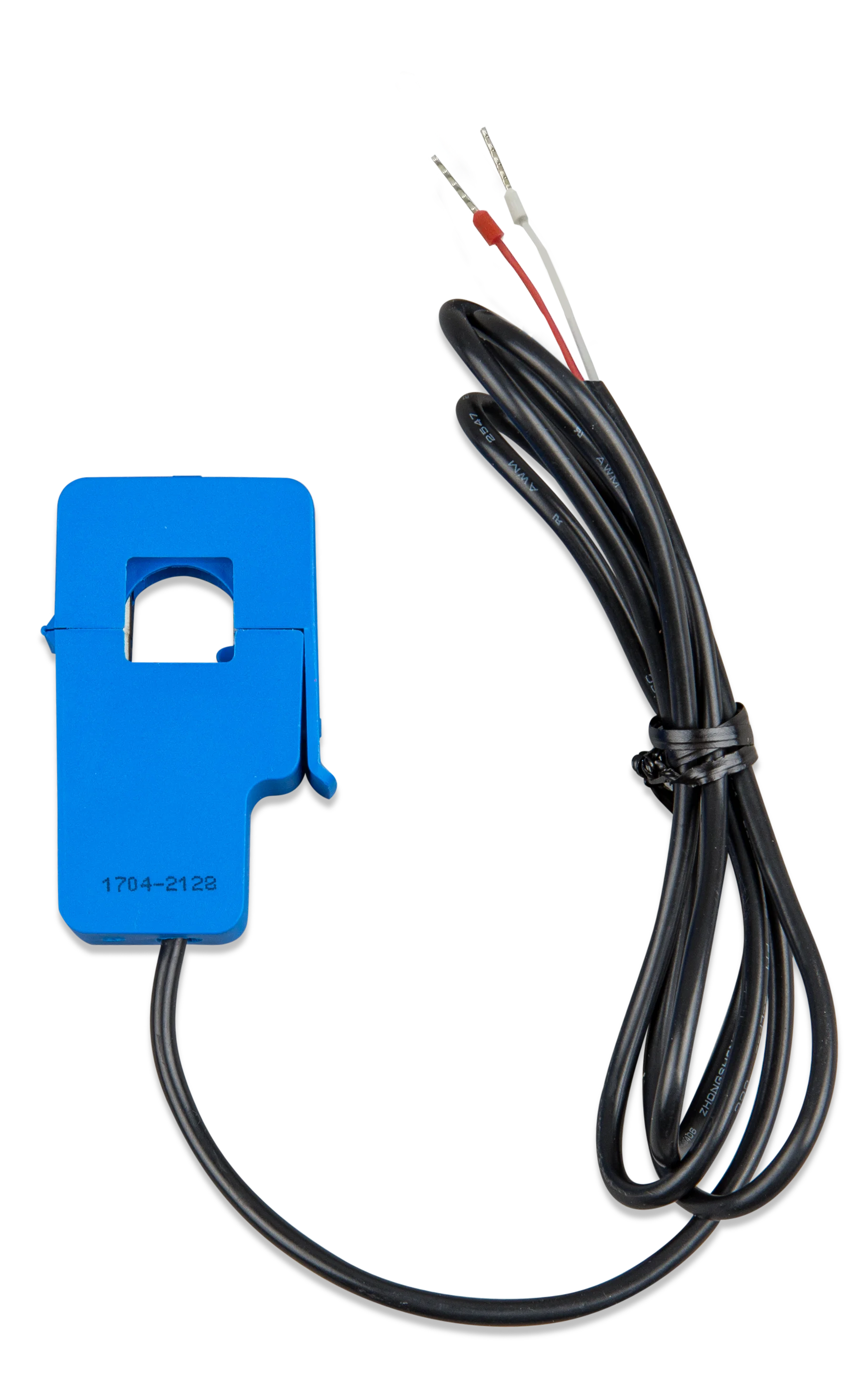

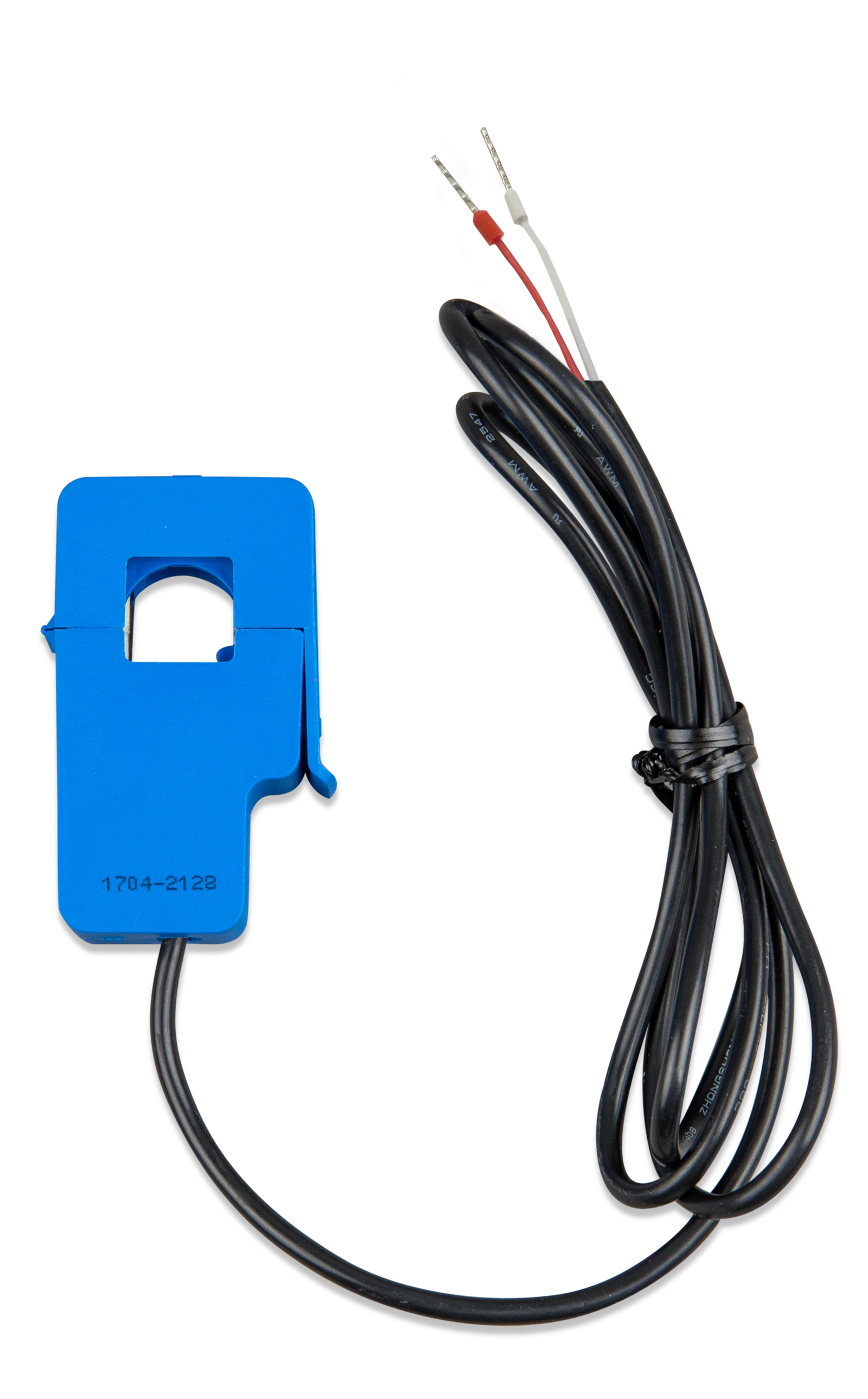

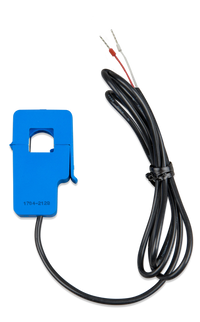

Flexible 20m Wire-End Design

Featuring a generous 20-metre cable length, this specific CTR120002050 model accommodates installations where the main electrical panel or grid connection point is located a considerable distance from the inverter system. The wire-end connection terminates in bare wires rather than a standard jack plug, providing a secure and permanent hardwired connection directly into the MultiPlus-II internal terminal blocks.

System Compatibility and Fitment

This current transformer is engineered strictly for use with the Victron Energy MultiPlus-II and MultiGrid-II product lines. It requires direct wiring into the dedicated current sense terminals of your inverter. For comprehensive installation instructions and configuration guidelines, we recommend referring to the official MultiPlus-II documentation.

Integrate this high-precision current transformer into your Victron setup to achieve complete control over your power management and grid interaction.
