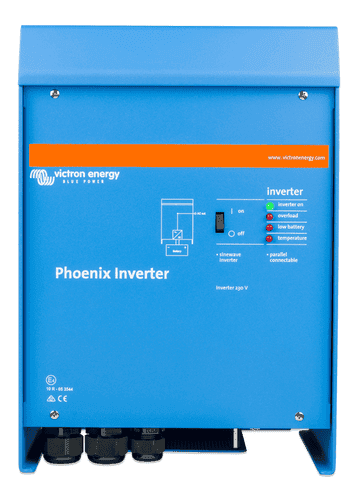

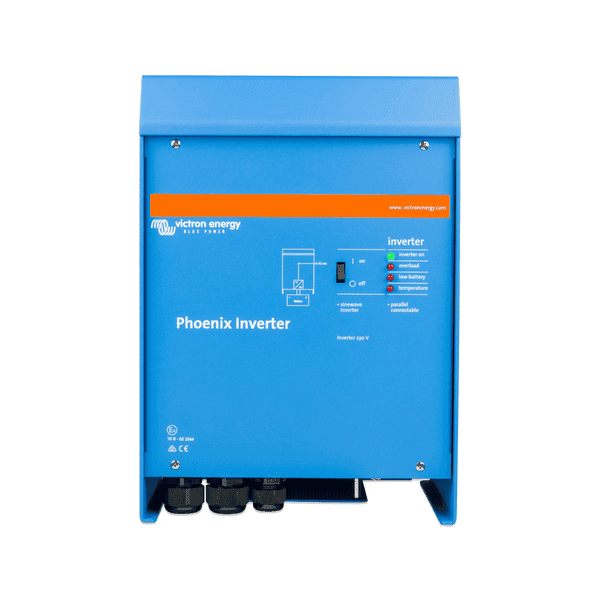

Victron 48V 5000VA Phoenix Inverter 48/5000 VE.Bus
Experience reliable off-grid power with a pure sine wave output and 10000 W peak capacity to easily start heavy appliances and industrial tools.
DESCRIPTION
Reliable Pure Sine Wave Power for Off-Grid Applications
Developed for demanding professional and recreational use, this pure sine wave inverter delivers highly efficient and stable AC power for off-grid homes, marine vessels, and mobile energy setups. Utilizing advanced hybrid high-frequency technology, it ensures premium performance and clean energy delivery. Unlike generic modified sine wave inverters that can cause a noticeable hum or permanent damage to appliances, this unit provides grid-quality power. This eliminates the risk of interference with sensitive electronics such as computers, televisions, and medical equipment, ensuring your devices operate smoothly and safely.
SinusMax Technology and Superior Peak Power
A critical advantage of this system is its robust 10000 W peak capacity, driven by Victron Energy's unique SinusMax technology. Conventional high-frequency inverters often struggle with sudden, extreme power surges, but this architecture is specifically engineered to handle them. This impressive peak power capability is incredibly helpful for starting difficult, high-inrush loads such as electric motors, refrigeration compressors, air conditioners, and industrial power tools. By providing the necessary surge current instantly, the inverter prevents system overloads and frustrating power shutdowns during essential tasks.
Advanced Scalability with VE.Bus Integration
Equipped with a sophisticated VE.Bus communication port, this inverter offers extensive configuration and monitoring capabilities. When connected to a GX monitoring device, such as the Victron Cerbo GX, users can observe system performance in real-time, either locally or remotely via the VRM portal. This level of insight allows for precise power management and fault detection. Furthermore, for installations where energy demands grow over time, the VE.Bus platform provides virtually unlimited scalability. Up to six units can be wired in parallel to drastically multiply the total output, or they can be configured to provide a complete 3-phase power supply for heavy commercial or industrial applications.
Optimised Efficiency and Thermal Management
Energy conservation is vital in battery-based systems. This inverter features a dedicated ECO mode that significantly reduces zero-load power consumption. When activated, the unit drops into a low-power standby state, waking up frequently to check if a load has been applied. This dramatically extends battery runtime when appliances are turned off. Additionally, the internal components are housed within a rugged, powder-coated aluminium enclosure designed for optimal thermal management. Side ventilation and active cooling ensure the inverter maintains consistent output even in warm Australian climates, reducing the risk of thermal derating.
Key Features
- Pure sine wave AC output delivers grid-quality power for sensitive electronics
- 10000 W peak capacity effortlessly handles high-inrush inductive loads
- Advanced VE.Bus connectivity allows for parallel operation and 3-phase configurations
- ECO mode minimises battery drain during zero-load conditions
- Fully programmable relay can be customised for alarm signals or automatic generator starting
- Durable aluminium enclosure with intelligent fan-assisted cooling protects against harsh environmental conditions
- Heavy-duty bottom-entry cable glands provide secure and protected wiring connections
Versatile Energy Applications

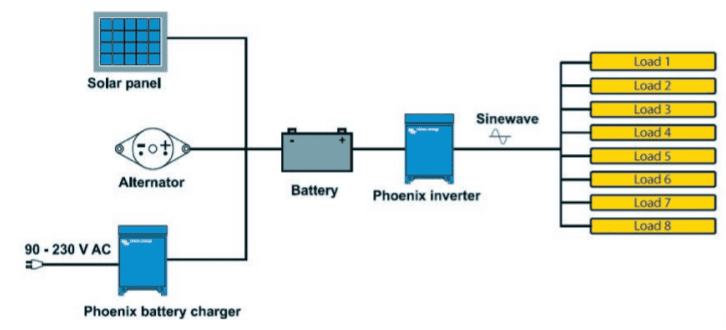

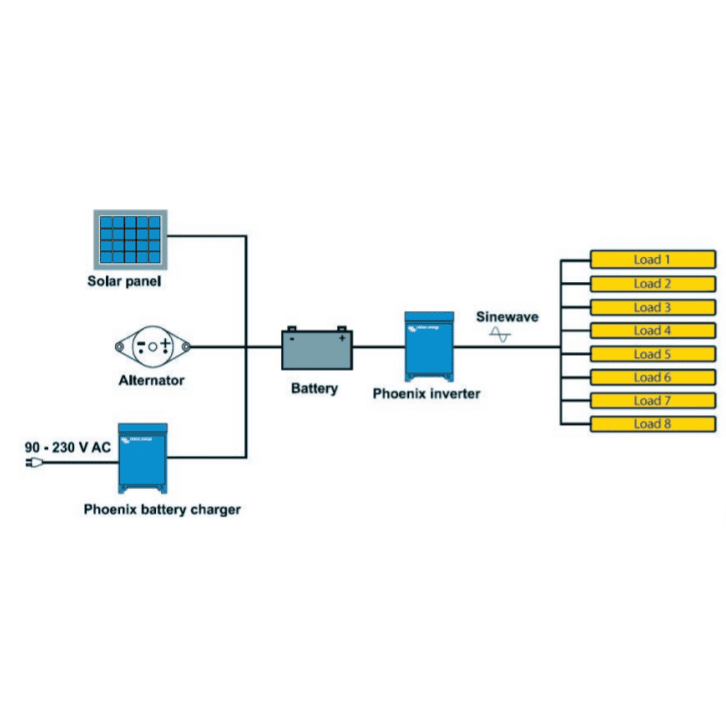

Whether you are outfitting a remote cabin, upgrading an industrial work vehicle, or powering a specialised marine vessel, this inverter acts as the reliable heart of your AC power system. By effectively converting stored DC battery energy into dependable 230V AC power, it bridges the gap between your battery bank and your daily electrical needs. It is fully compatible with advanced lithium systems and traditional lead-acid banks alike.
Build a resilient, high-performance energy system today and power your heavy-duty appliances with complete confidence using this premium pure sine wave inverter.
SKU: VIC-PIN485020000
SPECIFICATIONS
Specifications
| Parallel And 3-Phase Operation | Yes |
|---|---|
| Input Voltage Range | 38 - 66 V DC |
| Output Voltage | 230 VAC ± 2 % |
| Frequency | 50 Hz ± 0.1 % |
| Continuous Output Power At 25 °C (VA) | 5000 |
| Continuous Output Power At 25 °C (W) | 4000 |
| Continuous Output Power At 40 °C (W) | 3700 |
| Continuous Output Power At 65 °C (W) | 3000 |
| Peak Power | 10000 W |
| Maximum Efficiency | 95 % |
| Zero-Load Power | 35 W |
| Programmable Relay | Yes |
| VE.Bus Communication Port | For parallel and three phase operation, remote monitoring and system integration |
| Remote On-Off | Yes |
| Operating Temperature Range | -40 to +65 °C (fan assisted cooling) |
| Humidity (Non-Condensing) | Max 95 % |
| Material & Colour | Aluminium (Blue RAL 5012) |
| Protection | IP21 |
| Battery Connection | M8 Bolts (2 Plus and 2 Minus Connections) |
| 230 V AC Connection | Screw Clamp 13 mm² (6 AWG) |
| Weight | 30 kg |
| Dimensions (H x W x D) | 444 x 328 x 240 mm |
| SKU: | VIC-PIN485020000 |
| Barcode: | 8719076023883 |
| Model #: | PIN485020000 |
| MPN: | PIN485020000 |
WARRANTY
Victron Energy Limited Warranty Policy
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.
During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
• Reverse of battery polarity.
• Inadequate connection.
• Mechanical shock or deformation.
• Contact with liquid or oxidation by condensation.
• Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...).
• Breakage or damage due to lightning.
• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.
• For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.
Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.
Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.
Life Support Policy
As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.
Warranty on Repairs
The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.
For Australia only
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
