Victron 100A:50mA Current Transformer for MultiPlus-II (1m Wire-End)

Victron | Current Transformer 100A:50mA for MultiPlus-II (1m Wire-End)

The Victron 100A:50mA Current Transformer is a dedicated external current sensor designed specifically for MultiPlus-II and MultiGrid-II inverter/chargers. Featuring a one-metre cable with wire-end terminations, this sensor provides precise AC current measurement required for advanced system controls.

Optimised System Performance

By implementing external current sensing, this transformer allows your Victron system to accurately monitor grid usage. This data is essential for enabling core features such as PowerControl and PowerAssist, ensuring the system can dynamically adjust its output to prevent grid overload while maximising the use of available inverter power. It is also a critical component for Energy Storage Systems (ESS) intended for optimising solar self-consumption.

Key Advantages

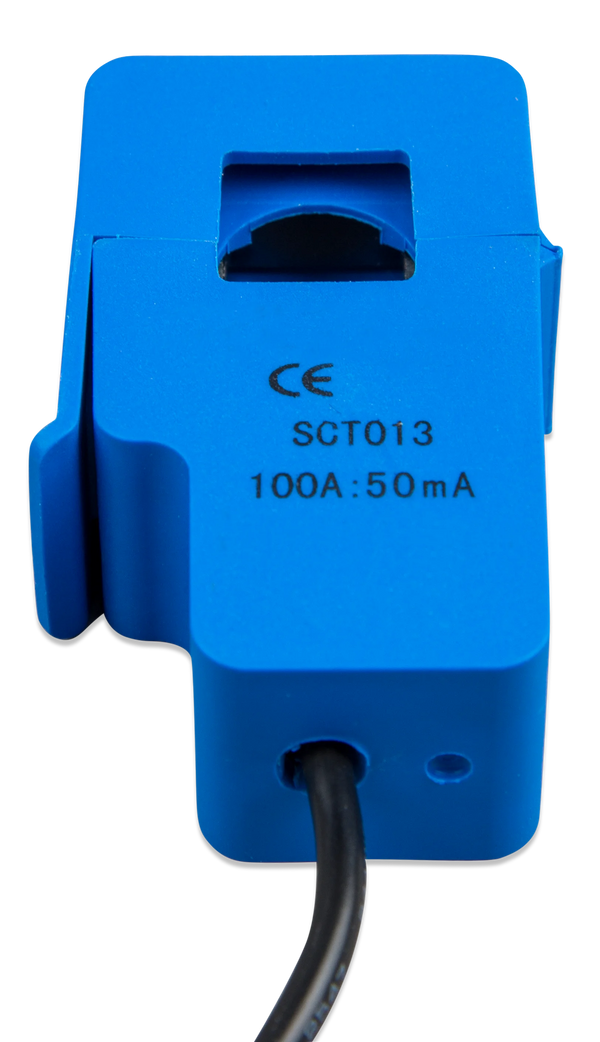

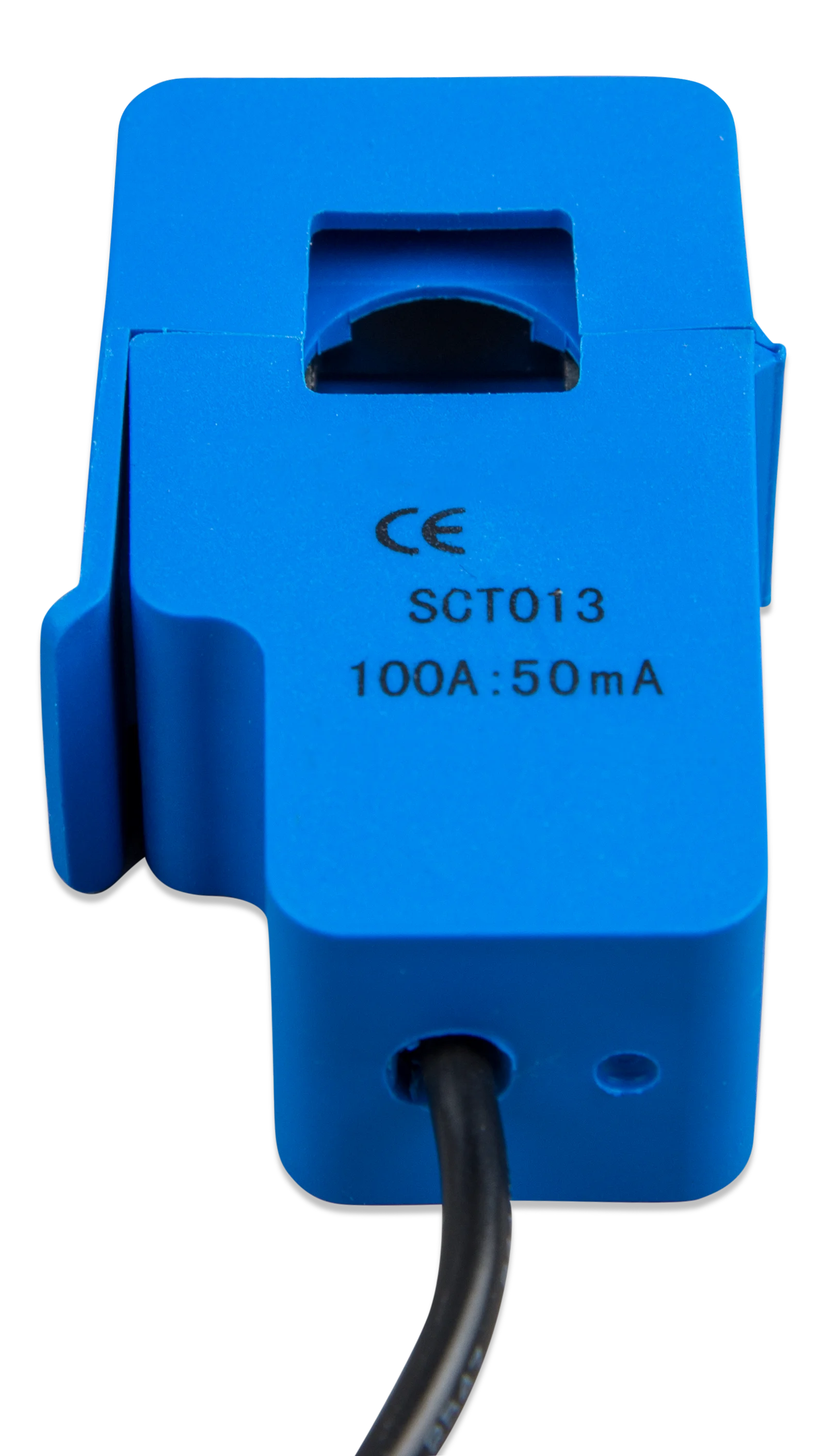

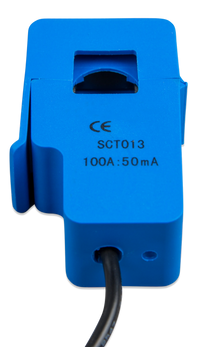

• Precise Measurement: 100A to 50mA current transformation ratio for accurate grid monitoring.
• System Integration: Unlocks PowerControl and PowerAssist capabilities in compatible Victron inverter/chargers.
• ESS Ready: Essential for optimising self-consumption in grid-connected Energy Storage Systems.
• Direct Connection: Features a wire-end termination for secure hardwiring into designated current sense terminals.

Wire-End Installation

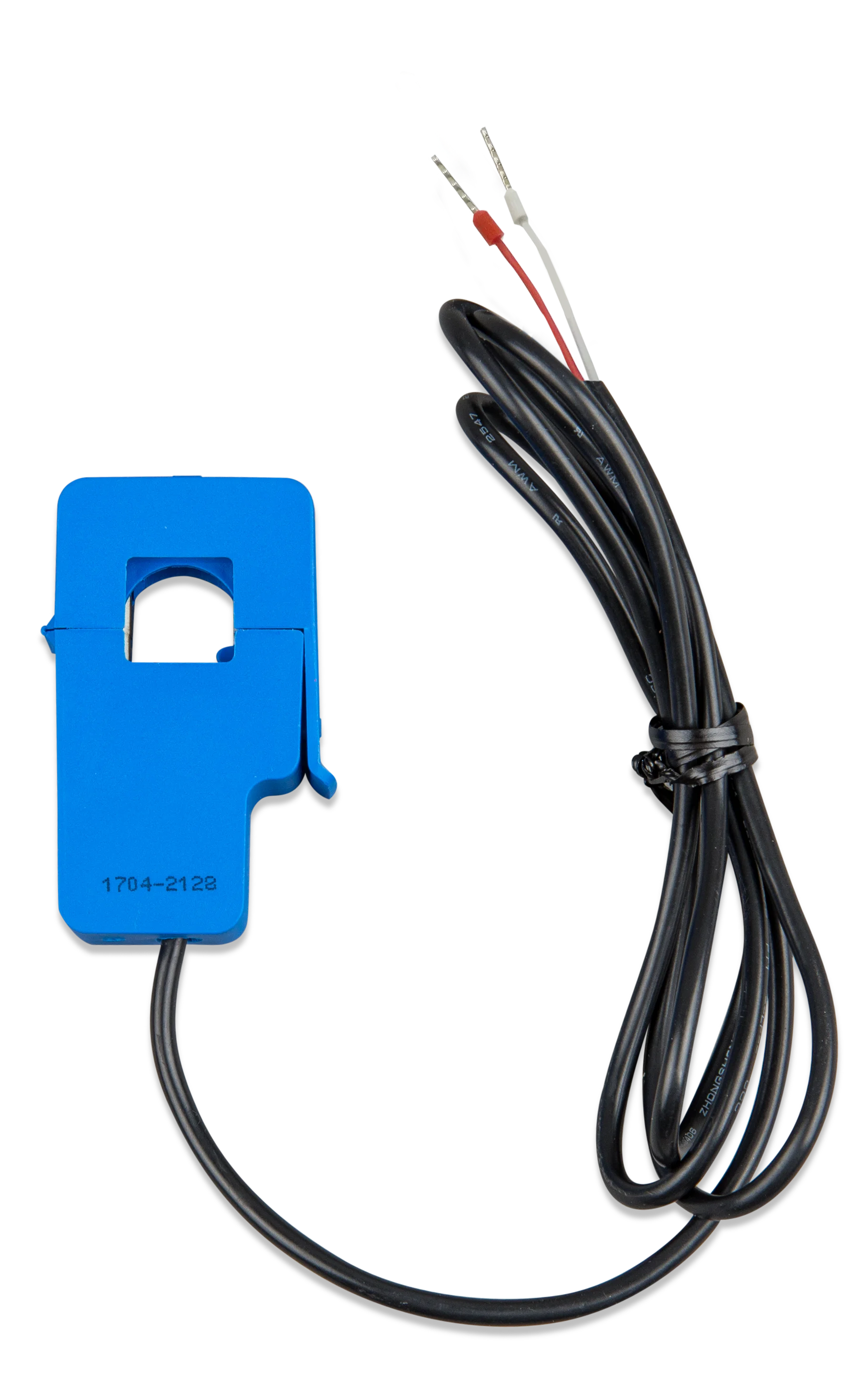

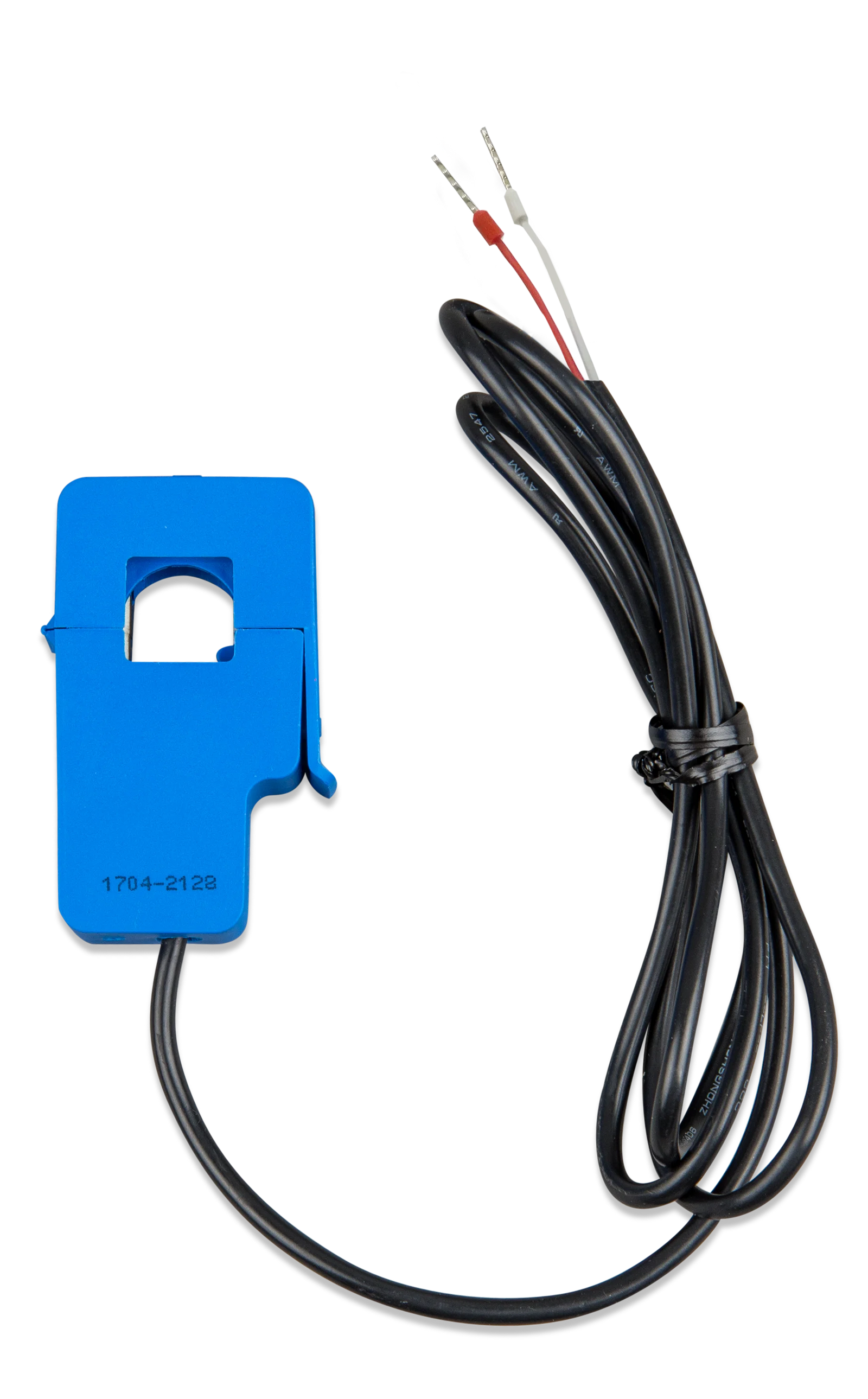

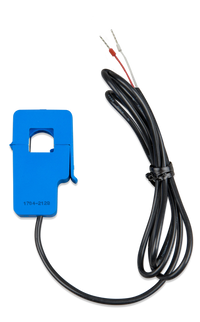

This specific model (CTR120000500) features wire-end connections, distinct from the audio-jack connector versions. The wire-end design is intended for secure, direct termination into the designated current sensor block of your MultiPlus-II or MultiGrid-II unit. The one-metre cable provides adequate length for installations where the sensor is mounted in close proximity to the main system wiring.

Provide your Victron energy system with the accurate grid data it needs to operate efficiently.
