Sunman eArc 9V 85W Flexible Solar Panel - Junction Box Underneath - Free VGK
CEC-approved composite build with free Vented Gap Kit included
DESCRIPTION

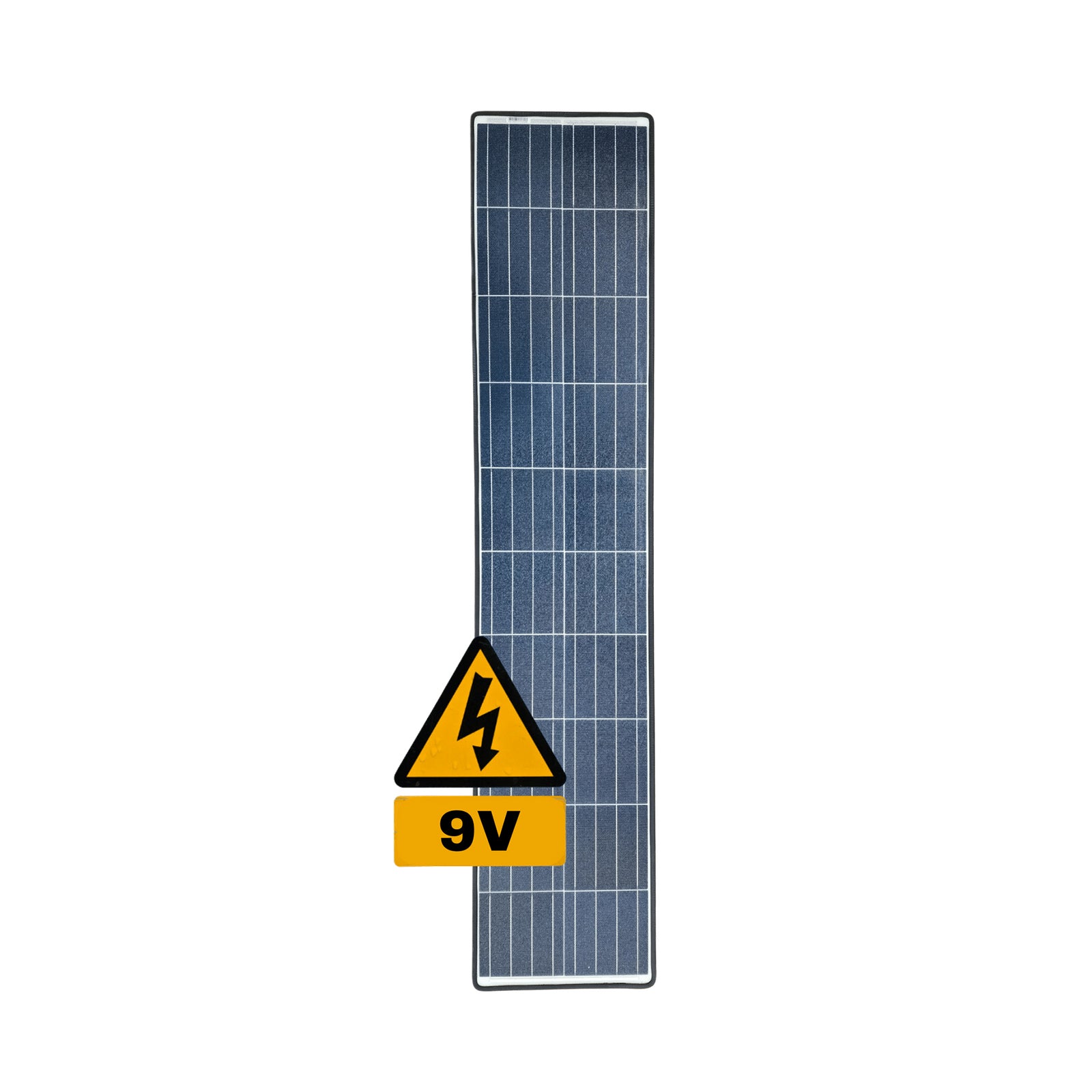

Sunman eArc 85W 9V Flexible Solar Panel for Mobile & Curved Roof Installs
The Sunman eArc 9V 85W flexible solar panel is engineered for lightweight, low-profile solar on vehicles and surfaces where traditional framed glass modules are impractical. Designed with a flexible composite construction and a junction box underneath for a cleaner top-side finish, it’s well suited to caravans, motorhomes, yachts, buses, trains and other mobile or space-constrained applications.
This model is an 85W 9V solar panel. That 9V output is a key selection point: it can be an excellent match for certain charging systems, but it needs to be configured correctly when charging a 12V battery. The information below explains the common wiring and controller options so you can design a system that performs as expected under Australian conditions.
Charging a 12V Battery from a 9V Solar Panel: Your Options
Because this panel is 9V nominal, you typically need either higher array voltage (by wiring panels in series) or a controller designed to boost lower input voltage.
- Option 1 (common): Wire two panels in series to create ~18V, then connect to a standard PWM or MPPT solar controller such as a Victron 75/15 MPPT SmartSolar or Victron PWM USB & LCD 20A
- Option 2: Use a voltage-boosting solar controller (boost controllers are less common and often higher cost), such as a Genasun GVB model
- Controller compatibility note: Some REDARC units such as the BCDC12XXD and Manager30 can charge from 9V solar panels, so one panel may function with those controllers (please check your manual first to confirm)
If you’re planning a caravan solar system upgrade, confirming controller input requirements early helps avoid under-voltage issues and ensures your battery charging performance aligns with your expectations.

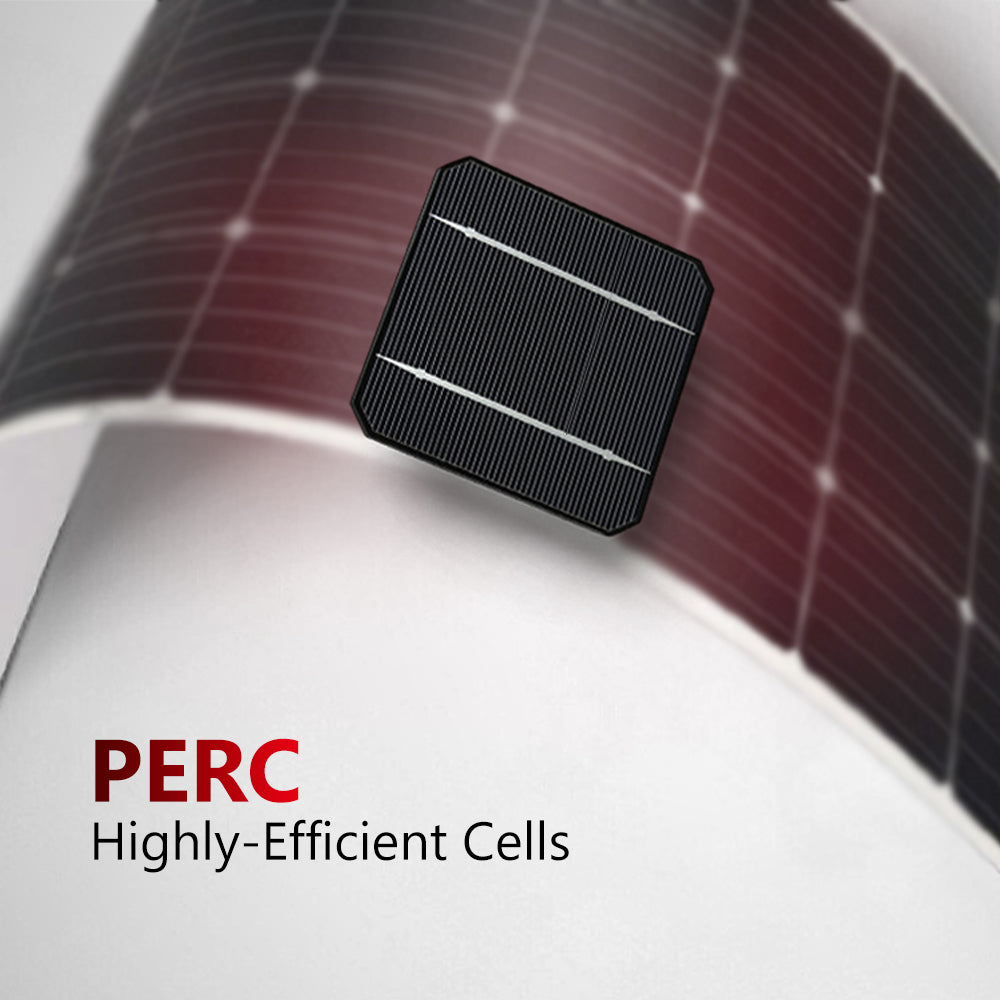

Compact Mono-PERC Cells in a Flexible, Frame-Free Design

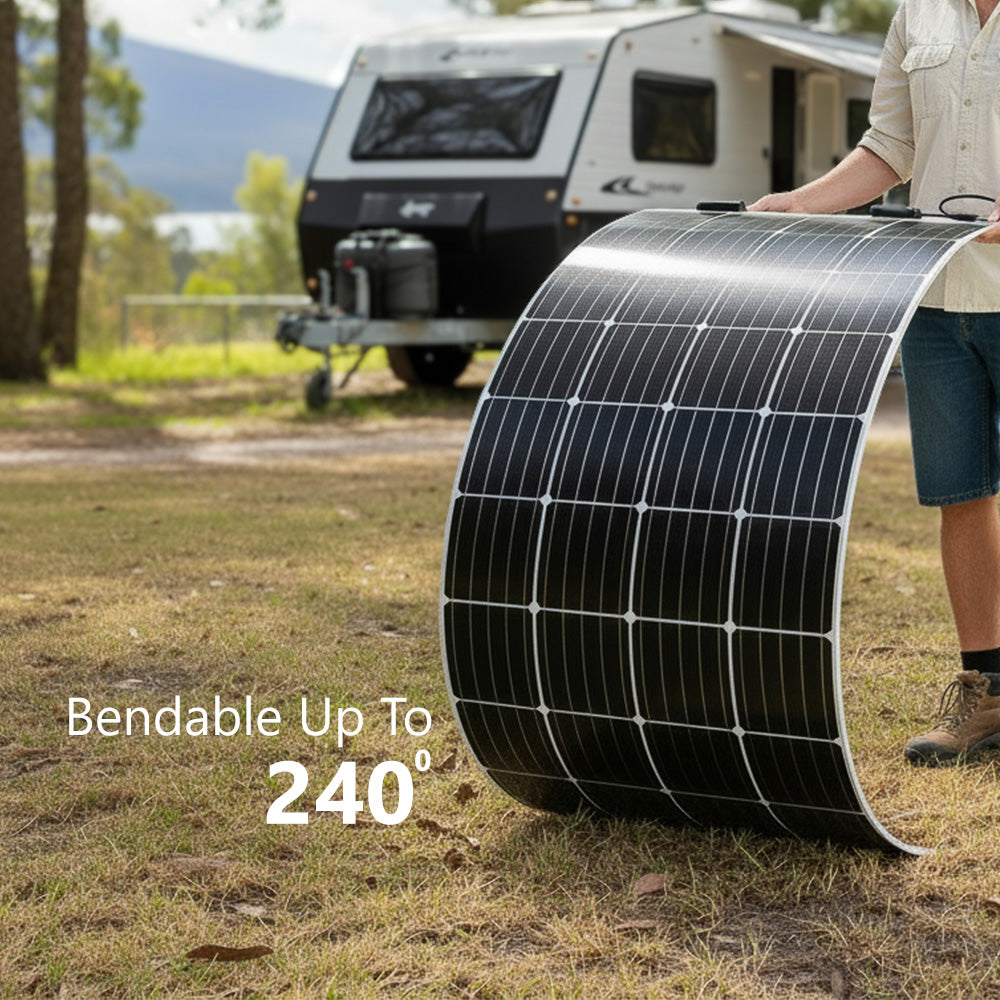

This new version of the Sunman eArc series uses monocrystalline Mono-PERC solar cells to support strong energy yield from a compact footprint. The flexible form factor makes it easier to mount on subtly curved surfaces and low-clearance rooftops, without the weight and profile of framed panels.
Built using a patent-pending composite material (often compared to aircraft window materials), Sunman eArc panels are designed to be tough without requiring heavy glass or a rigid aluminium frame. They are CEC-approved technology, supporting confidence for installers and customers looking for compliant solar components in Australia.
Free Vented Gap Kit (VGK) Included for Improved Mounting
Free Vented Gap Kit Included! Correct mounting is critical for flexible solar panels, particularly on vehicle roofs where heat and airflow can affect performance. The included Vented Gap Kit is designed to improve airflow under the panel, helping to reduce surface heat build-up and support more stable output.
Please carefully follow the mounting instructions here, which include the below:
- Vented Gap Kit: Improves panel efficiency and reduces surface heating. Includes high bond double-sided adhesive tape and polycarbonate strips (height increase of approximately 15mm)

Key Features

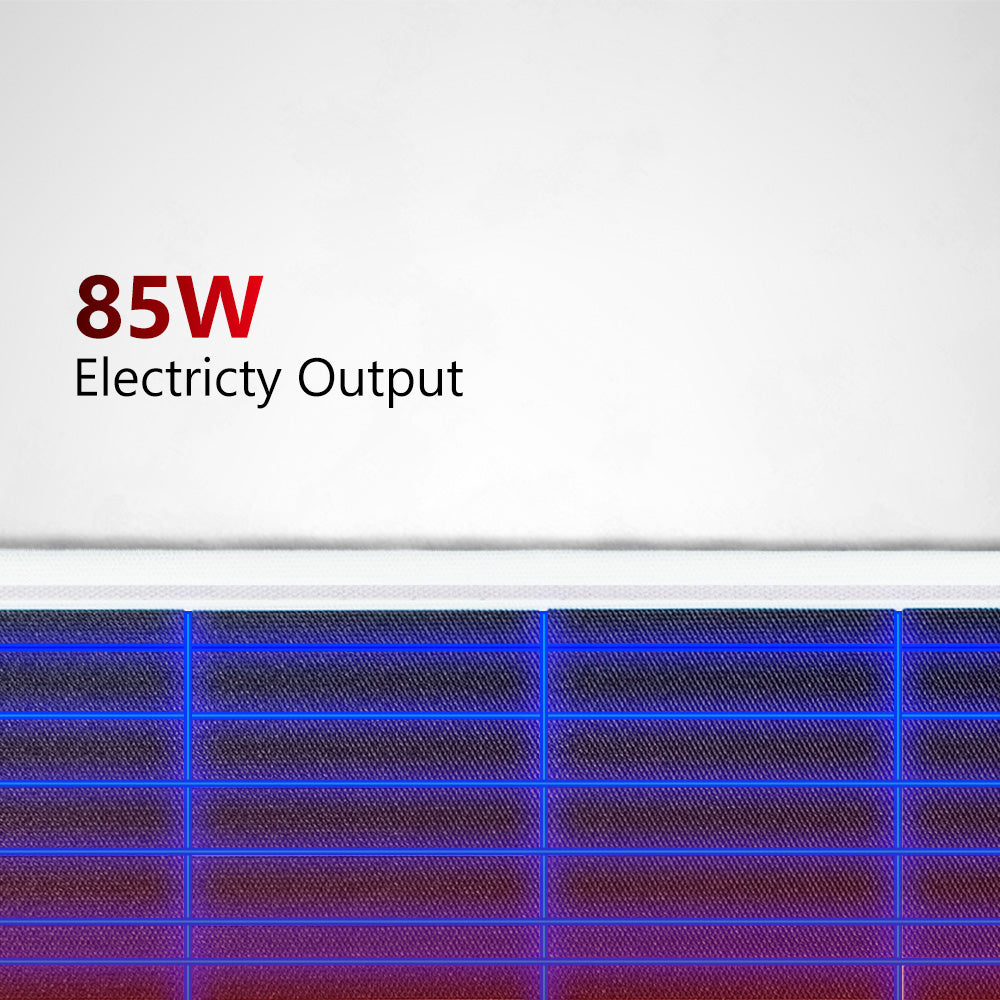

- 85W flexible solar panel (9V) for space-limited and curved mounting surfaces
- Junction box underneath to support a clean top-side profile
- Mono-PERC monocrystalline cells for efficient energy production in a compact format
- Lightweight, frame-free composite construction designed for mobile applications
- CEC-approved for residential and commercial use in Australia
- Free Vented Gap Kit included to support airflow, reduce heat build-up and improve mounting outcomes
Built for Australian Mobile Power Setups

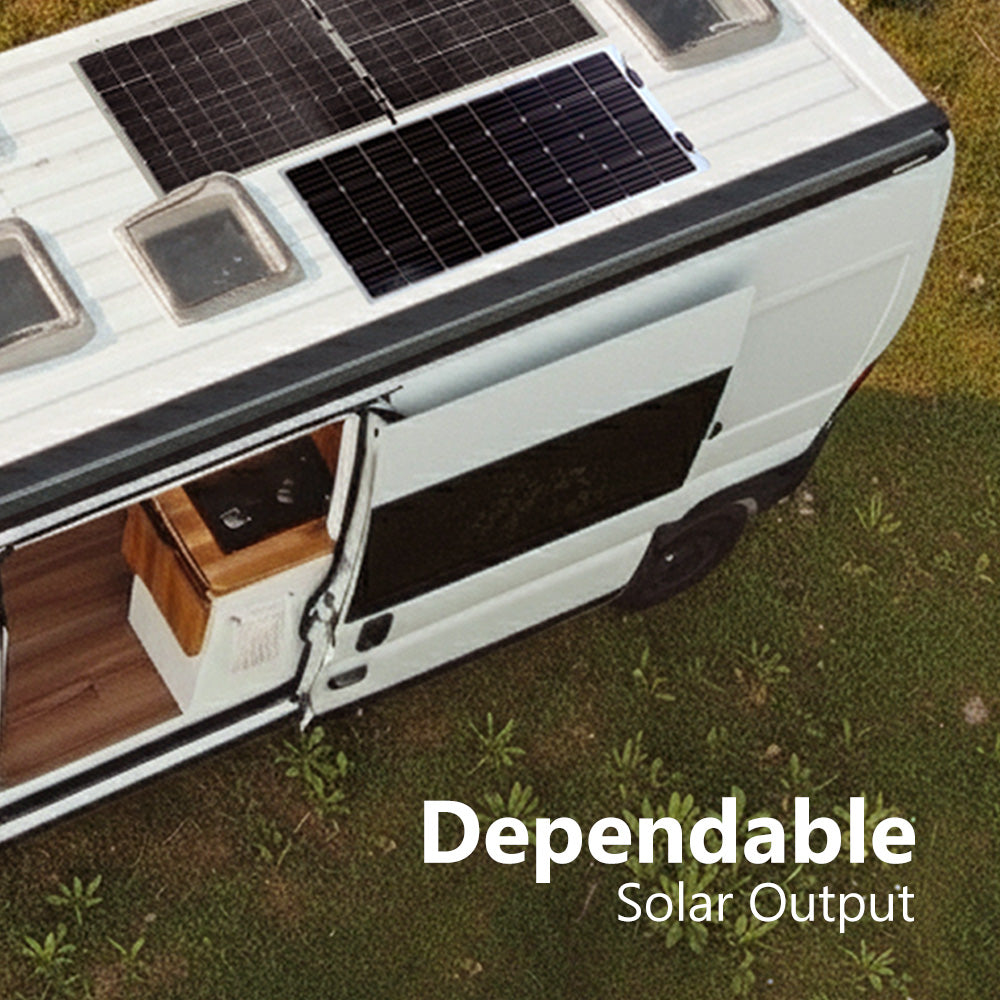

Whether you’re fitting out a tourer, replacing older caravan solar panels, or building a compact solar solution on a marine roof, the Sunman eArc format prioritises practical installation and reduced roof load. The combination of flexible construction, efficient cell technology, and the included vented gap mounting approach is particularly relevant for Australian conditions, where rooftop temperatures can climb quickly and airflow management matters.
For best results, match the panel configuration to your controller and battery setup. If you’re unsure whether one panel will suit your system, consider whether you’ll be running two panels in series into a standard MPPT/PWM controller, or using a compatible charger that accepts lower solar input voltage.
Choose the Sunman eArc 85W flexible solar panel when you need a low-profile, lightweight panel from a recognised brand—paired with clearer guidance on how to integrate 9V solar into real-world 12V battery systems.
SKU: eASMS085P2x10D
SPECIFICATIONS
Specifications
| 85W | |
| Solar cells | 20 (2x10) |
| Maximum Power (Pmax) | 85 |
| Maximum Power Voltage (Vmp) | 10.5 |
| Maximum Power Current (Imp) | 8.1 |
| Open-circuit Voltage (Voc) | 12.9 |
| Short-circuit Current (Isc) | 8.55 |
| Operating Temperature (°C) | -40 °C to 85 °C |
| Maximum System Voltage | 600 V DC (IEC) |
| Maximum Series Fuse Rating | 20 A |
| Application Class | Class A |
| Power Tolerance | 0/+5 W |
| Backsheet | White |

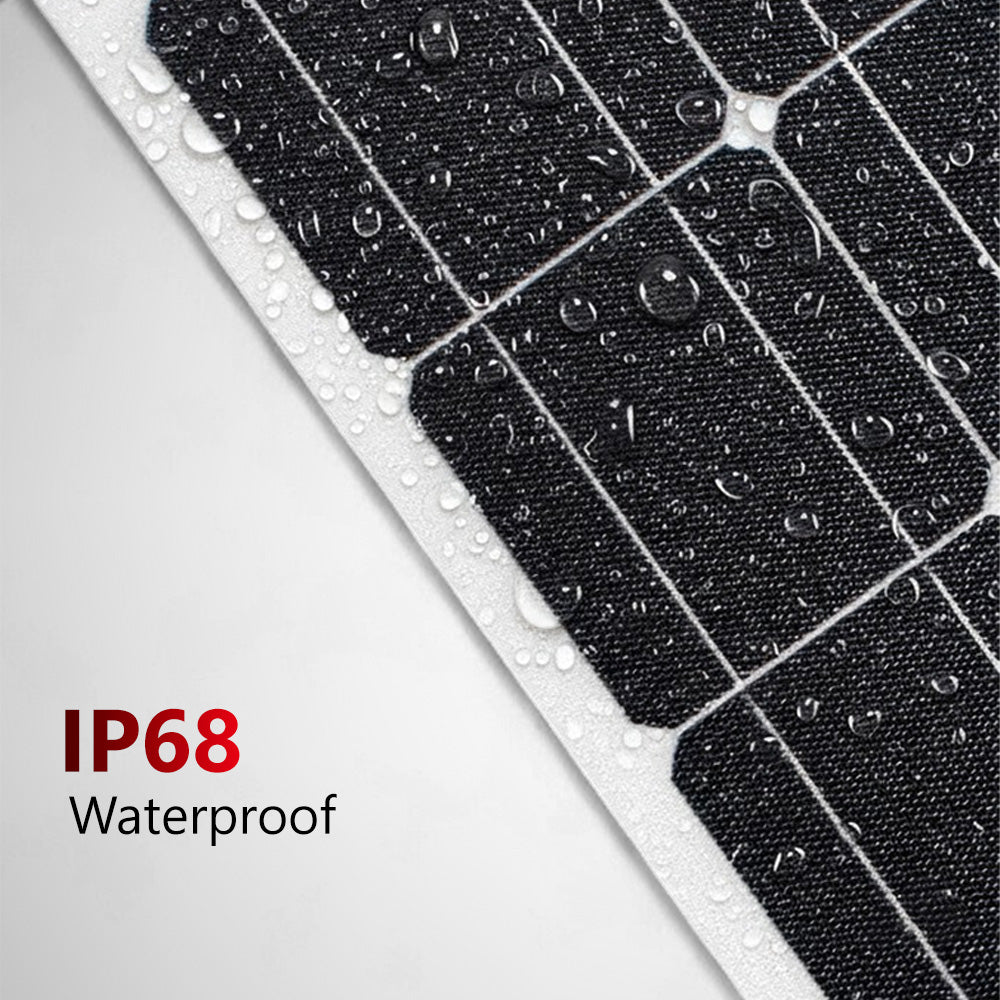

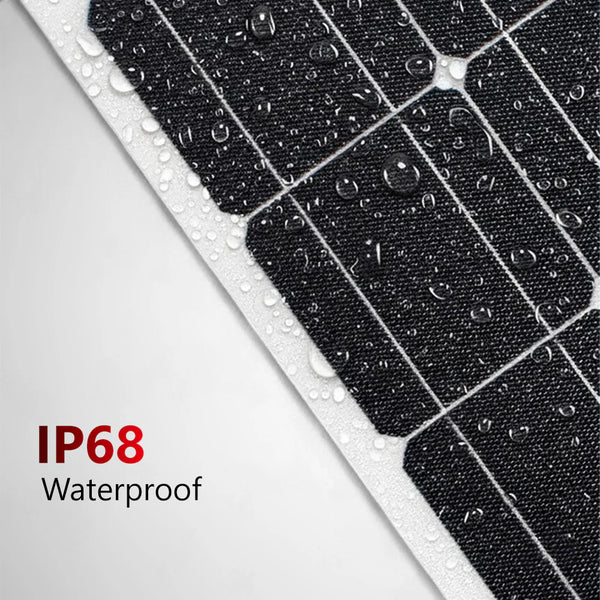

| Junction box | IP 68 rated (each j-box has one by-pass diode) |
| Output Cables | Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm |
| Connector | MC4 compatible |
| SKU: | eASMS085P2x10D |
| Model #: | eASMS085P2x10D |
| MPN: | eASMS085P2x10D |
WARRANTY
1. Limited Product Warranty for Mobile/Marine Applications Sunman (Zhenjiang) Company Limited (“SUNMAN”) warrants that its photovoltaic modules together with the DC connector cable assemblies are free from defects, if any, in materials and workmanship under normal application, use, installation and service conditions for a period of pending 60 months from the delivery (Incoterms 2010) of SUNMAN modules (“Modules”) to the original end customer (“Customer”), or 12 months after the date of production of the Modules as indicated in the serial number, whichever date is earlier. If Modules become malfunction or inoperative due to defect in material or workmanship during such pending 60 months period set forth above, SUNMAN will, at its own option, either repair or replace the Modules in problem, or refund a reasonable portion of the purchase price as paid by the Customer(“Purchase Price”). The repair or replacement or refund remedy shall be the sole and exclusive remedy provided under this Limited Warranty.
2. Limited Peak Power Warranty and Limited Remedy SUNMAN warrants the percentage of nominal power output as below: A. A solar Module’s performance warranty will typically guarantee 90% of rated power output at 5 years B. SUNMAN warrants each Module against defects in materials and workmanship that result in the failure of the Modules to produce the warranted percentage specified above of the nominal power output for the Module set forth in SUNMAN 's product datasheet. If SUNMAN determines in its discretion that any Module is not providing the warranted percentage of the nominal power output due to Modules’ defects in material or workmanship attributed to SUNMAN , who will, at its sole option and discretion, either [1] make up such loss in power by providing to Customer additional Modules; or [2] repair or replace the defective Modules including free shipping to the place supplied by SUNMAN ; or [3] refund Customer such loss proportion arising from unqualified power output which less than the warranted percentage of the nominal power. The remedies set forth in Section 2 are the sole and exclusive remedies provided under the limited minimum Peak Power Warranty.
3. Exclusions and Limitations; A. Warranty claims, in any event, shall be filed in writing to SUNMAN or its authorized distributors within the applicable warranting period B. These Limited Warranties will not be applied to normal wear and tear, to the natural effects of exposure to weather conditions over time, or to the Modules which under SUNMAN's sole judgment have been subjected to:
- Misuse, abuse, neglect, vandalism or accident;
- Alteration, improper installation or application;
- Repair or modifications that do not strictly follow the manufacturer’s instructions;
- Non-observance of SUNMAN’s maintenance instructions;
- Power failure, electrical spikes or surges, lighting, flood, fire, accidental breakage or other events outside the control of SUNMAN.
C. These Limited Warranties only cover the transportation costs for shipment of any repaired or replaced Modules to the place applied by SUNMAN. Any costs for returning the Modules to SUNMAN or its authorized agents and authorized distributors, or costs associated with installation, removal or reinstallation of the Modules, shall be borne by the end user Customers. D. Warranty claims will not be honored if the type or serial number of SUNMAN Modules have been altered, removed or made illegible without written authorization from SUNMAN.
4. Transferability This warranty is extended to the original end-user purchaser, and is also transferable to any subsequent owner of the location or holder of the product when Module(s) remain at their original installed location upon satisfactory proof of succession or assignment.
5. Obtaining Warranty Performance In order to obtain warranty service under the SUNMAN Limited Warranty, the end user Customer should promptly notify SUNMAN regional customer service center. Together with the notification, the complete serial number printed on the module label and the shipment date of its Modules shall be marked as well. If the Modules will be returned for inspection, repair or replacement by SUNMAN, SUNMAN will give the Customer a Return Merchandise Authorization (RMA). However, SUNMAN will not accept a return of any Modules without a RMA.
6. Disputes No action, regardless of form, arising out of or in any way connected with this Limited Warranty, may be brought by the end user Customer more than one (1) year from the date when causes of action occurred.
7. Various
The repair or replacement of the Modules or the supply of additional Modules does not lead to a new commencement of warranty terms, nor shall the original terms of this Limited Warranty be extended. Any replaced Modules shall become the property of SUNMAN. SUNMAN shall at its own options to deliver another type of PV Modules (different in size, color, shape, or power), either a new brand or the original one, in case of that SUNMAN has discontinued producing the module in question at the time of the claim.
8. Force Majeure SUNMAN shall not be in any way be responsible or liable to the end user Customer or any third-party arising out of any non-performance or delay in performance of any terms and conditions of sale, including this Limited Warranty, due to fire, flood, blizzard, hurricane, thunder, acts of God, changes of public policies, terrorism, war, riots, strikes, unavailability of suitable and sufficient labor or materials and other events which are out of control of SUNMAN.
NOTE: “Peak Power” is the power in watt peak that a PV-module generates in its maximum power point. SUNMAN measurements are as follows (a) light spectrum of AM 1.5, (b) an irradiation of 1,000W per m2 and (c) a cell temperature of 25 degree Centigrade. The measurements are carried out in accordance with IEC61215 as tested at the junction box terminals per the calibration and testing standards of SUNMAN valid at the date of manufacture of the PV-Modules. SUNMAN’s calibration standards shall be in compliance with the standards applied by international institutions accredited for this purpose.
