Simarine NMEA2000 Gateway
1
DESCRIPTION

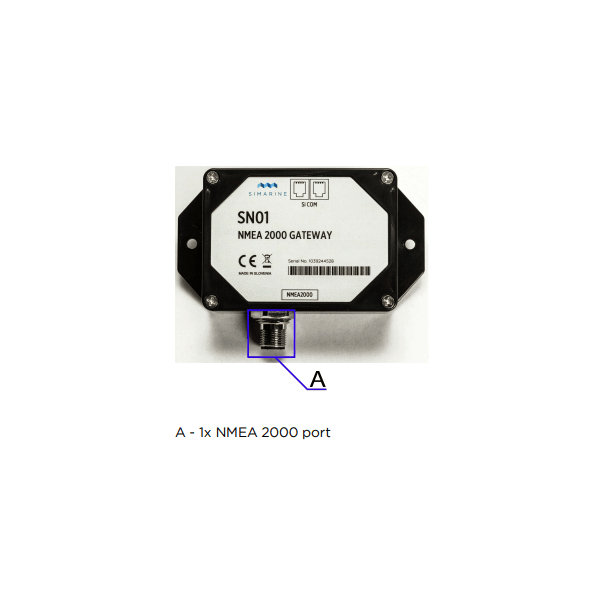

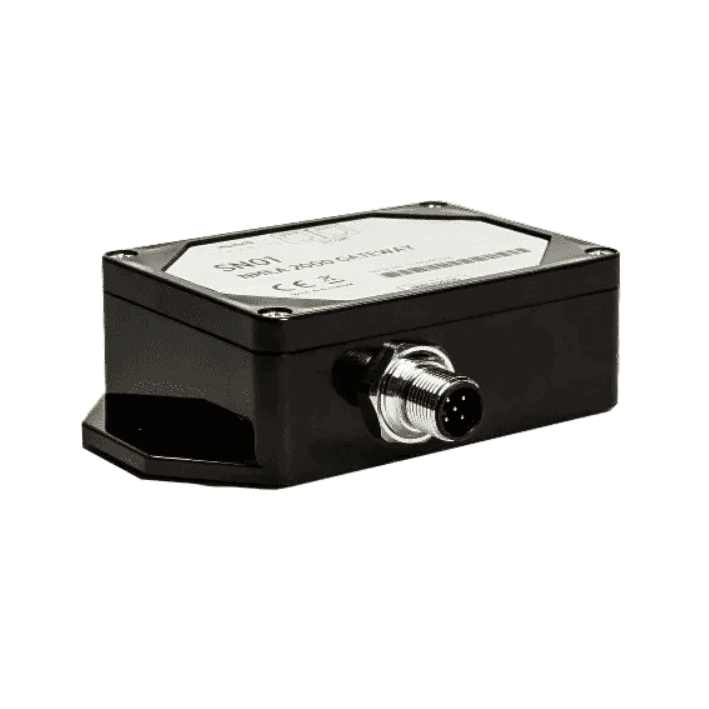

Simarine SN01 SiCOM NMEA 2000 Gateway module allows your PICO to transmit data of the devices connected to the PICO system. It allows control of switch banks, transmitting battery status, tank levels and some environmental information. Using the gateway, PICO can also display a range of engine and transmission parameters if they are connected to the NMEA network.
| PGN | PGN Name | receiving | transmitting | |
|---|---|---|---|---|
| 59904 | ISO Request | Yes | No | |
| 60928 | ISO Address Claim | Yes | Yes | |
| 126996 | Product Information | No | Yes | |
| 127257 | Attitude | No | Yes | |
| 127502 | Switch Bank Control | No | Yes | |
| 127505 | Fluid Level | No | Yes | |
| 127506 | DC Detailed Status | No | Yes | |
| 127508 | Battery Status | No | Yes | |
| 130310 | Environmental Parameters | No | Yes | |
| 130314 | Actual Pressure | No | Yes |
SKU: SI-SN01
SPECIFICATIONS
| SKU: | SI-SN01 |
| Barcode: | 3830067940523 |
| Model #: | SI-SN01 |
| MPN: | SI-SN01 |
