DESCRIPTION

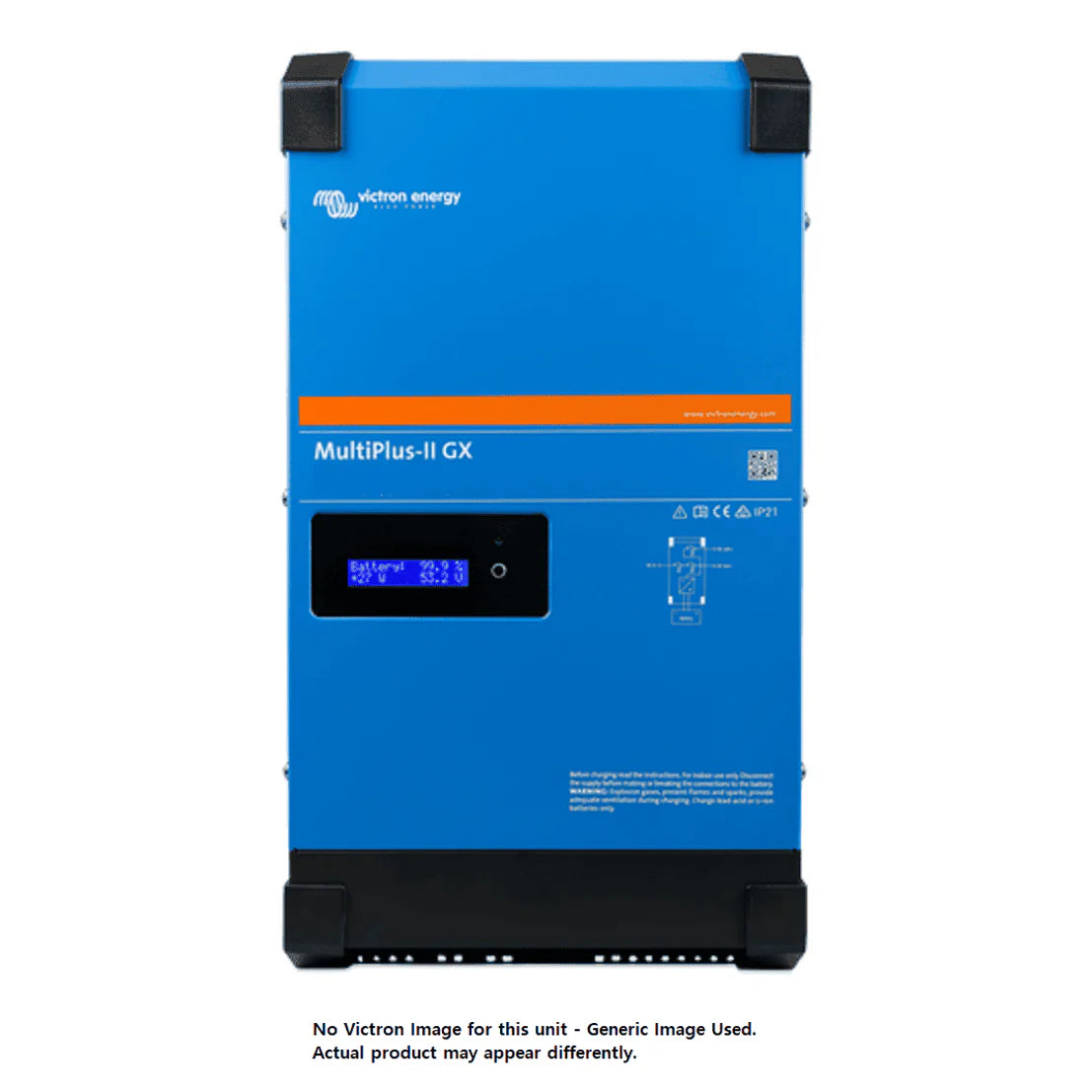

Victron MultiPlus-II 48/6k5/100-50 230V GX - Advanced Inverter/Charger with GX Integration
More power per kg and per dm³, and better high temperature performance compared to other MultiPlus-II models.
High-Performance Energy Management
The Victron MultiPlus-II 48/6k5/100-50 230V GX is a powerful inverter/charger designed for demanding on-grid, off-grid, marine, and mobile applications. It integrates seamlessly with batteries, solar panels, and other sustainable energy sources to provide uninterrupted AC power during grid outages. Surplus energy is automatically used to charge batteries, and during shortfalls, the system draws from stored energy to maintain critical loads.
GX Integration & Smart Monitoring
Equipped with a backlit 2x16 character GX LCD display, the unit provides clear system parameter visualization. Ethernet and WiFi connections enable local and remote monitoring, while the VRM portal offers long-term system performance tracking. Built-in battery monitoring allows automated relay control based on preset discharge levels, battery voltage, or load conditions.
Automatic and Uninterruptible Switching
The unit ensures continuous power to essential equipment such as heating pumps, refrigerators, and internet connections during grid failures. It automatically switches between battery and grid power to maintain operation of critical loads without disruption.
Dual AC Outputs & Flexible Load Management
Two AC outputs allow optimized energy usage. The primary output is uninterruptible for essential loads, while the auxiliary output disconnects non-critical loads during battery-only operation, such as electric boilers, ensuring intelligent energy distribution.
Three-Phase Capability & Scalable Systems
Supports parallel and three-phase configurations for large-scale installations, accommodating up to 18 units across six sets. PowerControl limits AC input current for safe operation, while PowerAssist supplements insufficient AC input with battery power during peak demands and replenishes batteries when loads decrease.
Adaptive Battery Charging
The MultiPlus-II GX manages both lead-acid and Li-ion batteries with adaptive multi-stage charging, BatterySafe mode to prevent over-gassing, storage mode for reduced self-discharge, and voltage compensation for cable losses. Compatible with VE.Bus BMS, Lynx Smart BMS, and SmallBMS for precise battery control.
Programmable Features

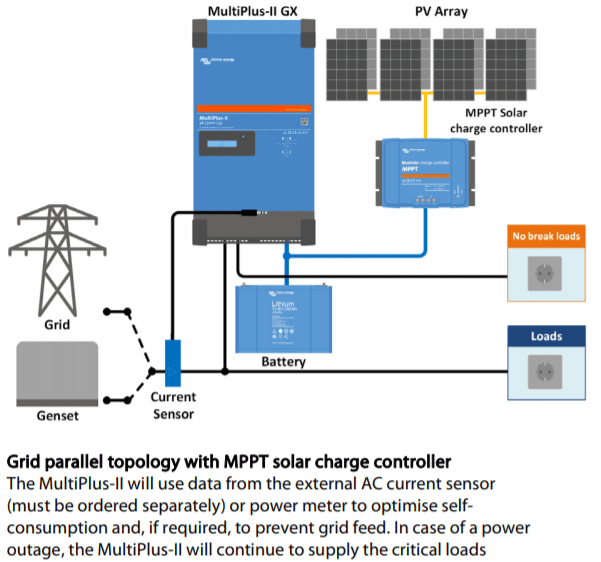

Includes programmable relays and analog/digital I/O ports for custom automation, including integration with allow-to-charge and allow-to-discharge BMS functions. Optional external current transformers enable enhanced PowerControl and PowerAssist in grid-parallel PV installations.
Applications

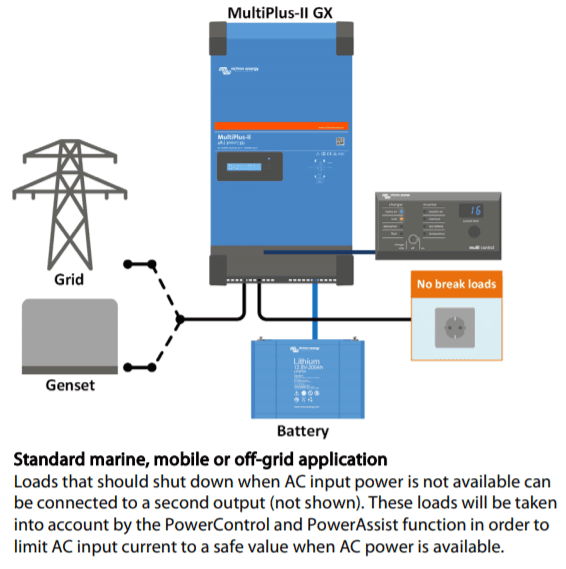

- Off-grid and hybrid residential systems
- Marine and mobile energy solutions
- Solar PV integration and energy storage setups
- Critical load backup for homes, offices, or industrial equipment
- Grid-interactive systems with demand-response and energy feed-in capabilities
Upgrade to the Victron MultiPlus-II 48/6k5/100-50 230V GX for intelligent energy management, seamless autonomous operation, and full integration with renewable energy and battery storage systems.
SKU: VIC-PMP482606000
SPECIFICATIONS

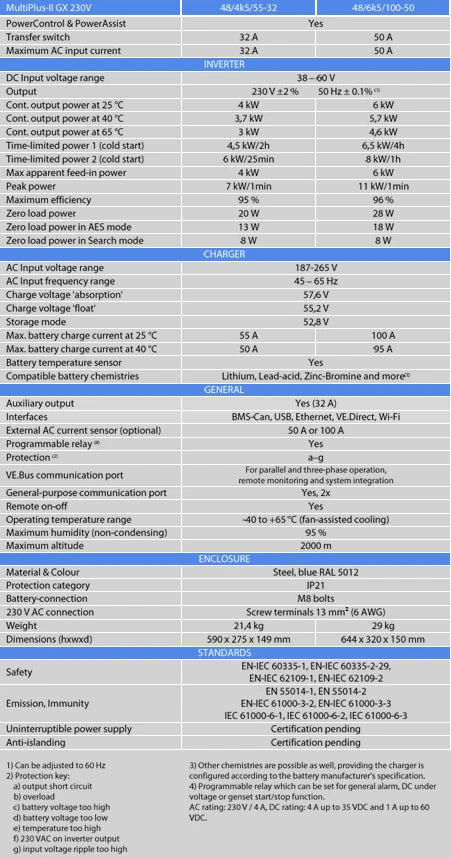

Specifications
| MultiPlus-II GX 230V: 48/6k5/100-50 | |
|---|---|
| PowerControl & PowerAssist | Yes |
| Transfer switch | 50 A |
| Maximum AC input current | 50 A |
| INVERTER | |
| DC Input voltage range | 38 – 60 V |
| Output | 230V ± 2% 50 Hz ± 0.1% (1) |
| Cont. output power at 25 °C | 6 kW |
| Cont. output power at 40 °C | 5.7 kW |
| Cont. output power at 65 °C | 4.6 kW |
| Time-limited power 1 (cold start) | 6.5 kW/4h |
| Time-limited power 2 (cold start) | 8 kW/1h |
| Max apparent feedin power | 6 kW |
| Peak power | 11 kW/1min |
| Maximum efficiency | 96% |
| Zero load power | 28 W |
| Zero load power in AES mode | 18 W |
| Zero load power in Search mode | 8 W |
| CHARGER | |
| AC Input voltage range | 187-265 V |
| AC Input frequency range | 45 – 65 Hz |
| Charge voltage 'absorption' | 57.6 V |
| Charge voltage 'float' | 55.2 V |
| Storage mode | 52.8 V |
| Max. battery charge current at 25 °C | 100 A |
| Max. battery charge current at 40 °C | 95 A |
| Battery temperature sensor | Yes |
| Compatible battery chemistries | Lithium, Lead-acid, Zinc-Bromine and more (3) |
| GENERAL | |
| Auxiliary output | Yes (32A) |
| Interfaces | BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi |
| External AC current sensor (optional) | 50 A or 100 A |
| Programmable relay (4) | Yes |
| Protection (2) | a-g |
| VE.Bus communication port | For parallel and three-phase operation, remote monitoring and system integration |
| General-purpose communication port | Yes, 2x |
| Remote on-off | Yes |
| Operating temperature range | -40 to +65 °C (fan-assisted cooling) |
| Maximum humidity (non-condensing) | 95% |
| Maximum altitude | 2000 m |
| ENCLOSURE | |
| Material & Colour | Steel, blue RAL 5012 |
| Protection category | IP21 |
| Battery-connection | M8 bolts |
| 230 VAC connection | Screw terminals 13 mm² (6 AWG) |
| Weight | 29kg |

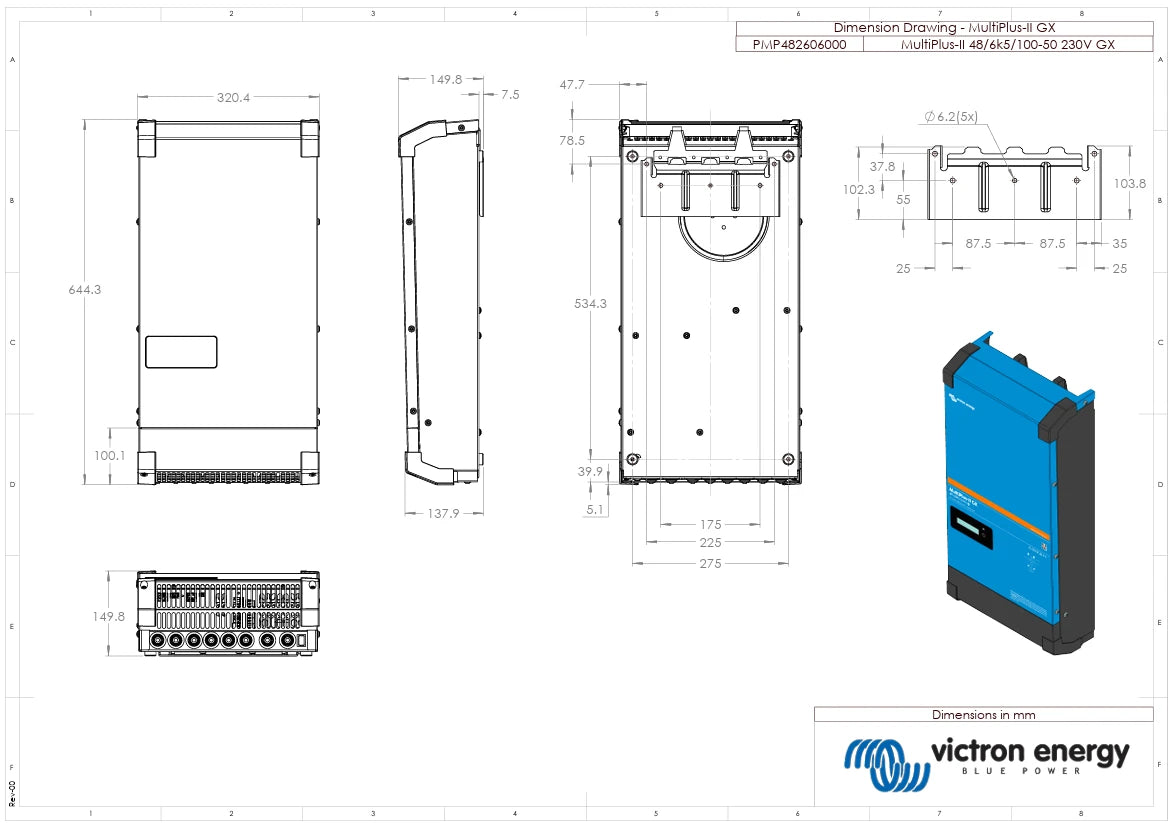

| Dimensions (hxwxd) | 644 x 320 x 150 mm |
| STANDARDS | |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission, Immunity | EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Uninterruptible power supply | Certification pending |
| Anti-islanding | Certification pending |
|
1) Can be adjusted to 60 Hz 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) 230 VAC on inverter output g) input voltage ripple too high 3) Other chemistries are possible as well, providing the charger is configured according to the battery manufacturer's specification. 4) Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function. AC rating: 230V / 4 A, DC rating: 4 A up to 35VDC and 1 A up to 60 VDC. |
|
| SKU: | VIC-PMP482606000 |
| Barcode: | 8719076066507 |
| Model #: | PMP482606000 |
| MPN: | PMP482606000 |
WARRANTY
Victron Energy Limited Warranty Policy
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.
During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.
Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.
Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.
Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.
Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.
Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.
For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
