Victron 48V 6500W MultiPlus-II 48/6k5/100-50 Inverter/Charger


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

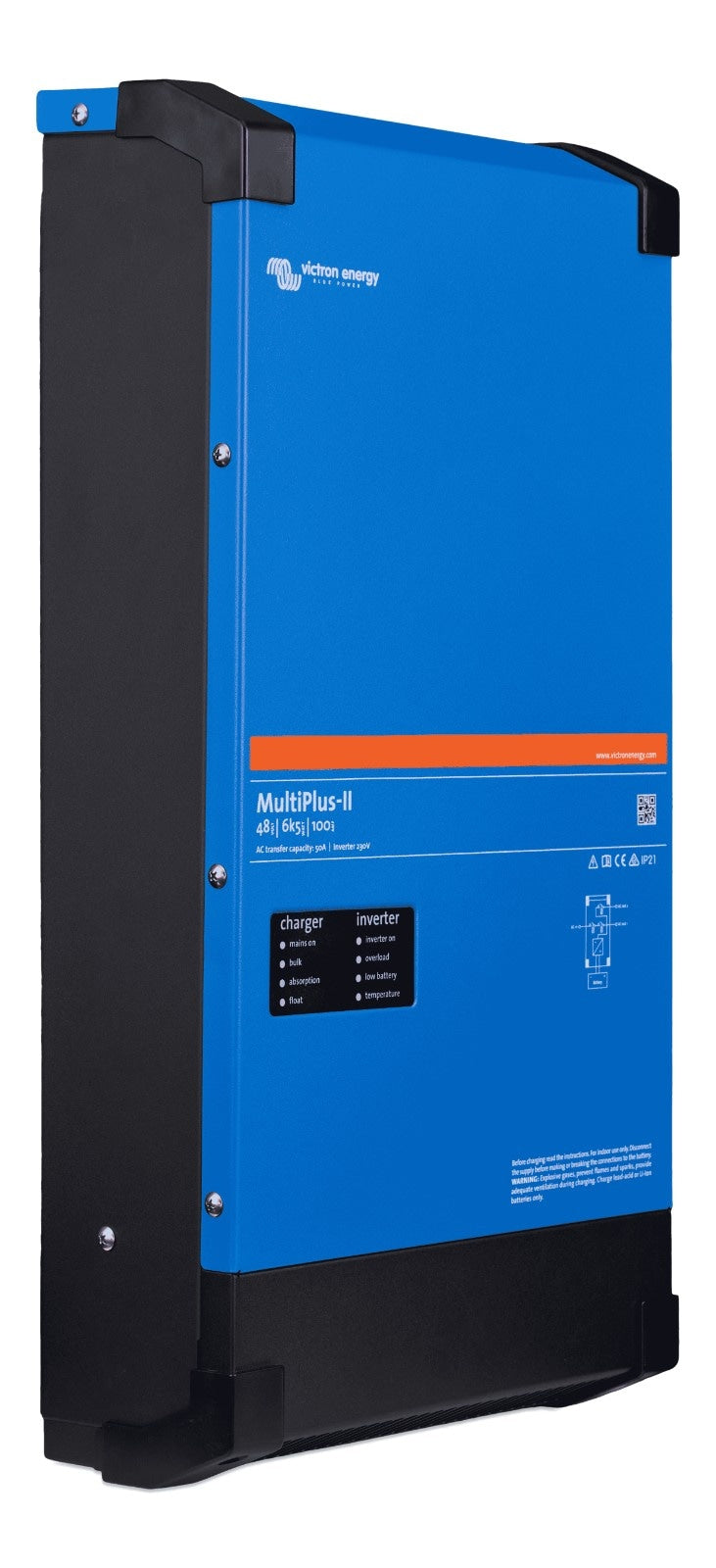

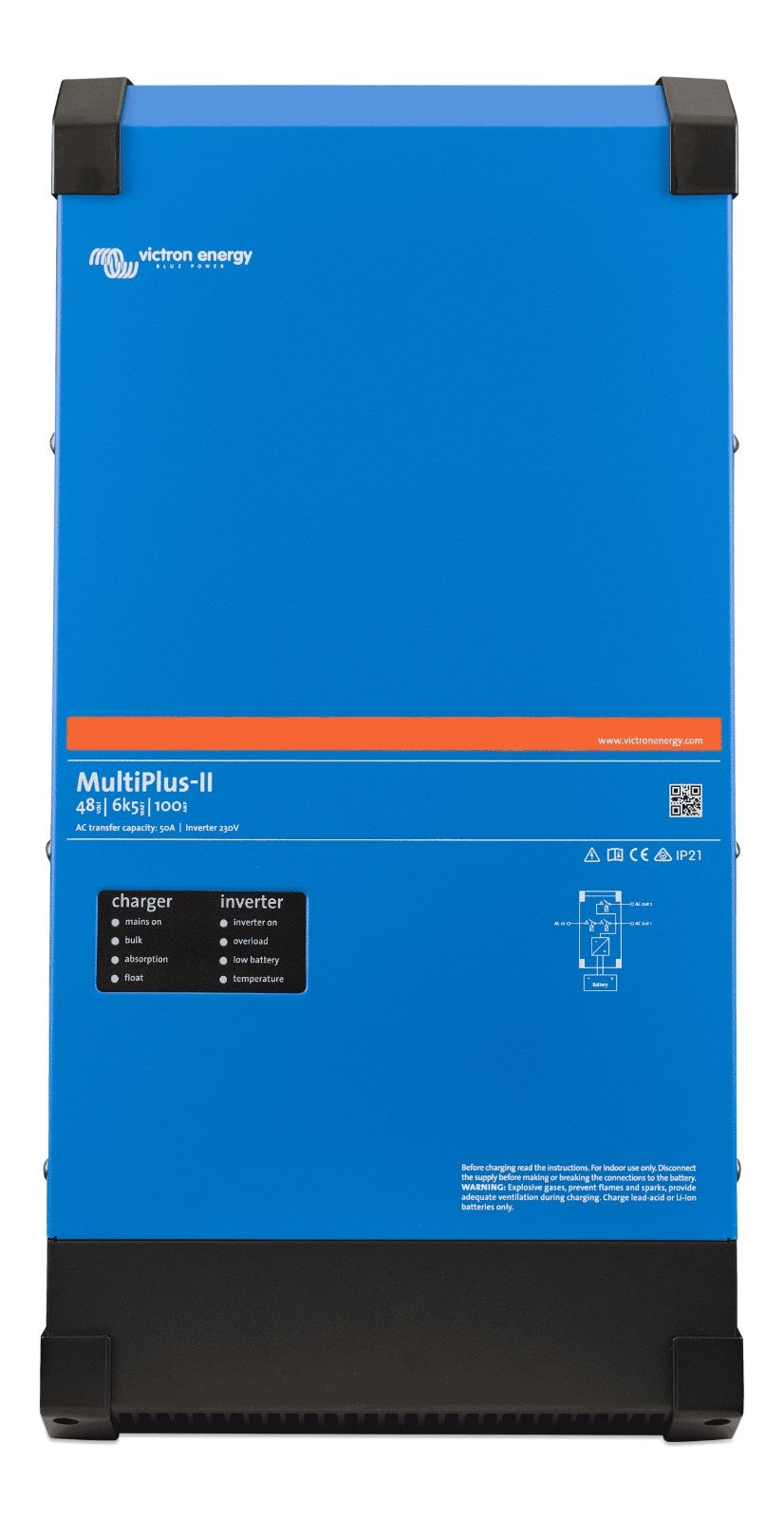

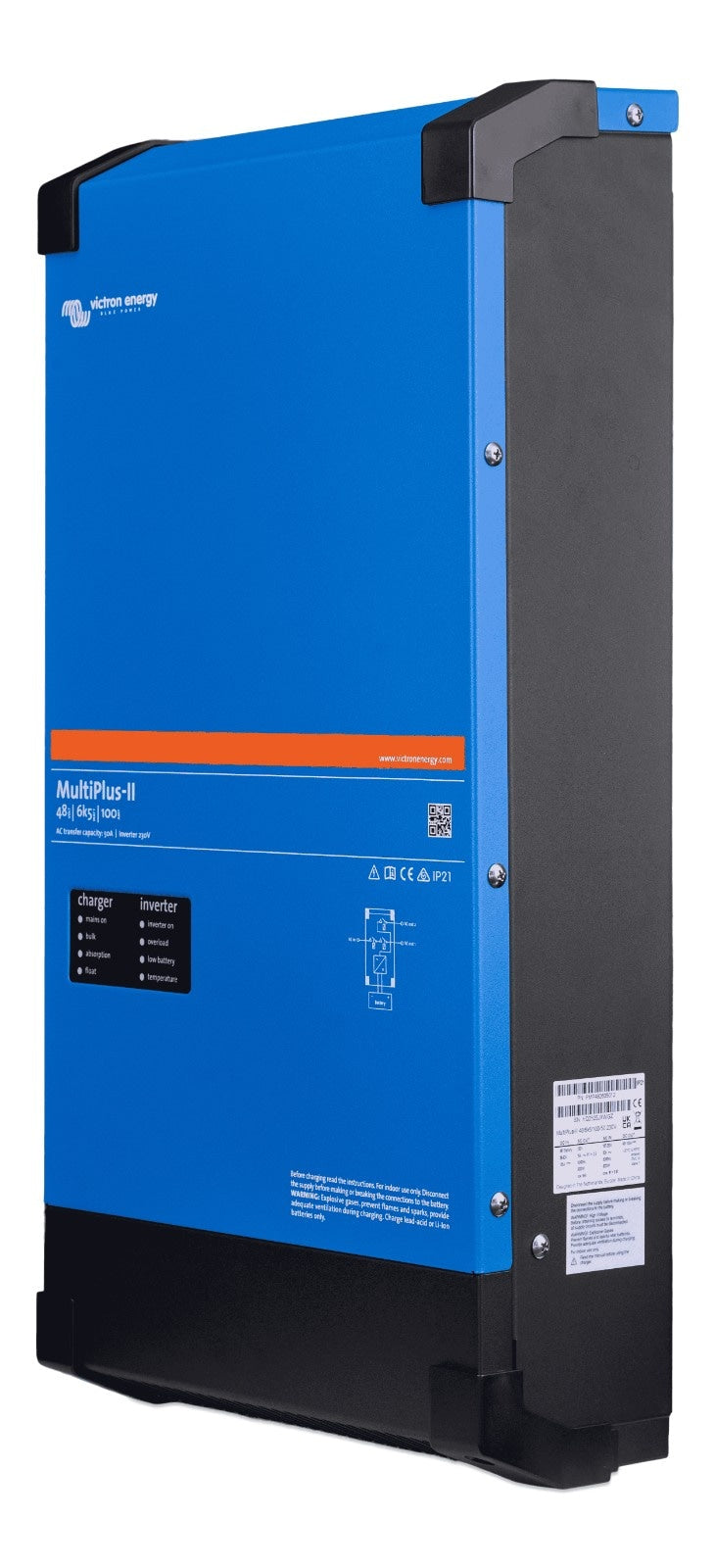

Victron MultiPlus-II 48/6k5/100-50 230V - High-Power Inverter/Charger

More power per kg and per dm³, and better high temperature performance compared to other MultiPlus-II models.

Professional-Grade Inverter/Charger with ESS Functionality

The Victron MultiPlus-II 48/6k5/100-50 230V is a high-performance multifunctional inverter/charger designed for demanding marine, mobile, and off-grid applications. Combining a robust 230V inverter with a powerful battery charger, this unit features Energy Storage System (ESS) capabilities, allowing integration with solar, grid-tied, and generator systems for intelligent energy management. Delivering continuous output of 6 kW at 25°C and peak power of 11 kW, it ensures reliable operation for critical loads even during high-demand periods.

PowerControl & PowerAssist – Intelligent Energy Management

The MultiPlus-II’s PowerControl feature allows precise limitation of AC input current, preventing overload on generators or the grid. PowerAssist extends this functionality by supplementing limited grid or generator power with stored battery energy during peak loads, then recharging the battery once demand decreases. This maximises system efficiency and guarantees uninterrupted power to essential loads.

Seamless AC Supply & Dual Output Functionality

The main AC output delivers uninterrupted power during grid or generator outages, with transfer times under 20 milliseconds, keeping sensitive electronics operational. The secondary AC output is live only when input power is present, ideal for non-critical loads such as water heaters. Both outputs integrate with PowerControl and PowerAssist for smart load management.

Scalable & Flexible System Configuration

Up to six MultiPlus-II units can be connected in parallel for expanded power capacity. Three units of the same model can be configured for three-phase output, and up to six sets of three units can operate in parallel for very large installations. On-site configuration is simple via VEConfigure software, while real-time monitoring is available through Cerbo GX, Ekrano GX, Digital Multi Control Panel, VictronConnect, or the VRM Online portal.

High Efficiency & Robust Design

With a maximum efficiency of 96%, the MultiPlus-II 48/6k5/100-50 minimizes energy losses while delivering reliable AC power. Its rugged IP21-rated steel enclosure and fan-assisted cooling allow safe operation in temperatures from -40°C to +65°C. Compatible with lithium, lead-acid, and zinc-bromine batteries, it provides flexibility for diverse energy storage systems.

Applications

  • Marine and yachting systems requiring uninterrupted AC power
  • Mobile vehicles and off-grid installations
  • Residential and commercial solar + battery setups
  • High-demand off-grid energy storage and backup power
  • Critical load support in professional energy systems

Upgrade to the Victron MultiPlus-II 48/6k5/100-50 230V for advanced energy management, high-efficiency AC power, and seamless support for critical loads in demanding off-grid, mobile, and professional installations


SKU: VIC-PMP482605012

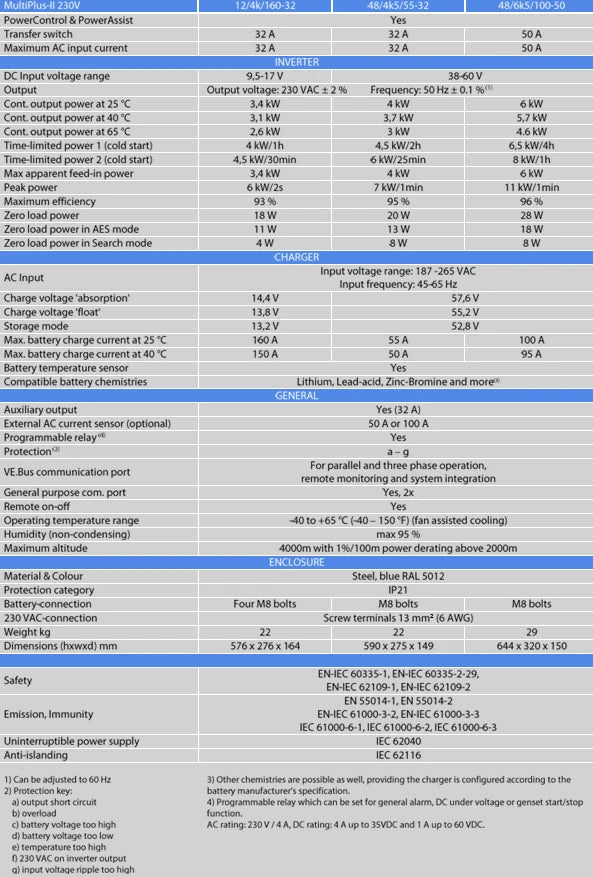

SPECIFICATIONS

Specifications

MultiPlus-II 230V: 48/6k5/100-50
PowerControl & PowerAssist Yes
Transfer switch 50 A
Maximum AC input current 50 A
INVERTER
DC Input voltage range 38-60 V
Output Output voltage: 230 VAC ± 2 %    Frequency: 50 Hz ± 0.1 %(1)
Cont. output power at 25 °C 6 kW
Cont. output power at 40 °C 5.7 kW
Cont. output power at 65 °C 4.6 kW
Time-limited power 1 (cold start) 6.5 kW/4h
Time-limited power 2 (cold start) 8 kW/1h
Max apparent feed-in power 6 kW
Peak power 11 kW/1min
Maximum efficiency 96 %
Zero load power 28 W
Zero load power in AES mode 18 W
Zero load power in Search mode 8 W
CHARGER
AC Input Input voltage range: 187–265 VAC
Input frequency: 45-65 Hz
Charge voltage 'absorption' 57.6 V
Charge voltage 'float' 55.2 V
Storage mode 52.8 V
Max. battery charge current at 25 °C 100 A
Max. battery charge current at 40 °C 95 A
Battery temperature sensor Yes
Compatible battery chemistries Lithium, Lead-acid, Zinc-Bromine and more(3)
GENERAL
Auxiliary output Yes (32 A)
External AC current sensor (optional) 50 A or 100 A
Programmable relay(4) Yes
Protection(2) a – g
VE.Bus communication port For parallel and three phase operation,
remote monitoring and system integration
General purpose com. port Yes, 2x
Remote on-off Yes
Operating temperature range -40 to +65 °C (-40 – 150 °F) (fan assisted cooling)
Humidity (non-condensing) max 95 %
Maximum altitude 4000m with 1%/100m power derating above 2000m
ENCLOSURE
Material & Colour Steel, blue RAL 5012
Protection category IP21
Battery-connection M8 bolts
230 VAC-connection Screw terminals 13 mm² (6 AWG)
Weight kg 29

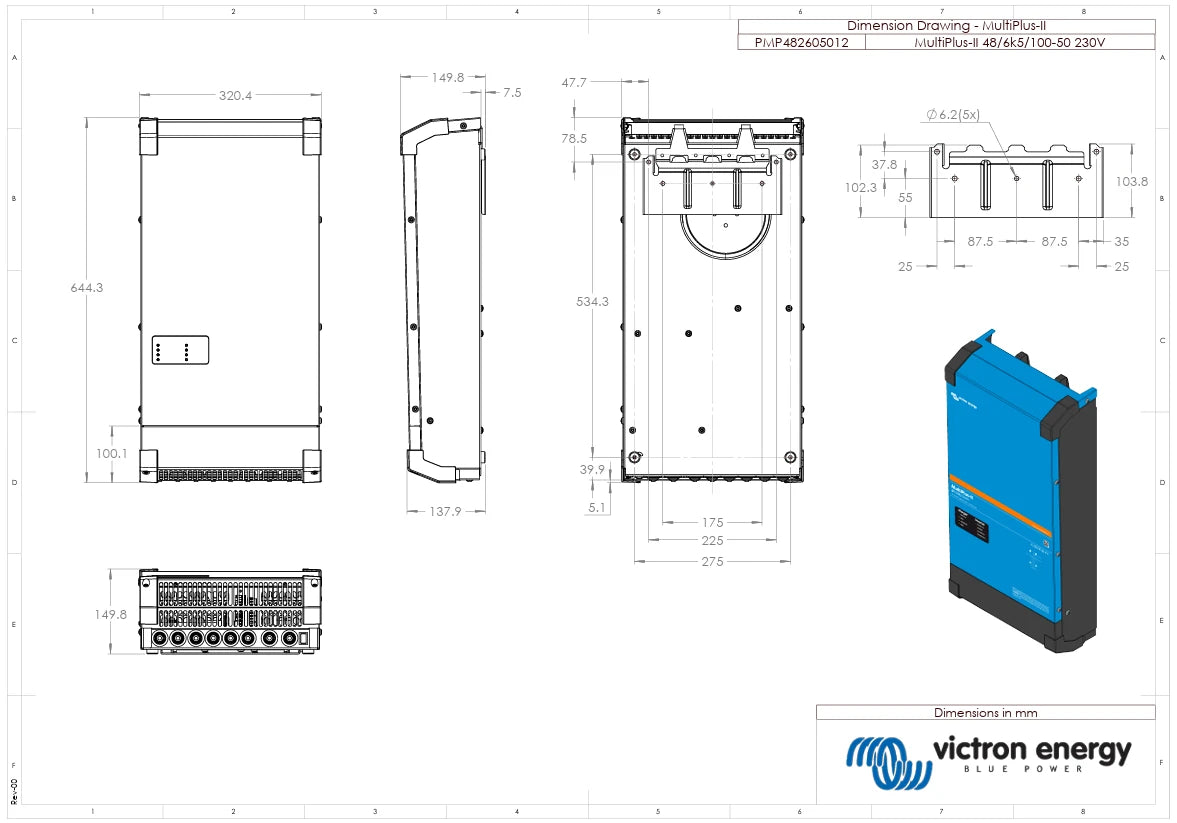

Dimensions (hxwxd) mm 644 x 320 x 150

Safety EN-IEC 60335-1, EN-IEC 60335-2-29,
EN-IEC 62109-1, EN-IEC 62109-2
Emission, Immunity EN 55014-1, EN 55014-2
EN-IEC 61000-3-2, EN-IEC 61000-3-3
IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Uninterruptible power supply IEC 62040
Anti-islanding IEC 62116
1) Can be adjusted to 60 Hz
2) Protection key:
a) output short circuit
b) overload
c) battery voltage too high
d) battery voltage too low
e) temperature too high
f) 230 VAC on inverter output
g) input voltage ripple too high

3) Other chemistries are possible as well, providing the charger is configured according to the battery manufacturer's specification.
4) Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function.
AC rating: 230 V / 4 A, DC rating: 4 A up to 35VDC and 1 A up to 60 VDC.

SKU: VIC-PMP482605012
Barcode: 8719076065982
Model #: PMP482605012
MPN: PMP482605012

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
