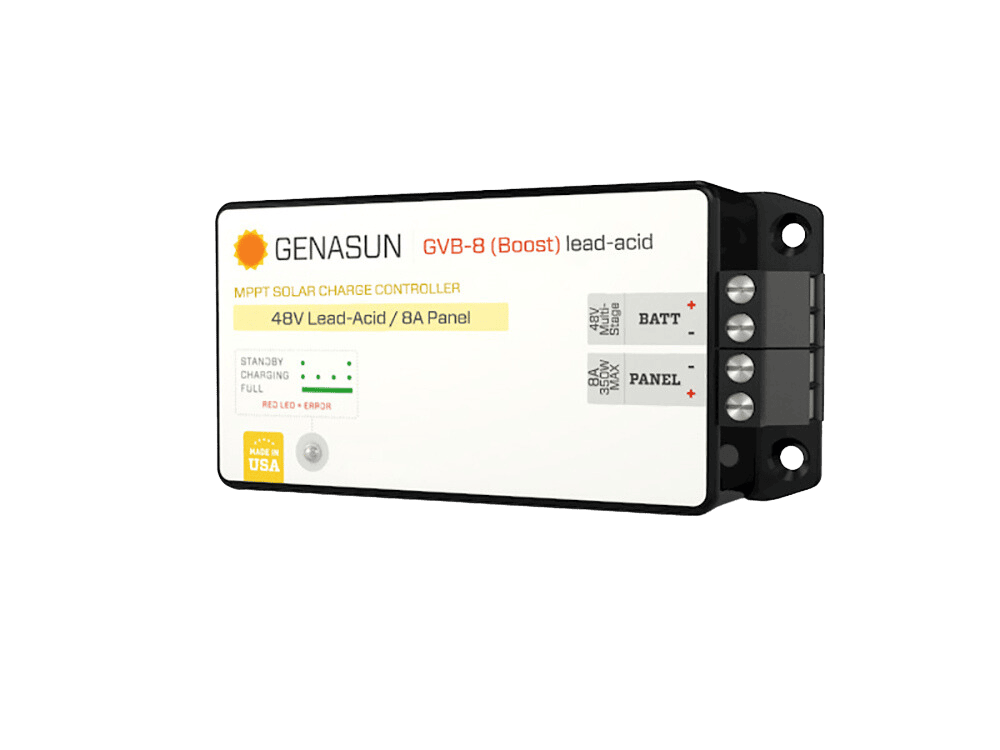

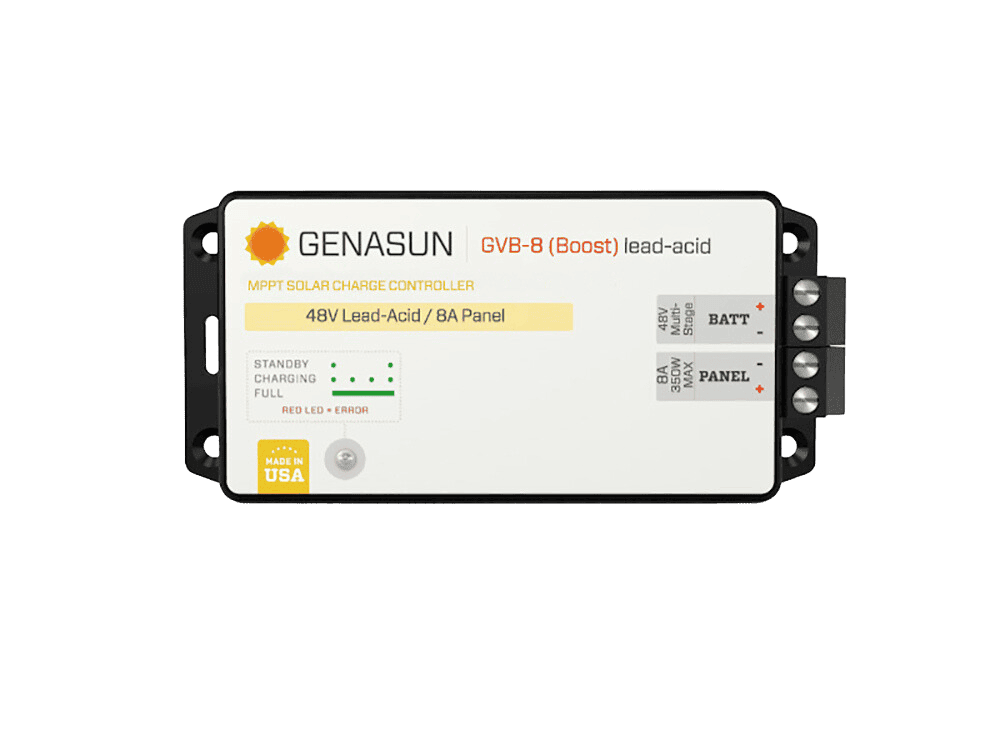

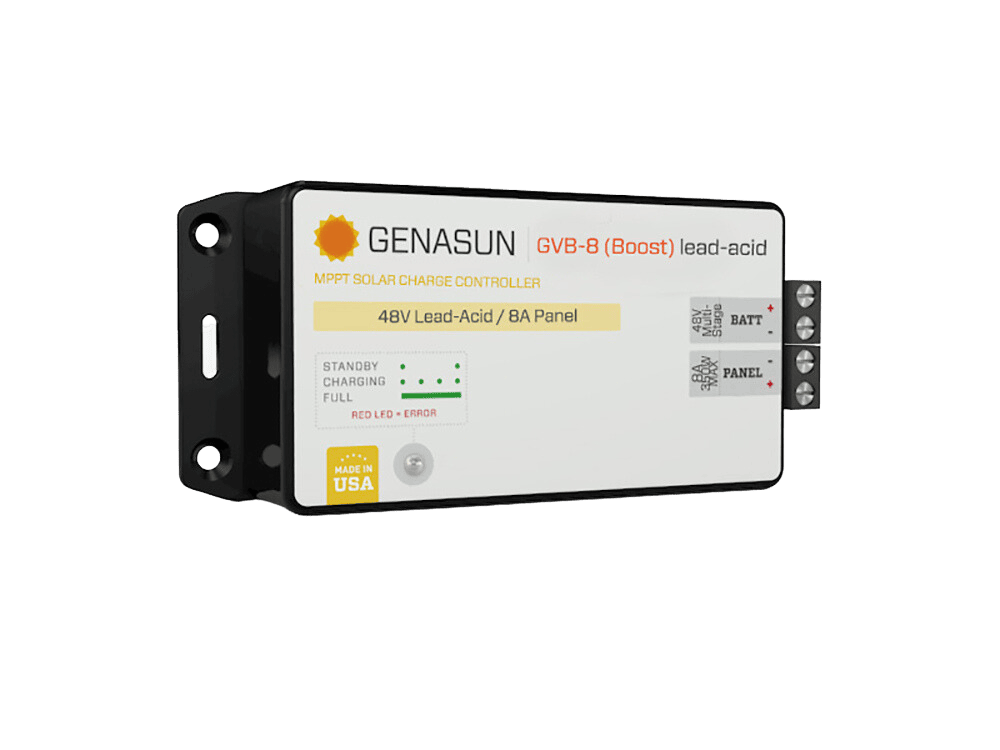

Genasun 8A MPPT 48V Voltage Boost (Lead-Acid) Solar Charge Controller

Genasun GV-Boost 8A MPPT 48V Voltage Boost Solar Charge Controller for Lead-Acid Batteries

Step-Up MPPT Technology for Efficient 48V Battery Charging from Lower Voltage Panels

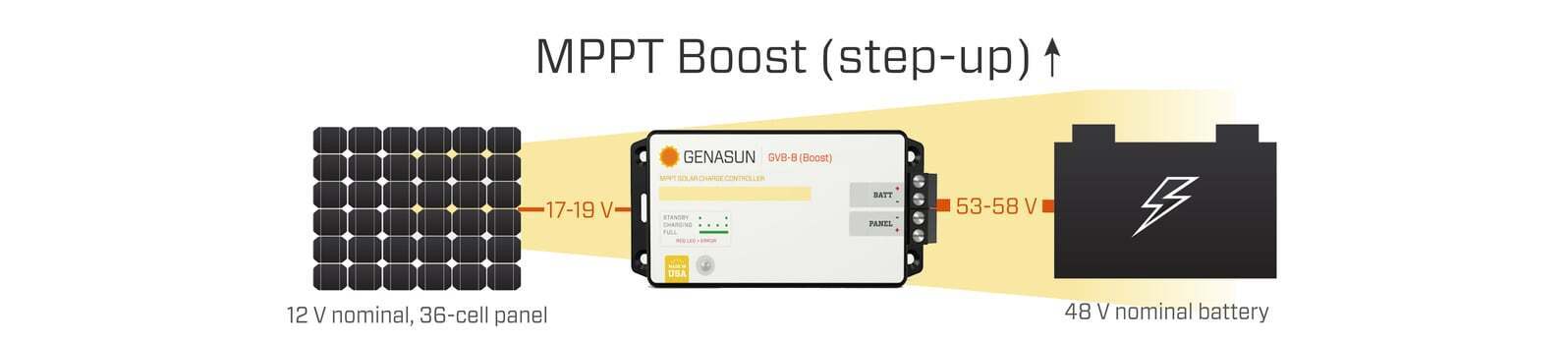

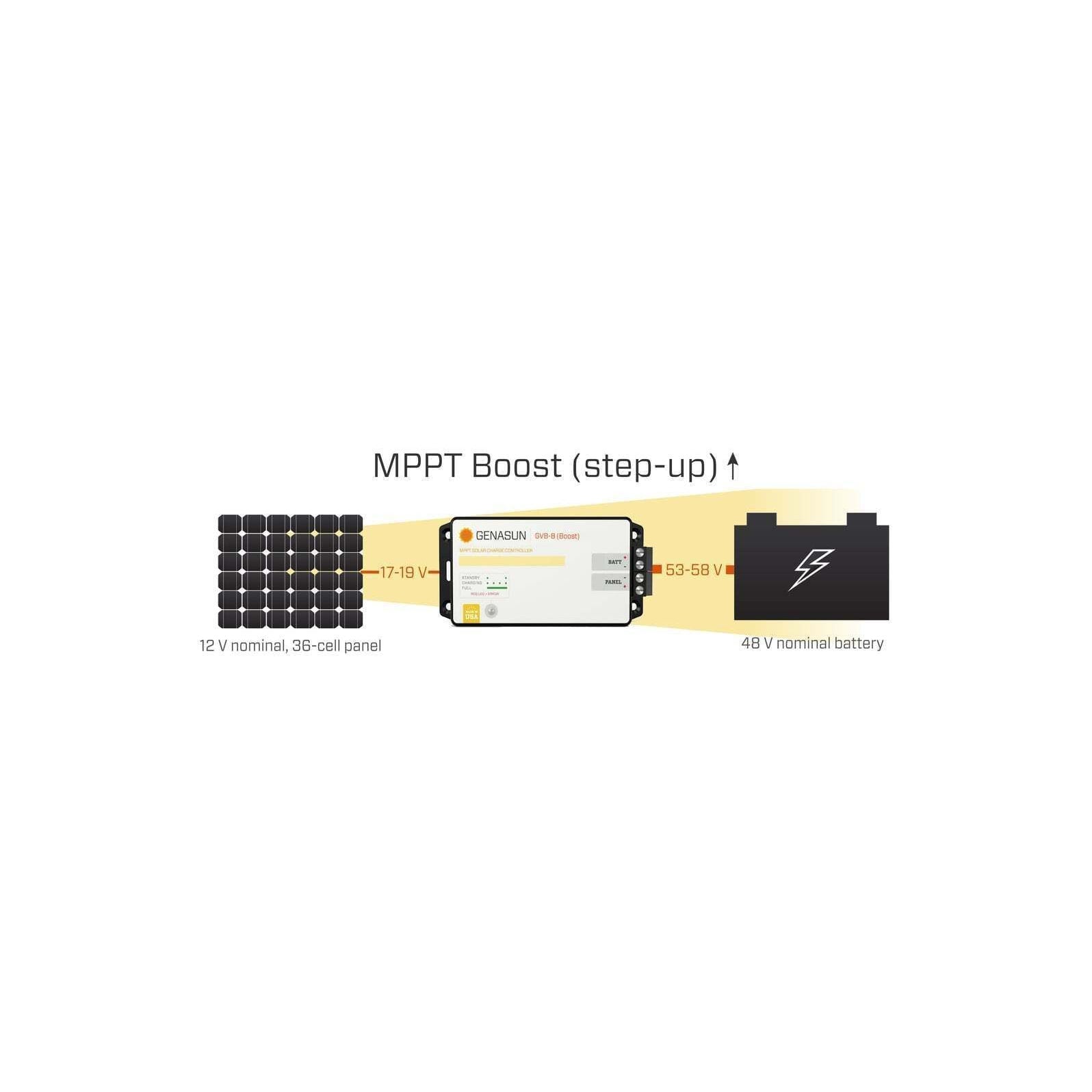

The Genasun GV-Boost 8A MPPT 48V is a specialised solar charge controller engineered to charge 48V lead-acid battery banks from solar panels with a lower nominal voltage. Unlike conventional controllers that step down voltage, this boost MPPT controller actively increases panel voltage to match your 48V system, enabling the use of cost-effective, larger-format panels typically rated for 12V or 24V nominal output. This approach reduces overall system cost while maintaining high charging efficiency.

Designed for off-grid solar systems, remote telecommunications, and mobile applications, the GV-Boost delivers precise Maximum Power Point Tracking (MPPT) at 15 times per second, ensuring optimal energy harvest even under rapidly changing light conditions. Its robust construction and advanced charging algorithm make it a reliable choice for critical installations where consistent power is essential.

Advanced MPPT Performance for Dynamic Environments

Many standard MPPT controllers use a slow sweep-and-sleep method, scanning the panel's power curve every 30 to 60 seconds. This can lead to significant energy loss during intermittent cloud cover or when panels are mounted on moving vehicles. The Genasun GV-Boost overcomes this limitation with a high-speed MPPT algorithm that adjusts 15 times per second, capturing more energy in variable conditions. With a tracking efficiency exceeding 99%, it ensures your panels operate at their maximum power point almost continuously.

This rapid response is particularly valuable for marine solar installations, RV solar setups, and any mobile platform where shading and orientation change frequently. The controller's ability to maintain peak performance reduces battery charge time and improves overall system reliability.

Engineered for Mission-Critical Reliability

Genasun controllers are trusted in some of the world's most demanding environments, from Antarctic research stations to high-altitude solar-powered aircraft. The GV-Boost is built to the same exacting standards, featuring nickel-plated brass and stainless steel hardware for corrosion resistance, and an operating temperature range of -40°C to 85°C. Each unit undergoes comprehensive electrical testing before leaving the USA factory, ensuring consistent performance when it matters most.

The controller's computer-controlled, temperature-compensated 3-stage charging profile optimises battery life and capacity for lead-acid chemistries, including AGM and gel types. It also includes a trickle charge recovery feature that can revive batteries discharged as low as 0V, adding an extra layer of resilience for unattended systems.

Key Features

• Boost MPPT topology steps up voltage from lower-voltage panels to charge 48V lead-acid batteries
• High-speed 15 Hz MPPT tracking adapts to changing light 15 times per second for maximum energy yield
• Wide input voltage range (0-60V) compatible with most solar panels below battery voltage
• Temperature-compensated 3-stage charging prolongs battery life and ensures full charge
• Rugged construction with nickel-plated brass and stainless hardware for long-term durability
• Compact, lightweight design (5.5" x 2.5" x 1.2" / 14 cm x 6.5 cm x 3.1 cm, 185 g) for easy integration
• Made in the USA with full electrical testing on every unit

Cost-Effective System Design

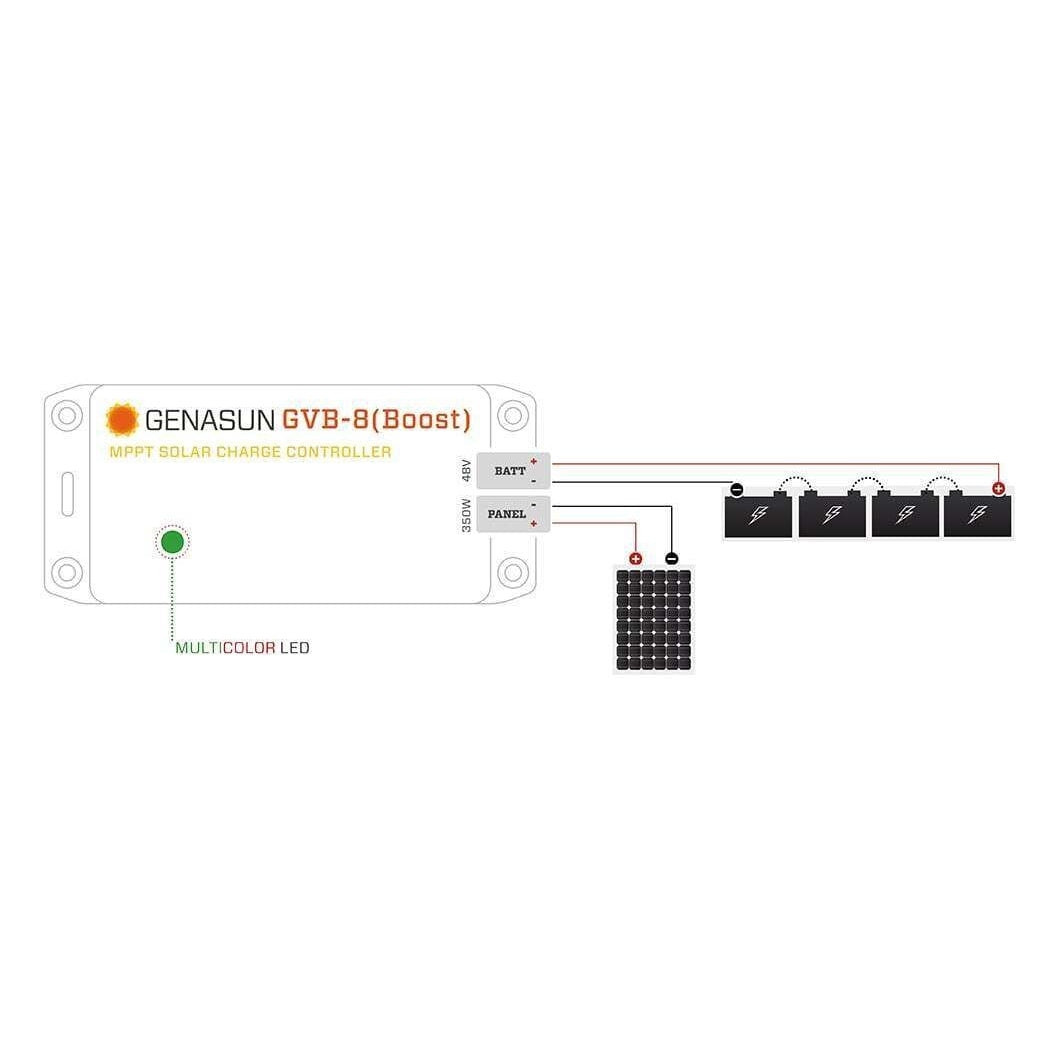

By enabling the use of a single large solar panel instead of multiple smaller panels wired in series, the GV-Boost can significantly lower your total system cost. Larger panels typically have a lower cost per watt, and the boost controller eliminates the need for complex series-parallel configurations. This simplifies installation and reduces balance-of-system components, making it an ideal solution for 48V off-grid solar kits, remote monitoring stations, and telecom power systems.

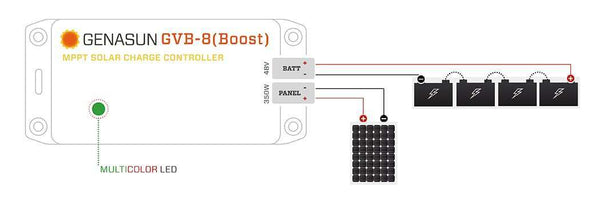

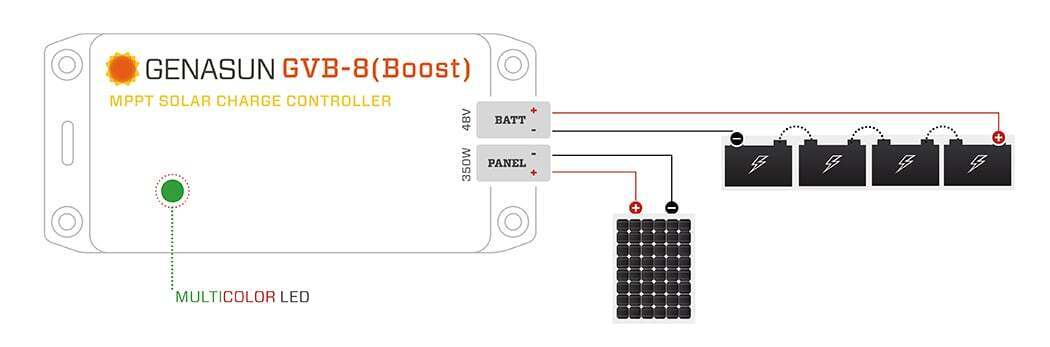

The controller accepts a maximum panel short circuit current of 8A and a recommended max Voc at STC of 50V, providing flexibility to pair with a wide range of solar modules. Its 4-position terminal block accommodates wire sizes from 10 to 30 AWG (approx. 0.05 mm² to 5.3 mm²), ensuring secure connections in field installations.

Applications

• Charging 48V lead-acid battery banks in off-grid cabins and remote homes
• Marine and RV solar systems requiring robust, fast-tracking MPPT control
• Telecommunications and SCADA equipment in isolated locations
• Solar-powered environmental monitoring and IoT devices
• Backup power systems for critical loads

Whether you're upgrading an existing 48V solar installation or designing a new off-grid power system, the Genasun GV-Boost 8A MPPT controller offers a unique combination of boost capability, high-speed tracking, and proven durability. Its ability to extract maximum power from lower-voltage panels makes it a smart choice for applications where efficiency and reliability are paramount.

Ready to optimise your 48V solar charging? Add the Genasun GV-Boost 8A MPPT 48V to your system today and experience the difference that precision-engineered MPPT technology can make.
