Genasun 8A MPPT 12V Voltage Boost (14.2V Lithium) Solar Charge Controller

Genasun 8A MPPT Voltage Boost Solar Charge Controller for 14.2V Lithium Batteries

Advanced MPPT Boost Technology for Efficient Lithium Charging from Lower Voltage Panels

The Genasun GV-Boost 8A MPPT solar charge controller is engineered to solve a common off-grid challenge: charging a 12V lithium battery from a solar panel with a voltage lower than the battery. Unlike conventional controllers that require panel voltage to exceed battery voltage, this MPPT boost controller actively steps up the input voltage, enabling the use of larger, more cost-effective panels that would otherwise be incompatible. This results in a significantly lower overall system cost while maintaining high charging efficiency.

Designed specifically for 14.2V lithium batteries (LiFePO4 and other lithium chemistries requiring a 14.2V constant-voltage charge), the GVB-8-Li-14.2V delivers a precise CC-CV charge profile that maximises battery lifespan and capacity. With a rated panel input current of 8A, it supports panels up to approximately 105W when using typical 155mm cell panels, making it ideal for caravan solar systems, marine applications, remote off-grid installations, and any setup where panel voltage is constrained.

High-Speed MPPT: 15Hz Tracking for Dynamic Conditions

Not all MPPT controllers are equal. Many budget controllers use a slow “sweep and sleep” algorithm, scanning the power curve every 30 to 60 seconds. This is adequate for stationary panels under clear skies, but fails to capture energy during rapidly changing light conditions caused by cloud cover, shading, or vehicle movement. The Genasun GV-Boost features a 15Hz MPPT tracking speed, adjusting to new maximum power points 15 times per second. This ensures you harvest every available watt, whether mounted on a moving caravan, a boat at sea, or in a partially shaded fixed installation. Combined with a tracking efficiency exceeding 99%, this controller consistently outperforms slower alternatives.

Mission-Critical Reliability for Harsh Environments

Genasun controllers are trusted in the world’s most demanding locations—from Antarctic research stations to high-altitude solar aircraft and long-duration marine voyages. Each unit is manufactured in the USA and undergoes comprehensive electrical testing to ensure flawless operation when reliability is non-negotiable. The fully potted, waterproof electronics protect against moisture, salt spray, and vibration, making this controller suitable for marine solar panels and coastal environments. A fanless design eliminates moving parts that can fail, while ultra-low self-consumption (just 7mA at night) preserves battery charge during dark periods.

Key Features

• Voltage Boost MPPT: Charges 12V lithium batteries from panels with Vmp as low as 5V, enabling use of large, economical panels
• 15Hz High-Speed Tracking: Captures 99%+ of available power even under fast-changing light and partial shading
• Precision CC-CV Charging: Computer-controlled constant-current/constant-voltage profile optimised for 14.2V lithium batteries, maximising cycle life
• Waterproof and Rugged: Potted electronics and corrosion-resistant construction withstand marine, coastal, and extreme weather conditions
• Ultra-Low Self-Consumption: Draws only 7mA at night, minimising battery drain during standby
• Wide Panel Compatibility: Accepts any panel with Voc up to 63V and rated current up to 8A, providing flexibility in system design
• Made in the USA: Each controller is individually tested to ensure mission-critical reliability

Optimised for Lithium: 14.2V Constant Voltage Charging

Lithium batteries require precise voltage control to achieve full charge without risk of overvoltage damage. The GVB-8-Li-14.2V delivers a constant voltage of 14.2V during the absorption phase, perfectly matching the requirements of many LiFePO4 and other lithium chemistries. This eliminates the guesswork and potential hazards of using generic lead-acid profiles, ensuring your battery reaches full capacity safely and efficiently. The controller automatically transitions to float mode once the battery is fully charged, preventing overcharging while maintaining readiness.

Cost-Effective System Design

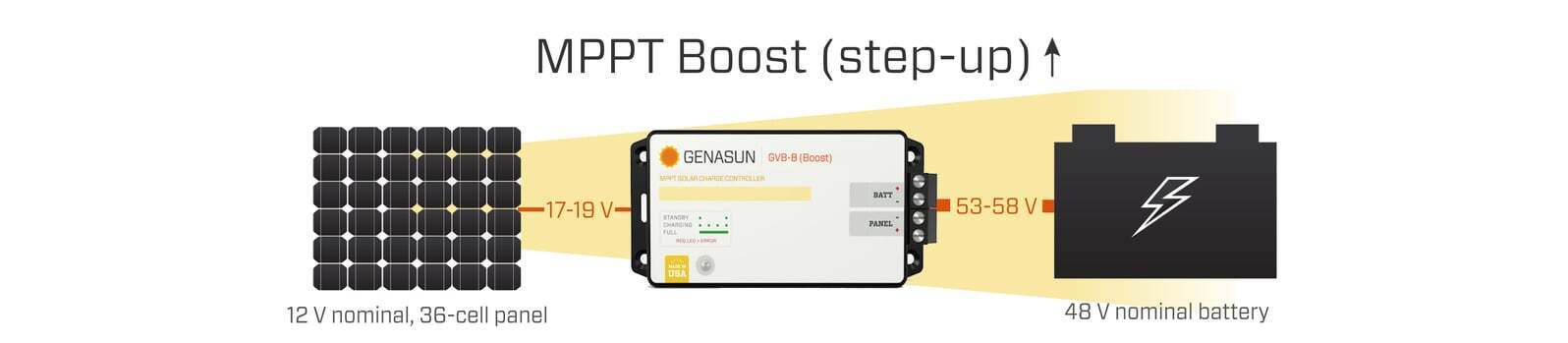

Traditional MPPT controllers require the solar panel’s maximum power voltage (Vmp) to be higher than the battery voltage. This often forces system designers to use multiple smaller panels wired in series, increasing cost and complexity. With the Genasun boost controller, you can use a single large panel with a lower voltage—typically cheaper per watt—and still charge a 12V battery. For example, a 105W panel with a Vmp around 13V can be used instead of two 50W panels in series, reducing mounting hardware, wiring, and potential failure points. This makes the GV-Boost an excellent choice for DIY solar projects, caravan upgrades, and off-grid cabins where budget and simplicity are priorities.

Easy Installation and Clear Status Indication

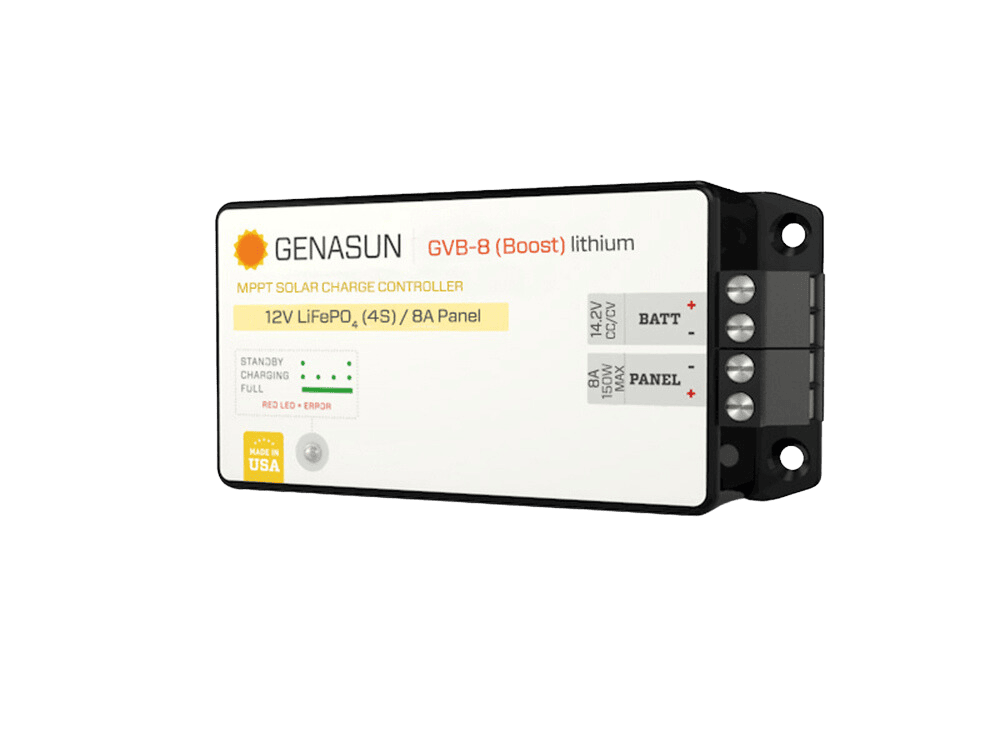

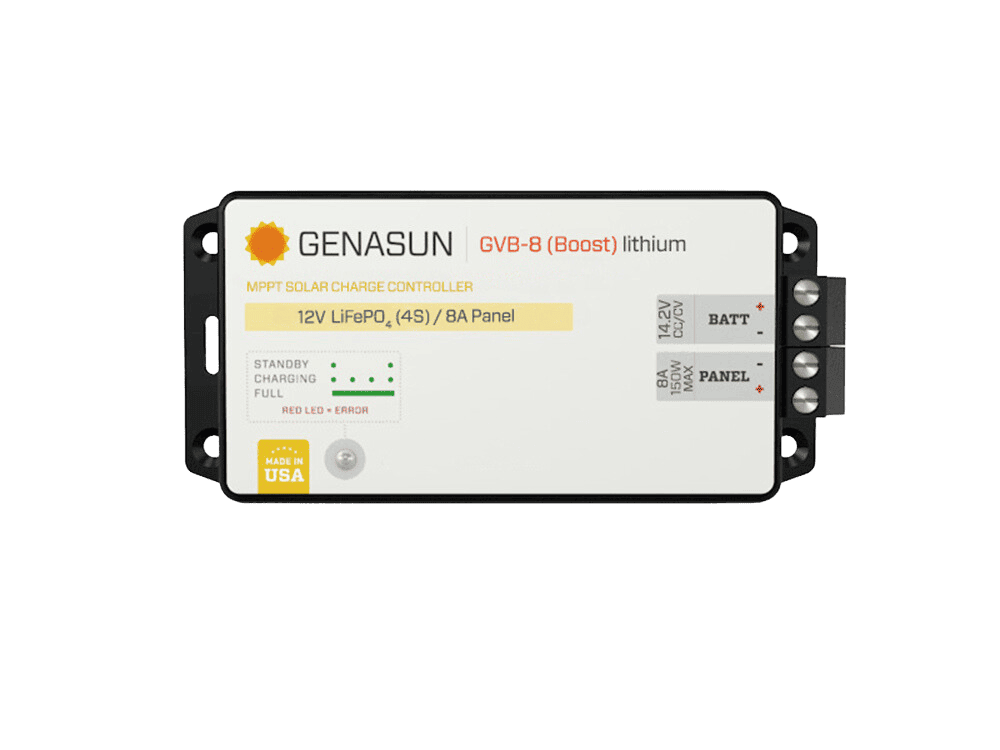

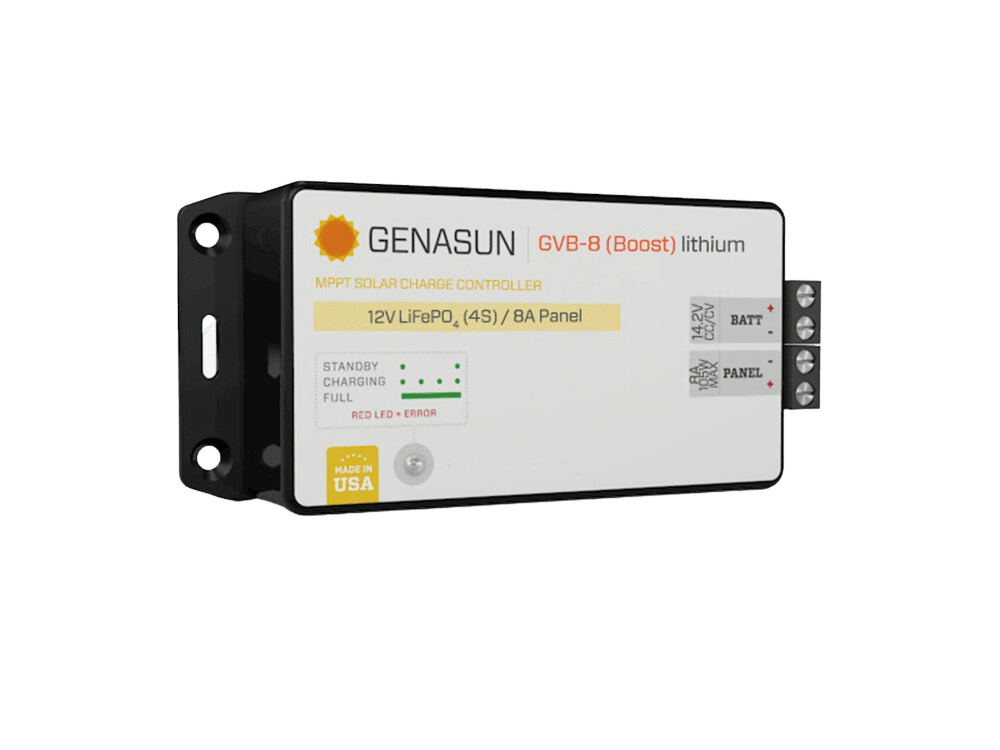

The controller features clearly labelled panel and battery terminals with robust screw connections, accepting wires up to 4mm² (approx. 12 AWG). Integrated LED indicators provide at-a-glance status: Standby, Charging, Full, and Error states, simplifying troubleshooting. The compact, lightweight housing includes integrated mounting flanges for secure attachment to any surface, and the potted construction allows installation in exposed locations without additional enclosures.

Applications

• Caravans and RVs: Maximise solar harvest from roof-mounted panels with limited space and variable shading
• Marine and Boats: Waterproof design and corrosion resistance ideal for saltwater environments
• Remote Off-Grid Systems: Reliable power for cabins, sheds, and monitoring equipment where maintenance access is limited
• Portable Solar Kits: Lightweight and durable for camping, overlanding, and field research

Upgrade your solar charging system with the Genasun 8A MPPT Voltage Boost Controller and experience the difference that high-speed tracking, rugged reliability, and lithium-optimised charging can make. Whether you’re powering a weekend adventure or a critical remote installation, this controller delivers consistent, efficient performance. Add the Genasun GV-Boost to your system today and harness more energy from your solar panels.
