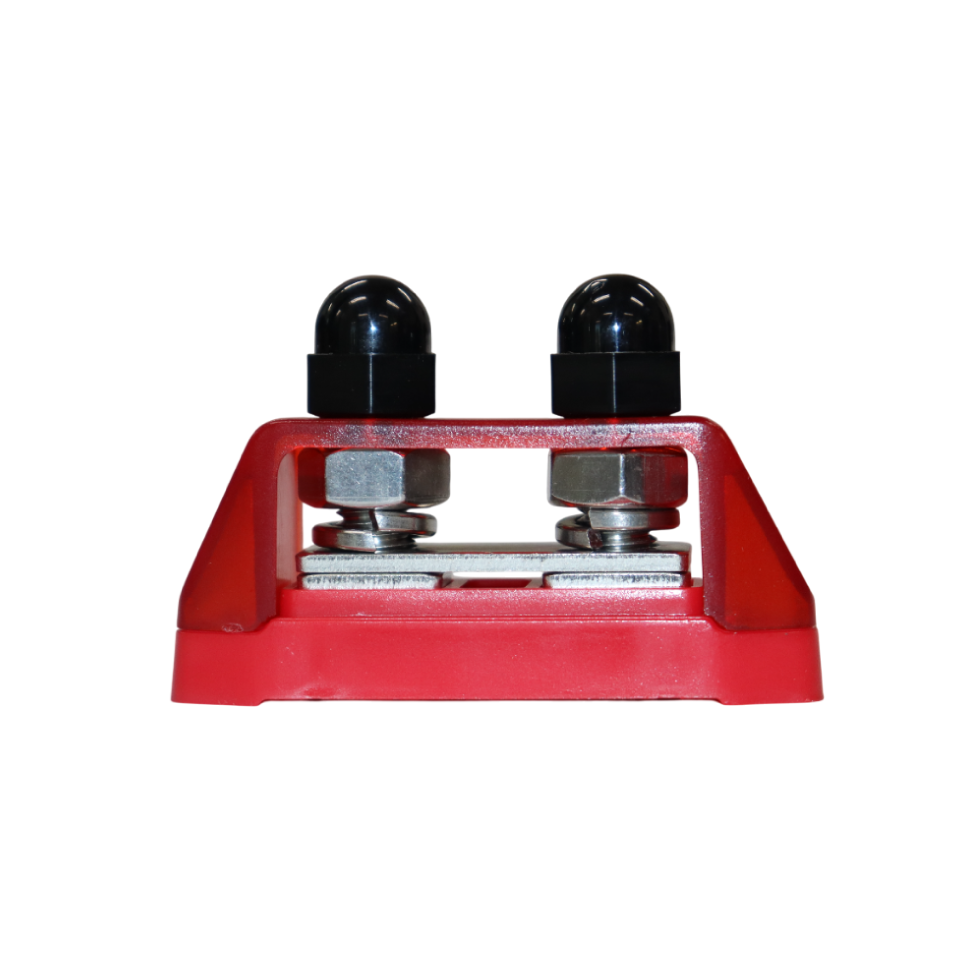

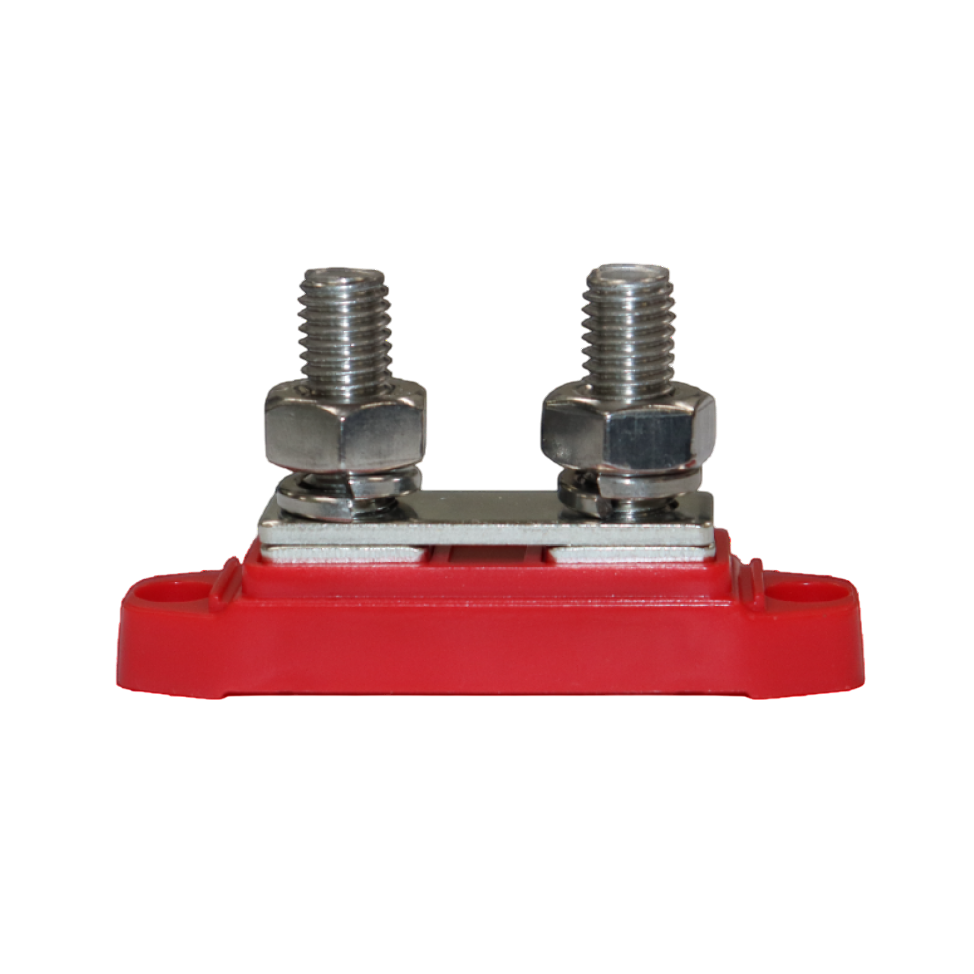

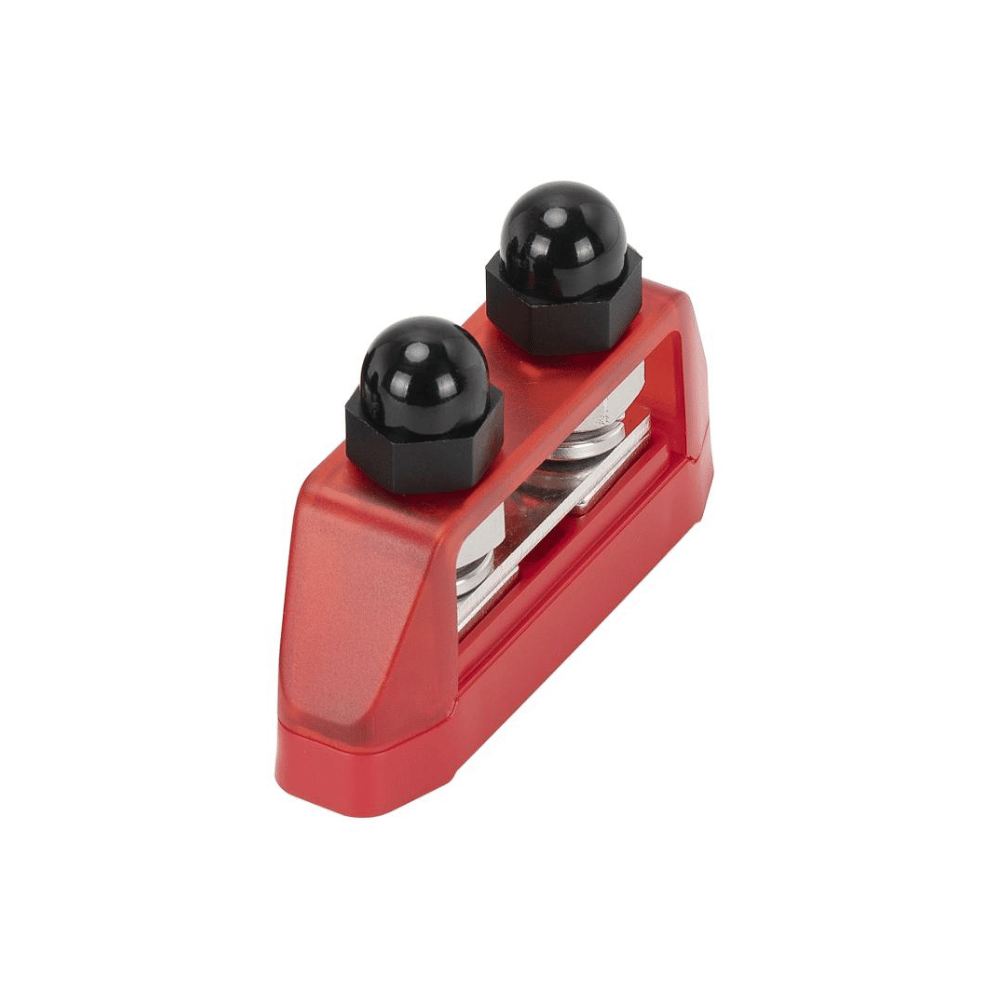

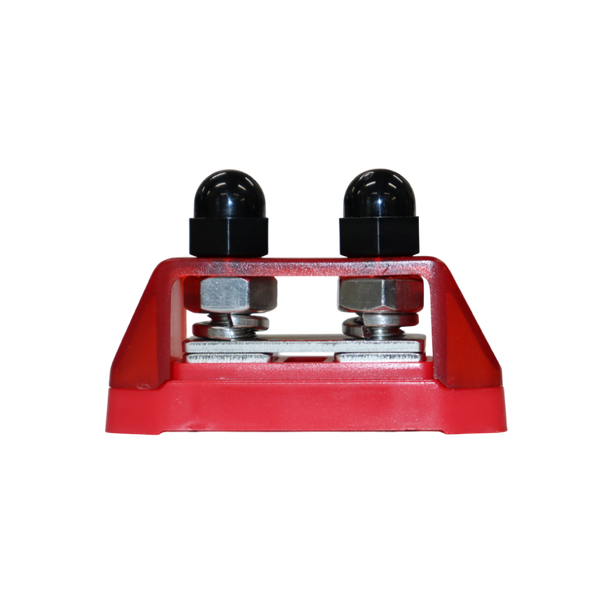

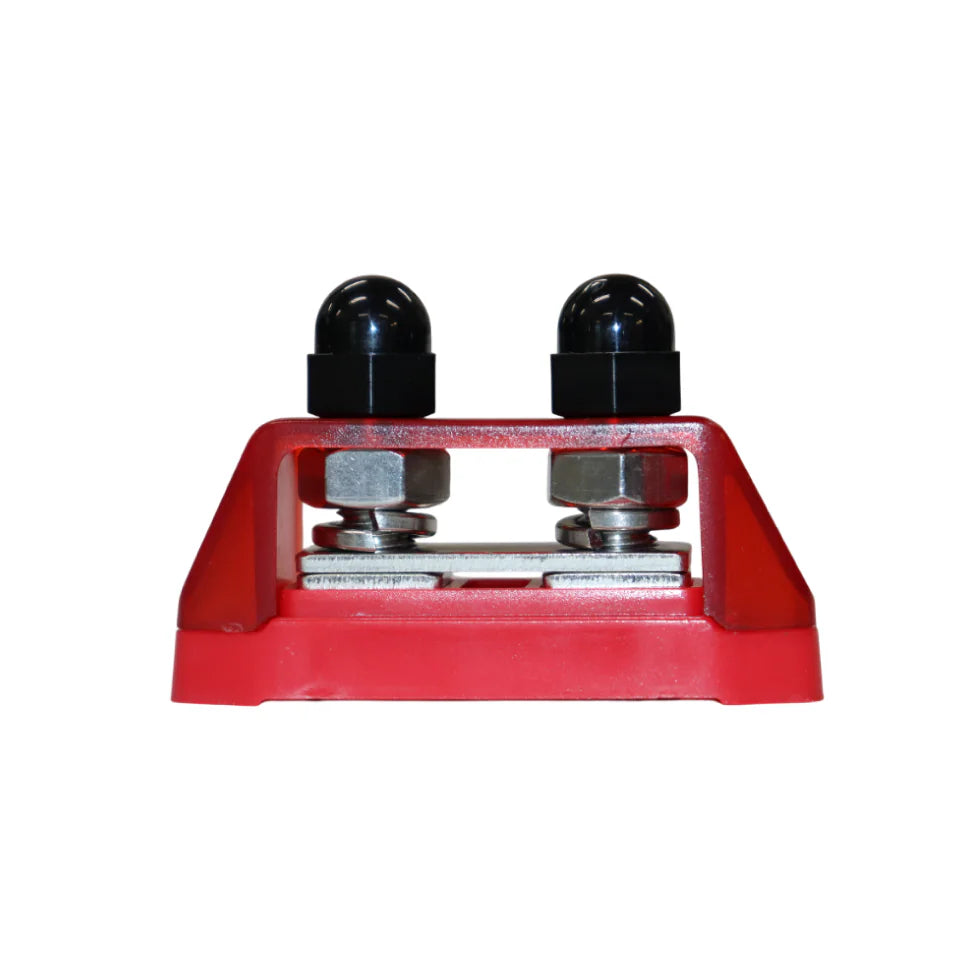

Exotronic 250A Red 2x M10 Stud Busbar with Cover
DESCRIPTION
Exotronic Tinned Copper Marine Rated 250A Red 2-M10 Stud Busbar with Cover
Maximize the safety and efficiency of your 12V, 24V, or 48V electrical systems with the Exotronic 250A Red Busbar. Designed for superior performance, this high-capacity busbar is constructed with marine-rated tinned copper to deliver unmatched conductivity and corrosion resistance. It's the perfect solution for robust and reliable power distribution across a wide range of demanding applications.
Key Features for Exceptional Performance
- 2x M10 Stud Connection Points: Offers secure, flexible connections for heavy-duty positive and negative leads in advanced battery and power configurations.
- 250A Continuous Current Capacity: Handles high-power demands with ease, making it ideal for industrial setups, marine environments, RVs, and off-grid power systems.
- Marine-Rated Tinned Copper Construction: Provides excellent resistance to corrosion and ensures efficient conductivity, even in harsh environmental conditions.

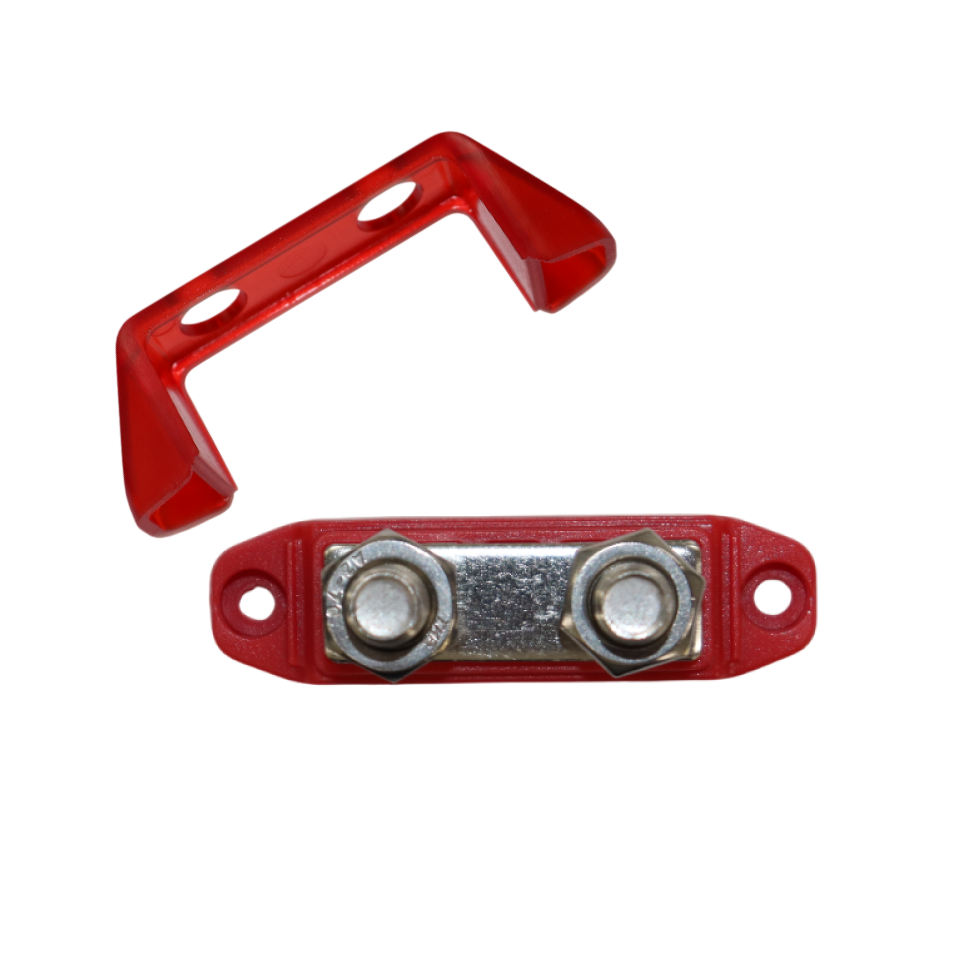

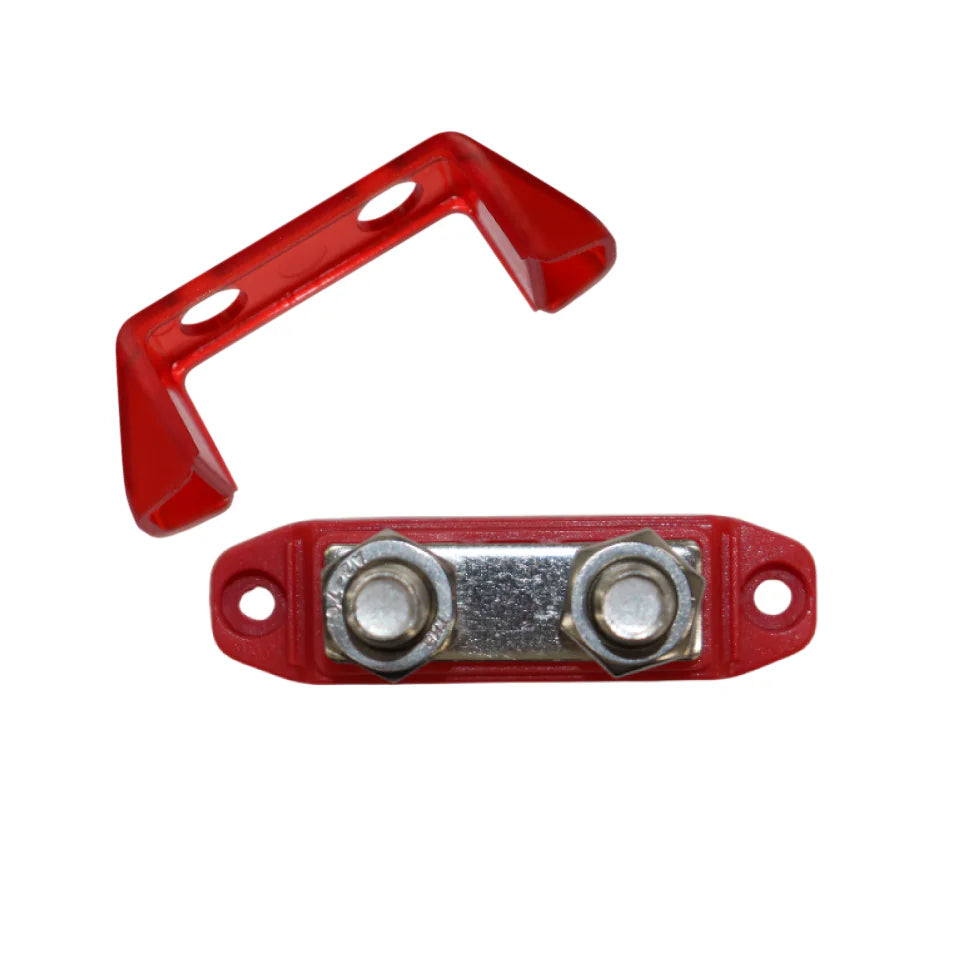

- Protective Cover Included: Includes a durable cover to safeguard against accidental contact and environmental elements, ensuring enhanced safety and longevity.
- 5-Year Warranty: Backed by a comprehensive warranty for lasting peace of mind and reliable performance.
Why Choose Exotronic's 250A Busbar?
Whether you’re building a comprehensive battery management system, configuring a marine-grade electrical setup, or optimizing power distribution in renewable energy systems, the Exotronic 250A busbar delivers the durability and performance you need. Its rugged design and premium materials make it the go-to solution for high-demand electrical installations.
Built for Versatility
Perfect for RVs, boats, caravans, off-grid setups, industrial machinery, and more, this busbar is engineered to withstand tough conditions while maintaining peak performance.
Elevate your power distribution system with the Exotronic 250A Red Busbar. Order now to experience reliability and efficiency like never before!
SKU: Exo-BB-250-M10-2-Rd

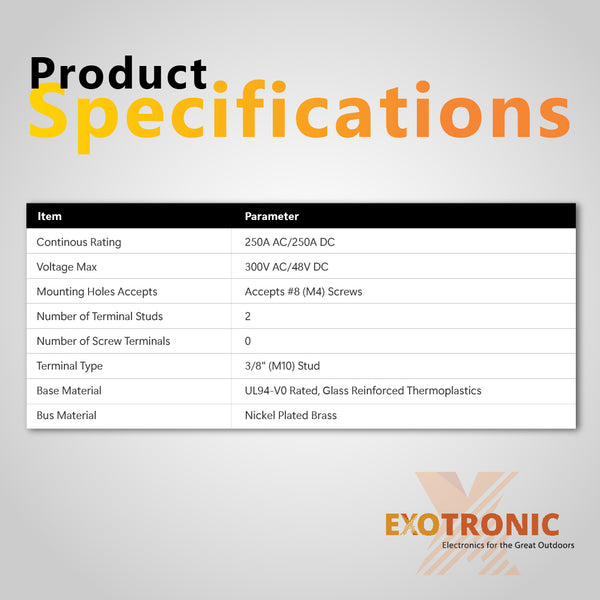

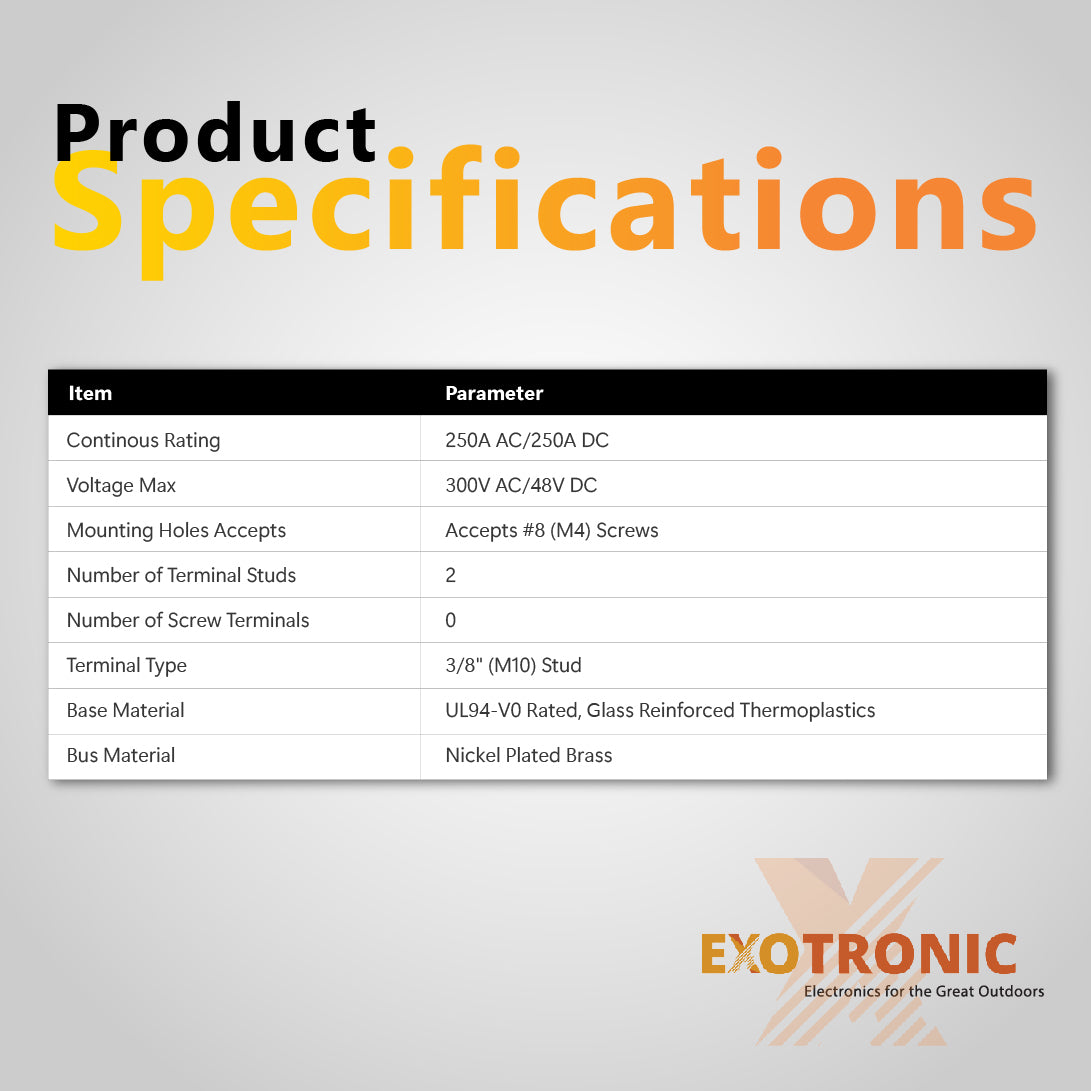

SPECIFICATIONS
Product Specifications
| Item | Parameter |
|---|---|
| Continuous Rating | 250A AC/250A DC |
| Voltage Max | 300V AC/48V DC |
| Mounting Holes Accepts | Accepts #8 (M4) Screws |
| Number of Terminal Studs | 2 |
| Number of Screw Terminals | 0 |
| Terminal Type | 3/8" (M10) Stud |
| Base Material | UL94-V0 Rated, Glass Reinforced Thermoplastics |

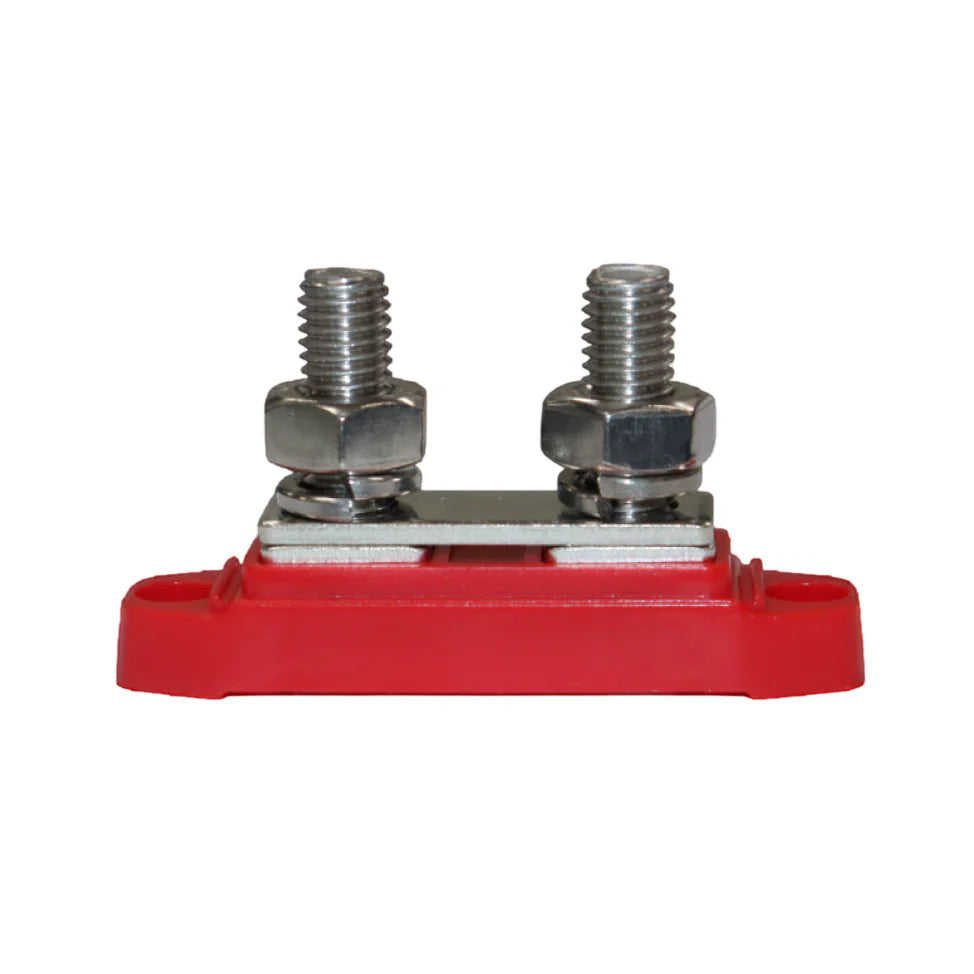

| Bus Material | Nickel-Plated Brass |
| SKU: | Exo-BB-250-M10-2-Rd |
| Barcode: | 9361784000459 |
| Model #: | Exo-BB-250-M10-2-Rd |
| MPN: | Exo-BB-250-M10-2-Rd |
WARRANTY
Warranty Statement
Exotronic warrants its Busbars, to be free of defects in workmanship and materials for a period of 60 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
Exotronic provides high-quality products and solutions tailored for B2B and commercial customers, including commercial businesses, caravan manufacturers, marine electricians, OEMs, as well as emergency services, and more.
