Exotronic 6 Blade Fuse Holder w/ Negative Bus Bar & Cover

Exotronic 6 Way Blade Fuse Block with Integrated Negative Bus Bar and Protective Cover

Streamlined 12V/24V Power Distribution for Automotive and Marine Applications

The Exotronic 6 Way Blade Fuse Block consolidates circuit protection and grounding into a single compact unit, reducing wiring complexity and improving system reliability. Designed for 12V and 24V DC systems (rated up to 32V DC), this fuse holder is an effective solution for organising accessory circuits in vehicles, boats, caravans, and off-grid setups. The integrated negative bus bar eliminates the need for a separate grounding point, saving installation time and minimising potential fault points.

With a 100A total capacity and 30A per circuit, this block supports a wide range of loads, from LED lighting and USB chargers to pumps and inverters. The M5 main power studs (approx. 3/16" or M5) and M4 individual circuit terminals (approx. 5/32" or M4) accept ring terminals for secure, low-resistance connections. Each circuit is clearly labelled using the included 70-piece pre-printed sticker set, enabling quick identification during installation and troubleshooting.

Built for Demanding Environments

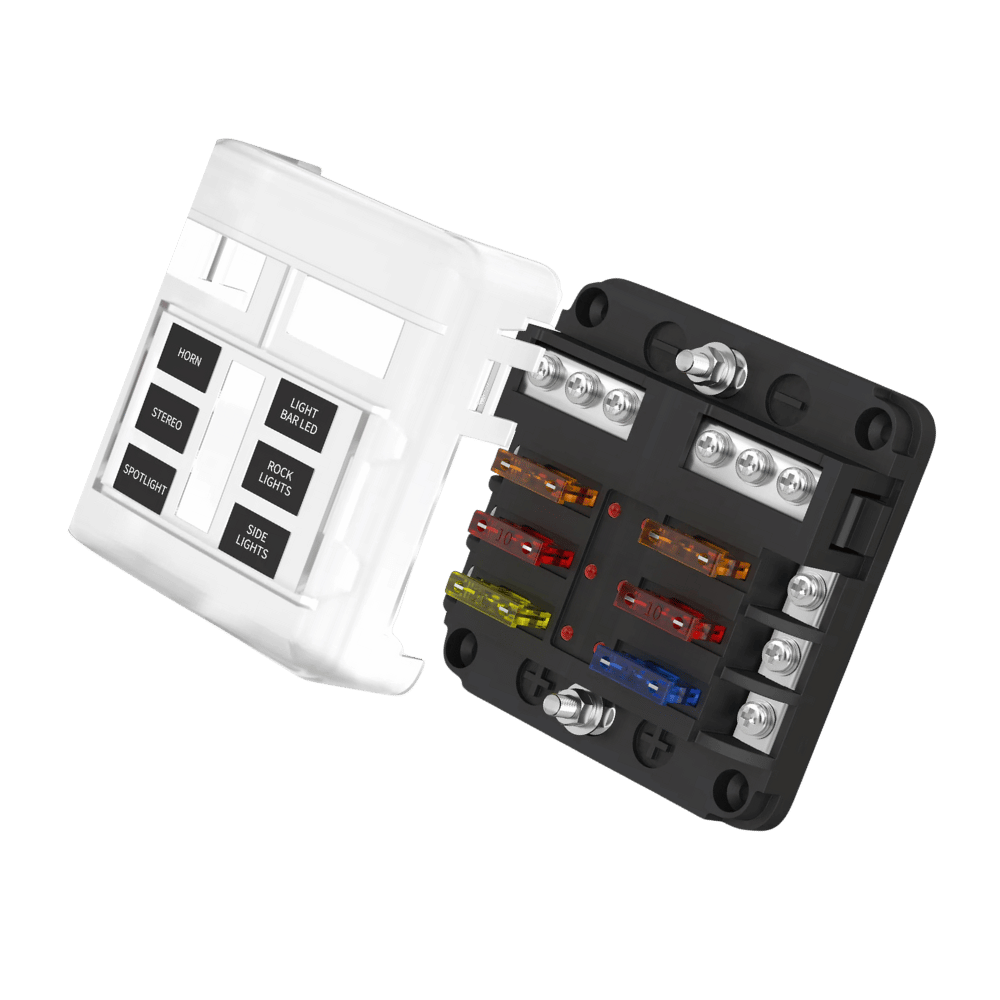

Constructed from PBT base material with a polycarbonate cover, this fuse block offers high mechanical strength, thermal stability, and flame resistance. The transparent snap-fit cover protects fuses from dust, moisture, and accidental contact while allowing visual inspection of fuse status. Red LED indicators illuminate instantly when a fuse blows, enabling rapid fault detection without removing the cover or testing each circuit individually.

The nickel-plated brass terminals and stainless steel screws resist corrosion, making this block suitable for marine and coastal environments. Its compact 88mm x 88mm footprint fits neatly into tight spaces such as under-dash panels, engine bays, or electrical cabinets.

Key Features

• 6-way ATO/ATC blade fuse holder with 30A max per circuit and 100A total rating
• Integrated negative bus bar with 6 ground terminals simplifies wiring and reduces clutter
• LED blown fuse indicators for immediate visual fault identification
• Transparent, vibration-resistant cover with snap-fit closure protects against dust and moisture
• Corrosion-resistant nickel-plated brass terminals and stainless steel hardware

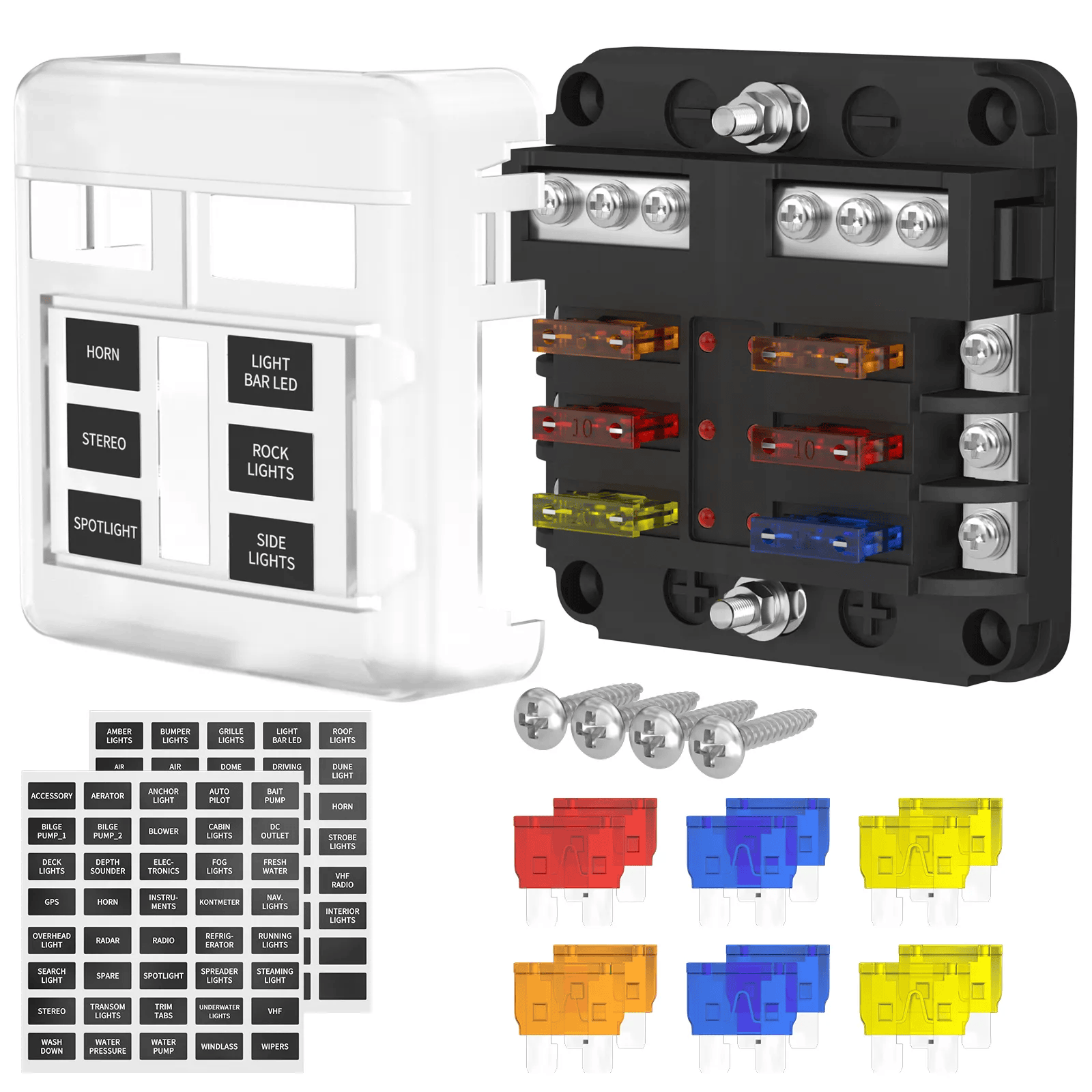

• Includes 12 assorted blade fuses (2x 5A, 2x 10A, 4x 15A, 4x 20A), 70 pre-printed labels, and mounting screws

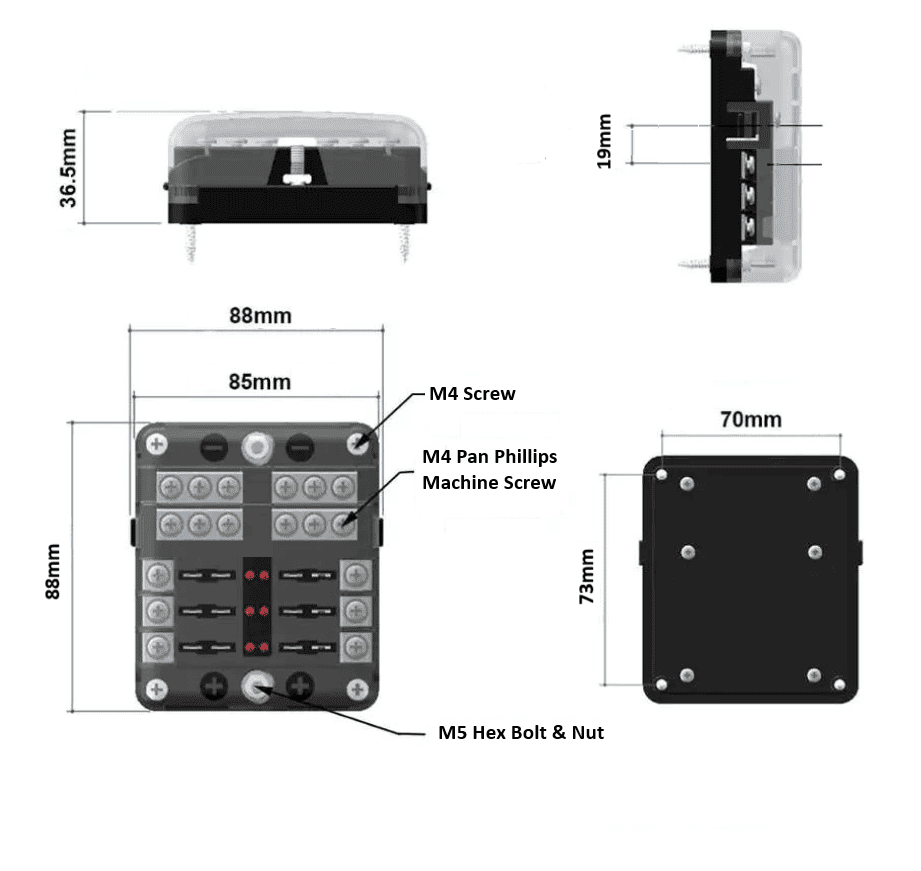

• Compact design (88mm x 88mm x 37mm) for easy installation in confined spaces

Simplified Installation and Maintenance

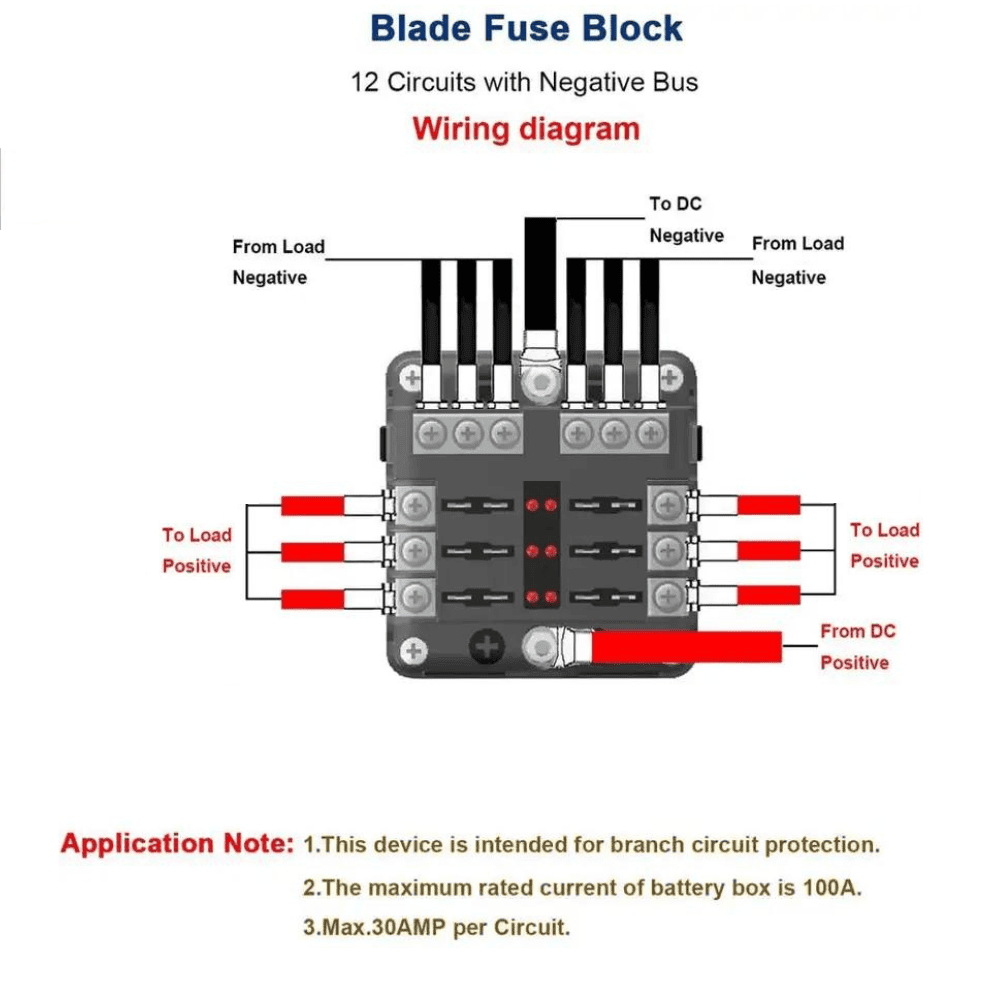

This fuse block addresses common pain points in DIY and professional electrical projects. The common positive bus distributes power from a single input to all six circuits, while the dedicated negative bus collects return currents, eliminating the need for multiple grounding points. This design reduces wiring errors, improves circuit organisation, and enhances overall system safety.

The included label kit allows custom identification of each circuit, making future maintenance straightforward. The clear cover enables at-a-glance inspection of fuse conditions, and the LED indicators provide an unmistakable alert when a fuse requires replacement. These features reduce downtime and simplify troubleshooting, particularly in remote or hard-to-access installations.

Versatile Applications

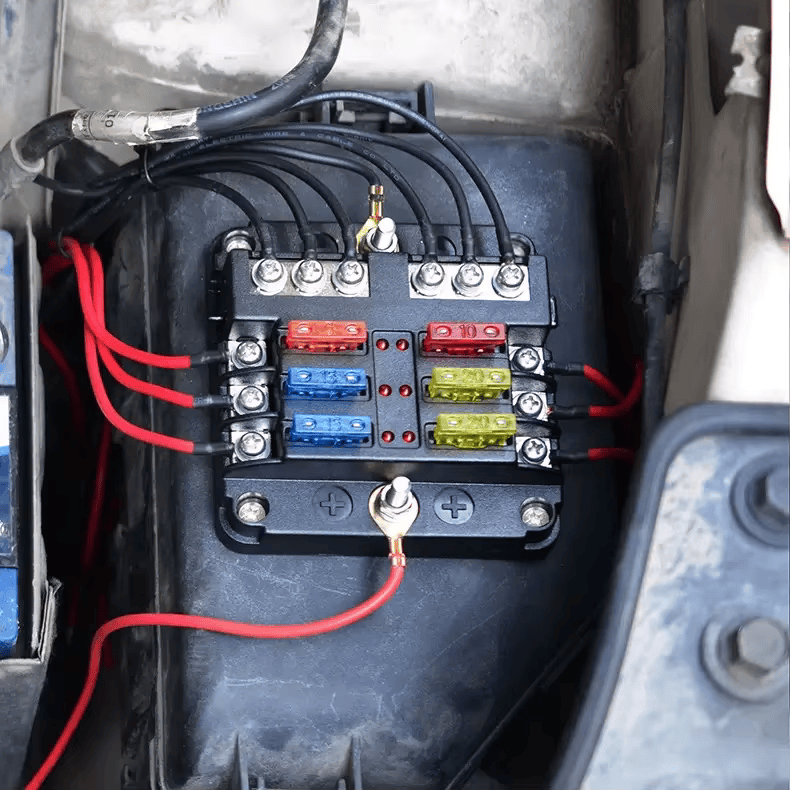

Whether you are adding auxiliary lighting to a 4WD, wiring a marine electronics panel, or building a custom off-grid power system, this fuse block provides a reliable and organised solution. It is compatible with standard APR/ATC/ATO/ATS blade fuses (1A to 30A), giving you flexibility to match protection to each circuit's requirements.

Typical applications include:

• Automotive accessory circuits (driving lights, winches, air compressors)
• Marine electronics (GPS, fish finders, bilge pumps)
• Caravan and RV power management
• Solar and battery systems
• Industrial control panels

Upgrade Your Electrical System Today

Replace messy inline fuse holders and scattered grounding points with a single, professional-grade distribution block. The Exotronic 6 Way Blade Fuse Block with Negative Bus Bar delivers clean, reliable power management for your 12V or 24V project. Add to cart now and simplify your next installation.
