Exotronic 5m Axion to Victron CANbus Cable
Connect your Exotronic Axion battery bank to a Victron Cerbo GX for precise charging control and system monitoring.
DESCRIPTION
Exotronic 5m Axion to Victron CANbus Cable

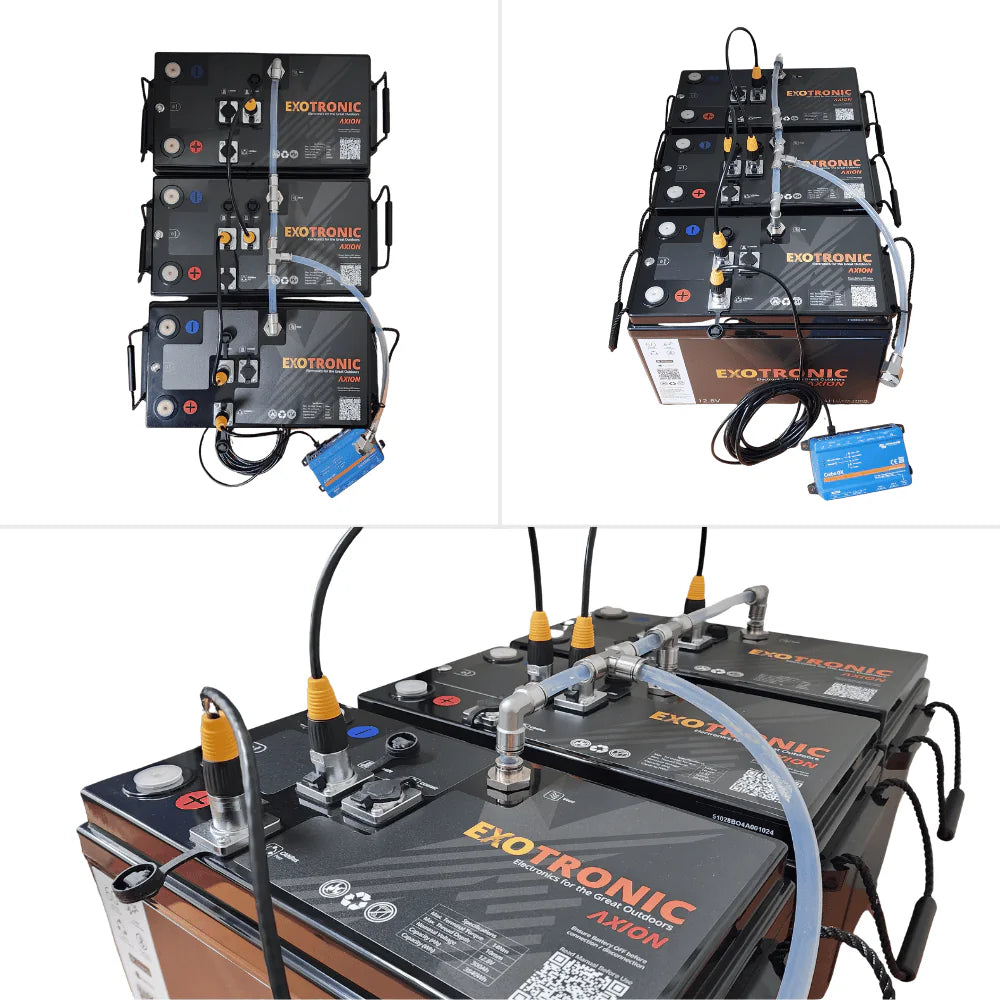

The Exotronic 5m Axion to Victron CANbus Cable is designed specifically to establish reliable communication between an Exotronic Axion lithium battery bank and a Victron Energy GX device, such as the Cerbo GX. By bridging the battery management system (BMS) with the broader power network, this cable ensures accurate charging control and comprehensive system monitoring.
Precision Charging and Monitoring
When connecting the Exotronic Axion battery range to a Victron GX device, standard communication is critical for optimising battery health. This dedicated CANbus cable allows the GX device to receive vital battery data, including individual cell voltages, current control limits, and overall voltage control parameters. This ensures the Victron equipment charges the battery bank within strict operational limits, enhancing system stability and longevity.
Custom Pinout Configuration
It is important to note that this is not a standard ethernet network cable. The Exotronic Axion system utilises a specialised pinout that cannot be substituted with an ordinary RJ45 lead. The cable is pre-wired to correctly map the CAN-High, CAN-Low, and Ground connections between the two distinct systems. To integrate the equipment, only a single cable is required per Cerbo GX and Axion battery bank connection, rather than one per individual battery module.
Key Features
- System Compatibility: Purpose-built for connecting the Exotronic Axion lithium battery range to Victron GX devices.
- Advanced Data Transfer: Enables the communication of cell voltages, current limits, and voltage parameters to the Victron system.
- Custom Wiring: Features a specific CANbus pinout required for safe and accurate operation.
- Durable Connections: Fitted with an IP66-rated RJ45 connector on the battery side for enhanced environmental protection, alongside a standard RJ45 connector for the Victron side.
- Efficient Integration: Only one communication cable is needed per complete battery bank.
Ensure seamless communication and precise charging control for the Exotronic Axion battery bank with this dedicated Victron integration cable.
SKU: Exo-AXN-Vic-5m
SPECIFICATIONS
Specifications
| Cable Type | CANbus Communication Cable |
| Length | 5 metres |
| Compatibility (Battery) | Exotronic Axion Lithium Battery Range |
| Compatibility (System) | Victron Energy GX Devices (e.g., Cerbo GX) |
| Battery Side Connector | IP66 Rated RJ45 |
| Victron Side Connector | Standard RJ45 |
| Battery Side Pinout | Pin 2: Orange (GND), Pin 4: Blue (CAN-H), Pin 5: Blue White (CAN-L) |
| Victron Side Pinout | Pin 3: Orange (GND), Pin 7: Blue (CAN-H), Pin 8: Blue White (CAN-L) |
| SKU: | Exo-AXN-Vic-5m |
