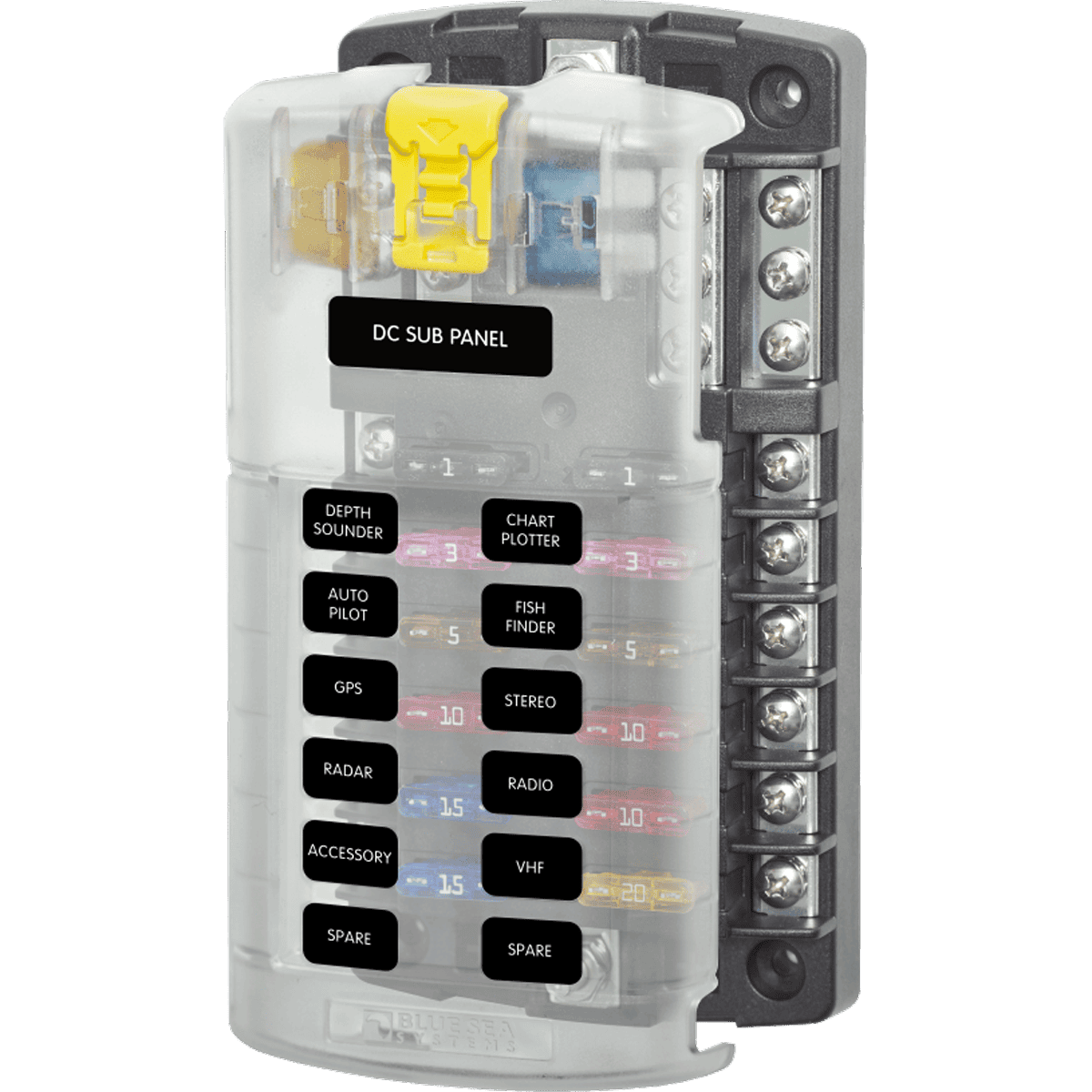

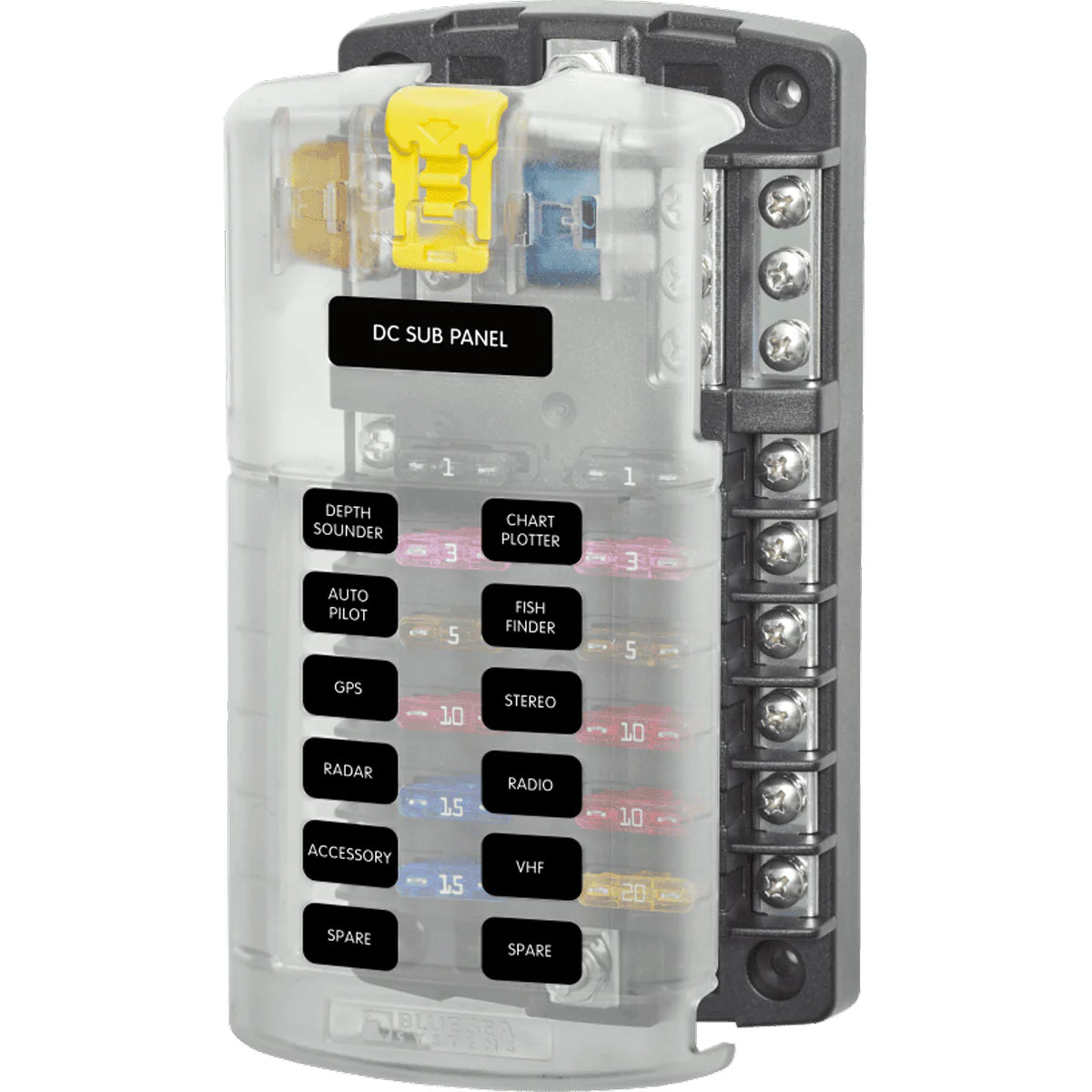

Blue Sea ST Blade Fuse Block/Holder – 12 Circuits w/ Negative Bus & Cover

12 Circuits with Negative Bus and Cover


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
5

DESCRIPTION

Description

  • Consolidates branch circuits and in-line fuses
  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately
  • Circuit labels sold separately

SKU: BS-5026B

SPECIFICATIONS


SKU: BS-5026B
Barcode: 632085050269
Model #: BS-5026B
MPN: BS-5026B
