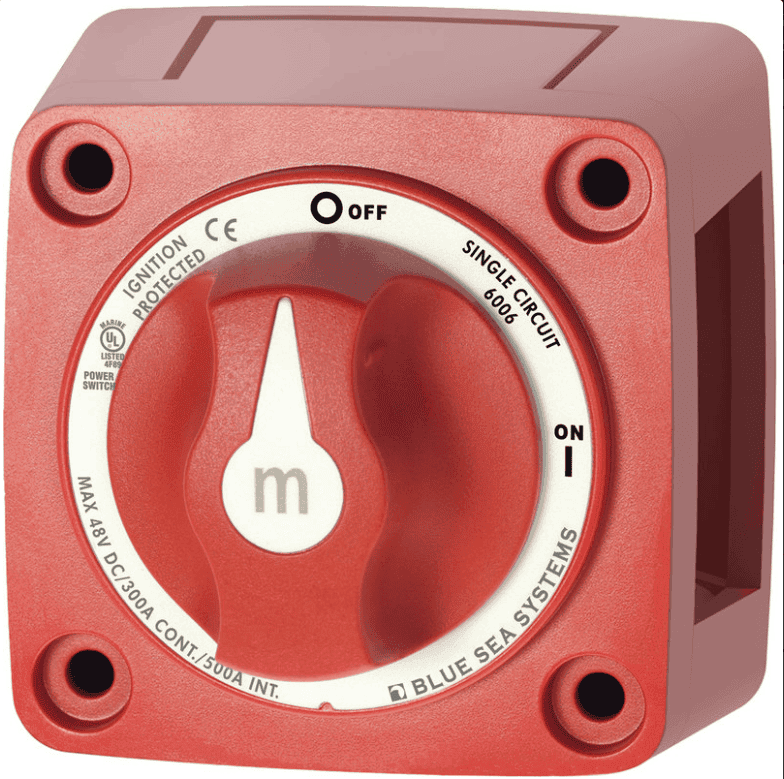

Blue Sea m-Series Mini On-Off Battery Switch with Knob - Red
300A ON/OFF
2
DESCRIPTION
Description
- Switches a single battery to a single load group
- Ignition protected—safe for installation aboard gasoline powered boats

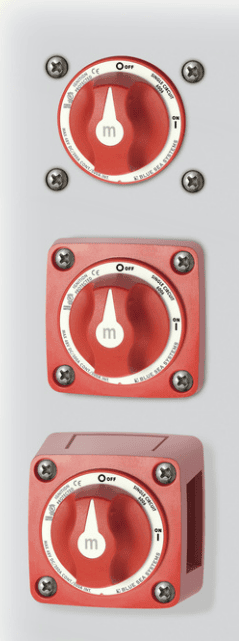

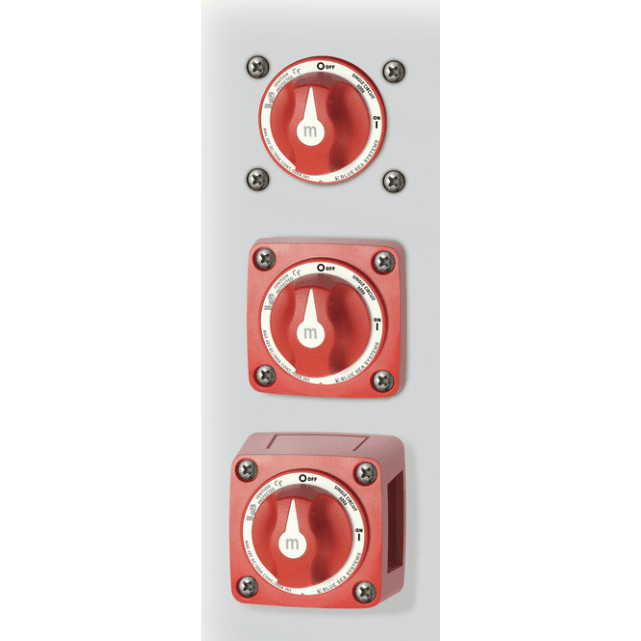

- Case design allows surface, front panel, or rear panel mounting

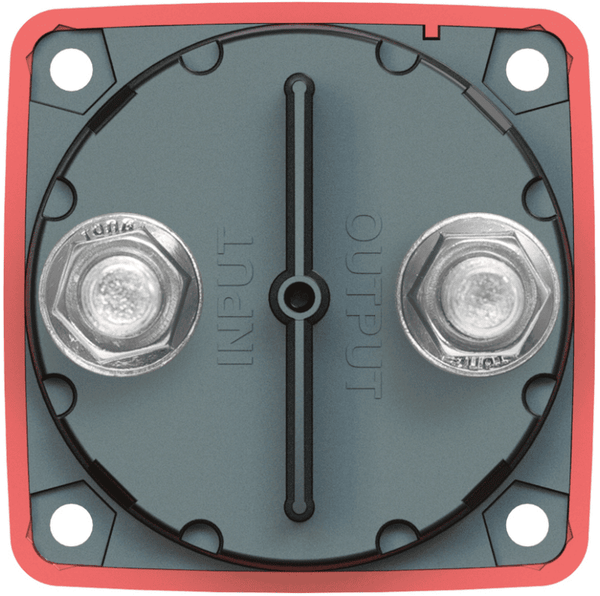

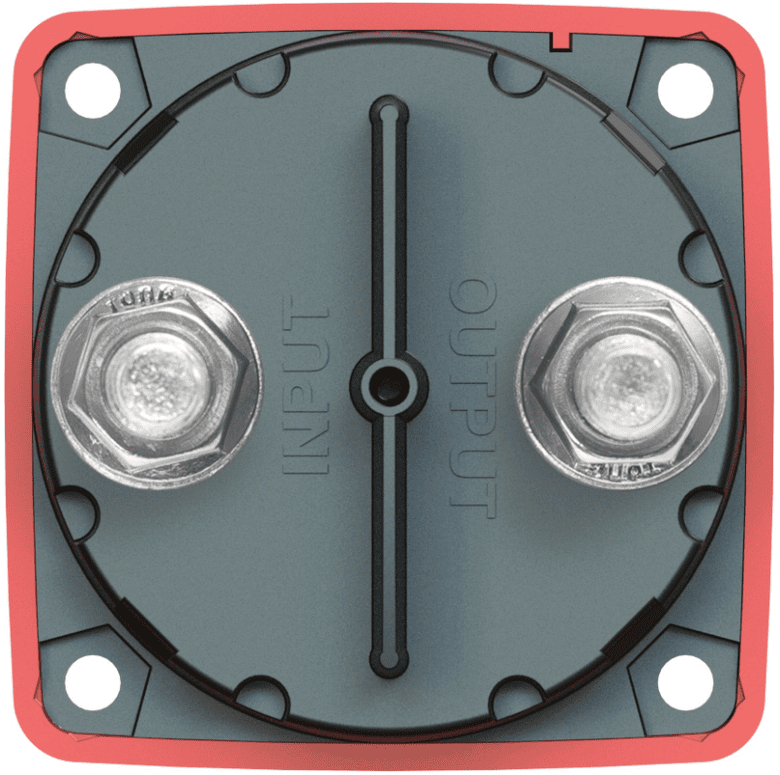

- Isolating cover with snap-on sections protects rear contacts
-
6006 Specifications Switch Type Single Circuit ON-OFF Color Red Switch Positions 2 Battery Combine No Alternator Field Disconnect No Maximum Voltage 48V DC Stud Size 3/8" Terminal Stud Torque 120 in-lb (13.56 Nm) Continuous Rating 300A Intermittent Rating 500A (5 min) Cranking Rating 30 sec 900A Battery Inputs 1 Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm) Cable Size to Meet Ratings 4/0 AWG (120mm²) Mounting Holes Accept #10 Screw Stud Material Tinned Copper Stud Torque 120 in-lb (13.56 Nm) Terminal Stud Size 3/8" - 16 (M10) Weight 0.65Lb (0.29 Kg)
SKU: BS-6006B
SPECIFICATIONS
| SKU: | BS-6006B |
| Barcode: | 632085060060 |
| Model #: | BS-6006B |
| MPN: | BS-6006B |
