DESCRIPTION
Victron MultiPlus-II 48/4k5/55-32 230V Inverter/Charger
More power per kg and per dm³, and better high temperature performance compared to other MultiPlus-II models.
Professional-Grade Inverter/Charger with ESS Functionality
The Victron MultiPlus-II 48/4k5/55-32 230V is a multifunctional inverter/charger engineered for professional marine, mobile, and off-grid applications. It combines a high-efficiency 230V inverter with a powerful battery charger, featuring Energy Storage System (ESS) functionality that allows seamless integration with solar, generator, and grid-connected systems. With peak power capabilities of 7kW and time-limited output of 4.5kW for 2 hours, it ensures continuous power supply even during high-demand conditions.
PowerControl and PowerAssist – Intelligent Load Management
PowerControl allows the MultiPlus-II to limit AC input current to a safe value, preventing grid or generator overloads. PowerAssist extends this functionality, compensating for insufficient generator or shore power with energy from the battery during peak load periods. Once demand decreases, the surplus energy is used to recharge the battery, maximising energy efficiency and system reliability.
Uninterrupted Power & Dual AC Outputs
The main AC output provides seamless transfer during grid or generator failure in less than 20 milliseconds, maintaining continuous operation of sensitive electronics. A second AC output is live only when input power is available, ideal for non-critical loads such as water heaters. Both outputs are fully integrated into the PowerControl and PowerAssist system for intelligent energy distribution.
Flexible System Configuration
The MultiPlus-II 48/4k5/55-32 supports parallel operation for increased output and three-phase setups for larger installations. Up to six units can be configured in parallel, or three units for three-phase operation, and up to six sets of three can operate in parallel. On-site configuration is simple with VEConfigure software, while monitoring can be performed via Cerbo GX, Ekrano GX, Digital Multi Control Panel, or VictronConnect for real-time insight.
High Efficiency & Robust Design
With a maximum efficiency of 95%, the MultiPlus-II minimizes energy loss while delivering reliable power. Its rugged IP21-rated steel enclosure and fan-assisted cooling ensure safe operation in temperatures ranging from -40°C to +65°C. The unit supports lithium, lead-acid, and zinc-bromine batteries, making it highly versatile for various energy storage solutions.
Applications
- Marine and yachting systems for uninterrupted AC power
- Mobile and vehicle energy solutions
- Off-grid homes and commercial installations
- Solar PV integration and energy storage systems
- Professional backup power for critical loads
Upgrade your system with the Victron MultiPlus-II 48/4k5/55-32 230V for intelligent energy management, peak load support, and uninterrupted AC power for professional and off-grid applications
SKU: VIC-PMP482405012

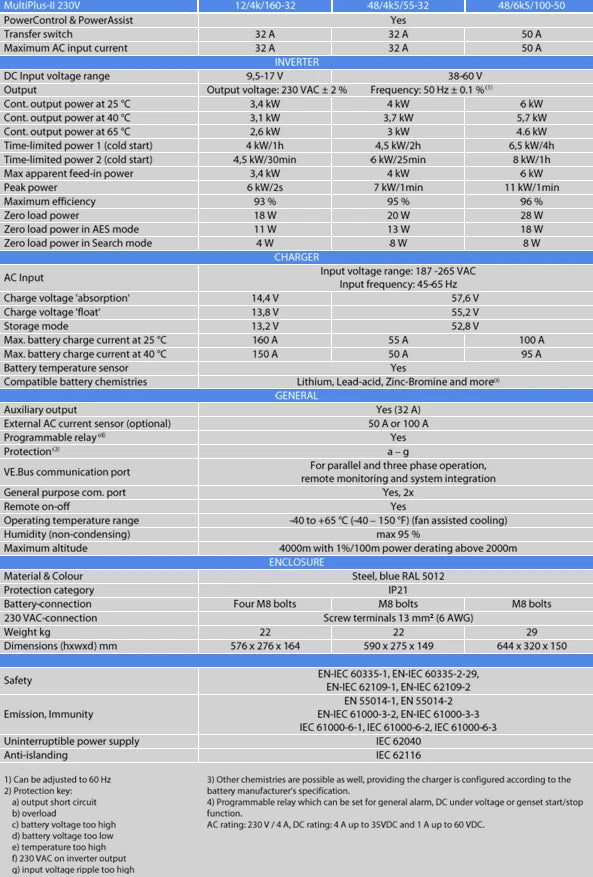

SPECIFICATIONS
Specifications
| MultiPlus-II 230V: 48/4k5/55-32 | |
|---|---|
| PowerControl & PowerAssist | Yes |
| Transfer switch | 32 A |
| Maximum AC input current | 32 A |
| INVERTER | |
| DC Input voltage range | 38-60 V |
| Output | Output voltage: 230 VAC ± 2 % Frequency: 50 Hz ± 0.1 %(1) |
| Cont. output power at 25 °C | 4 kW |
| Cont. output power at 40 °C | 3.7 kW |
| Cont. output power at 65 °C | 3 kW |
| Time-limited power 1 (cold start) | 4.5 kW/2h |
| Time-limited power 2 (cold start) | 6 kW/25min |
| Max apparent feed-in power | 4 kW |
| Peak power | 7 kW/1min |
| Maximum efficiency | 95 % |
| Zero load power | 20 W |
| Zero load power in AES mode | 13 W |
| Zero load power in Search mode | 8 W |
| CHARGER | |
| AC Input | Input voltage range: 187–265 VAC Input frequency: 45-65 Hz |
| Charge voltage 'absorption' | 57.6 V |
| Charge voltage 'float' | 55.2 V |
| Storage mode | 52.8 V |
| Max. battery charge current at 25 °C | 55 A |
| Max. battery charge current at 40 °C | 50 A |
| Battery temperature sensor | Yes |
| Compatible battery chemistries | Lithium, Lead-acid, Zinc-Bromine and more(3) |
| GENERAL | |
| Auxiliary output | Yes (32 A) |
| External AC current sensor (optional) | 50 A or 100 A |
| Programmable relay(4) | Yes |
| Protection(2) | a – g |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| General purpose com. port | Yes, 2x |
| Remote on-off | Yes |
| Operating temperature range | -40 to +65 °C (-40 – 150 °F) (fan assisted cooling) |
| Humidity (non-condensing) | max 95 % |
| Maximum altitude | 4000m with 1%/100m power derating above 2000m |
| ENCLOSURE | |
| Material & Colour | Steel, blue RAL 5012 |
| Protection category | IP21 |
| Battery-connection | M8 bolts |
| 230 VAC-connection | Screw terminals 13 mm² (6 AWG) |
| Weight kg | 22 |

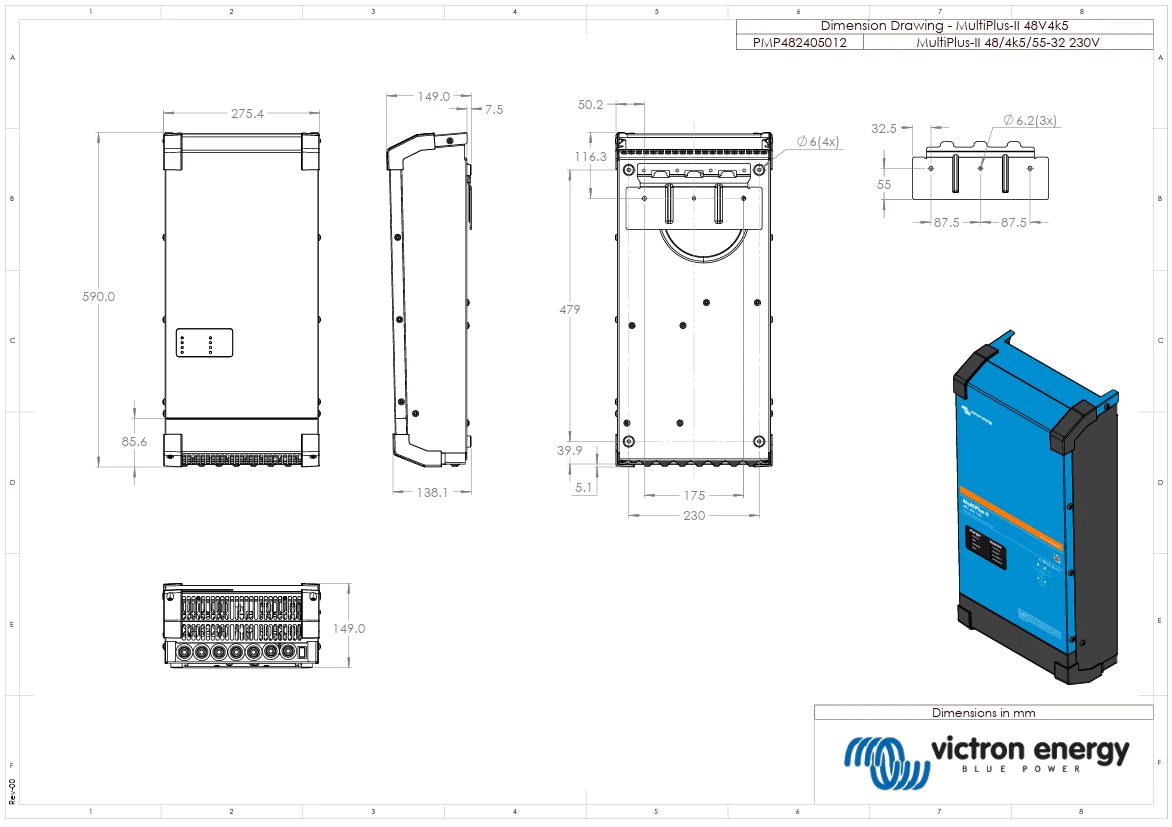

| Dimensions (hxwxd) mm | 590 x 275 x 149 |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission, Immunity | EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Uninterruptible power supply | IEC 62040 |
| Anti-islanding | IEC 62116 |
|
1) Can be adjusted to 60 Hz 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) 230 VAC on inverter output g) input voltage ripple too high 3) Other chemistries are possible as well, providing the charger is configured according to the battery manufacturer's specification. 4) Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function. AC rating: 230 V / 4 A, DC rating: 4 A up to 35VDC and 1 A up to 60 VDC. |
|
| SKU: | VIC-PMP482405012 |
| Barcode: | 8719076065975 |
| Model #: | PMP482405012 |
| MPN: | PMP482405012 |
