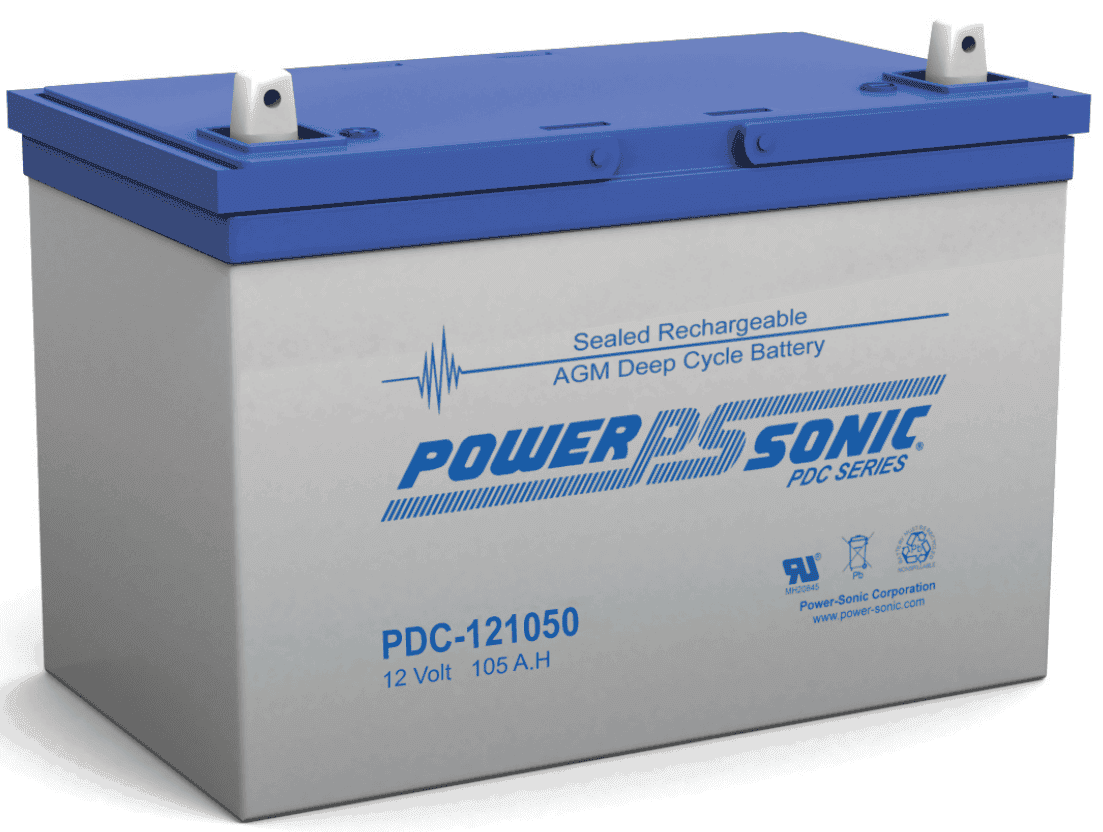

Power-Sonic 12V 105Ah AGM Deep Cycle Battery
Oversized plates for true deep cycle performance - 306x168x208mm
DESCRIPTION
Power-Sonic PDC-121050: 12V 105Ah AGM Deep Cycle Battery for Reliable Off-Grid Energy
Engineered for Sustained Cycling in Caravans, Marine, and Mobility Applications
The Power-Sonic 12V 105Ah AGM Deep Cycle Battery is purpose-built for applications demanding regular, deep discharges and consistent cycling. Unlike standard starter batteries, the PDC series features oversized negative plates and a specialised paste formulation that delivers true deep cycle performance, providing stable power over extended periods without compromising service life. This makes it an excellent choice for caravan solar systems, marine house banks, mobility scooters, and other off-grid setups where reliability is critical.
Utilising advanced Absorbent Glass Mat (AGM) technology, this battery offers superior performance, maintenance-free operation, and a spill-proof design that allows safe installation in any orientation. The valve-regulated construction ensures no acid leakage, reducing corrosion risks and making it suitable for enclosed spaces and transport. With a rugged ABS case (UL94-HB) and integrated carry handles, the PDC-121050 is built to withstand the vibrations and shocks common in mobile environments.
Key Features
- True deep cycle design with oversized negative plates and specialised paste for repeated deep discharges
- AGM technology for high efficiency, low self-discharge, and maintenance-free operation
- Spill-proof and valve-regulated construction allows flexible mounting in any position
- High energy density delivers 105Ah capacity in a compact footprint (306 x 168 x 208 mm)
- Rugged ABS case with impact resistance and integrated carry handles for easy transport
- Certified for air transport (D.O.T., I.A.T.A., F.A.A., C.A.B.) and U.L. recognised (MH 20845)
- M6 threaded terminals ensure secure, low-resistance connections for reliable power delivery
Why AGM Deep Cycle Technology Matters
AGM batteries use a fibreglass mat to absorb the electrolyte, immobilising it and enabling efficient gas recombination. This design not only prevents spills but also reduces internal resistance, allowing faster charging and higher discharge rates compared to flooded lead-acid batteries. The Power-Sonic PDC series enhances this with special additives in the paste that improve performance in deep discharge situations, a common challenge in off-grid and cycling applications. With an internal resistance of approximately 5.0 mΩ, this battery supports high surge currents, making it suitable for inverter loads and motor starts.
Applications
This battery is ideal for a wide range of deep cycle uses, including:
- Caravans and RVs: Powering lights, pumps, and appliances during extended trips
- Marine: Reliable house bank for trolling motors, electronics, and onboard systems
- Camping and 4WD: Running fridges, lighting, and charging devices off-grid
- Mobility Scooters and Electric Bikes: Providing consistent power for daily use
- Solar Energy Storage: Compatible with 12V solar setups for remote cabins and sheds
Built for Australian Conditions
With an operating temperature range of -20°C to 55°C during discharge and 0°C to 40°C during charge, the PDC-121050 is well-suited to Australia's diverse climates. The robust ABS case and vibration-resistant design ensure durability on corrugated roads and in marine environments. For optimal charging, pair with the Power-Sonic PSC-126000ACX charger to maximise battery life and performance.
Whether you're upgrading your caravan power system or building a reliable off-grid setup, the Power-Sonic 12V 105Ah AGM Deep Cycle Battery delivers the endurance and dependability you need. Order yours today and power your next adventure with confidence.
SKU: PDC121050
SPECIFICATIONS
Specifications
| Nominal Voltage | 12.0 V (6.0 cells) |
|---|---|
| Nominal Capacity, 20-hr. (5.25 A to 10.8 V) | 105.0 Ah |
| Nominal Capacity, 10-hr. (10.0 A to 10.8 V) | 100.0 Ah |
| Nominal Capacity, 5-hr. (17.2 A to 10.2 V) | 86.0 Ah |
| Nominal Capacity, 1-hr. (58.1 A to 9.6 V) | 58.1 Ah |
| Approximate Weight | 63.71 lbs (28.9 kg) |
| Dimensions | L: 12.05 in (306.0 mm); W: 6.61 in (168.0 mm); H: 8.19 in (208.0 mm); TH: 8.43 in (214.0 mm) |
| Dimensional Tolerance | +/- 0.08 in (+/- 2 mm) for length, width, and height dimensions |
| Internal Resistance (Approx.) | 5.0 mΩ |
| Max Short Circuit Discharge Current | 2000.0 A |
| Operating Temperature Range, Charge | 32 °F (0 °C) to 104 °F (40 °C) |
| Operating Temperature Range, Discharge | -4 °F (-20 °C) to 131 °F (55 °C) |
| Case | ABS |
| Available Terminals | M6 |
| Recommended Power-Sonic Charger | PSC-126000ACX |
| SKU: | PDC121050 |
| Model #: | PDC121050 |
| MPN: | PDC121050 |
WARRANTY
Power-Sonic Batteries are warranted throughout Australia against faulty workmanship and materials. Depending on the battery and application the amount of time covered varies (refer below for details).
If a Power-Sonic Battery is defective (other than for the warranty exclusions specified below) during that period, we will replace or repair it at our cost. To make a claim please return the part to Solar 4 RV's. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality. The benefits under this warranty are in addition to other rights and remedies you may have at law. This voluntary warranty is given by Solar 4 RV's.
PS & PSH Series 12 months when used in standby applications 6 months when used in cyclic applications PG Series 24 months when used in standby applications 12 months when used in cyclic applications if average depth of discharge does not exceed 50% 6 months when used in mobility applications (including but not limited to wheelchair, electric scooter, pallet jack, golf buggy) PDC Cyclic & DCG Gel Series 12 months when used in standby and cyclic applications Powersports Motorcycle and Jet Ski Series 12 months warranty PSOPzV – 3 Years full replacement when used in standby or cyclic applications Warranty commences from date of purchase.
Warranty Conditions- This warranty does NOT cover: Normal wear and tear, Transportation costs to and from the place of purchase, Labour for removal and replacement of the unit unless prior written approval has been obtained from Solar 4 RV's, Parts which have been subjected to deliberate abuse, Conditions resulting from abnormal wear, negligence, alterations or accidents, Incorrect fitment, Parts used in an incorrect application or parts that are not used for their intended purpose.
