Genasun 8A MPPT 48V Voltage Boost (56.8V Lithium) - Waterproof Solar Charge Controller

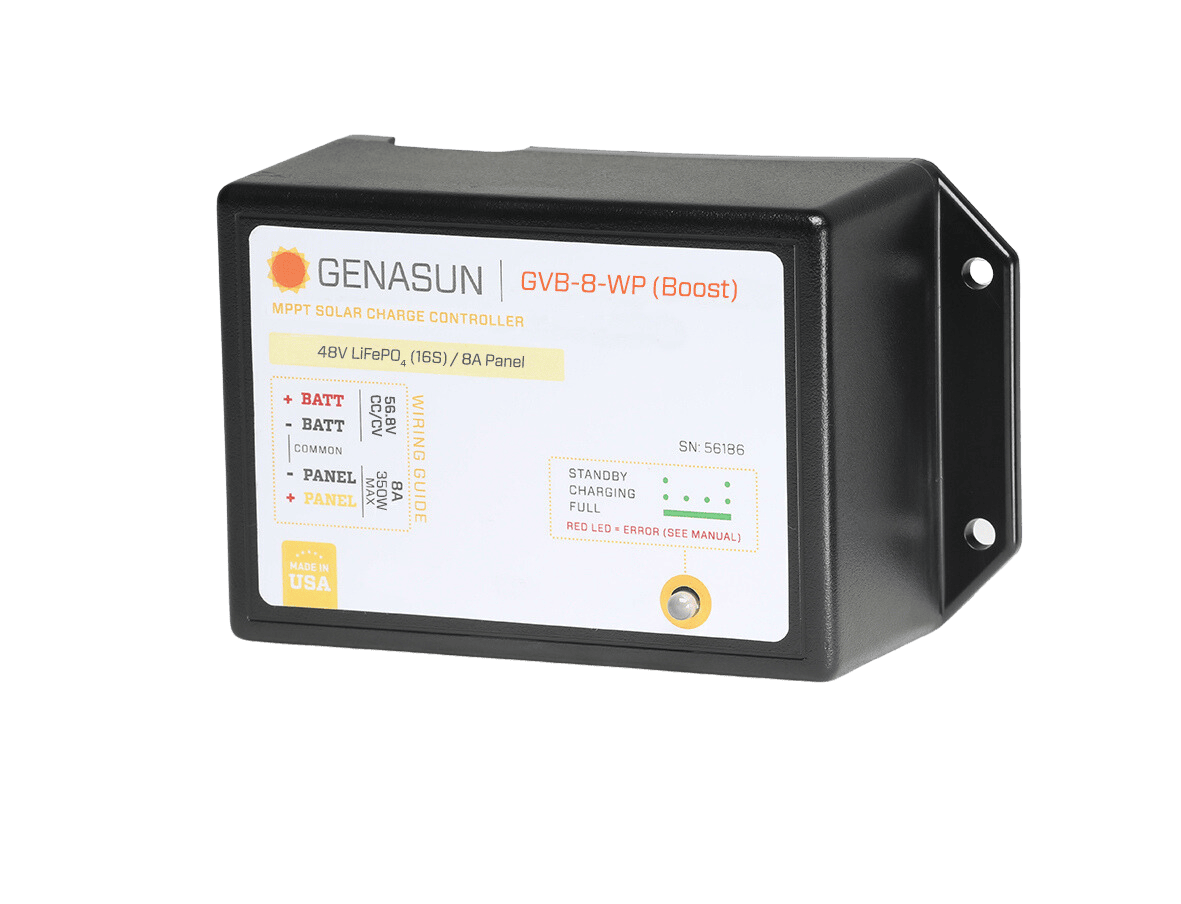

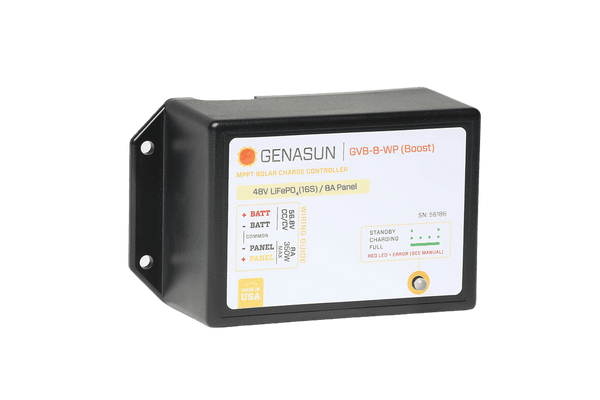

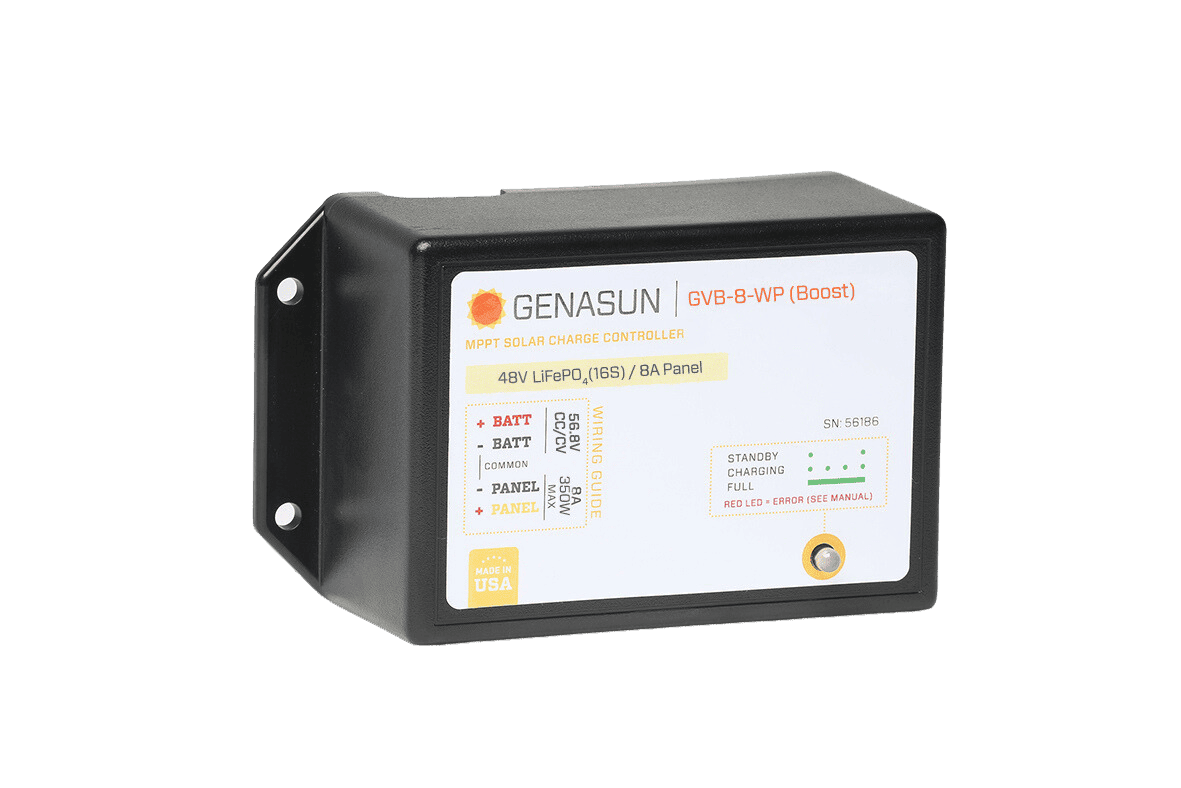

Genasun GVB-8-WP Boost MPPT: Advanced Voltage-Boosting Solar Charge Controller for 48V Lithium Systems

Engineered for Demanding Off-Grid, Marine, and Industrial Applications

The Genasun GVB-8-WP Boost MPPT is a specialised solar charge controller designed to solve a critical challenge: charging higher-voltage battery banks from lower-voltage solar arrays. This model is factory-configured for 48V LiFePO4 (16S) lithium batteries with a 56.8V absorption voltage, making it an ideal choice for electric vehicles, golf carts, and industrial equipment where a 48V system is standard but roof space limits panel voltage. Unlike conventional controllers that require the panel voltage to exceed the battery voltage, the Genasun’s unique boost topology efficiently steps up the voltage, enabling a 12V, 24V, or 36V nominal solar panel to charge a 48V battery bank.

With a 99% peak tracking efficiency and an ultra-fast 15Hz MPPT sweep rate, this controller extracts maximum available power even under rapidly changing light conditions. Its advanced electronics are fully encapsulated in a proprietary potting compound, achieving an IP68 waterproof rating for reliable operation in wet, humid, or washdown environments. Whether you’re retrofitting a golf cart, building a marine solar system, or deploying remote industrial equipment, the GVB-8-WP delivers consistent, efficient charging without the bulk or complexity of larger MPPT units.

True MPPT vs. Nominal MPPT: Why Tracking Speed Matters

Many controllers claim MPPT functionality but use slow, infrequent sweeps that can miss the true maximum power point, especially when clouds pass or partial shading occurs. The Genasun GVB-8-WP performs a full MPPT sweep 15 times per second, ensuring it locks onto the optimal operating voltage almost instantly. This true MPPT capability translates to higher daily energy yield and better performance in low-light conditions, such as early morning, late afternoon, or overcast days. For systems where every watt-hour counts, this responsiveness provides a measurable advantage over generic PWM or slow-tracking MPPT controllers.

Built for Harsh Environments: IP68 Waterproof and Rugged Construction

The controller’s electronics are sealed within a solid block of thermally conductive potting material, eliminating the risk of corrosion from salt spray, humidity, or condensation. This construction, combined with a compact aluminium housing, allows the GVB-8-WP to operate in ambient temperatures from -40°C to 85°C and at full power up to 70°C. There are no cooling fans to fail or vents to allow moisture ingress, making it a truly maintenance-free solution for marine, vehicle, and outdoor installations. The integrated mounting flange and pre-stripped 16 AWG tinned flying leads simplify installation, while the in-line fuse provides essential overcurrent protection.

Key Features

• Voltage boost topology charges 48V LiFePO4 batteries from lower-voltage solar panels (12V, 24V, or 36V nominal)
• 99% peak MPPT tracking efficiency with 15Hz sweep rate for rapid response to changing irradiance
• IP68 waterproof and dust-tight – fully potted electronics withstand submersion and harsh marine conditions
• Wide operating temperature range (-40°C to 85°C) with full power output up to 70°C ambient
• Multi-stage charging with temperature compensation optimised for 16S LiFePO4 (56.8V absorption, 55.2V float)
• Low self-consumption (5mA at night) minimises battery drain when solar is unavailable
• Compact and lightweight (290g) with integrated mounting flange and pre-wired leads
• Made in the USA with a 5-year warranty

Ideal Applications

The GVB-8-WP 48V lithium model is purpose-built for scenarios where a 48V battery bank must be charged from a solar array with a lower nominal voltage. Common use cases include:

• Electric golf carts and utility vehicles – utilise a single 12V or 24V panel on the roof to maintain the 48V traction battery
• Marine and RV systems – charge 48V house banks from limited deck or roof space without reconfiguring panels in series
• Industrial off-grid equipment – power remote monitoring stations, telemetry systems, or lighting where 48V is the standard bus voltage
• Street lighting and security systems – pair a small 12V panel with a 48V battery for compact, efficient energy storage

By eliminating the need to match panel voltage to battery voltage, this controller reduces system design constraints and allows the use of smaller, more readily available solar panels. It also mitigates the risk of shading-related performance loss that can plague high-voltage series strings, as a single lower-voltage panel is less affected by partial shading than a long series string.

Technical Considerations

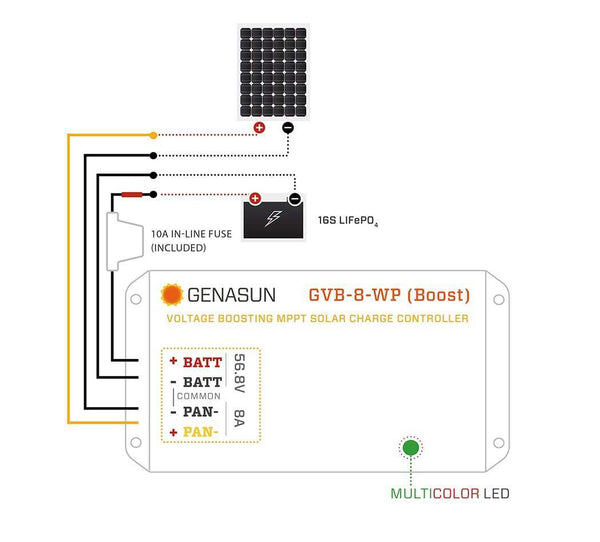

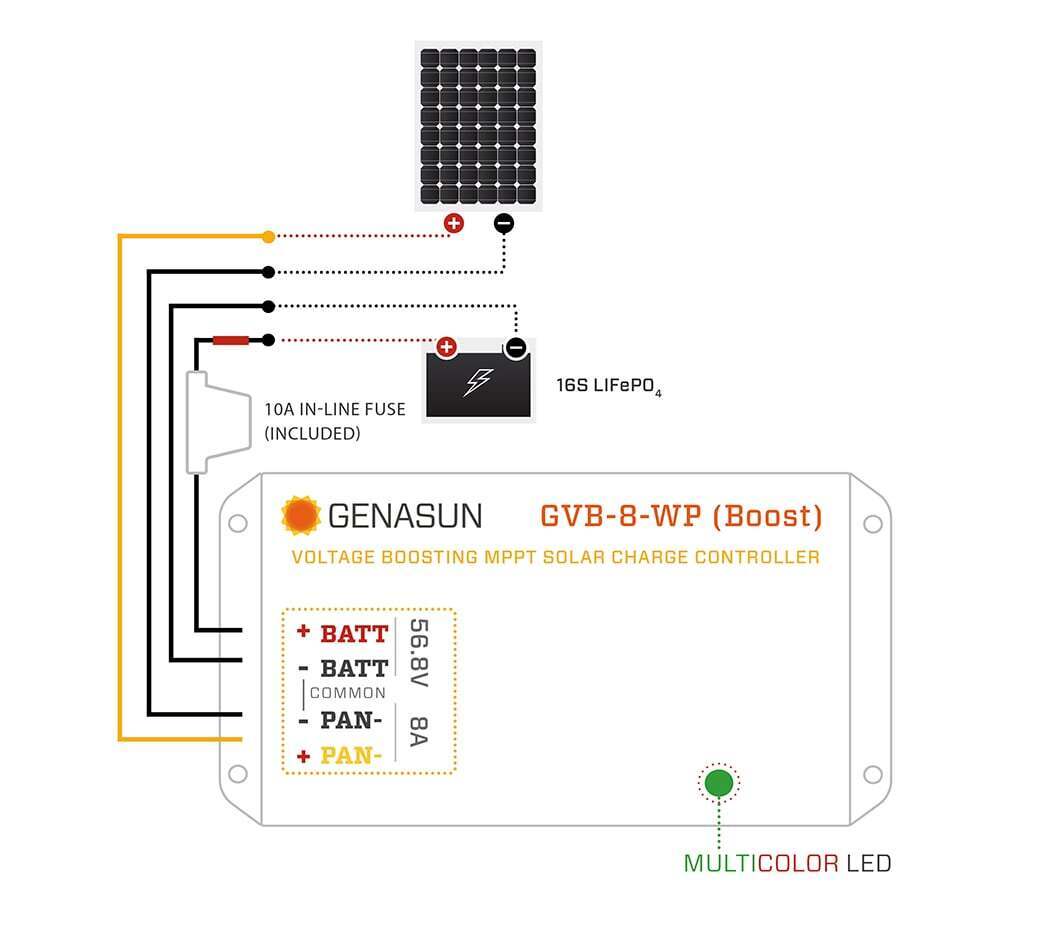

For optimal performance, the recommended maximum panel Vmp is 43V, with a maximum input voltage of 60V and a rated panel input current of 8A. This allows a maximum recommended panel power of approximately 350W. The controller requires a minimum battery voltage of 9.5V to start and can begin charging from a panel voltage as low as 5V. The multi-stage charge profile includes bulk, absorption (2 hours), and float stages, with automatic temperature compensation to protect the battery from overcharging in hot conditions. The 16 AWG tinned wire leads are pre-stripped for quick connection, and the in-line fuse holder accepts standard automotive blade fuses for easy replacement.

Note: This controller is designed for lithium iron phosphate (LiFePO4) batteries with a 16-cell series configuration. Ensure your battery’s recommended charge voltages align with the factory-set profile (56.8V absorption, 55.2V float). For other battery chemistries or voltages, Genasun offers alternative models.

Upgrade Your 48V Solar Charging System Today

Experience the reliability and efficiency of Genasun’s boost MPPT technology. Whether you’re maintaining a golf cart fleet, powering a remote industrial site, or building a robust marine energy system, the GVB-8-WP 48V lithium controller provides a compact, waterproof, and highly efficient charging solution. Add the Genasun GVB-8-WP to your system today and harness more solar energy with less panel.
