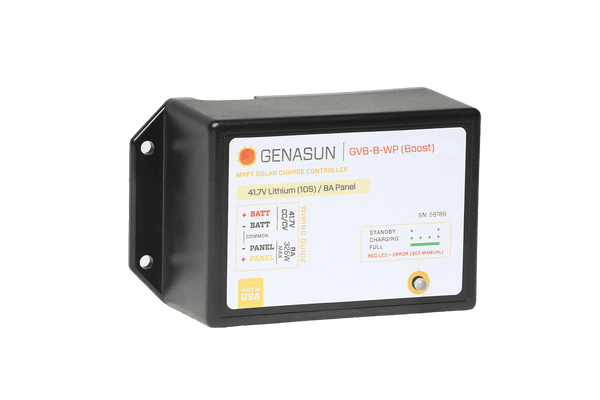

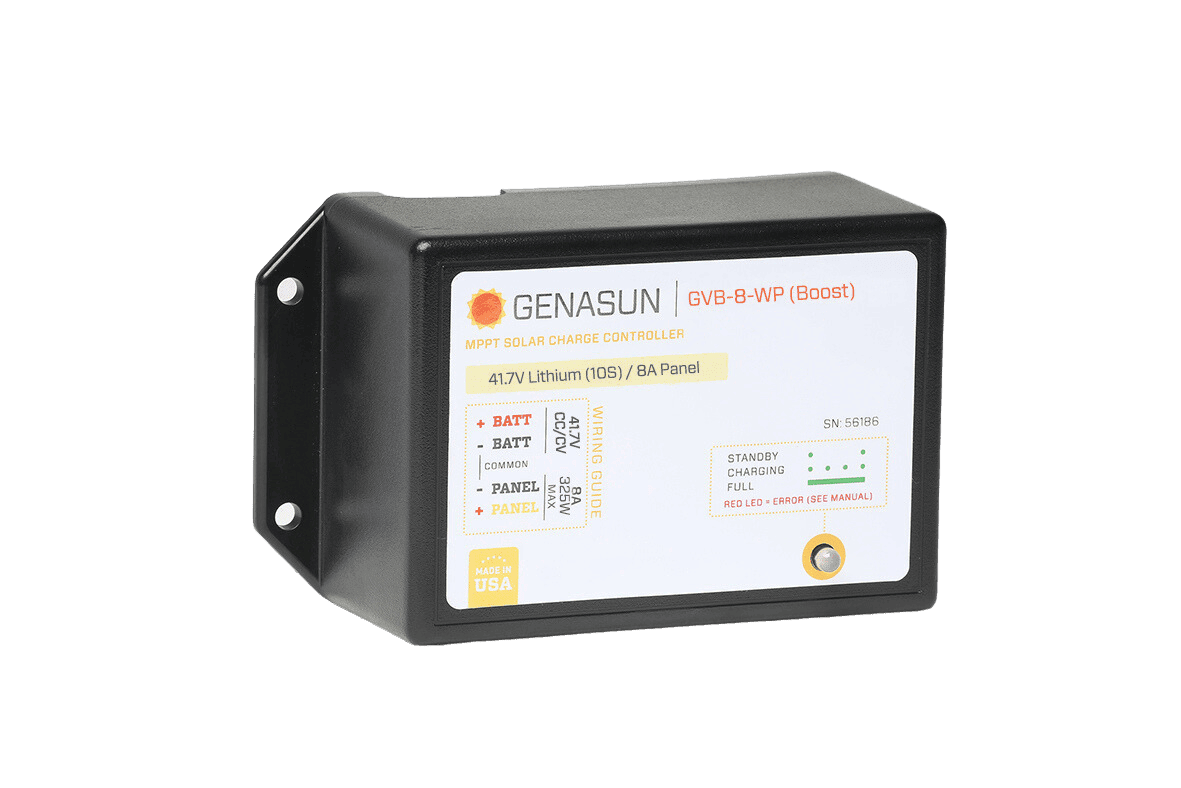

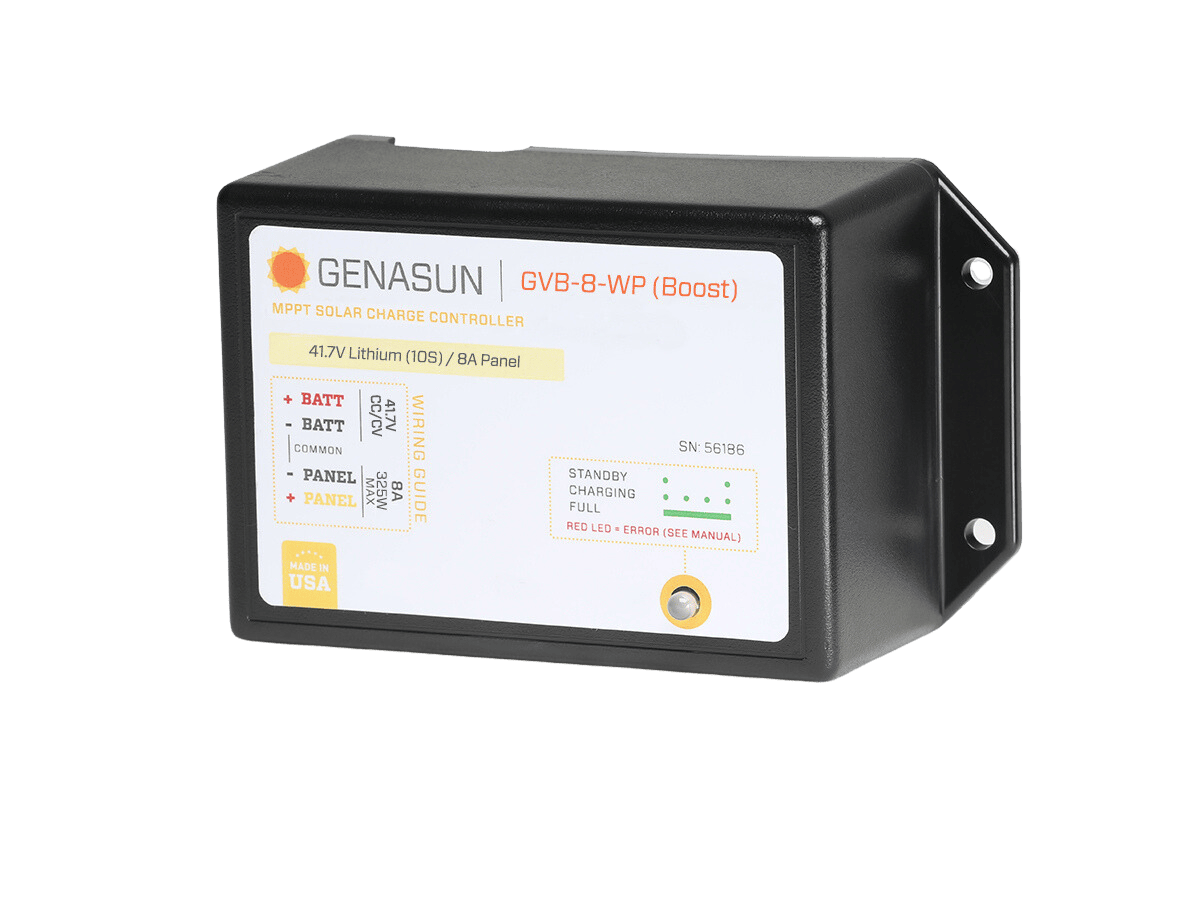

Genasun 8A MPPT 36V Voltage Boost (41.7V Lithium) - Waterproof Solar Charge Controller

Genasun GVB-8-WP: Advanced MPPT Boost Charge Controller for 36V Lithium Systems

Engineered for Demanding Off-Grid, Marine, and Industrial Applications

The Genasun GVB-8-WP 8A MPPT boost charge controller is purpose-built to solve a critical challenge in solar system design: charging higher-voltage batteries from lower-voltage solar panels. This waterproof MPPT controller enables a 12V or 24V nominal solar array to efficiently charge a 36V lithium battery bank, making it an essential component for electric vehicles, golf carts, marine systems, and remote off-grid installations where panel voltage is limited by space or configuration.

Unlike conventional boost converters that rely on simple PWM or "nominal MPPT" algorithms, the GVB-8-WP employs true Maximum Power Point Tracking at 15 Hz, ensuring your panels operate at their optimal power point even under rapidly changing light conditions. This results in up to 30% more energy harvest compared to non-MPPT boost controllers, particularly during cloudy or low-light periods.

True MPPT vs. Nominal MPPT: Why It Matters

Many competing boost controllers claim MPPT functionality but actually use a fixed voltage multiplication factor, ignoring real-time variations in panel performance. Genasun's ultra-fast 15 Hz tracking continuously adjusts the input voltage to extract maximum available power, delivering 99% peak tracking efficiency. This is especially valuable in mobile applications where shading, tilt angle, and temperature fluctuations constantly alter the panel's maximum power point.

Built for Harsh Environments

The GVB-8-WP is fully encapsulated in a proprietary potting compound, achieving an IP68 waterproof rating that protects against dust, moisture, and vibration. This makes it suitable for marine solar charging, vehicle-mounted systems, and outdoor industrial equipment where exposure to the elements is unavoidable. The controller operates reliably from -40°C to 85°C, with full power output up to 70°C ambient, ensuring consistent performance in extreme climates.

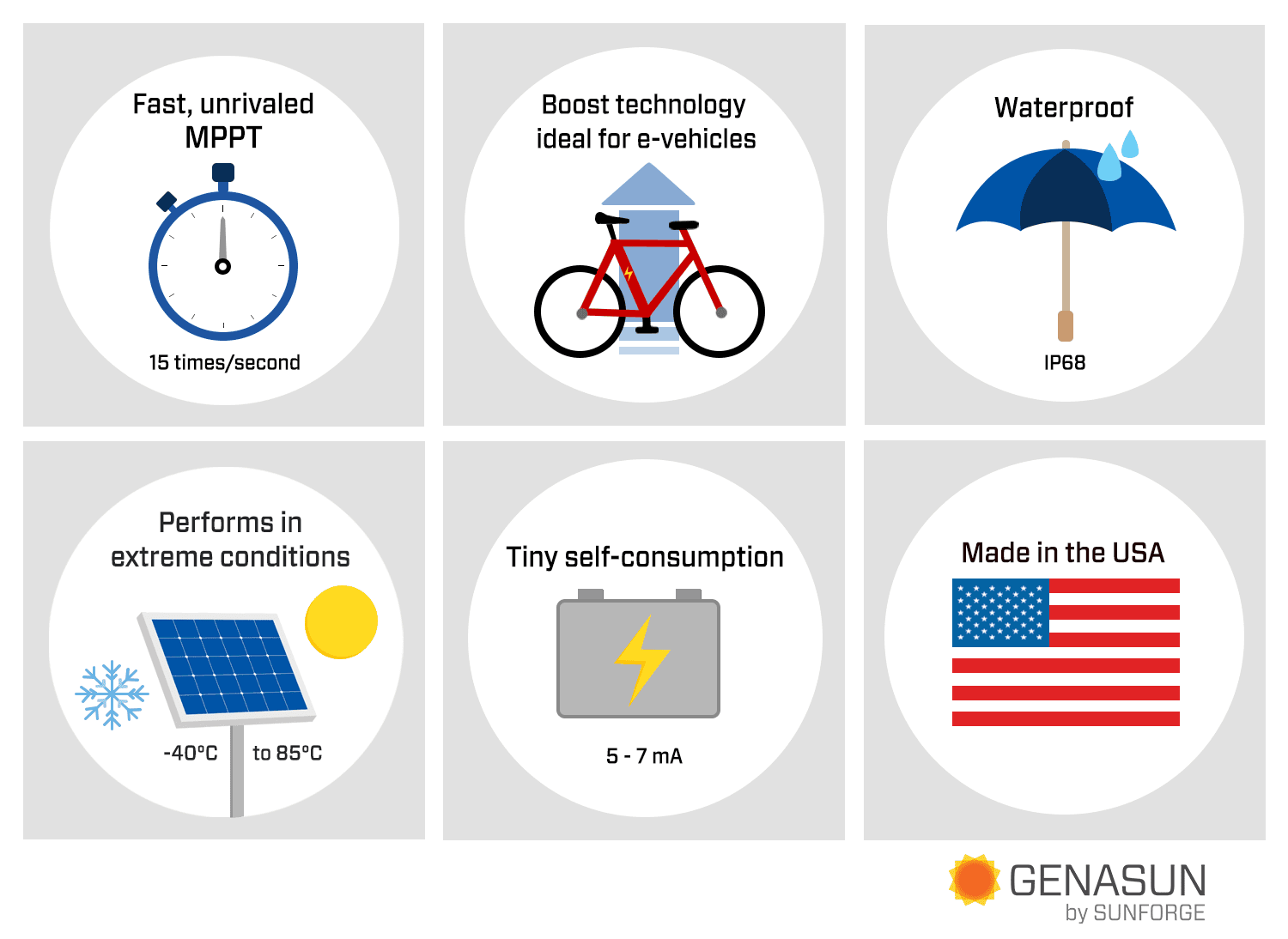

• True MPPT boost topology charges 36V lithium batteries from 12V or 24V panels
• 99% peak tracking efficiency maximises energy yield in variable conditions
• IP68 waterproof and fully potted for marine, vehicle, and outdoor use
• Multi-stage charging with temperature compensation protects and extends lithium battery life
• Ultra-low self-consumption (6 mA night draw) preserves battery charge during darkness
• Integrated in-line fuse and flying leads simplify installation and enhance safety
• Made in the USA with a 5-year warranty for long-term reliability

Optimised for 36V Lithium Battery Banks

This model is specifically configured for 36V lithium-ion batteries with a bulk charge voltage of 43.2V and float at 41.4V. The multi-stage charging algorithm includes temperature compensation to prevent overcharging in hot conditions and undercharging in cold, a critical feature for lithium chemistries that are sensitive to voltage extremes. With a maximum recommended panel power of 325W and panel Vmp up to 41V, it pairs perfectly with common 60-cell or 72-cell residential panels repurposed for mobile or off-grid use.

Applications Where the GVB-8-WP Excels

This controller is ideal for scenarios where a higher battery voltage is required but panel voltage is constrained:

• Electric golf carts and utility vehicles using 36V battery packs charged from a single 12V or 24V panel on the roof
• Marine solar systems where a 36V trolling motor battery needs charging from a compact 12V panel
• Remote monitoring stations with 36V equipment powered by a small solar array
• Off-grid lighting and signage where 36V LED systems require reliable daytime charging
• Industrial IoT and telemetry installations needing a robust, maintenance-free charge solution

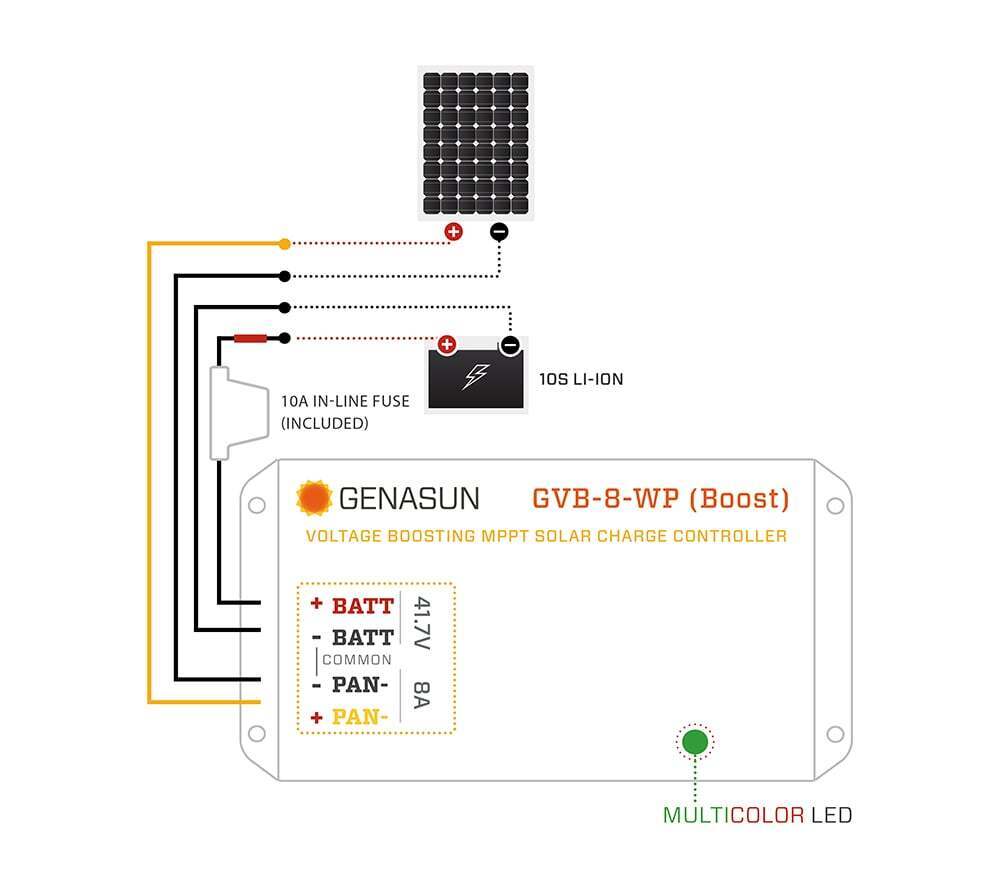

Installation and Wiring

The controller features pre-stripped 16 AWG tinned flying leads for straightforward connection to your solar panel and battery. An in-line fuse is included to protect against overcurrent conditions. The compact dimensions (140 x 81 x 55 mm) and integrated mounting flanges allow secure installation in tight spaces. A multi-colour LED provides clear status indication: standby, charging, or battery full.

Why Choose Genasun?

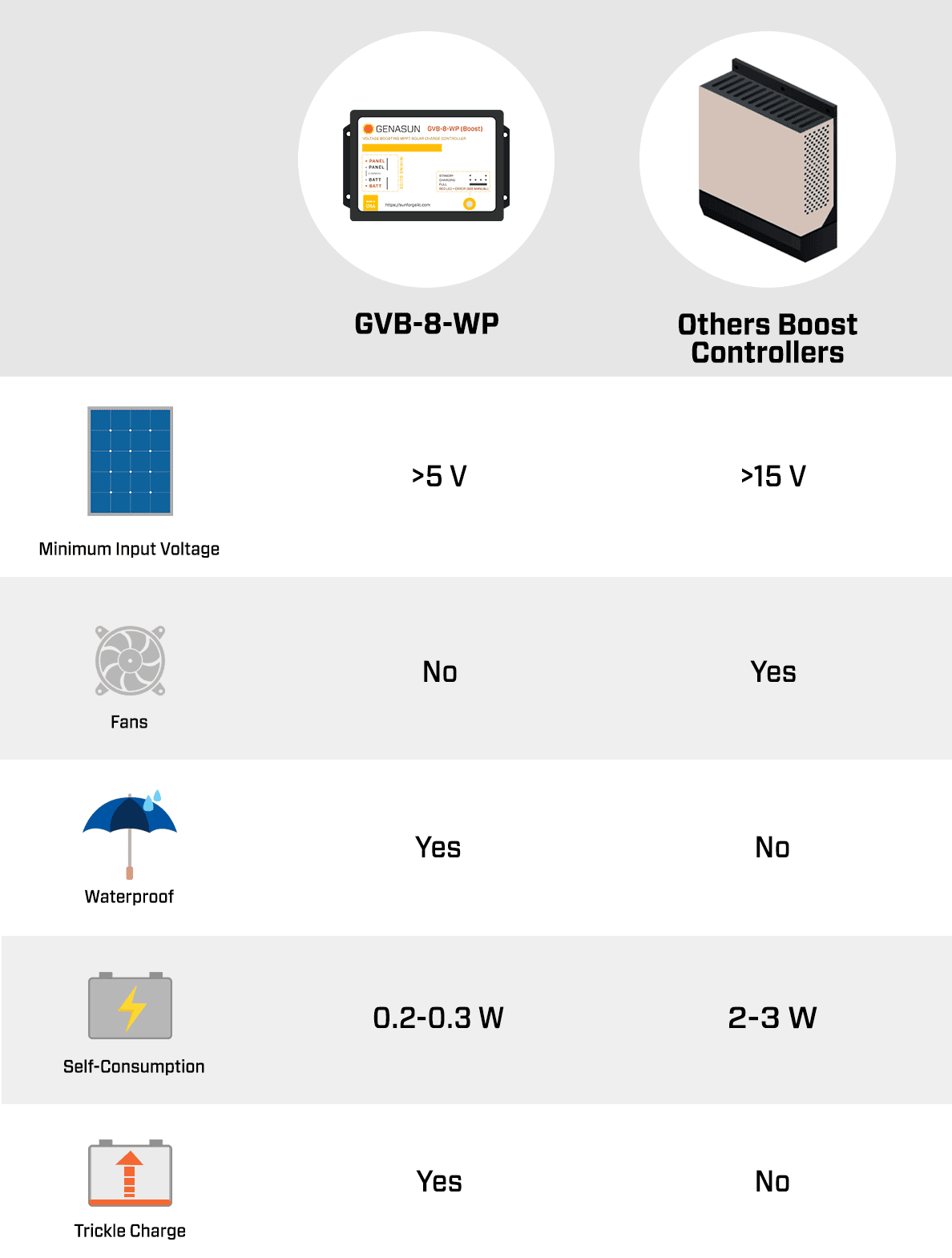

Genasun controllers are engineered and manufactured in the USA to the highest standards, with a focus on efficiency, durability, and real-world performance. The GVB-8-WP's combination of true MPPT boost technology, IP68 waterproofing, and wide temperature tolerance makes it a superior choice over generic boost converters that often lack proper MPPT, environmental protection, or lithium-specific charging profiles.

Equip your 36V lithium system with a charge controller that delivers maximum power, reliability, and longevity. Order the Genasun GVB-8-WP today and experience the difference that precision MPPT boost technology makes in your off-grid or mobile solar setup.
