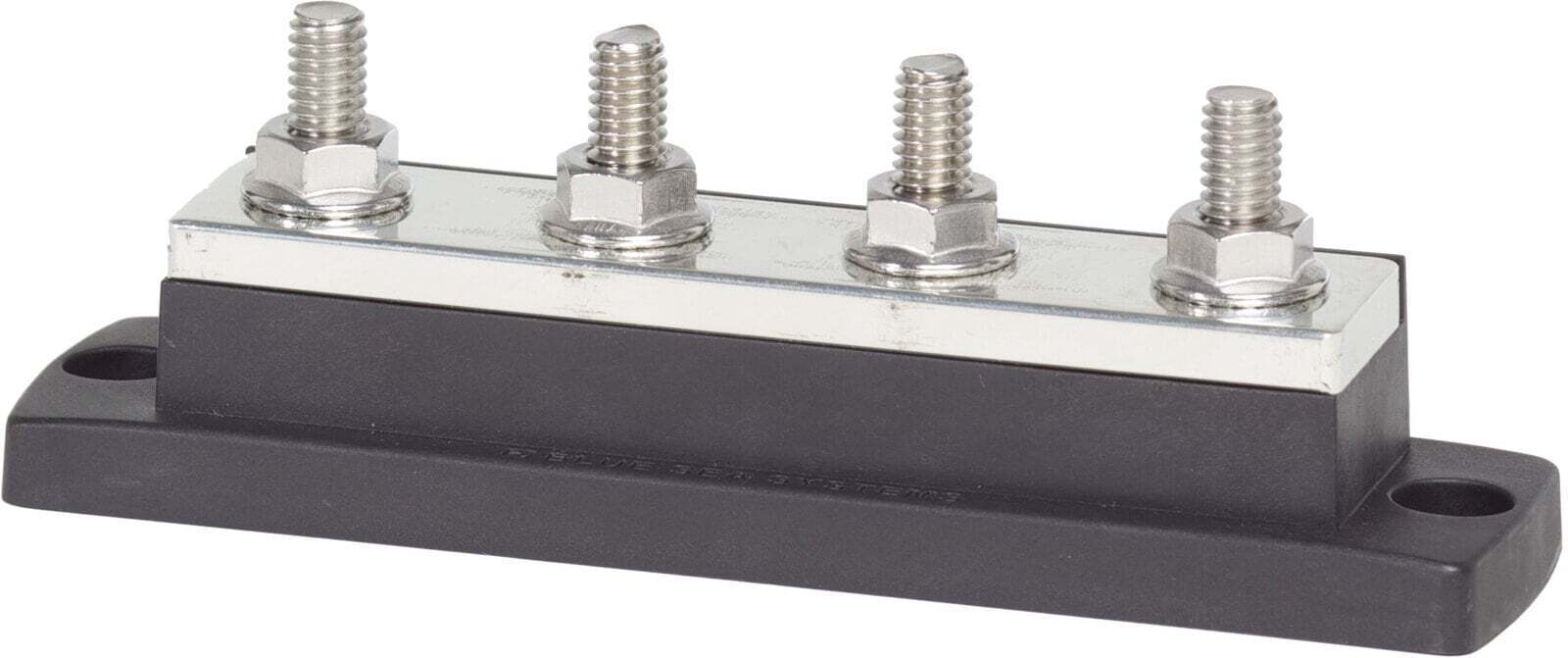

Blue Sea 250A 4x 5/16 Stud Busbar
6
DESCRIPTION
Busbars are used to consolidate multiple wires or feed multiple circuits
- Insert moulded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
- Raised bus provides easy access to multiple wires on a single stud
- UL 94-V0 rated base material resists high heat
- Recessed mounting holes eliminate accidental shorts to aluminium and steel mounting surfaces
SKU: BS-2127B

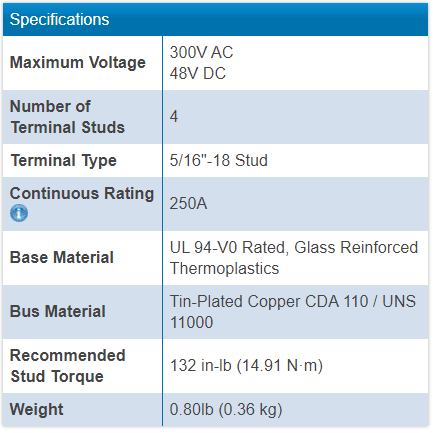

SPECIFICATIONS
Specifications
| Maximum Voltage |
300V AC 48V DC |
|---|---|
| Number of Terminal Studs | 4 |
| Terminal Type | 5/16"-18 Stud (approx. 7.94 mm diameter, 18 TPI ≈ 1.41 mm pitch; reference only) |
| Continuous Rating | 250A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Recommended Stud Torque |
132 in-lb (14.91 N·m) (approx. 11.0 ft-lb; reference only) |
| Weight (min / max) |
0.75–0.80 lb (0.34–0.36 kg) (approx. 340–360 g; reference only) |
| SKU: | BS-2127B |
| Barcode: | 632085021276 |
| Model #: | BS-2127B |
| MPN: | BS-2127B |
