Exotronic Heavy Duty Single Terminal Stud M8

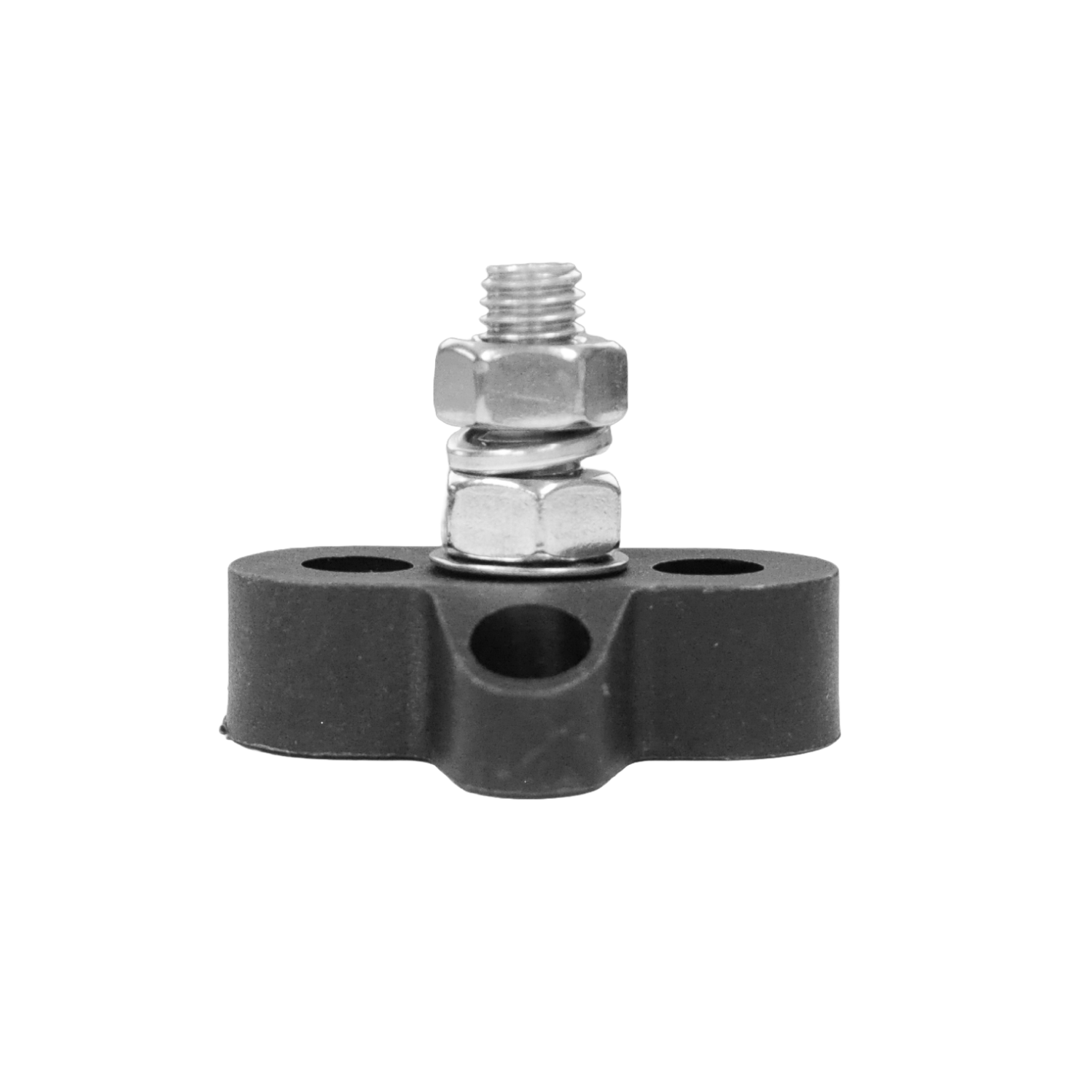

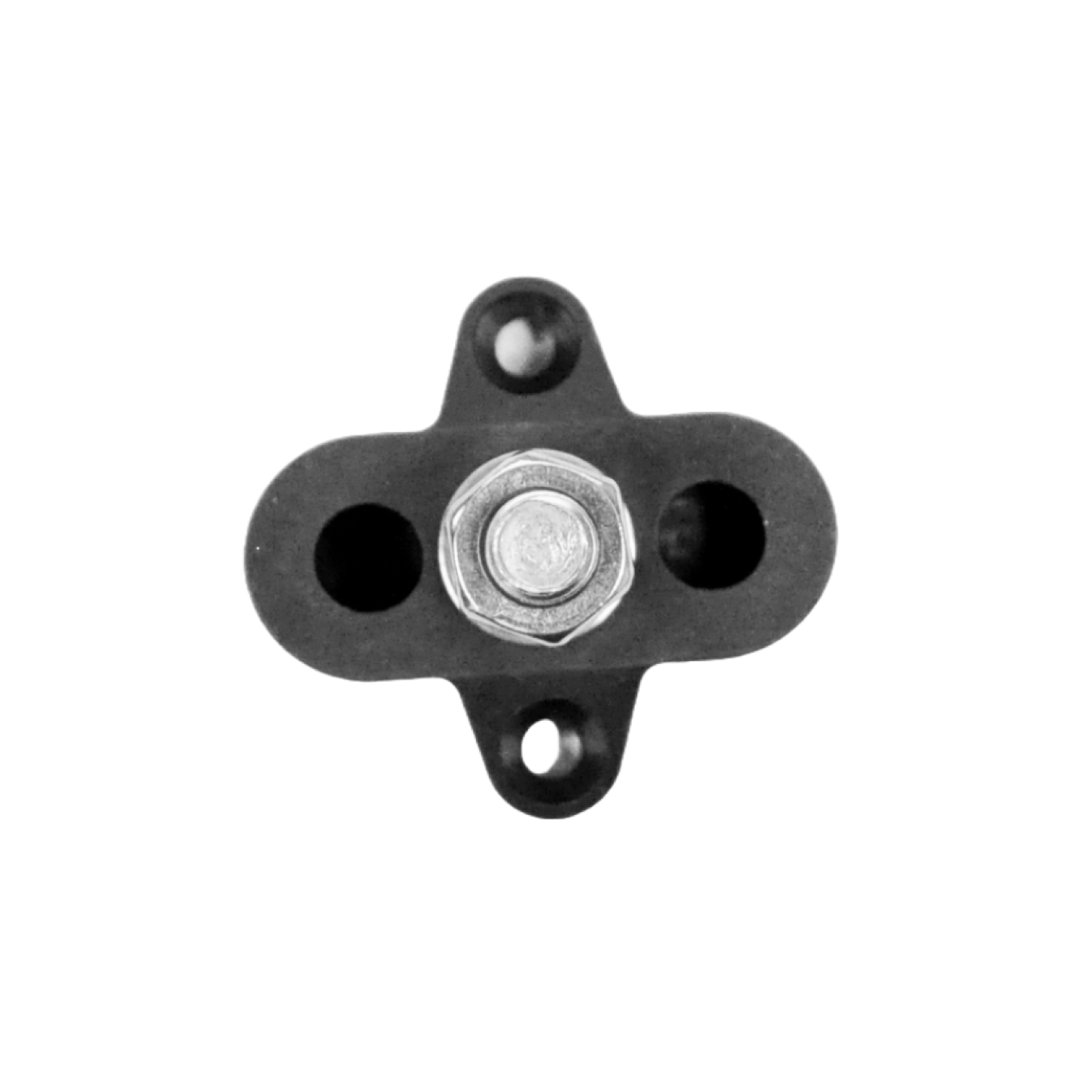

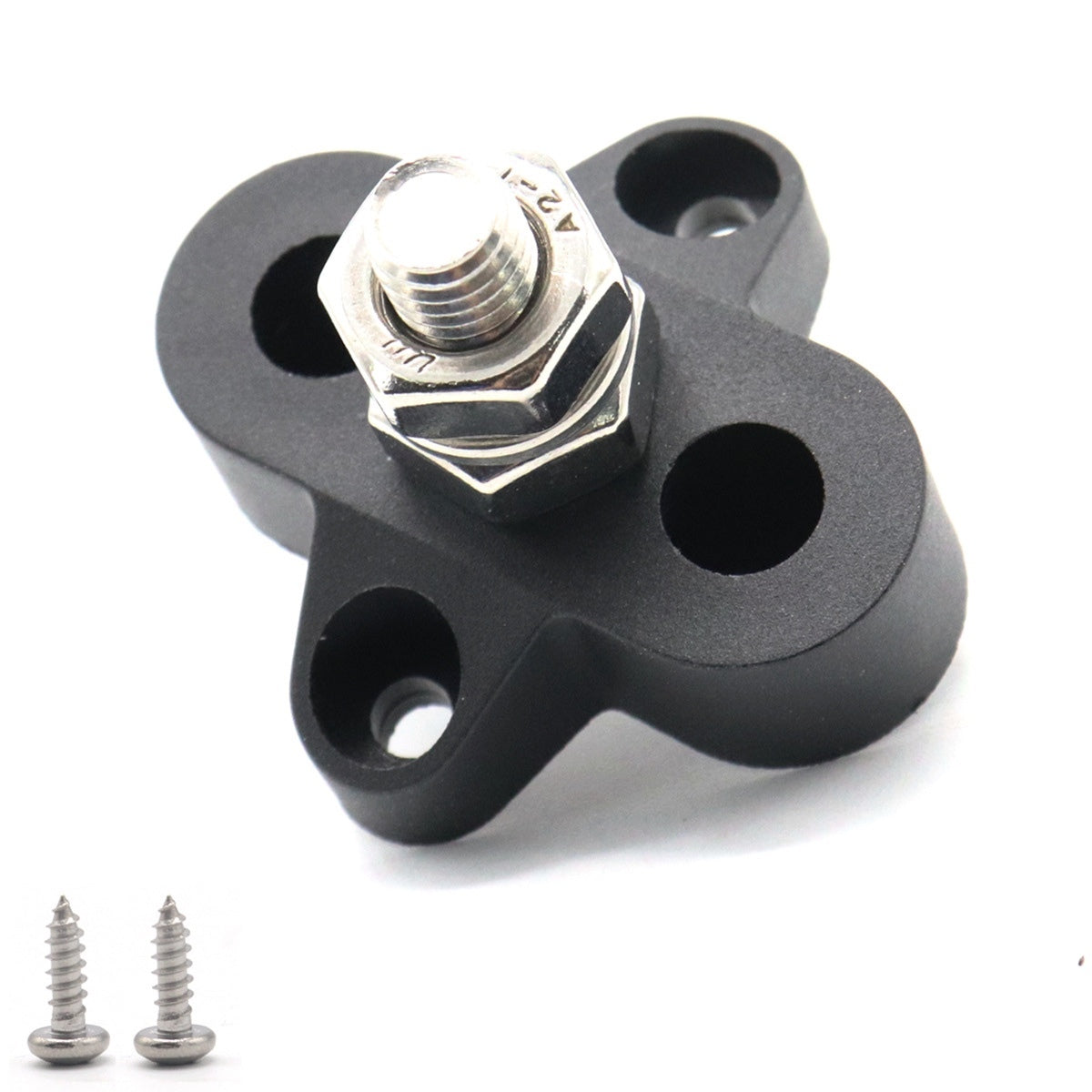

Exotronic Heavy Duty Single Terminal Stud M8: Precision Power Distribution for Demanding DC Systems

Engineered for High-Current 12V, 24V, and 48V Applications

The Exotronic Heavy Duty Single Terminal Stud M8 is a purpose-built power distribution component designed to streamline complex electrical architectures in mobile, marine, and off-grid environments. Constructed from marine-grade tinned copper, this single-stud busbar delivers exceptional conductivity and long-term corrosion resistance, making it an essential building block for reliable battery busbar systems, solar combiner boxes, and DC distribution panels.

Unlike generic brass or zinc-plated alternatives, the tinned copper construction minimises resistive losses and withstands the harsh conditions common in caravan electrical systems, boat wiring, and remote renewable energy installations. The 5/16" (M8) stud provides a secure, low-resistance connection point for heavy-gauge lugs, ensuring consistent performance under continuous 150A loads.

Why Tinned Copper Matters for Your Electrical System

In demanding DC applications, material choice directly impacts system efficiency and longevity. Tinned copper offers superior electrical conductivity compared to brass or stainless steel, while the tin plating provides a protective barrier against oxidation and galvanic corrosion. This is particularly critical in marine environments where salt spray and humidity accelerate degradation of untreated metals. By choosing an Exotronic busbar, you reduce the risk of voltage drop, overheating, and premature failure, common pain points in poorly specified power distribution components.

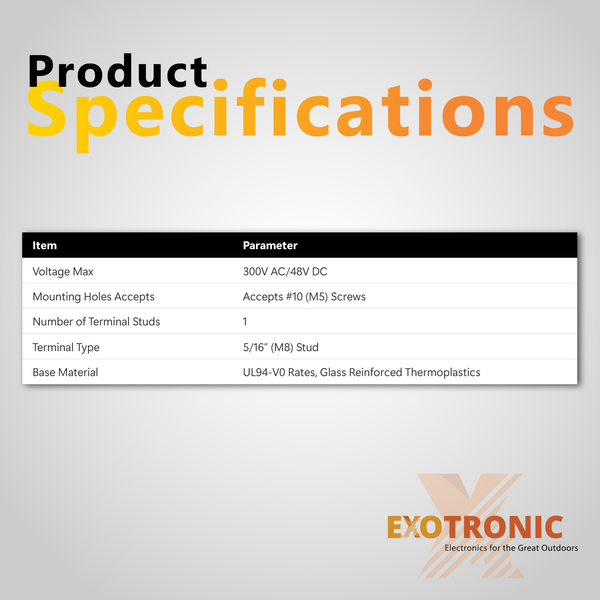

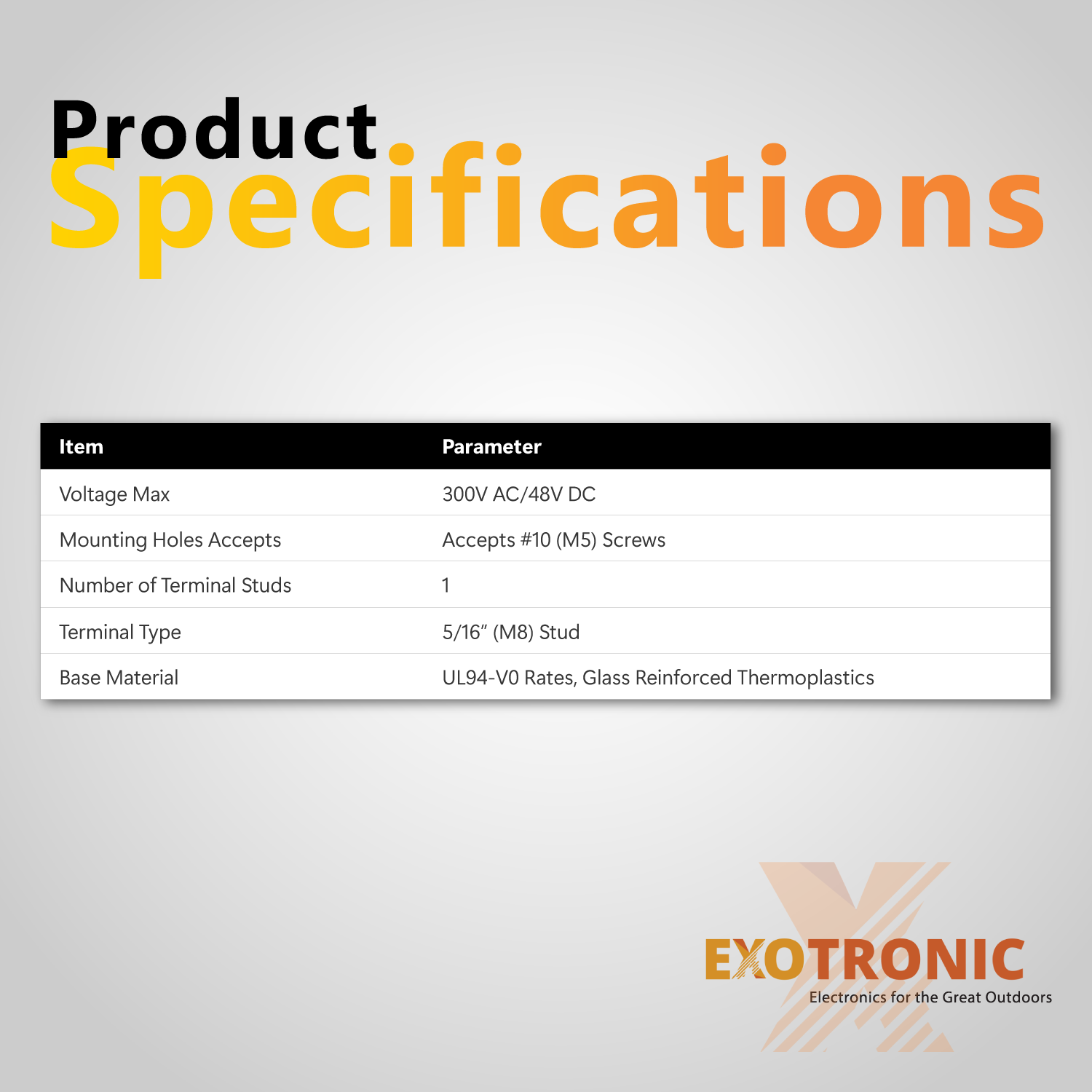

Key Features

• 150A continuous current rating for high-demand DC circuits
• Single 5/16" (M8) stud with stainless steel hardware for secure, low-resistance terminations
• Marine-grade tinned copper conductor for optimal conductivity and corrosion resistance
• UL94-V0 rated glass-reinforced thermoplastic base provides electrical insulation and mechanical strength

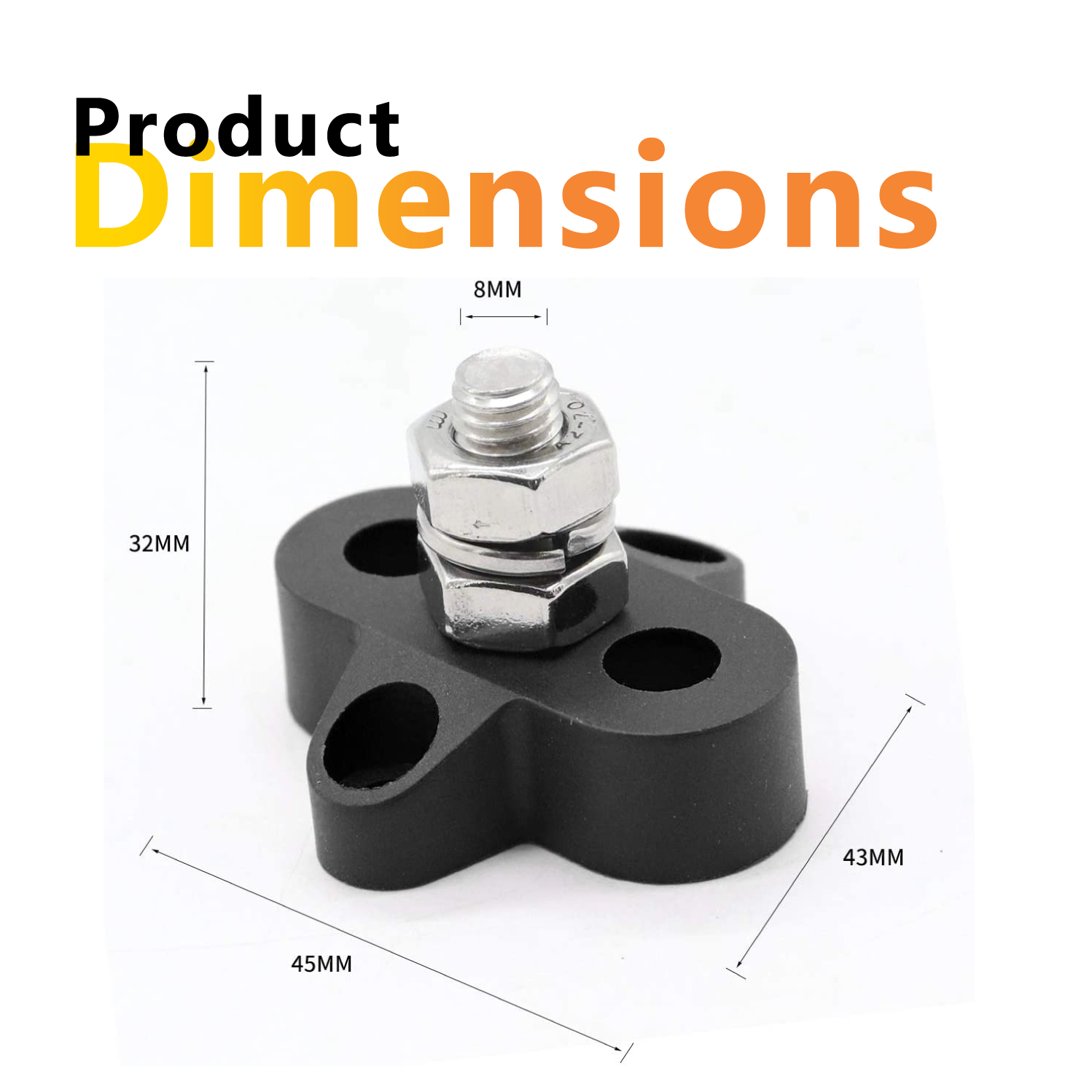

• Compact footprint (45mm x 43mm x 32mm) enables installation in tight enclosures
• Accepts #10 (M5) mounting screws for versatile panel or chassis mounting
• Rated up to 300V AC / 48V DC for compatibility with common battery bank voltages
• 5-year warranty backed by Exotronic's commitment to quality

Applications Where Reliability Is Non-Negotiable

This terminal stud excels in scenarios where a single, high-current junction is required, such as:

• Battery busbar assemblies in 4WD, caravan, and RV power systems
• Marine DC panels for navigation, lighting, and auxiliary circuits
• Solar charge controller connections in off-grid and grid-tie battery storage
• Inverter/charger DC inputs where space is limited but current demands are high
• Industrial equipment and telecommunications backup power

By consolidating connections onto a single, robust stud, you simplify cable management, reduce potential failure points, and improve serviceability. The glass-reinforced base ensures the stud remains electrically isolated from mounting surfaces, preventing accidental short circuits and enhancing overall system safety.

Built to Last in Australia's Harshest Conditions

From the corrosive salt air of coastal cruising to the vibration and temperature extremes of outback tracks, the Exotronic Heavy Duty Single Terminal Stud is engineered to endure. The combination of tinned copper, stainless steel hardware, and a flame-retardant thermoplastic base creates a component that resists corrosion, mechanical stress, and thermal degradation. This translates to fewer maintenance interventions and greater peace of mind when you're off the grid.

Upgrade Your Power Distribution Today

Whether you're building a new 12V electrical system from scratch or upgrading an existing setup, the Exotronic Heavy Duty Single Terminal Stud M8 provides the reliable, high-current connection point your project demands. Add this essential component to your kit and experience the difference that quality materials and thoughtful design make in your power distribution network.
