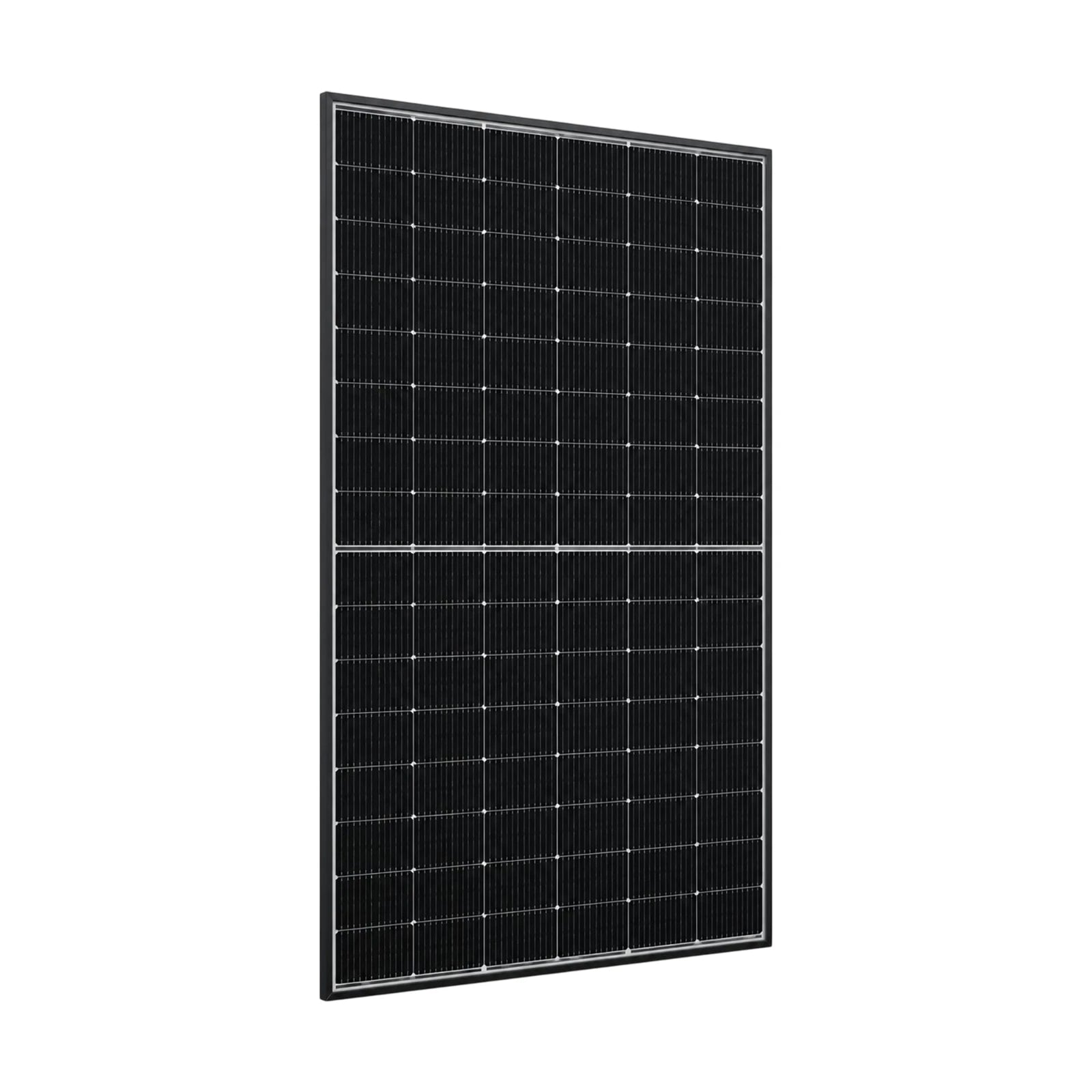

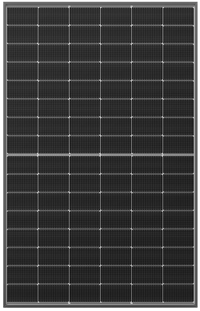

Risen 475W N-Type TOPCon Bifacial Black Fixed Solar Panel
Efficient TOPCon Cells - 1762x1134x30mm Black Frame
DESCRIPTION
Risen 475W N-Type TOPCon Bifacial Black Fixed Solar Panel
High-Efficiency 475W Solar Panel for Residential, Commercial and Off-Grid Applications
The Risen 475W N-Type TOPCon Bifacial Black Solar Panel combines advanced N-Type TOPCon cell technology with a durable dual-glass bifacial design to deliver exceptional power output, long-term reliability and outstanding energy generation.
With a high module efficiency of 23.8%, this premium 475W solar panel maximises energy production while maintaining excellent performance in both high-temperature and low-light conditions. Its sleek black frame also provides a clean, modern appearance suitable for residential, commercial and off-grid installations.
Advanced N-Type TOPCon Solar Cell Technology
Built using advanced N-Type TOPCon (Tunnel Oxide Passivated Contact) solar cells, the Risen 475W panel offers higher efficiency and lower degradation than conventional P-Type solar panels.
N-Type technology also provides improved low-light performance, allowing the panel to generate more usable energy during cloudy weather, early mornings and late afternoons.
Why Choose N-Type TOPCon?
Risen's N-Type TOPCon technology is engineered to deliver maximum long-term performance with improved reliability and energy yield over the life of the panel.
• High 23.8% module efficiency
• Excellent low-light performance
• Lower long-term power degradation
• Excellent anti-LID and anti-PID performance
• Outstanding temperature coefficient of -0.29%/°C for improved hot weather performance
Bifacial Dual-Glass Construction
The Risen 475W module features a bifacial dual-glass design that allows the rear side of the panel to capture reflected sunlight from surrounding surfaces, increasing total energy production in suitable installation conditions.
Its dual-glass construction provides additional durability and environmental protection while reducing the risk of moisture ingress and improving long-term reliability.
• Additional energy generation from reflected sunlight
• Durable dual-glass construction
• Improved resistance to moisture and environmental exposure
• Excellent long-term reliability
• Ideal for ground-mounted and elevated installations where rear-side gain can be maximised
Built for Australian Conditions
Designed to operate in demanding environments, the Risen 475W panel delivers dependable performance across a wide range of Australian climates. Its excellent temperature coefficient helps maintain higher power output during hot summer conditions, while its strong low-light performance improves generation throughout the day.
The panel is also engineered with excellent anti-LID (Light Induced Degradation) and anti-PID (Potential Induced Degradation) characteristics, helping maintain consistent performance over decades of operation.
Ideal for Residential, Commercial and Off-Grid Systems
With its combination of high efficiency, bifacial technology and premium build quality, the Risen 475W N-Type TOPCon Solar Panel is suitable for a wide range of solar installations.
• Residential rooftop solar systems
• Commercial and industrial solar installations
• Off-grid battery charging systems
• Agricultural and rural properties
• Ground-mounted solar arrays
• Large-scale energy projects
Industry-Leading Warranty
Risen backs the 475W N-Type TOPCon Bifacial Solar Panel with a 25-year product warranty and a 30-year linear power warranty, providing long-term confidence and dependable energy production for decades to come.
Generate More Energy with Risen TOPCon Technology
Combining advanced N-Type TOPCon cells, bifacial dual-glass construction and premium engineering, the Risen 475W Solar Panel delivers outstanding efficiency, durability and long-term performance for residential, commercial and off-grid solar systems.
SKU: Ris-RSM96-11-475BNDG
Visit Risen's Official Risen 475W N-Type TOPCon Bifacial Black Fixed Solar Panel Webpage Here
SPECIFICATIONS
Technical Specifications
| Model | RSM96-11-475BNDG |
| Rated Power | 475W |
| Solar Cell Technology | N-Type TOPCon |
| Module Type | Bifacial Dual-Glass Module |
| Module Efficiency | 23.8% |
| Positive Power Tolerance | 0 to +3% |
| Open-Circuit Voltage (Voc) | 36.42V |
| Short-Circuit Current (Isc) | 16.52A |
| Maximum Power Voltage (Vmpp) | 30.78V |
| Maximum Power Current (Impp) | 15.46A |
| Bifacial Factor | 80 ± 5% |
| Equivalent Power with 10% Rear-Side Gain | 523W |

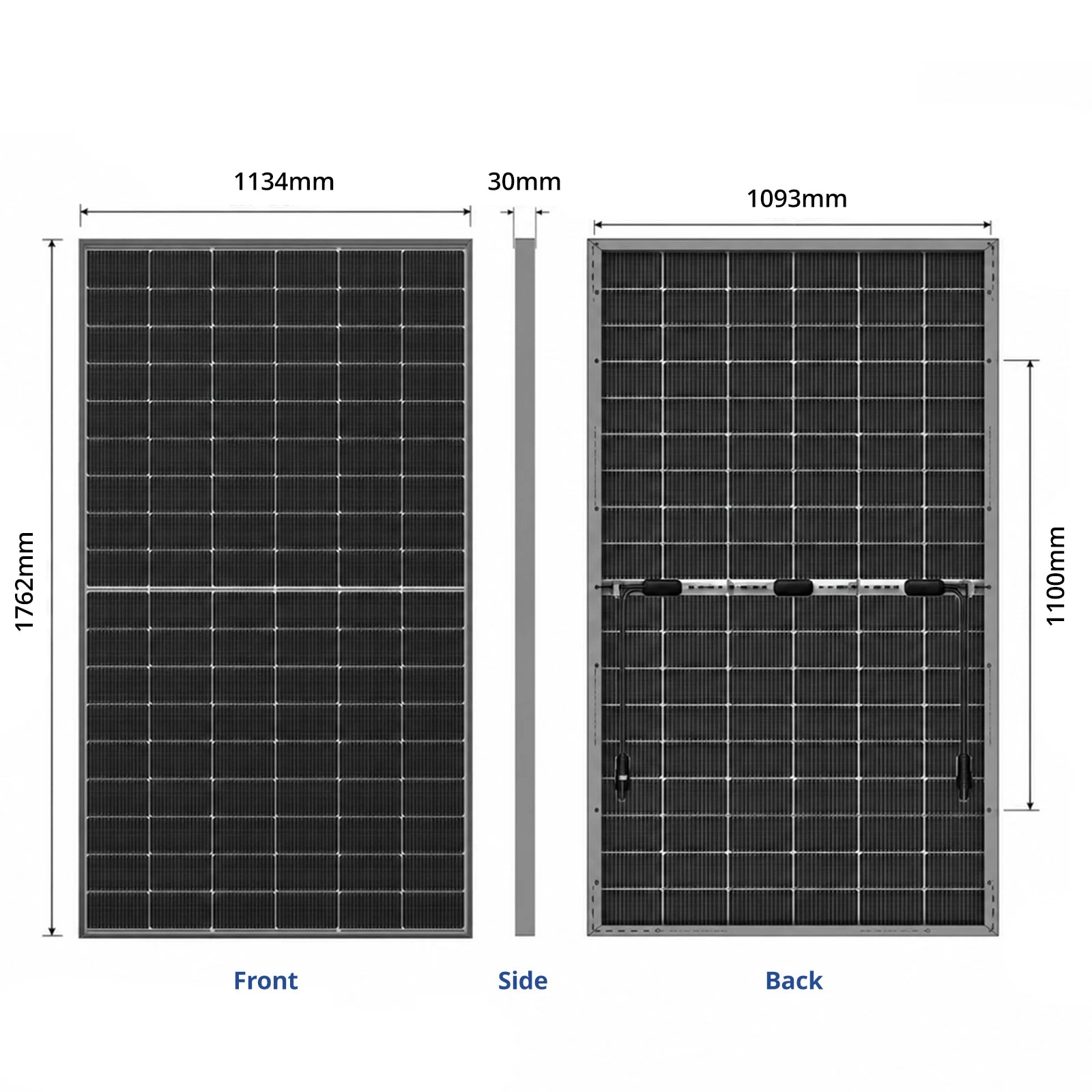

| Module Dimensions | 1762 x 1134 x 30mm |
| Weight | 21.5kg |
| Cell Configuration | 96 cells |
| Front Glass | 1.6mm high-transmission, AR-coated heat-strengthened glass |
| Rear Glass | 1.6mm heat-strengthened glass |
| Frame | Black anodised aluminium alloy |
| Junction Box | IP68, 1500V DC, 3 bypass diodes |
| Cable Size | 4.0mm² |
| Cable Length | 1200mm positive and 1200mm negative |
| Connector | MC4 EVO2 / PV-SY02 / Other compatible connector |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 35A |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Maximum Mechanical Load | 5400Pa front / 2400Pa rear |
| Product Warranty | 25 years |
| Linear Power Warranty | 30 years |
| SKU: | Ris-RSM96-11-475BNDG |
| Model #: | Ris-RSM96-11-475BNDG |
| MPN: | Ris-RSM96-11-475BNDG |
WARRANTY
Risen Manufacturer Warranty
The Risen 475W N-Type TOPCon Bifacial Solar Panel is supported by a 15-year limited product warranty covering qualifying defects in materials, design and workmanship under normal installation, use and service conditions.
It is also backed by a 30-year limited power warranty. For the RSM96-11 series, Risen warrants that the module will retain at least 99% of its rated power at the end of the first year, followed by no more than 0.4% annual degradation for each subsequent year, subject to the full warranty terms and conditions.
Where an eligible warranty claim is accepted, Risen may, at its discretion, provide additional modules to compensate for the power shortfall, repair or replace the affected module, or provide an applicable refund calculated under the warranty terms.
Warranty coverage requires correct installation and use in accordance with Risen’s instructions, proof of purchase and the module serial number. Claims should be submitted promptly after a defect is identified. This warranty is provided in addition to rights and guarantees available under Australian Consumer Law.
Warranty summary:
• 15-year limited product warranty
• 30-year limited power warranty
• Minimum 99% rated power at the end of year one
• Maximum annual degradation of 0.4% after the first year
• Transferable to a new legal owner when the warranty conditions are met
• Subject to Risen Energy’s complete warranty terms, exclusions and claims procedure
