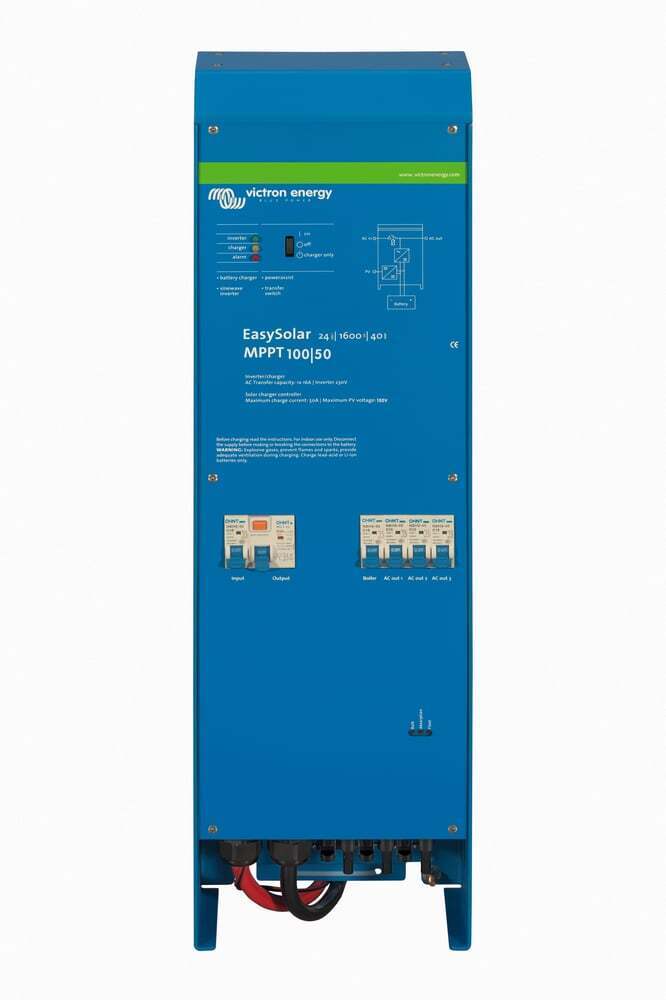

Victron 24V 1600VA EasySolar 24/1600/40-16 Inverter/Charger/MPPT 100/50

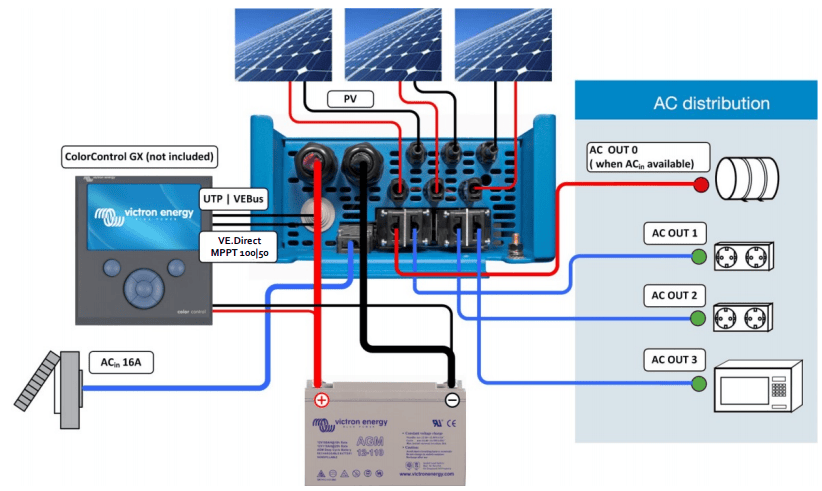

The product is easy to install, with a minimum of wiring
DESCRIPTION
Victron EasySolar 24/1600/40-16: The Complete Solar Power Solution for Simple Bus Systems
Unlock the full potential of solar energy with the Victron 24V 1600VA EasySolar 24/1600/40-16, a streamlined all-in-one solar power system. This integrated solution combines a Blue Solar MPPT 100/50 charge controller, a MultiPlus Compact inverter/charger, and a sophisticated AC distribution setup within a single enclosure. It is ideally suited for simple bus systems, offering a simplified installation process with minimal wiring.
Blue Solar MPPT: Optimal Solar Harvesting
Featuring the advanced Blue Solar MPPT 100/50, the EasySolar allows for the connection of up to three strings of PV panels via MC4 (PV-ST01) connectors. This setup is designed to maximize solar collection efficiency and enhance the overall performance of your solar array.
MultiPlus Compact Inverter/Charger: Dual Charging Convenience
The MultiPlus Compact inverter/charger, available in 12/1600/70 or 24/1600/40 configurations, shares DC battery cables with the MPPT charge controller, streamlining the power flow. Charge your batteries with solar energy or, when needed, switch to AC power from the utility grid or a generator, providing continuous power support without interruption.
Integrated AC Distribution System
The EasySolar's AC distribution panel includes an RCD (30 mA/16 A) and four AC outlets, each protected by two 10A and two 16A circuit breakers. With one of the 16A outlets designed to be AC input-controlled, it ensures smart power management, activating only when external AC power is supplied.
Innovative PowerAssist Technology
The proprietary PowerAssist technology from Victron prevents overload of the utility or generator supply by seamlessly integrating extra inverter power on-demand. This feature is particularly beneficial in simple bus systems where power requirements can fluctuate.
Flexible Solar Application Software
Tailor your EasySolar unit to fit your specific needs with a range of software programs (Assistants) provided by Victron. These applications allow for easy configuration of the system for various grid-interactive or stand-alone operations, making it highly adaptable to different simple bus system requirements.
The Victron EasySolar 24/1600/40-16 represents a leap forward in solar power management, offering a compact, powerful, and intelligent solution perfect for small-scale or mobile installations, such as those found in simple bus systems. Install with ease and manage your solar energy more efficiently with this comprehensive and user-friendly power solution.
SPECIFICATIONS
Specifications

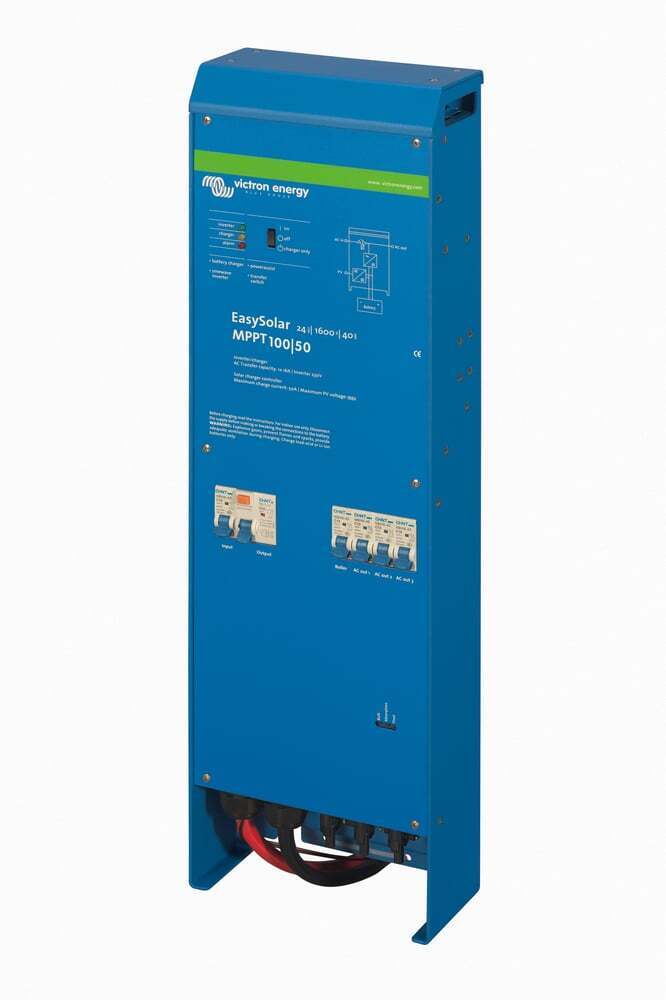

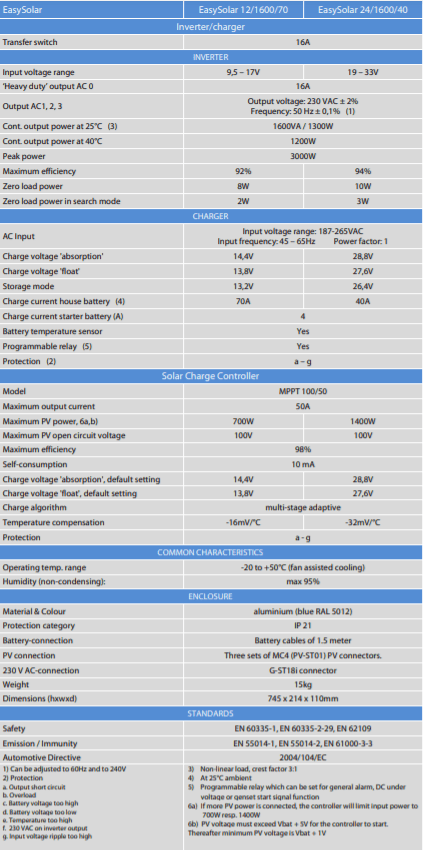

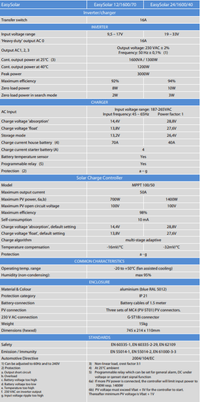

| EasySolar | EasySolar 12/1600/70 | EasySolar 24/1600/40 |
| Inverter/charger | ||
| Transfer switch | 16A | 16A |
| Inverter | ||
| Input voltage range | 9.5 – 17V | 19 – 33V |
| ‘Heavy duty’ output AC 0 | 16A | 16A |
| Output AC1, 2, 3 | Output voltage: 230 VAC ±2% | Output voltage: 230 VAC ±2% |
| Frequency: 50 Hz ± 0.1% (1) | Frequency: 50 Hz ± 0.1% (1) | |
| Cont. output power at 25°C | 1600VA / 1300W | 1600VA / 1300W |
| Cont. output power at 40°C | 1200W | 1200W |
| Peak power | 3000W | 3000W |
| Maximum efficiency | 92% | 94% |
| Zero load power | 8W | 10W |
| Zero load power in search mode | 2W | 3W |
| Charger | ||
| Input voltage range: 187-265VAC | Input voltage range: 187-265VAC | |
| AC Input | Input frequency: 45 – 65Hz Power factor: 1 | Input frequency: 45 – 65Hz Power factor: 1 |
| Charge voltage 'absorption' | 14.4V | 28.8V |
| Charge voltage 'float' | 13.8V | 27.6V |
| Storage mode | 13.2V | 26.4V |
| Charge current house battery (4) | 70A | 40A |
| Charge current starter battery (A) | 4 | 4 |
| Battery temperature sensor | Yes | Yes |
| Programmable relay (5) | Yes | Yes |
| Protection | a – g | a – g |
| Solar Charge Controller | Solar Charge Controller | |
| Model | MPPT 100/50 | MPPT 100/50 |
| Maximum output current | 50A | 50A |
| Maximum PV power, 6a,b) | 700W | 1400W |
| Maximum PV open circuit voltage | 100V | 100V |
| Maximum efficiency | 98% | 98% |
| Self-consumption | 10 mA | 10 mA |
| Charge voltage 'absorption', default setting | 14.4V | 28.8V |
| Charge voltage 'float', default setting | 13.8V | 27.6V |
| Charge algorithm | multi-stage adaptive | multi-stage adaptive |
| Temperature compensation | -16mV/°C | -32mV/°C |
| Protection | a - g | a - g |
| COMMON CHARACTERISTICS | COMMON CHARACTERISTICS | |
| Operating temp. range | -20 to +50°C (fan assisted cooling) | -20 to +50°C (fan assisted cooling) |
| Humidity (non-condensing): | max 95% | max 95% |
| ENCLOSURE | ||
| Material & Colour | aluminium (blue RAL 5012) | aluminium (blue RAL 5012) |
| Protection category | IP 21 | IP 21 |

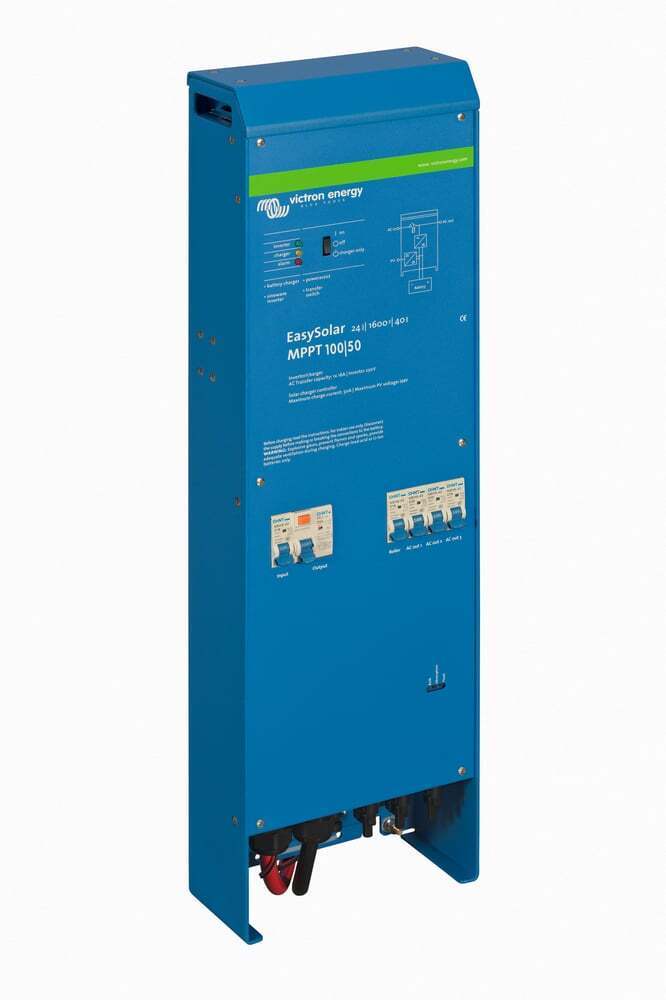

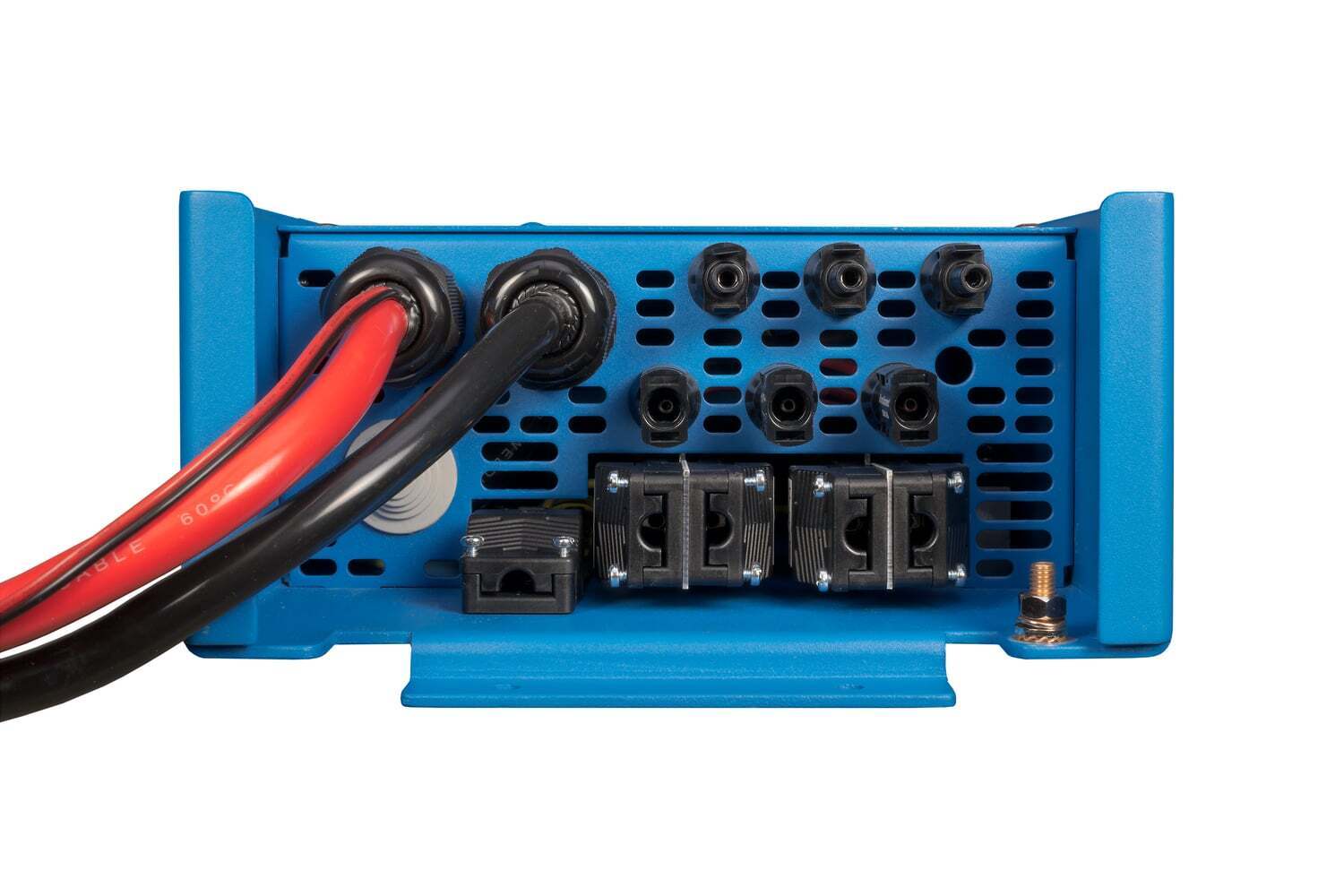

| Battery-connection | Battery cables of 1.5 meter | Battery cables of 1.5 meter |
| PV connection | Three sets of MC4 (PV-ST01) PV connectors. | Three sets of MC4 (PV-ST01) PV connectors. |
| 230 V AC-connection | G-ST18i connector | G-ST18i connector |
| Weight | 15kg | 15kg |
| Dimensions (hxwxd) | 745 x 214 x 110mm | 745 x 214 x 110mm |
| STANDARDS | ||
| Safety | EN 60335-1, EN 60335-2-29, EN 62109 | EN 60335-1, EN 60335-2-29, EN 62109 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-3-3 | EN 55014-1, EN 55014-2, EN 61000-3-3 |
| Automotive Directive | 2004/104/EC | 2004/104/EC |
- Can be adjusted to 60Hz and to 240V
- Protection a. Output short circuit b. Overload c. Battery voltage too high d. Battery voltage too low e. Temperature too high f. 230 VAC on inverter output g. Input voltage ripple too high
- Non-linear load, crest factor 3:1
- At 25°C ambient
- Programmable relay which can be set for general alarm, DC under voltage or genset start signal function 6a) If more PV power is connected, the controller will limit input power to 700W resp. 1400W 6b) PV voltage must exceed Vbat + 5V for the controller to start. Thereafter minimum PV voltage is Vbat + 1V
| SKU: | Vic-CEP242161010 |
| Barcode: | 8719076021605 |
| Model #: | CEP242161010 |
| MPN: | CEP242161010 |
