Victron 48V to 12V 20A Orion-Tr Smart Isolated DC-DC Charger (240W)

An advanced Bluetooth-enabled, fully programmable 48V to 12V isolated DC-DC charger designed for dual-battery vehicle, boat, and off-grid setups.


Get Notified When Stock Arrives

You’ve been added to the notification list. We’ll let you know when this product is available again.

Thanks for contacting us. We'll get back to you as soon as product is back in stock.
5

DESCRIPTION

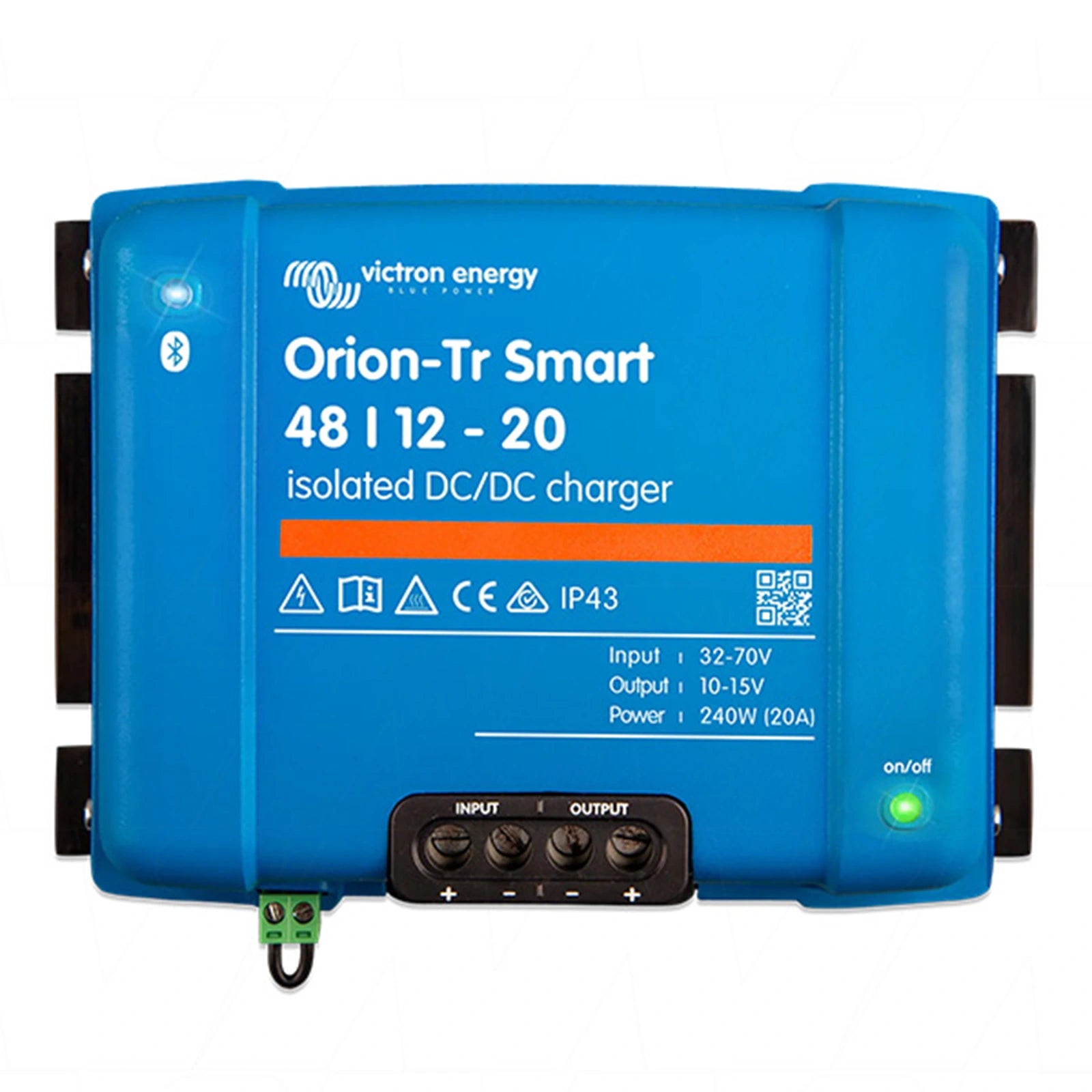

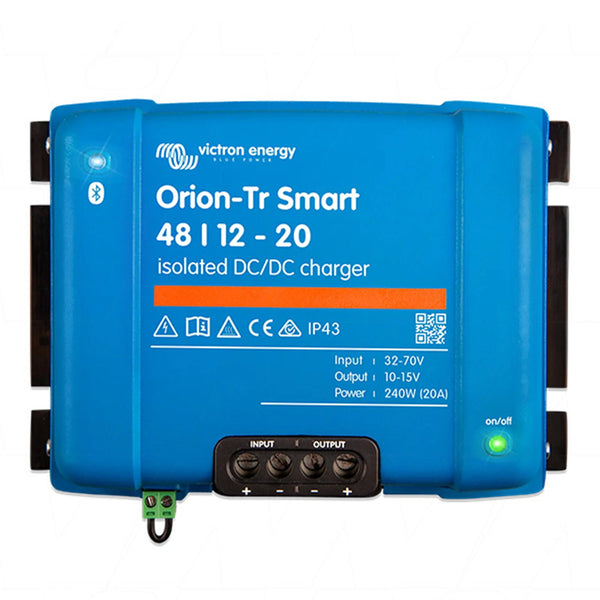

Victron Energy 48V to 12V 20A Orion-Tr Smart Isolated DC-DC Charger

The Victron Energy Orion-Tr Smart 48/12-20A is a professional-grade, isolated DC to DC adaptive 3-stage charger. Engineered for integration into dual-battery systems in vehicles, boats, and off-grid builds, this unit efficiently steps down a 48V input to a highly stable 12V output. The isolated design means the input and output have separate chassis grounds, providing critical separation for sensitive marine and industrial electrical networks.

Adaptive 3-Stage Charging

Built to actively manage and maintain battery health, the Orion-Tr Smart features a fully programmable 3-stage charging algorithm (bulk, absorption, and float). This ensures optimal performance across a wide range of battery chemistries, including both traditional lead-acid and modern lithium setups. The output voltage is fully adjustable, allowing the device to serve either as a dedicated multi-stage battery charger or as a stable power supply for 12V DC loads operating from a 48V battery bank.

Bluetooth Smart Connectivity

Monitoring and configuring your charging parameters is straightforward with built-in Bluetooth functionality. By connecting the unit to the VictronConnect app on a smartphone or tablet, users can wirelessly adjust voltage settings, check operational status, update firmware, and customise charging profiles without requiring a separate dongle or hardwired display.

  • Isolated DC-DC Functionality: Safely converts a 48V input into a stable 12V output (240W continuous) with separated input and output grounds.
  • Smart Alternator Compatible: Includes a built-in engine running detection mechanism, preventing the device from inadvertently draining the starter battery in Euro 5/6 vehicles.
  • Fully Programmable: Supports custom charging profiles and fixed-voltage supply modes to suit specific system requirements.
  • Expandable Power: Features a parallel-ready design, allowing an unlimited number of multiple units to be connected to increase overall output current.
  • Remote On/Off Capability: Can be controlled remotely via a switch, relay, or battery management system signal line.
  • High-Temperature Performance: Operates reliably in environments up to 55°C, delivering its full 20A rated output in conditions up to 40°C.

Robust and Reliable Design

Built for the harsh environments commonly encountered in mobile and off-grid applications, the Orion-Tr Smart includes comprehensive thermal and short-circuit protection. It automatically reduces its output at high temperatures to protect internal components. When correctly installed with the screw terminals facing downwards, the electronic components benefit from an IP43 protection rating, guarding against moisture and dust ingress.

Whether you need to cleanly step down a 48V system to support 12V equipment or require a precision charger to manage an auxiliary battery array, the Victron Orion-Tr Smart provides a highly configurable, dependable power conversion solution.

SPECIFICATIONS

Specifications

Manufacturer Victron Energy
Model Orion-Tr Smart 48/12-20A (240W) Isolated
Input Voltage Range 32 - 63V DC
Under Voltage Shut Down 32V (Restart 33V)
Nominal Output Voltage 12.2V DC (Adjustable 10 - 15V)
Continuous Output Current (at 40°C) 20A
Maximum Output Current (10 s) 25A
Short Circuit Output Current 50A
Continuous Output Power (at 40°C) 240W
Efficiency 87%
No Load Input Current < 100mA
Standby Current < 1.5mA
Operating Temperature Range -20°C to +55°C (Derate 3% per °C above 40°C)
DC Connection Screw terminals
Maximum Cable Cross-Section 16 mm² / AWG6
Weight 1.3 kg
Dimensions (H x W x D) 130 x 186 x 70 mm (approx. 5.1 x 7.3 x 2.7 in)
Protection Category IP43 (electronic components), IP22 (connection area)

SKU: VIC-ORI481224120
Barcode: 8719076066149

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
