Exotronic Karijini Series Pre-wired Victron Board - Portrait

Integrated Victron system with inverter, solar, DC-DC, and monitoring


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
4

DESCRIPTION

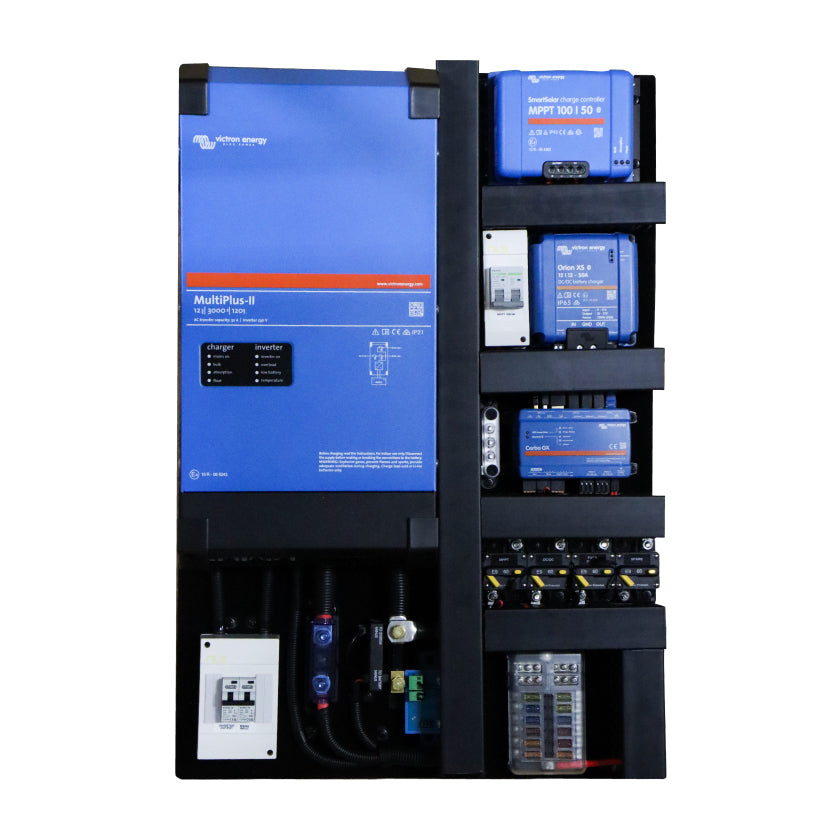

Exotronic Karijini Series Pre-Wired Victron Power Board – Portrait Layout for Professional Van Conversions

All-in-One Pre-Wired Power Solution for Caravans, RVs, and Off-Grid Living

The Exotronic Karijini Series Pre-Wired Victron Power Board delivers a fully integrated, professionally assembled electrical system that eliminates the complexity of DIY wiring. Designed for van conversions, caravans, RVs, marine applications, and off-grid tiny homes, this portrait-oriented board combines Victron Energy’s most trusted components into a single, space-efficient panel. By choosing a pre-wired solution, you reduce installation time, minimise wiring errors, and gain confidence that every connection meets professional standards.

Unlike piecing together individual components, the Karijini Series provides a cohesive system where the inverter, chargers, and monitoring work in harmony. This integration helps prevent common issues such as voltage drop, incorrect fuse sizing, and communication conflicts between devices. The result is a reliable power hub that supports your lifestyle whether you’re parked at a powered site, driving, or harnessing solar energy in a remote location.

Key Victron Components and Benefits

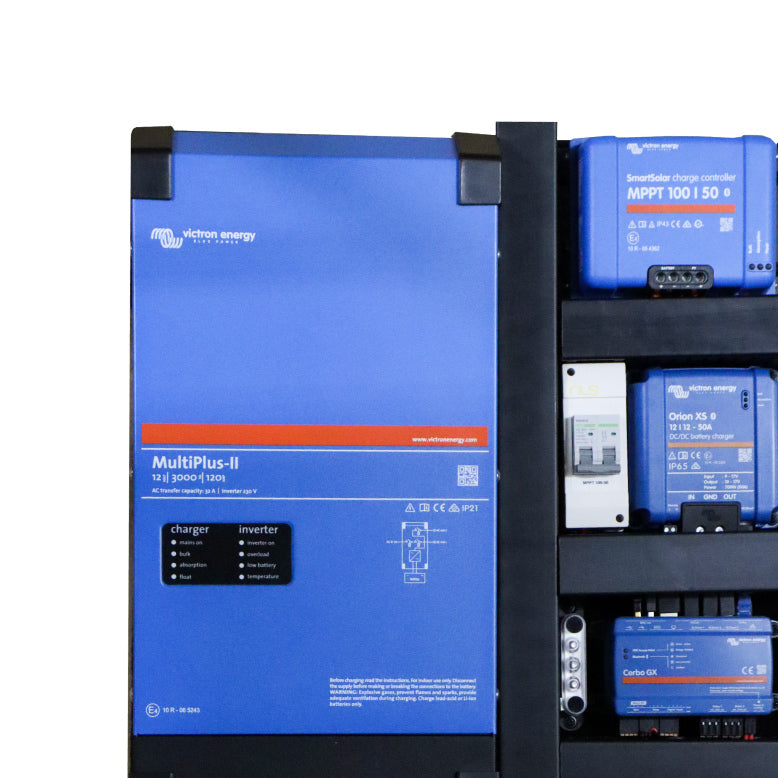

  • Victron 3000 VA MultiPlus-II Inverter/Charger: Powers 10 A appliances with pure sine wave output, includes a 120 A mains charger for rapid replenishment from shore power, and features an automatic transfer switch for seamless switching between grid and battery.
  • Victron 50 A MPPT SmartSolar Controller: Maximises solar harvest with advanced Maximum Power Point Tracking, connects via a red Anderson plug for quick panel connection, and offers Bluetooth monitoring through the VictronConnect app.
  • Victron Orion XS 50 A DC-DC Charger: Provides adaptive three-step charging from the vehicle alternator, extends battery lifespan, and includes a recovery function for deeply discharged batteries. Remote control and firmware updates are available via Bluetooth.
  • Victron 300 A SmartShunt Battery Monitor: Tracks state of charge, voltage, and current with high precision, and supports audible alarms to protect against over-discharge.

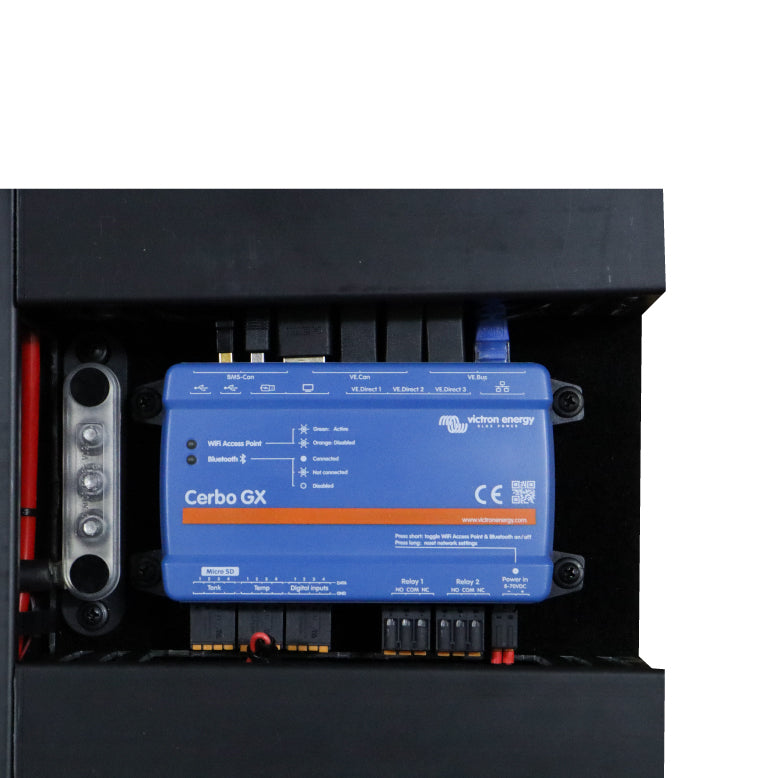

  • Victron Cerbo GX Communication Centre: Centralises system monitoring and control, allows adjustable current limits and relay settings, and is compatible with Ruuvi temperature sensors and Mopeka tank level sensors (sold separately).

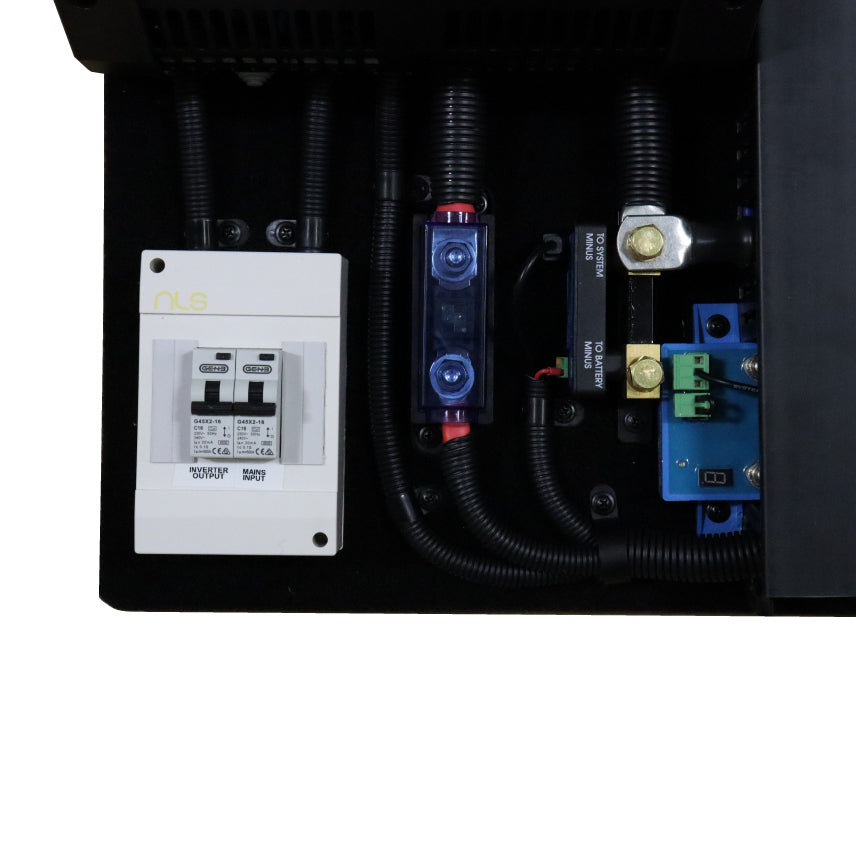

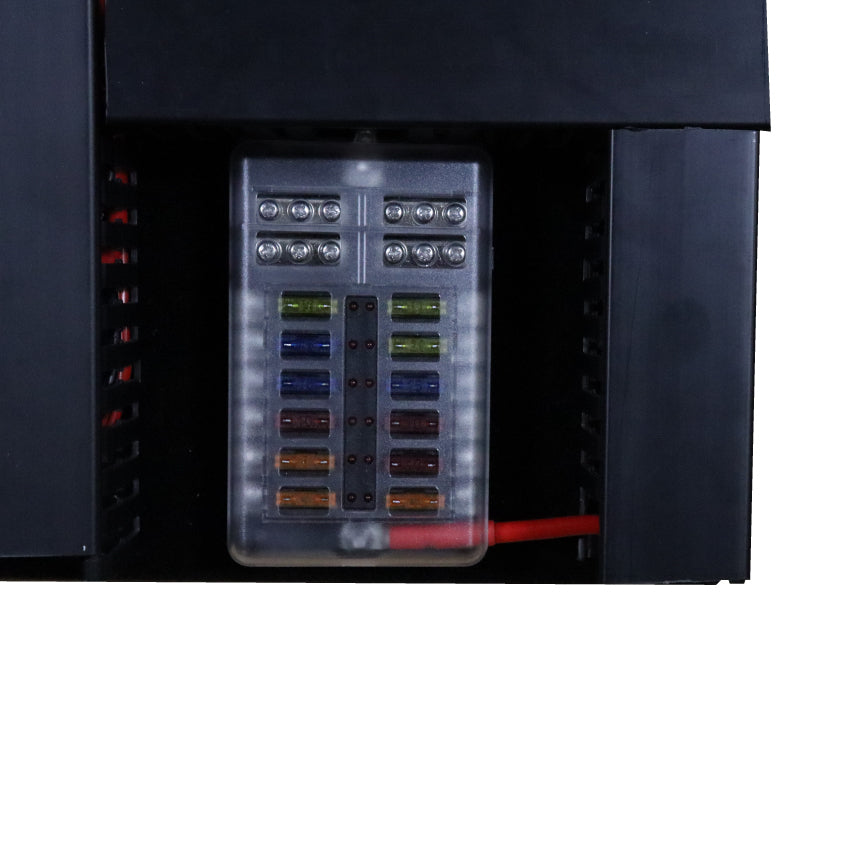

  • DC Distribution and Protection: A 12-blade fuse block with Exotronic circuit breakers organises accessory loads, while a 400 A MEGA fuse and 70 mm² insulated power cable ensure safe high-current handling.

Designed for Flexible Installation

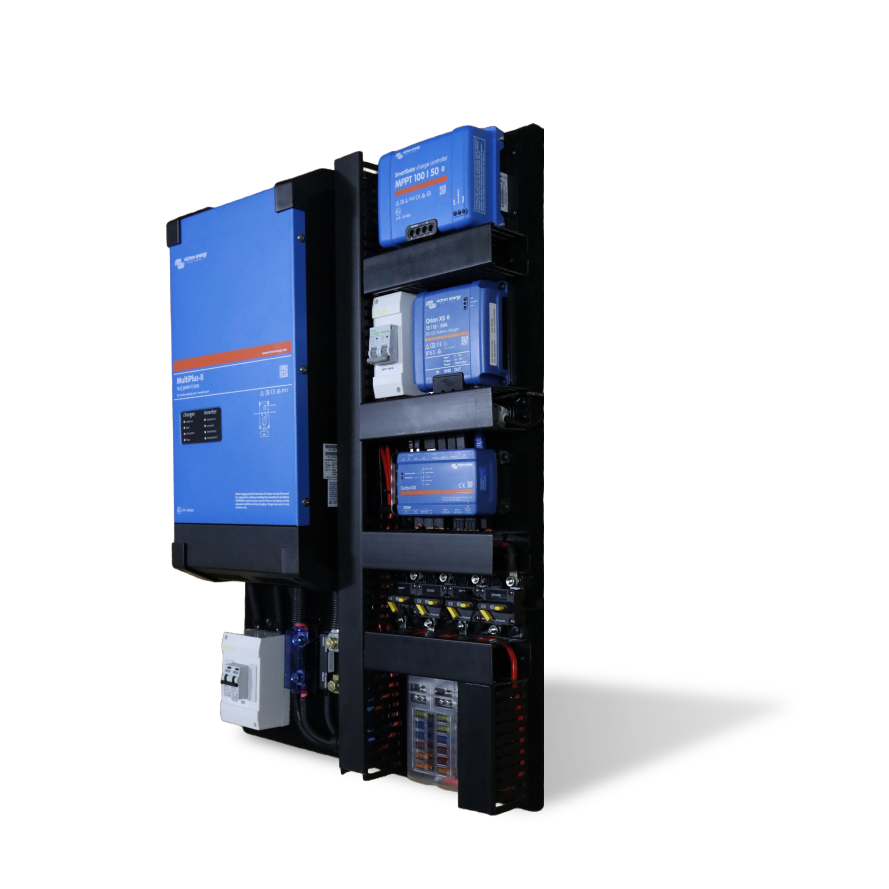

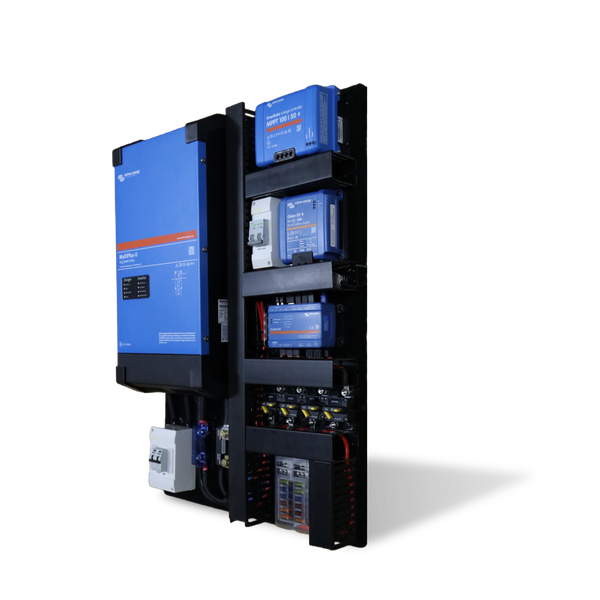

The portrait orientation and compact dimensions (780 x 530 x 170 mm) allow the board to be mounted on a wall or under a bed or seat, making efficient use of limited space. All wiring is neatly routed and secured, reducing the risk of chafing or accidental disconnection during travel. Detailed wiring diagrams are included to assist with final connections to batteries, solar panels, and loads.

Built for Australian Conditions

Every component is selected and assembled to withstand the vibration, temperature extremes, and humidity encountered in mobile and off-grid environments. The use of tinned copper conductors, corrosion-resistant terminals, and robust enclosures helps ensure long-term reliability. The pre-wired design also simplifies troubleshooting and future upgrades, as each device is clearly labelled and accessible.

Applications

  • Van conversions and campervans
  • Caravans and RVs
  • Off-grid cabins and tiny homes
  • Marine and coastal installations
  • Mobile workshops and emergency response vehicles

Ready to Simplify Your Power System?

Equip your build with the Exotronic Karijini Series Pre-Wired Victron Power Board and spend less time wiring and more time exploring. Order today to receive a professionally assembled, tested, and documented power hub that’s ready for your next adventure.


SKU: PWB-Vic-A50X-KP-01

SPECIFICATIONS

Specifications

LayoutPortrait
InverterVictron 3000 VA MultiPlus-II Inverter
Mains Charger120 A
Solar Charge ControllerVictron 50 A MPPT SmartSolar Controller
DC-DC ChargerVictron Orion XS 50 A DC-DC Charger
Battery MonitorVictron 300 A SmartShunt Battery Monitor
Communication CentreVictron Cerbo GX
Accessory Fuse Block12 Blade Fuse Block
Main Fuse400 A MEGA Fuse
Power Cable70 mm² Insulated Power Cable
MountingWall or Floor Mounting
Dimensions780 x 530 x 170 mm
Weight33 kg

SKU: PWB-Vic-A50X-KP-01
Barcode: 9361784000206
Model #: PWB-Vic-A50X-KP-01
MPN: PWB-Vic-A50X-KP-01

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
