Exotronic Karijini Series Pre-wired Victron Board - Split

Split Layout for Space Optimisation - 3000VA Inverter, 50A MPPT, Cerbo GX


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
4

DESCRIPTION

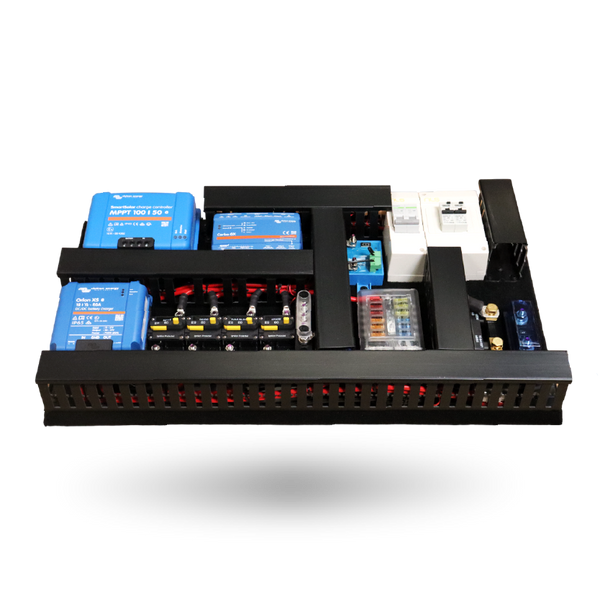

Exotronic Karijini Series Pre-Wired Victron Energy Power Board (Split Layout) for Van Conversions

Professional-Grade, Pre-Assembled Power Solution for Off-Grid Vehicles

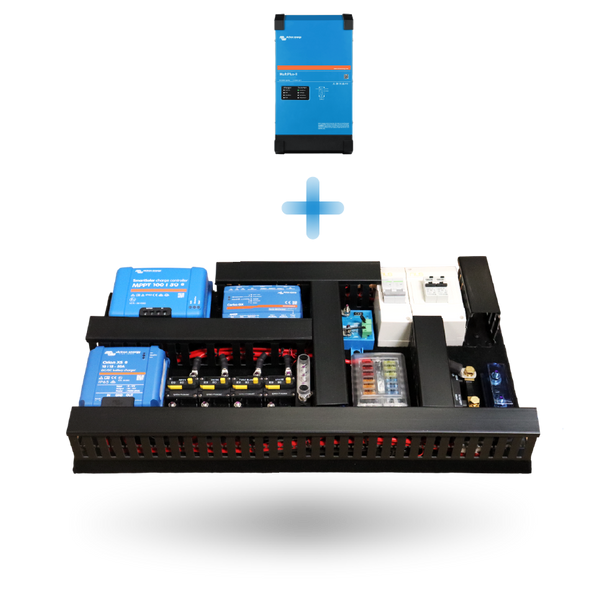

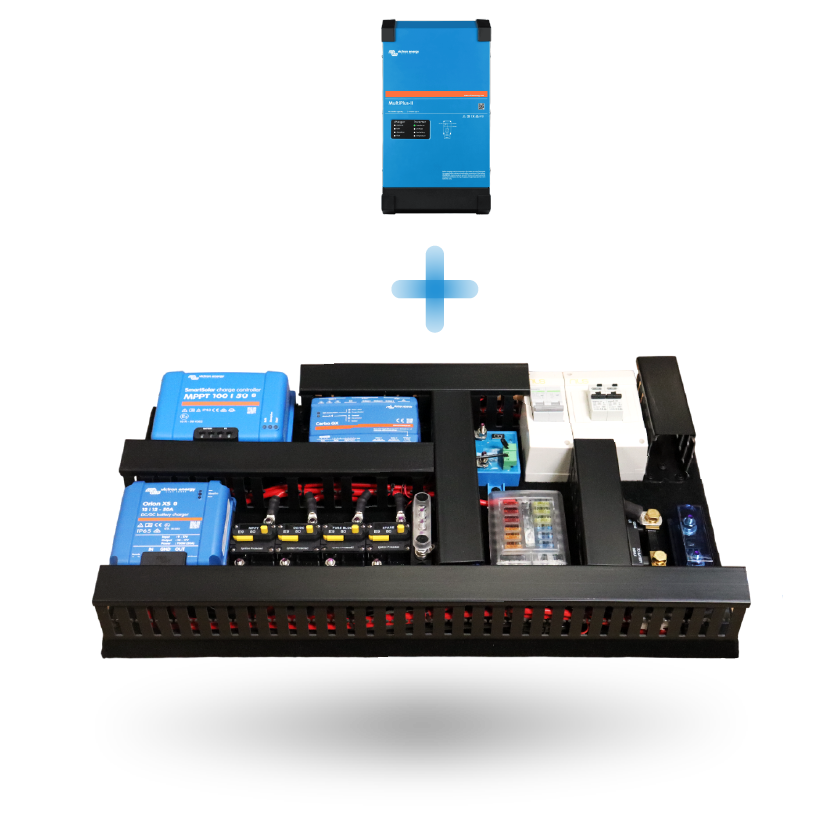

Inspired by the rugged landscapes of Karijini National Park, the Karijini Series Pre-Wired Victron Energy Power Board delivers a complete, expertly assembled electrical system for van conversions, caravans, RVs, and marine applications. This split layout configuration separates the Victron 3000VA MultiPlus-II inverter from the main control board, optimising space in tight installations under beds or seats while maintaining full functionality.

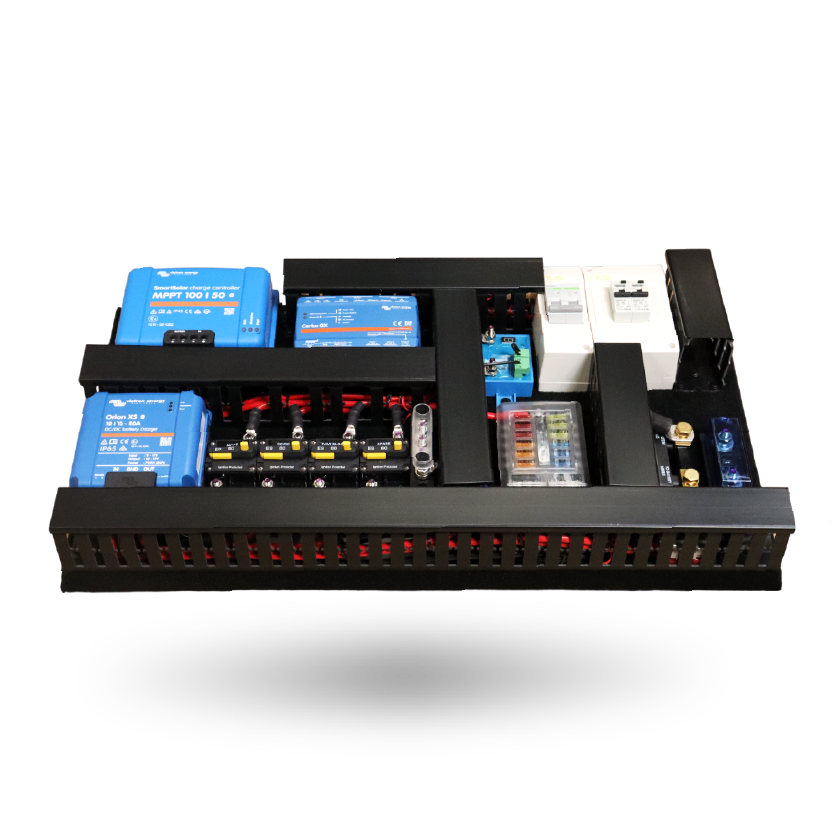

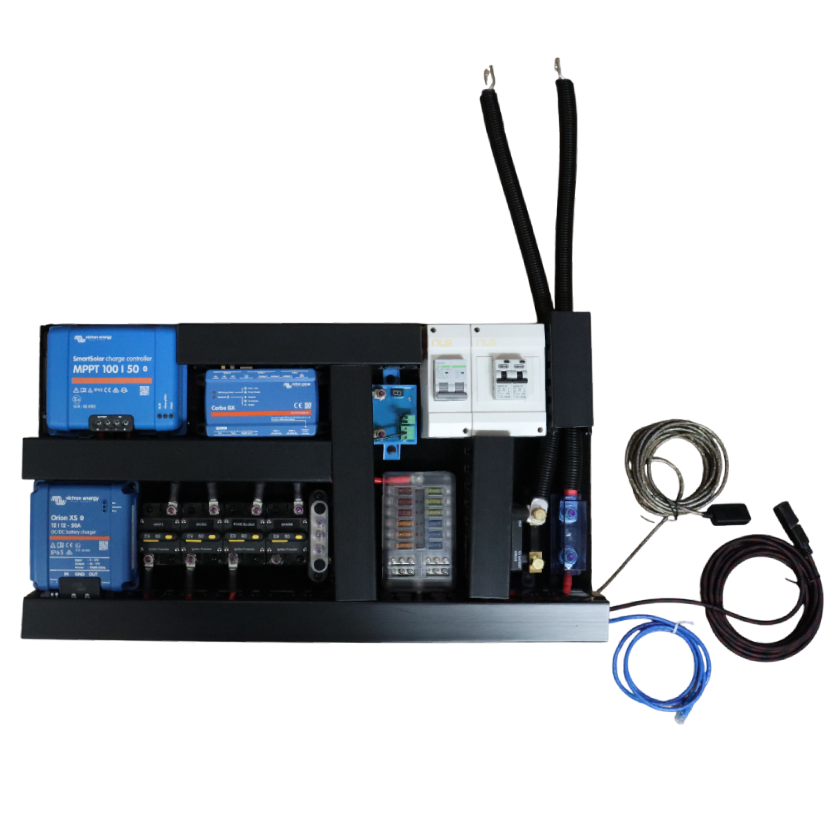

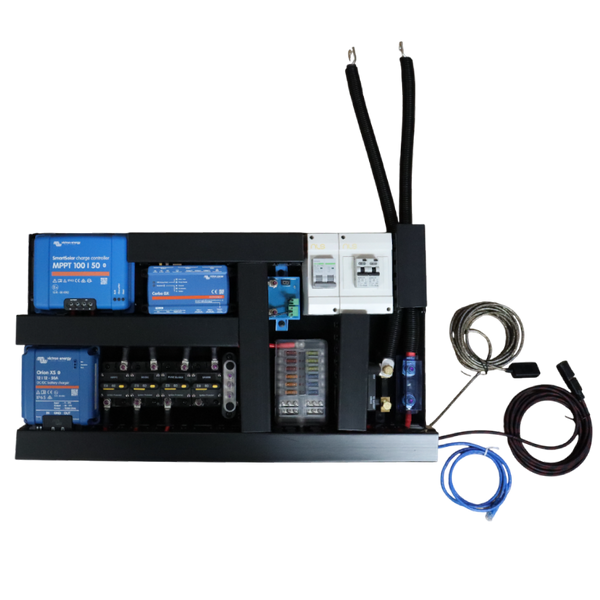

Every component is professionally wired and tested, reducing installation time and eliminating the risk of wiring errors. The board arrives ready to connect to your battery bank, solar array, and DC loads, allowing you to focus on your build rather than complex electrical integration.

Key Features

  • Victron 3000VA MultiPlus-II Inverter with 120A mains charger and automatic transfer switch for seamless grid-to-battery transitions

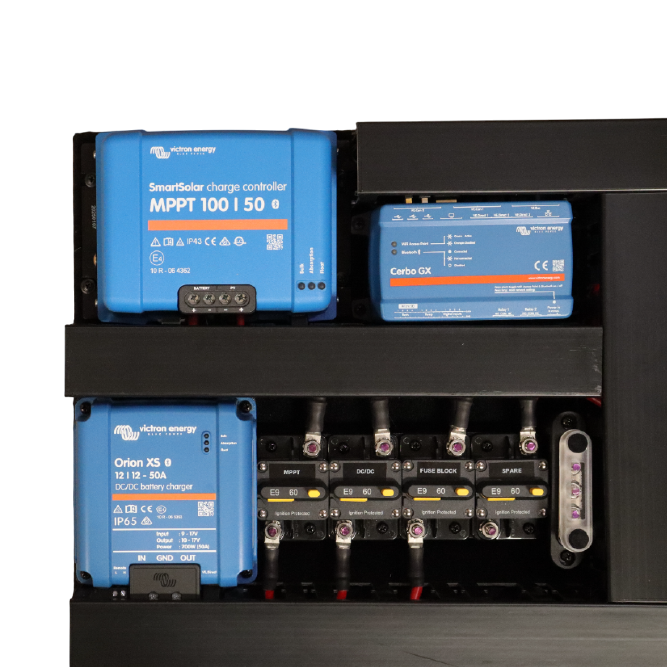

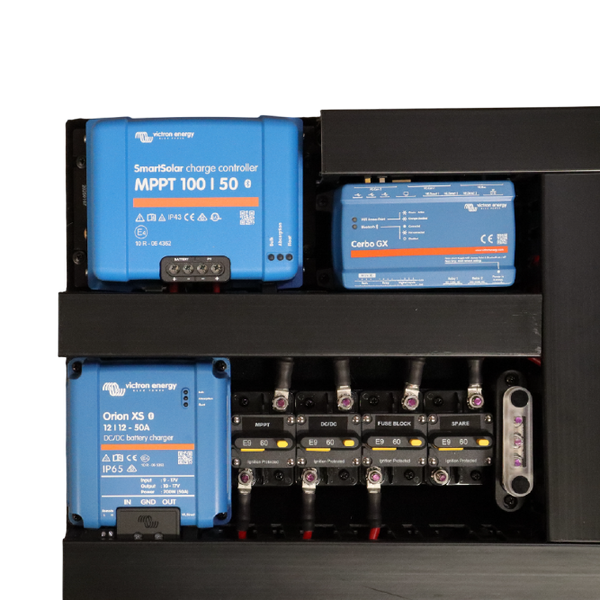

  • Victron 50A MPPT SmartSolar Controller with Bluetooth monitoring and red Anderson connector for quick solar panel connection
  • Victron Orion XS 50A DC-DC Charger with adaptive three-step charging and intelligent recovery function for alternator charging
  • Victron 300A SmartShunt Battery Monitor for real-time state of charge, voltage, and energy usage tracking
  • Victron Cerbo GX system controller with adjustable current limits, relay control, and sensor inputs (Ruuvi and Mopeka compatible)
  • Integrated circuit protection including 12-blade fuse block, Exotronic circuit breakers, and 400A MEGA fuse with 70mm² insulated power cable
  • Smart Battery Protect prevents excessive battery discharge from DC loads
  • PV isolator included to meet current regulatory requirements

Engineered for Reliability and Ease of Installation

The Karijini Series addresses common pain points in DIY electrical setups. Generic, piecemeal systems often lead to compatibility issues, messy wiring, and troubleshooting headaches. This pre-wired board eliminates those risks by providing a cohesive, tested assembly with detailed wiring diagrams. The split layout allows the inverter to be mounted separately, reducing heat buildup and freeing up valuable space in compact van interiors.

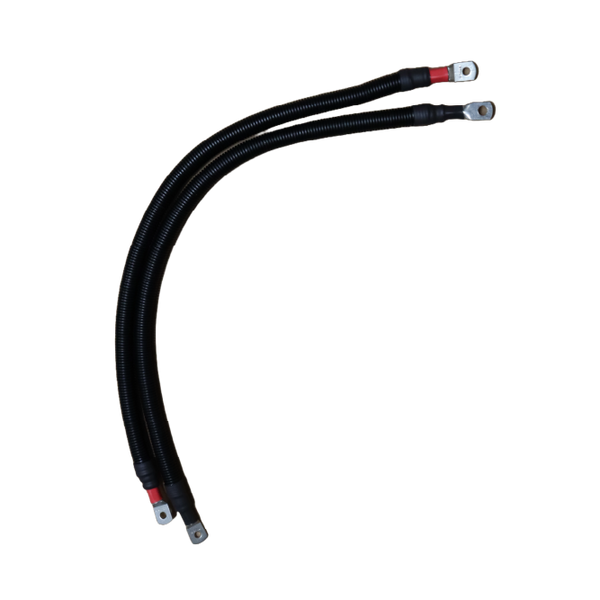

All high-current connections use robust terminals and properly sized cabling, minimising voltage drop and heat generation. The inclusion of a 400A MEGA fuse and 70mm² power cable ensures safe handling of peak currents, while the Smart Battery Protect safeguards your battery bank from deep discharge damage.

Complete Energy Management and Monitoring

With the Victron Cerbo GX at the heart of the system, you gain full remote monitoring and control via the Victron Remote Management (VRM) portal. Adjust inverter settings, monitor solar yield, and track battery health from your smartphone or tablet. The system is ready for optional Ruuvi temperature sensors and Mopeka tank level sensors (sold separately), providing a comprehensive view of your vehicle's resources.

The Victron SmartShunt delivers precise battery monitoring, including state of charge and time-to-go estimates, helping you manage energy consumption effectively during extended off-grid stays.

Built for Australian Conditions

Designed and assembled in Australia, the Karijini Series uses genuine Victron Energy components known for their durability and performance in harsh environments. The board's compact dimensions (650 x 350 x 100 mm) and 12 kg weight make it manageable for single-person installation, while the robust construction withstands vibration and temperature extremes encountered on rough outback tracks.

Applications

  • Campervan and motorhome electrical systems
  • Caravan power upgrades
  • Off-grid tiny homes and cabins
  • Marine and yacht auxiliary power
  • Mobile workshops and command vehicles

Ready to Power Your Adventure

Equip your vehicle with a professionally pre-wired power system that saves time and delivers dependable energy. Order the Exotronic Karijini Series Pre-Wired Victron Energy Power Board today and experience a streamlined installation with premium components built for life on the road.


SKU: PWB-Vic-A50X-KS-01

SPECIFICATIONS

Specifications

LayoutSplit Layout
Configuration3000 VA + Mains 120 A + Solar 50 A + DC-DC 50 A + Cerbo GX
InverterVictron 3000 VA MultiPlus-II Inverter
Mains Charger120 A
Transfer SwitchAutomatic transfer switch
Solar ControllerVictron 50 A MPPT SmartSolar Controller
Solar Input ConnectorRed Anderson connector
DC-DC ChargerVictron Orion XS 50 A DC-DC Charger
Battery MonitorVictron 300 A SmartShunt Battery Monitor
System ControllerVictron Cerbo GX
Sensor CompatibilityReady for Ruuvi temperature sensors and Mopeka water and LPG tank levels (sold separately)
Fuse Block12 Blade Fuse Block
Circuit BreakersExotronic circuit breakers
Main Fuse400 A MEGA Fuse

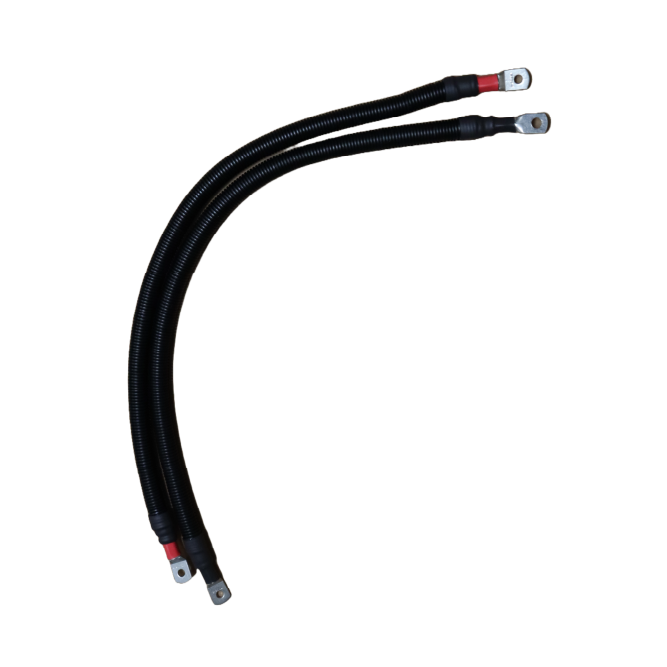

Power Cable70 mm² insulated power cable
MountingWall or floor mounting
Weight12 kg
Dimensions650 x 350 x 100 mm

SKU: PWB-Vic-A50X-KS-01
Model #: PWB-Vic-A50X-KS-01
MPN: PWB-Vic-A50X-KS-01

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
