Exotronic Karijini Series Pre-wired Victron Board - Landscape
Pre-Wired Victron System: 3000VA Inverter, 50A Solar, 50A DC-DC, Cerbo GX
Exotronic Karijini Series Pre-wired Victron Boa...DESCRIPTION

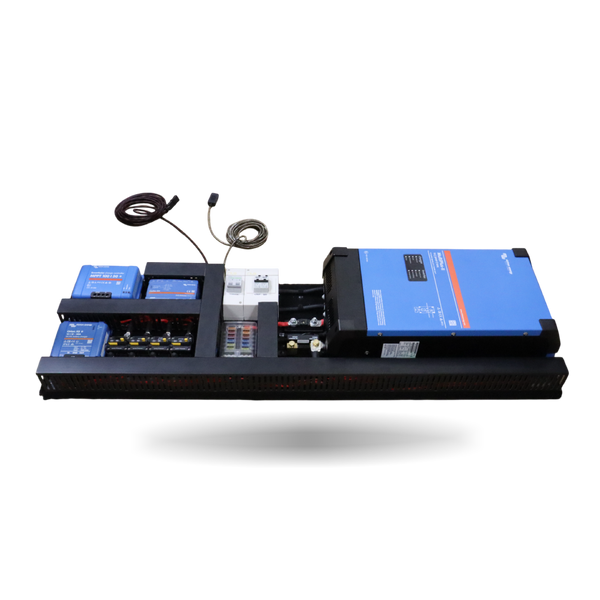

Exotronic Karijini Series Pre-Wired Victron Energy Power Board (Landscape Layout) for Van Conversions
Professional-Grade, Pre-Assembled Off-Grid Power System
The Exotronic Karijini Series Pre-Wired Victron Energy Power Board delivers a fully integrated, factory-assembled electrical system engineered for van conversions, caravans, RVs, and marine applications. By combining premium Victron Energy components on a single, compact board, this solution eliminates the complexity, time, and risk associated with sourcing, wiring, and configuring individual devices. Every connection is professionally terminated, tested, and secured, allowing you to focus on your build rather than electrical design.
Unlike generic, piecemeal power setups that require extensive troubleshooting and can suffer from compatibility issues, the Karijini Series provides a cohesive, optimised system. It reduces the risk of incorrect wiring, voltage drop, and component mismatch—common pitfalls in DIY electrical installations. The result is a reliable, high-performance energy hub that powers your appliances, charges your batteries from multiple sources, and provides comprehensive monitoring, all from a single, space-efficient board.
Integrated Victron Energy Ecosystem
At the core of this power board is a curated selection of Victron Energy components, each chosen for its proven reliability and advanced features:

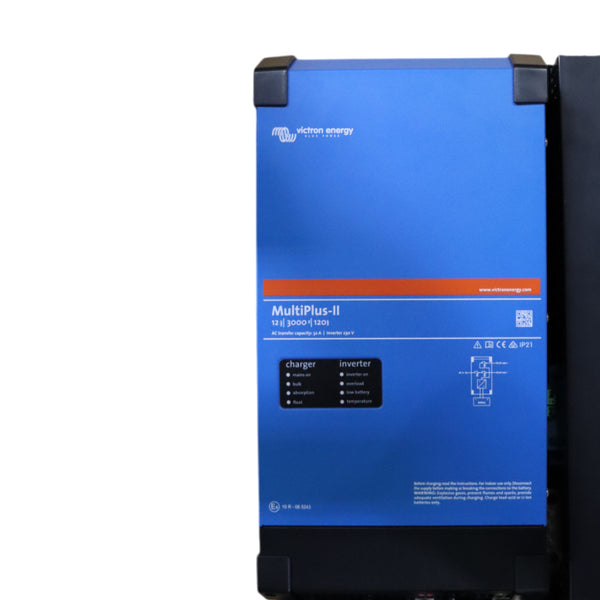

- Victron MultiPlus-II 3000VA Inverter/Charger: Delivers pure sine wave AC power to run sensitive electronics and appliances up to 2400W continuously. The integrated 120A mains charger rapidly replenishes batteries when shore power is available, while the automatic transfer switch ensures seamless switching between grid and battery power—no manual intervention required.

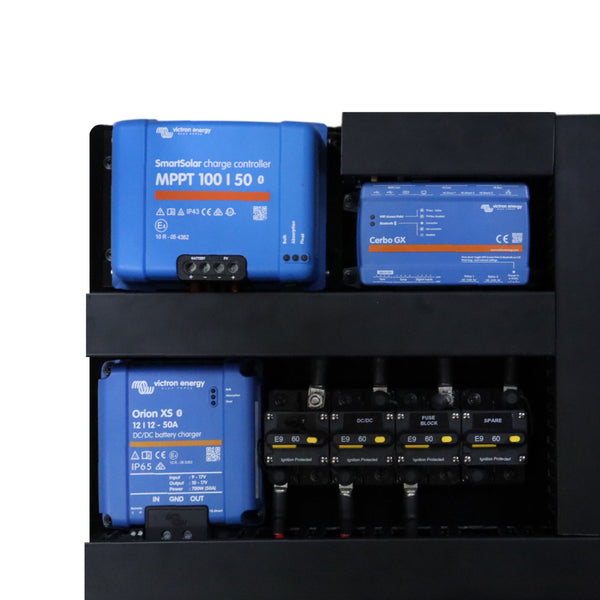

- Victron SmartSolar MPPT 50A Charge Controller: Maximises solar harvest with ultra-fast Maximum Power Point Tracking, even under partial shading or overcast skies. The pre-wired red Anderson connector allows quick, secure connection to your solar array. Bluetooth connectivity via the VictronConnect app provides real-time performance data and historical insights.
- Victron Orion XS 50A DC-DC Charger: Provides intelligent, temperature-compensated charging from your vehicle’s alternator while driving. Its Adaptive Three-Step Charging algorithm extends battery service life, and the built-in Recovery Function can revive deeply discharged batteries. Remote monitoring and control are available via Bluetooth.
- Victron SmartShunt 300A Battery Monitor: Offers precise, real-time tracking of battery state of charge, voltage, current, and time remaining. Configurable alarms alert you to low battery conditions, helping prevent unexpected power loss.
- Victron Cerbo GX Communication Centre: Acts as the brain of the system, enabling remote monitoring, data logging, and control via the VRM portal. It supports optional Ruuvi temperature sensors and Mopeka tank level sensors (sold separately) for complete environmental awareness.
- Integrated Circuit Protection: A 12-way blade fuse block with Exotronic circuit breakers organises and safeguards your DC loads. A 400A MEGA fuse on the main battery input, combined with 70mm² insulated power cable, ensures safe, low-resistance current delivery.

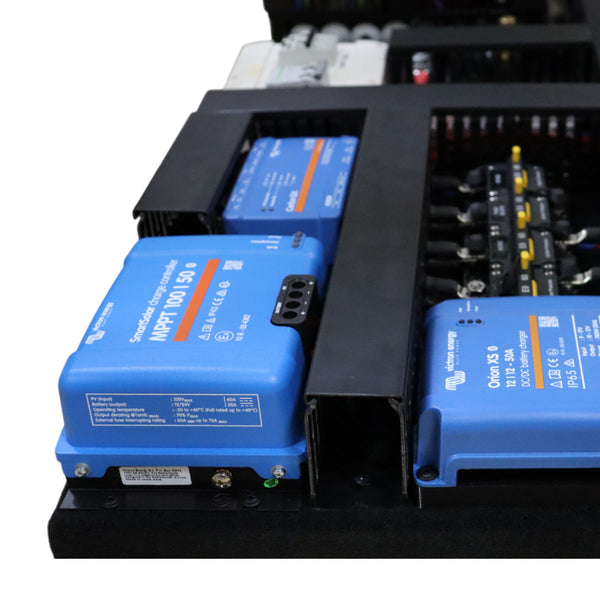

Designed for Space Efficiency and Installation Flexibility

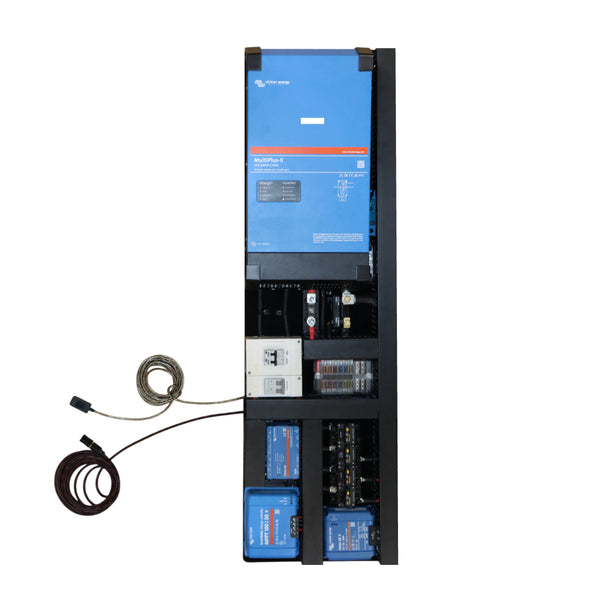

With dimensions of 1200 x 355 x 170 mm and a weight of 33 kg, the landscape layout is optimised for mounting under van beds, seats, or on walls. This low-profile design maximises usable living space without compromising access for maintenance. The board is supplied on a pallet for secure transport; please ensure a business address or depot is available for unloading, or that someone is present to assist the driver for home deliveries.
Key Benefits at a Glance
- Pre-wired and factory-tested to reduce installation time and eliminate wiring errors
- Complete Victron Energy ecosystem ensures seamless component compatibility
- Multi-source charging from solar, alternator, and shore power
- Comprehensive monitoring and control via VictronConnect and VRM
- Robust circuit protection with breakers and a 400A main fuse
- Compact landscape layout suits under-bed or wall mounting
Applications
This power board is ideally suited for:
- Campervan and motorhome electrical systems
- Caravan and RV power upgrades
- Off-grid tiny homes and cabins
- Marine and coastal installations
Power Your Adventure with Confidence
Equip your vehicle with the Exotronic Karijini Series Pre-Wired Victron Energy Power Board and experience a professionally integrated electrical system that delivers dependable energy wherever you travel. Order today and accelerate your build with a solution that’s ready to perform from day one.
SKU: PWB-Vic-A50X-KL-01
SPECIFICATIONS
Specifications
| Configuration | 3000VA + Mains 120A + Solar 50A + DC-DC 50A + Cerbo GX |
|---|---|
| Layout | Landscape |
| Inverter | Victron 3000VA MultiPlus-II Inverter |
| Mains Charger | 120 A mains charger |
| Transfer Switch | Automatic transfer switch |
| Solar Charge Controller | Victron 50A MPPT SmartSolar Controller |
| Solar Connector | Red Anderson connector |
| Solar Monitoring | Bluetooth-enabled for real-time solar monitoring via the VictronConnect app |
| DC-DC Charger | Victron Orion XS 50A DC-DC Charger |
| DC-DC Features | Adaptive Three-Step Charging, intelligent Recovery Function, remote monitoring and control via Bluetooth |
| Battery Monitor | Victron 300A SmartShunt Battery Monitor |
| Communication Centre | Victron Cerbo GX |
| Sensor Compatibility | Ready for Ruuvi temperature sensors and Mopeka water and LPG tank levels |
| Fuse Block | 12 Blade Fuse Block with Exotronic circuit breakers |
| Main Fuse | 400 A MEGA Fuse |
| Power Cable | 70 mm² insulated power cable |
| Mounting | Wall or floor mounting |
| Weight | 33 kg |
| Dimensions | 1200 x 355 x 170 mm |
| SKU | PWB-Vic-A50X-KL-01 |
| Barcode | 9361784000190 |
| SKU: | PWB-Vic-A50X-KL-01 |
| Barcode: | 9361784000190 |
| Model #: | PWB-Vic-A50X-KL-01 |
| MPN: | PWB-Vic-A50X-KL-01 |
WARRANTY
Victron Energy Limited Warranty Policy
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.
During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.
Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.
Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.
Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.
Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.
Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.
For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Exotronic provides high-quality products and solutions tailored for B2B and commercial customers, including commercial businesses, caravan manufacturers, marine electricians, OEMs, as well as emergency services, and more.
