Exotronic Coorong Series Pre-wired Victron Board - Split

Pre-wired with MultiPlus-II, MPPT, DC-DC & BMV-712 — 530x355x100mm


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
-6

DESCRIPTION

Exotronic Coorong Series Pre-Wired Victron Energy Power Board (Split Layout) for Professional Van Conversions

Premium, Pre-Assembled Off-Grid Power Hub — Engineered for Space-Efficient Installation

The Exotronic Coorong Series Pre-Wired Victron Board (Split Layout) delivers a fully integrated, professionally assembled power management solution for van conversions, campervans, and mobile off-grid setups. By combining genuine Victron Energy components with meticulous pre-wiring, this board eliminates the complexity, time, and risk of a custom electrical build, allowing you to focus on your adventure rather than your wiring.

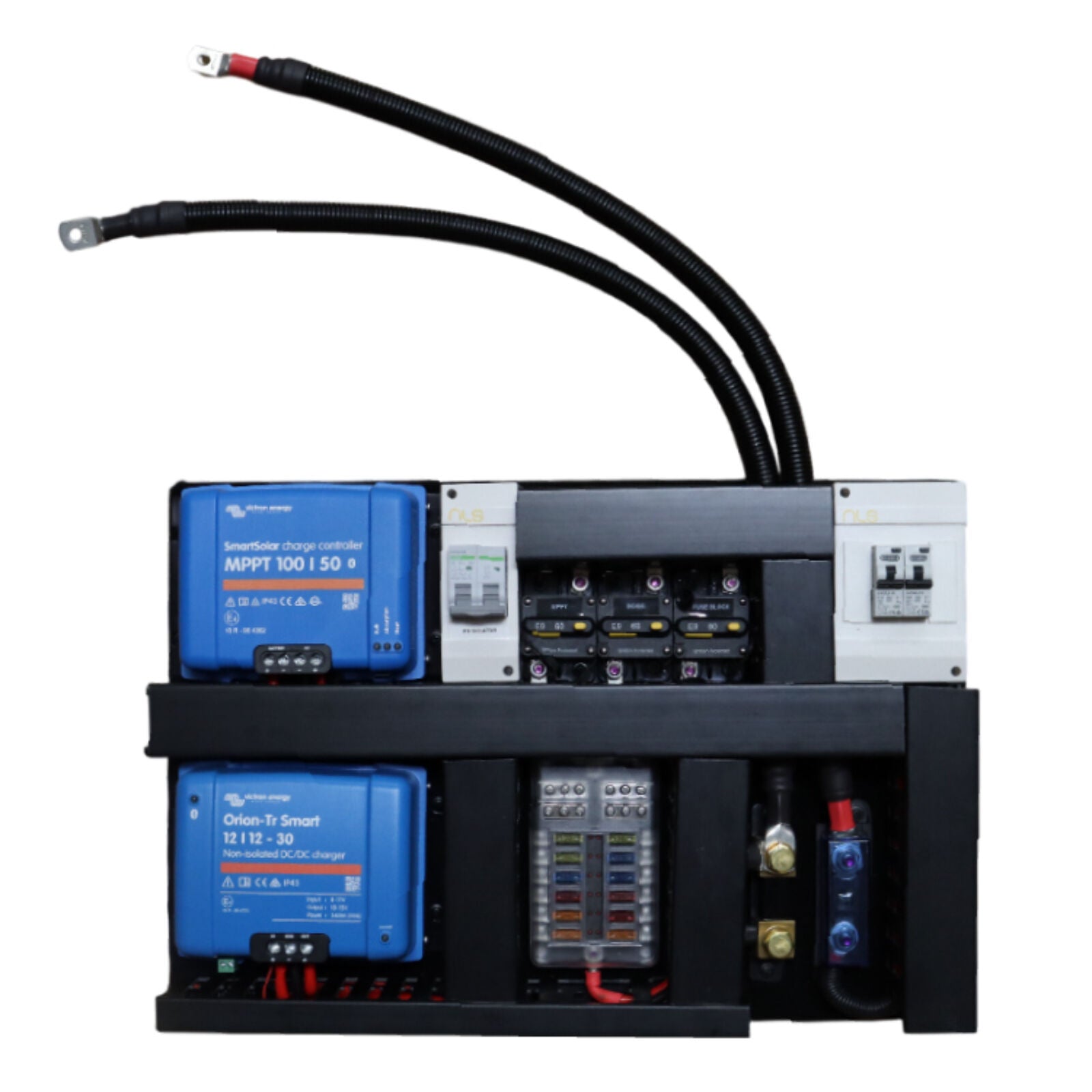

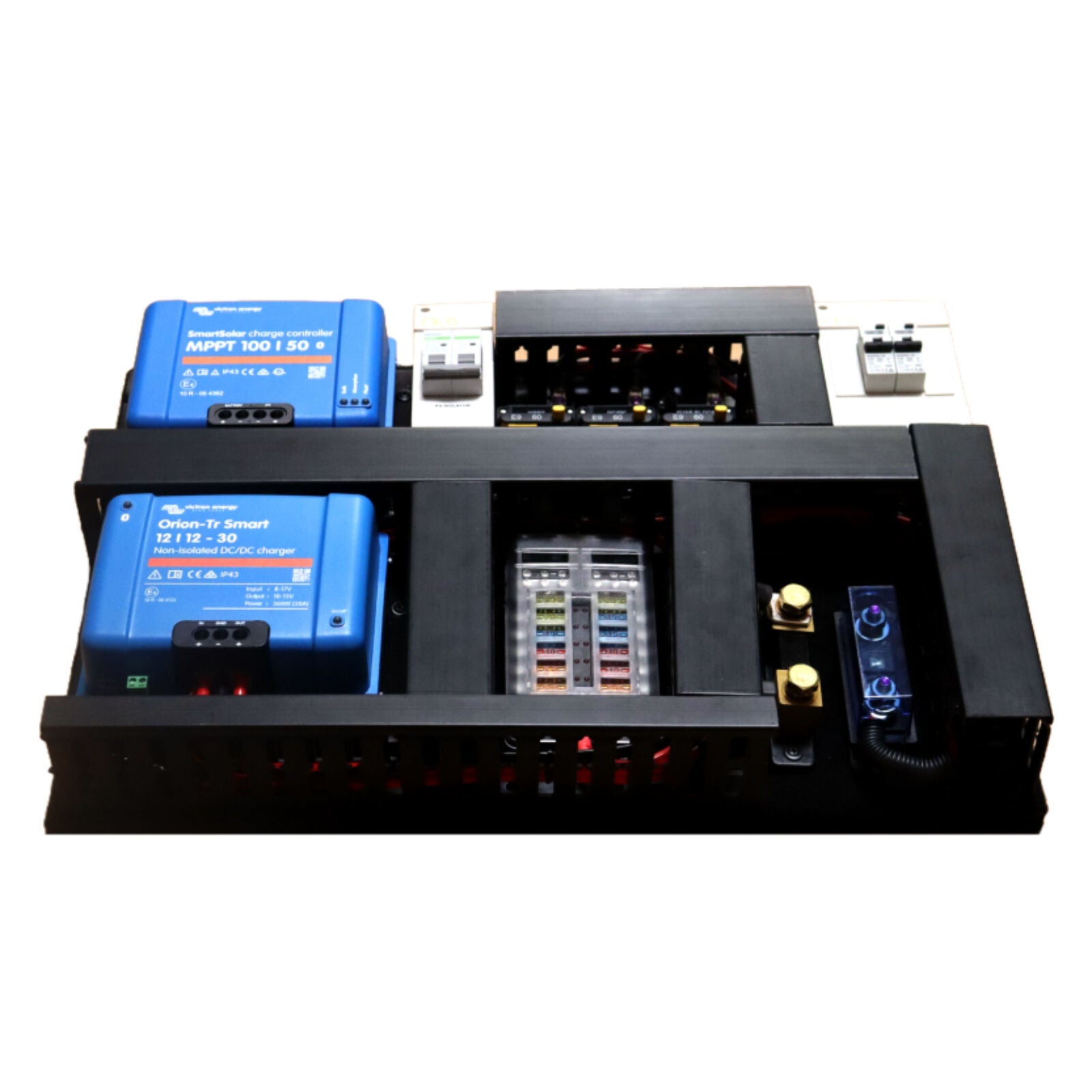

Designed for flexible placement, the split layout can be mounted on a wall or floor, fitting neatly under a bed or bench seat to maximise usable living space. Every connection, from the 3000VA inverter/charger to the solar MPPT and DC-DC charger, is pre-terminated with oversized cables and genuine Anderson connectors, ensuring low-loss performance and long-term reliability.

Why a Pre-Wired Board Reduces Risk and Saves Time

Building a van electrical system from scratch involves sourcing compatible components, calculating cable sizes, crimping lugs, and configuring protection devices—a process prone to errors that can lead to voltage drop, overheating, or equipment failure. The Coorong Series removes this uncertainty. Each board is assembled by experienced technicians using 70mm² double-insulated power cable, a 400A MEGA fuse, and correctly rated circuit breakers, ensuring compliance with best practices and safety standards. This approach not only accelerates your build timeline but also provides confidence that your power system is ready for demanding Australian conditions.

Core Components and Their Benefits

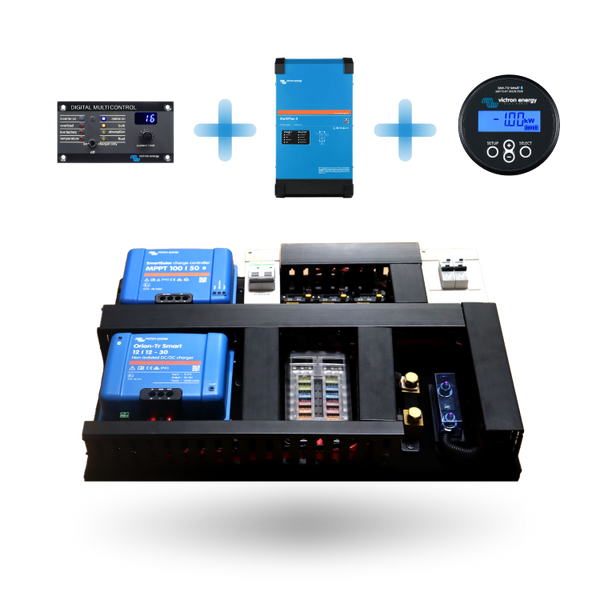

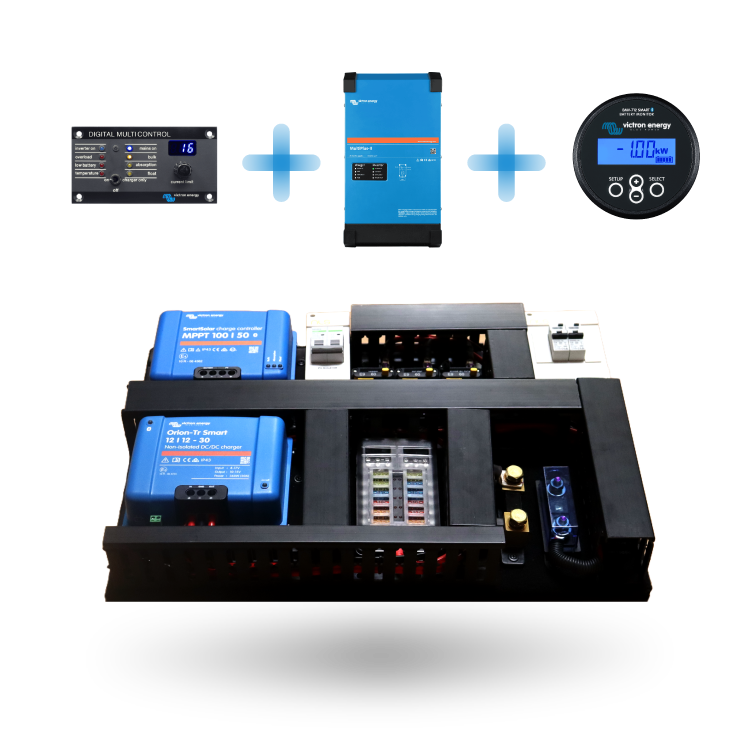

  • Victron MultiPlus-II 12/3000/120-32 Inverter/Charger: Delivers 3000VA of pure sine wave power to run most 10A appliances, combined with a 120A mains charger for rapid replenishment from shore power. The integrated automatic transfer switch ensures seamless switching between off-grid and on-grid sources, while the included Victron Digital Multi Control with 9m cable allows remote inverter management.

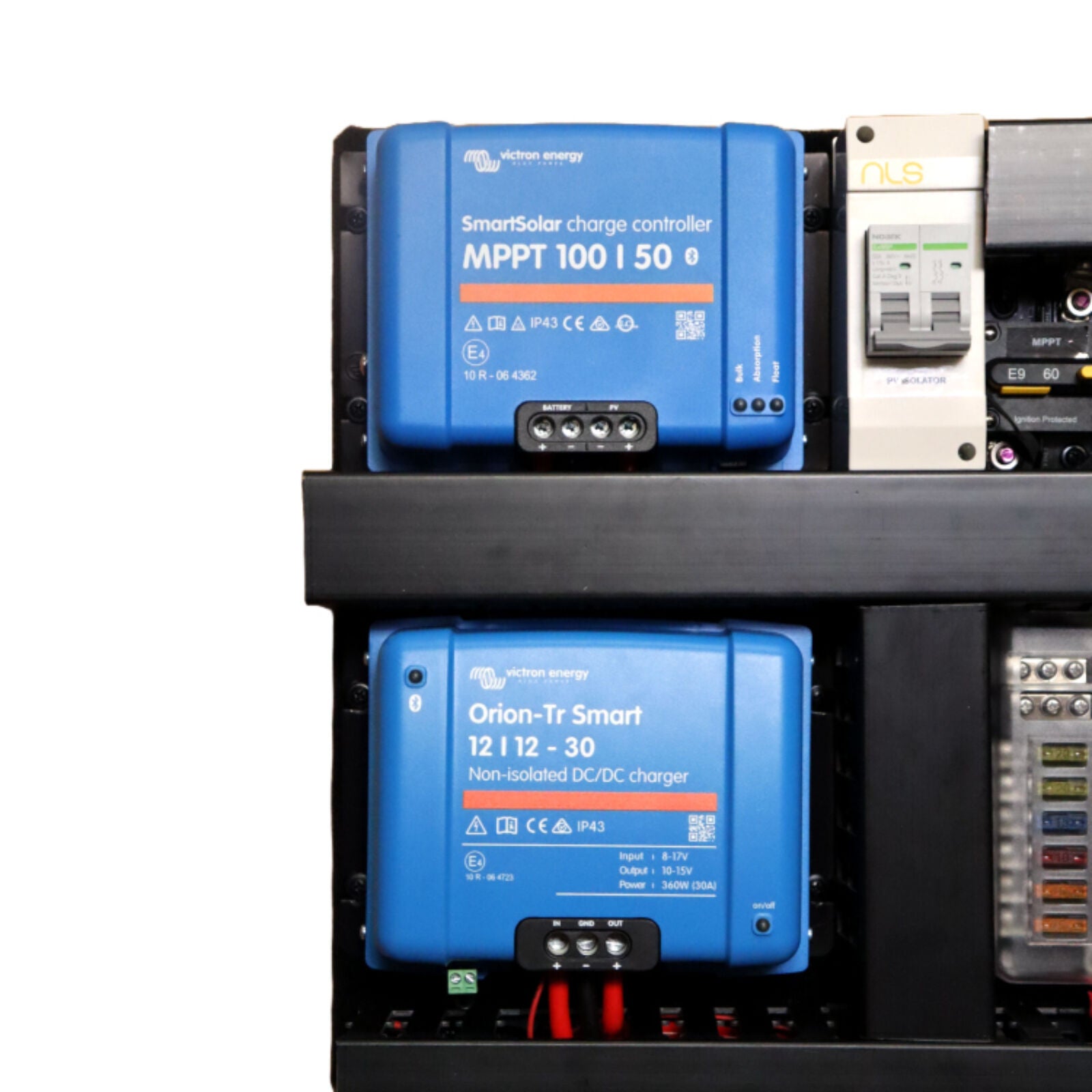

  • Victron SmartSolar MPPT 100/50 (Bluetooth Enabled): Maximises solar harvest with advanced Maximum Power Point Tracking, pre-connected via a genuine red Anderson plug for straightforward panel connection. Bluetooth monitoring lets you track performance and adjust settings from your phone.
  • Victron Orion-Tr Smart 12/12-30 DC-DC Charger (Non-Isolated, Bluetooth): Charges your house battery from the alternator while driving, compatible with smart alternators. Pre-wired with a grey Anderson connector for easy link to the starter battery.
  • Victron BMV-712 Battery Monitor (Bluetooth): Provides real-time data on state of charge, current flow, voltage, and time remaining. Audible alarms alert you to low battery levels, and the 9m cable to the display offers flexible mounting.

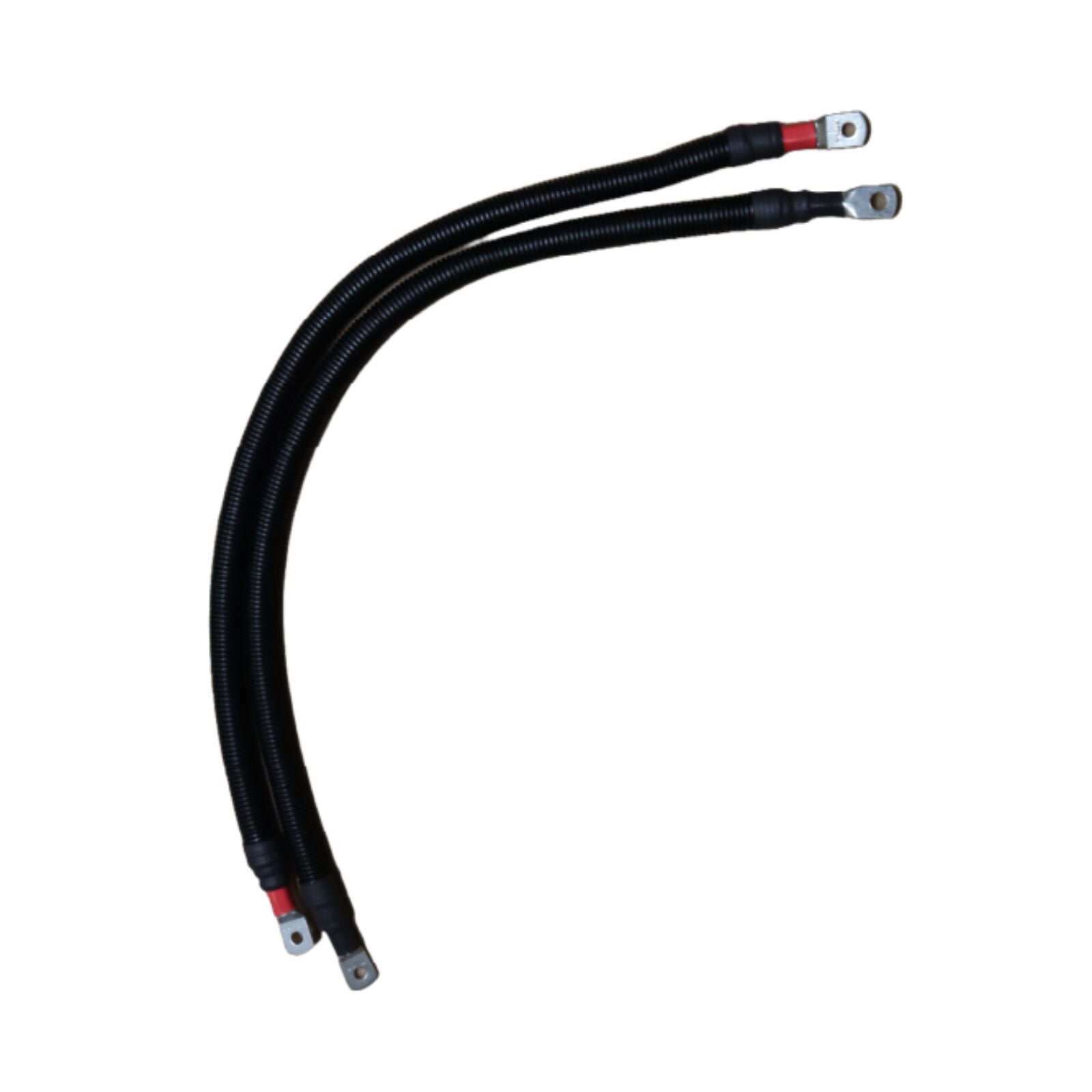

  • Integrated Protection and Distribution: A 12-way blade fuse block with Exotronic circuit breakers organises your DC loads, while AC RCBOs protect incoming and outgoing inverter circuits. The 400A MEGA fuse and 70mm² (approx. 2/0 AWG) cable ensure safe high-current handling for the inverter.

Designed for Australian Conditions

Every component is selected and assembled to withstand the rigours of travel on corrugated roads, temperature extremes, and coastal humidity. The board’s compact dimensions (530 x 355 x 100 mm) and manageable weight (10.2 kg plus components) make it practical for DIY installers and professional converters alike. Comprehensive documentation, including a detailed wiring diagram with example external connections, supports a smooth installation process.

Applications Beyond the Van

While optimised for van conversions, this pre-wired board is equally suited to tiny homes, off-grid cabins, and mobile workshops where a reliable, space-saving power centre is required. The split layout allows separation of high-current and control sections, simplifying thermal management and cable routing.

Ready to Power Your Journey?

Order the Exotronic Coorong Series Pre-Wired Victron Board (Split Layout) today and install a professional-grade power system that saves you weeks of design and labour. With genuine Victron components and expert assembly, you gain a dependable energy hub that lets you explore further with confidence.


SKU: PWB-Vic-A-Split-01

SPECIFICATIONS

Model Weight Length (mm) Width (mm) Height (mm)
Exotronic Coorong Pre-wired Board - Split 10.2 530 355 100
Victron MultiPlus-II 12/3000/120-32 Inverter/Charger 19 546 275 147

See PDF Data Sheet for full details


SKU: PWB-Vic-A-Split-01
Barcode: 9361784000176
Model #: PWB-Vic-A-Split-01
MPN: PWB-Vic-A-Split-01

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
