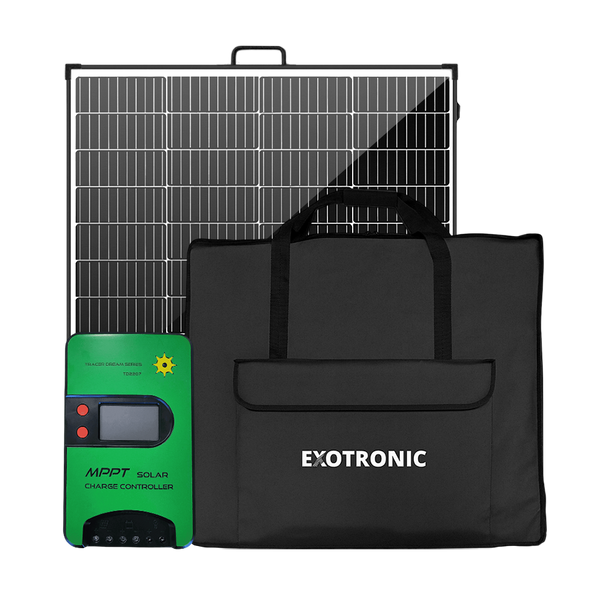

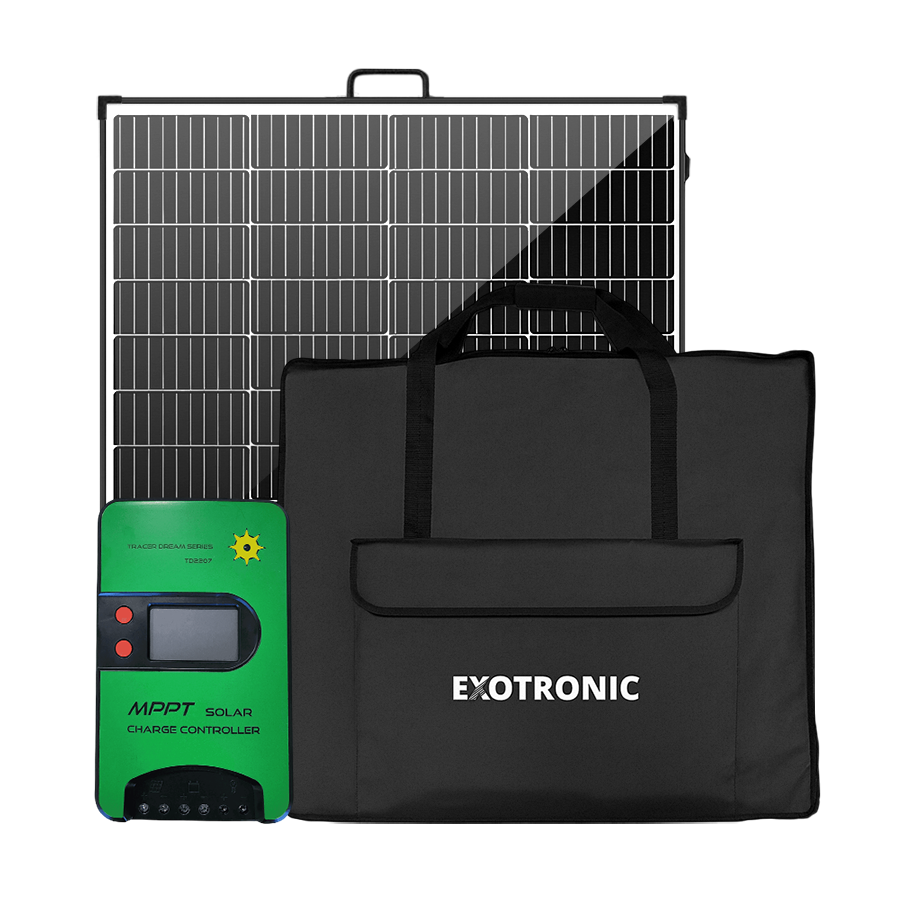

Exotronic 200W Portable Folding Solar Panel + 20A Bluetooth MPPT Solar Controller

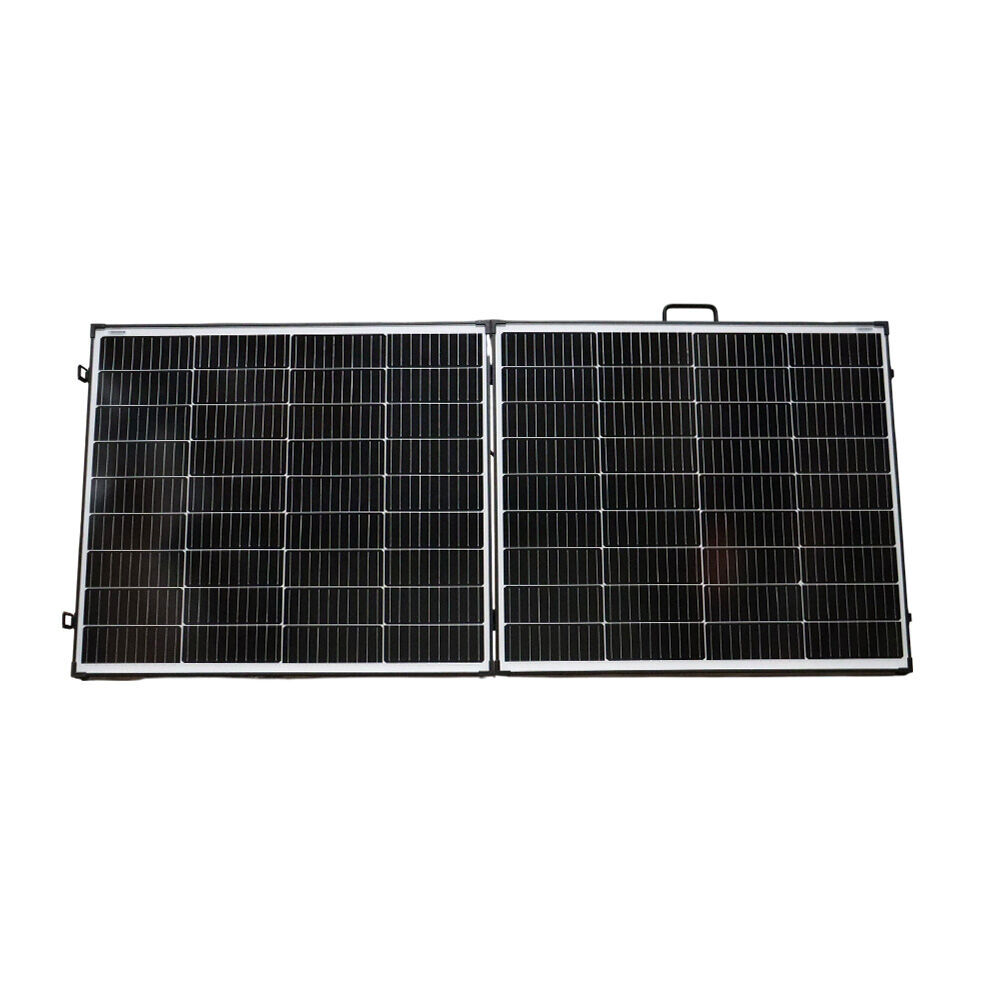

Trina Mono-PERC Cells & Bluetooth MPPT - Unfolded 1350x770x19mm
Exotronic 200W Portable Folding Solar Panel + V...DESCRIPTION
Complete 200W Portable Solar Solution with Smart Bluetooth Monitoring
Ensure reliable power generation while off-grid with this highly efficient portable solar kit. Designed for camping, mobile setups, and remote sites, this foldable solar briefcase combines high-performance power generation with an advanced 20A MPPT charge controller. By utilizing premium Trina monocrystalline cells, this system maximizes energy capture even when your caravan or camper trailer is parked in the shade.
High-Efficiency Mono-PERC Solar Technology
At the core of the 200W folding array are passivated emitter rear contact (mono-PERC) solar cells. This advanced design achieves impressive energy yield, especially in low-light and overcast conditions, as light passing through the cell is reflected back for a second conversion. The integration of a 9-wire busbar structure significantly lowers internal resistance, improves current distribution, and minimizes the risk of uneven cell heating or hot spots. The result is a robust 19.3% overall module efficiency.
Shade-Resistant and Durable Construction
Outdoors, shading from trees or structures is inevitable. To combat this, each half of the 200W solar briefcase is wired independently. If one section falls under shadow, the other continues to operate at optimal capacity, preventing a total system output drop.

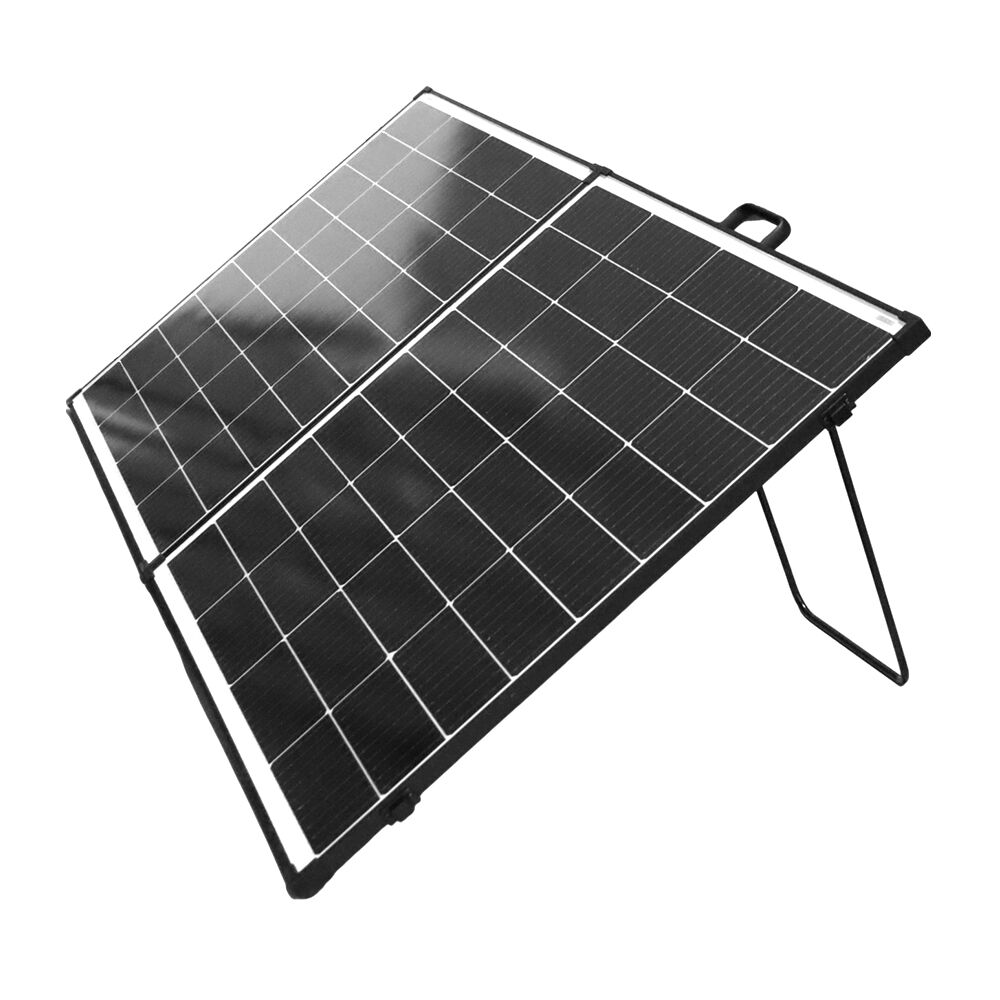

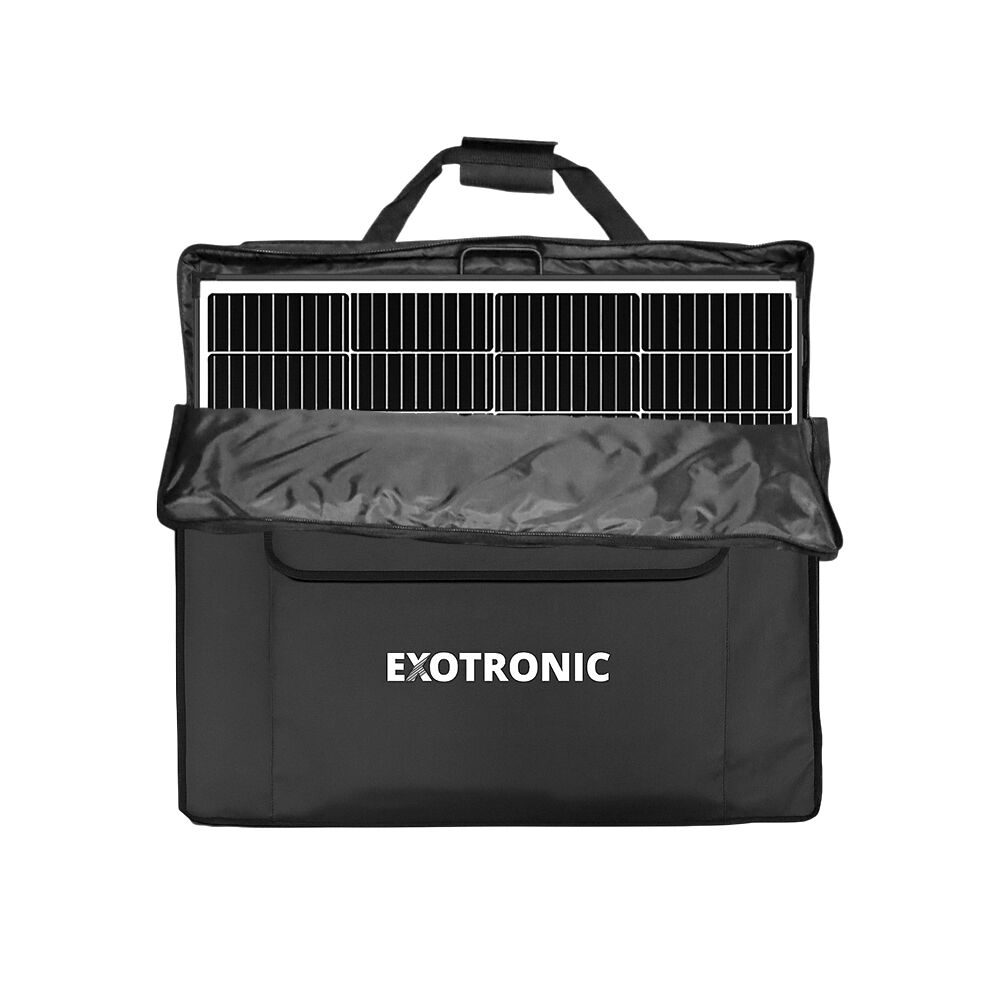

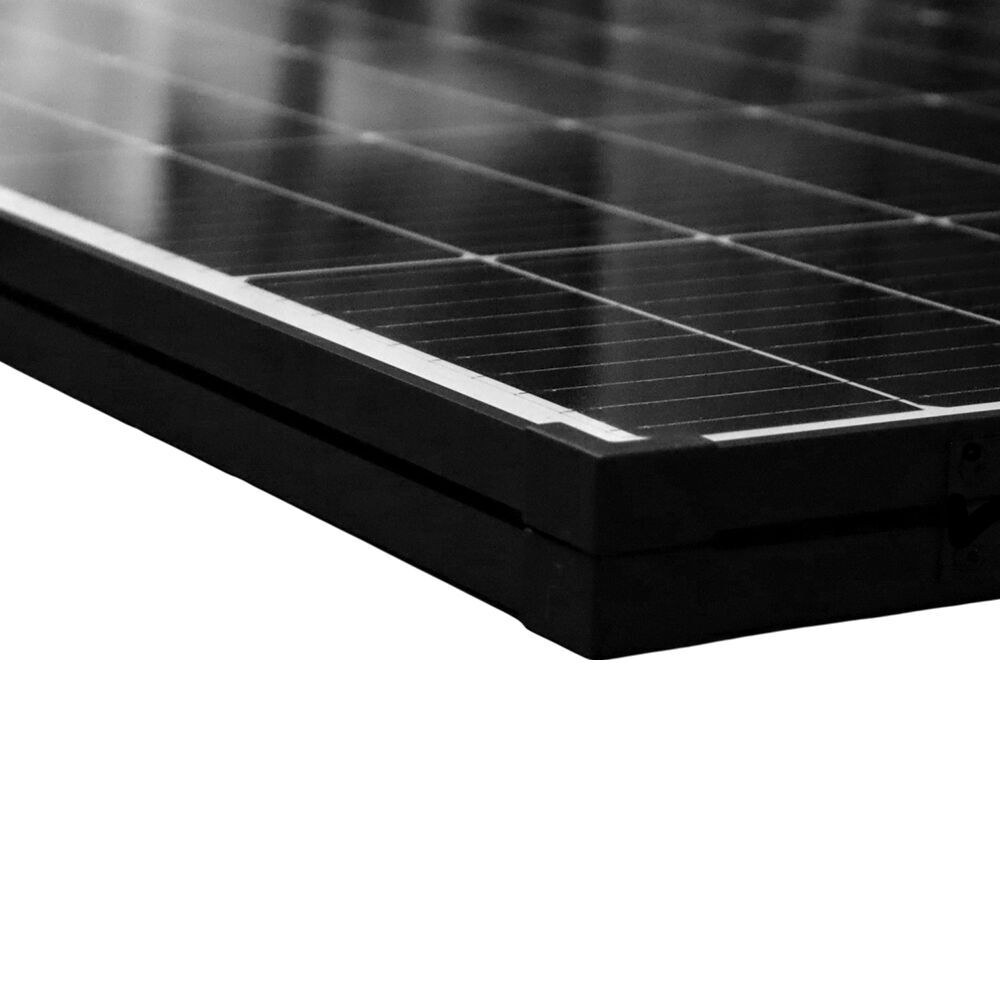

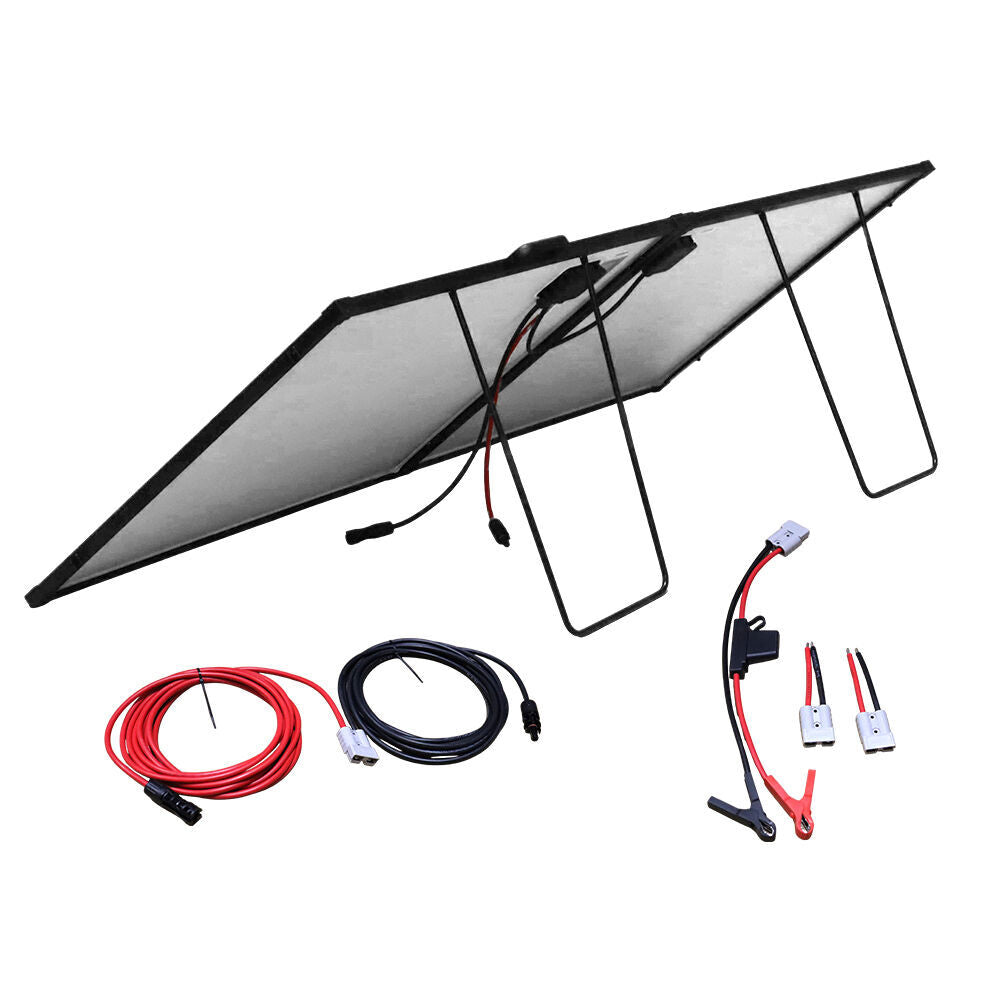

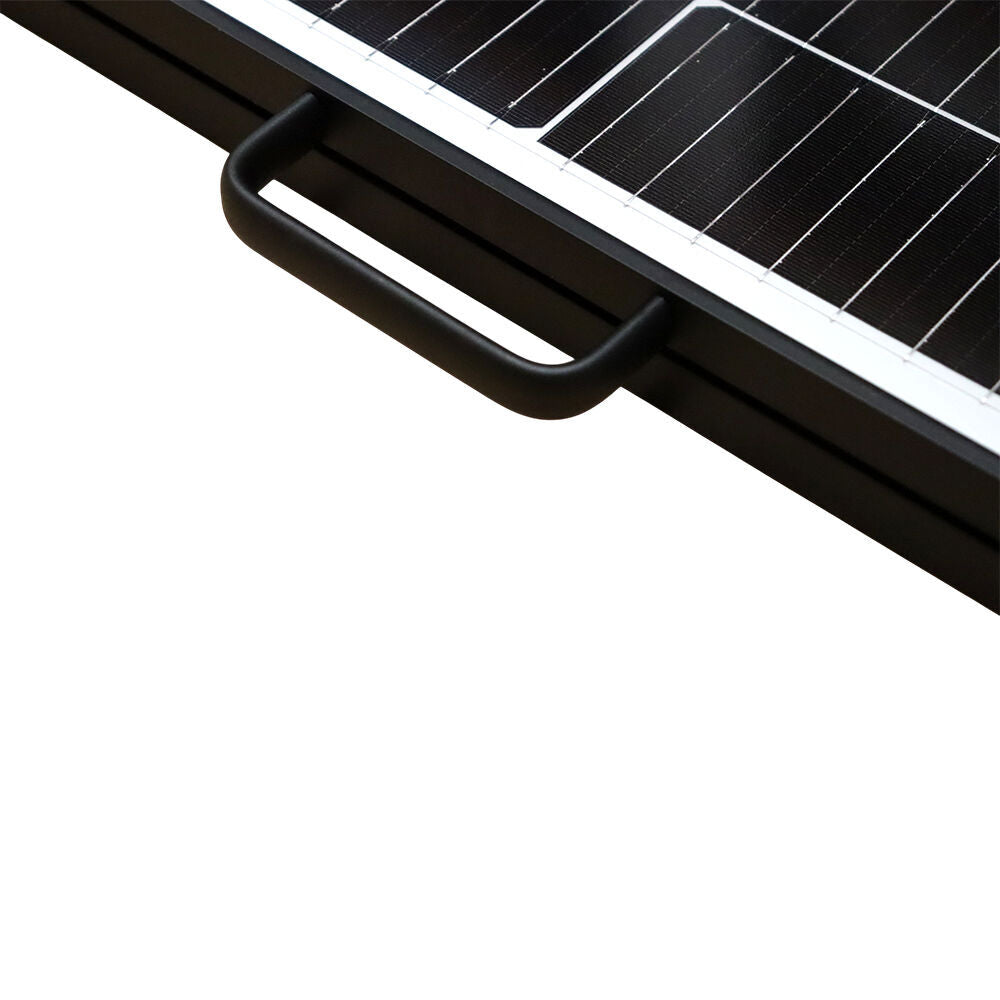

Weighing only 11.2kg, the unit features a sturdy black anodized aluminium frame equipped with protective corner bumpers and integrated fold-away legs for precise sun alignment. When it is time to pack up, the panels fold neatly into the included padded canvas bag, which features a heavy-duty carry handle and a dedicated pocket for safe storage of your cables and controller.
Exotronic Tracer Dream 75V Bluetooth MPPT
The included 20A Maximum Power Point Tracking (MPPT) solar controller ensures every available watt is transferred to your battery bank. Featuring a 32-bit CPU and Synchronous Rectifier Technology, the Tracer Dream series achieves up to 98.5% circuit transfer efficiency and 99.5% tracking accuracy. This allows the controller to rapidly adjust to fluctuating sunlight, maximizing yield.
For the best system performance and safety, install the controller close to your battery. This placement reduces voltage drop along the cable run and prevents ambient heat transfer from the solar panels to the controller electronics. The system is fully compatible with 12V and 24V setups and includes specialized charging profiles for Sealed, Gel, Flooded, and Lithium batteries.
Real-Time System Monitoring

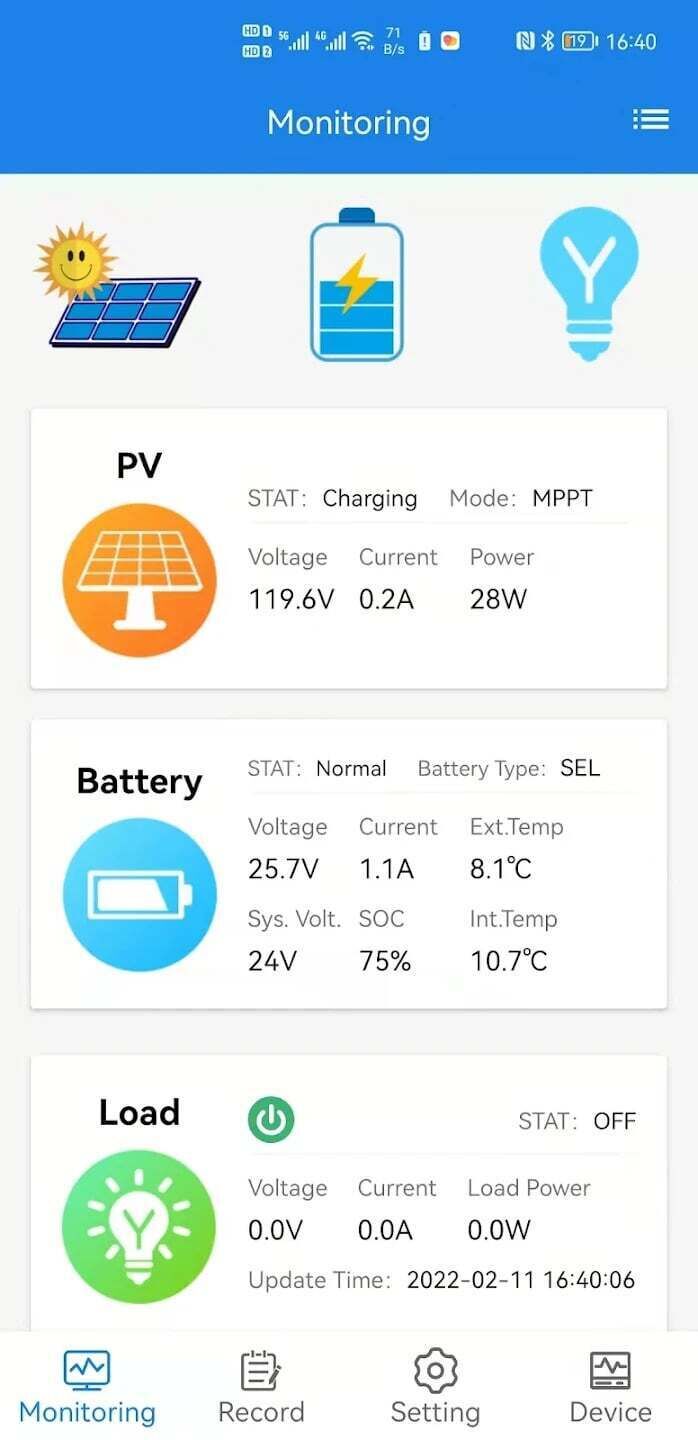

Take full control of your solar yield via the integrated Bluetooth module. By downloading the LD iConnect application on your Apple or Android device, you can monitor live voltage, charging current, and historical generation data directly from your smartphone.
Comprehensive Connection Kit
This portable solar system is ready to deploy right out of the box, supplied with a premium wiring kit tailored for marine and off-grid use:
- 5m heavy-duty extension cable: 4mm2 PV1-F tinned copper marine-grade wire featuring MC4 to 50A grey Anderson connectors. *Note typical de-rating factors apply for maximum current handling.
- Anderson tails: Two 50A grey Anderson tails for seamless integration with existing PWM or MPPT controllers.
- Fused alligator clips: Connects to a 50A grey Anderson with an inline 30A fuse, ideal for direct battery attachment, jump-starting a lithium BMS, or maintaining a starter battery.
Key System Features
- High-yield mono-PERC cells for superior low-light power generation
- Independent dual-panel wiring to maintain output during partial shading
- Advanced MPPT algorithm with up to 99.5% tracking efficiency
- Bluetooth app connectivity for real-time performance monitoring
- Heavy-duty 12V and 24V compatible charging system
- Extensive digital protections against overcharging, reverse polarity, and short circuits
Upgrade Your Off-Grid Energy Setup
Maintain your battery banks and keep your essential electronics running smoothly with this versatile portable power solution. Equip your camper trailer, caravan, or 4WD with the Exotronic 200W Folding Solar Panel kit today and secure reliable, highly efficient off-grid power for your next journey.
SKU: Exo-FP-200-TD-01
SPECIFICATIONS

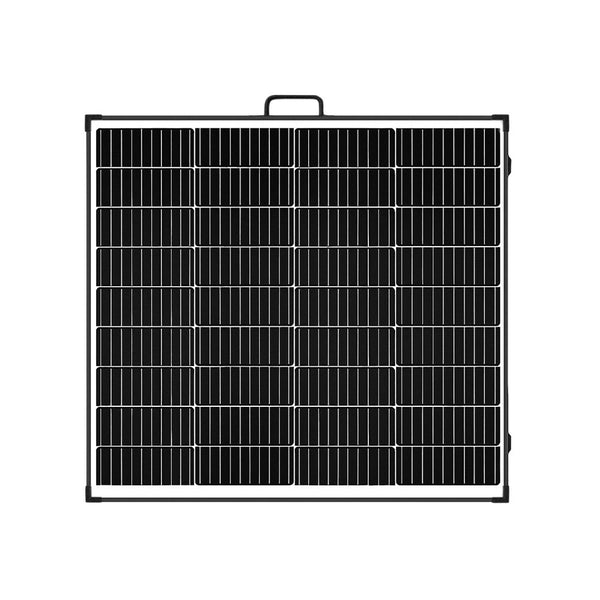

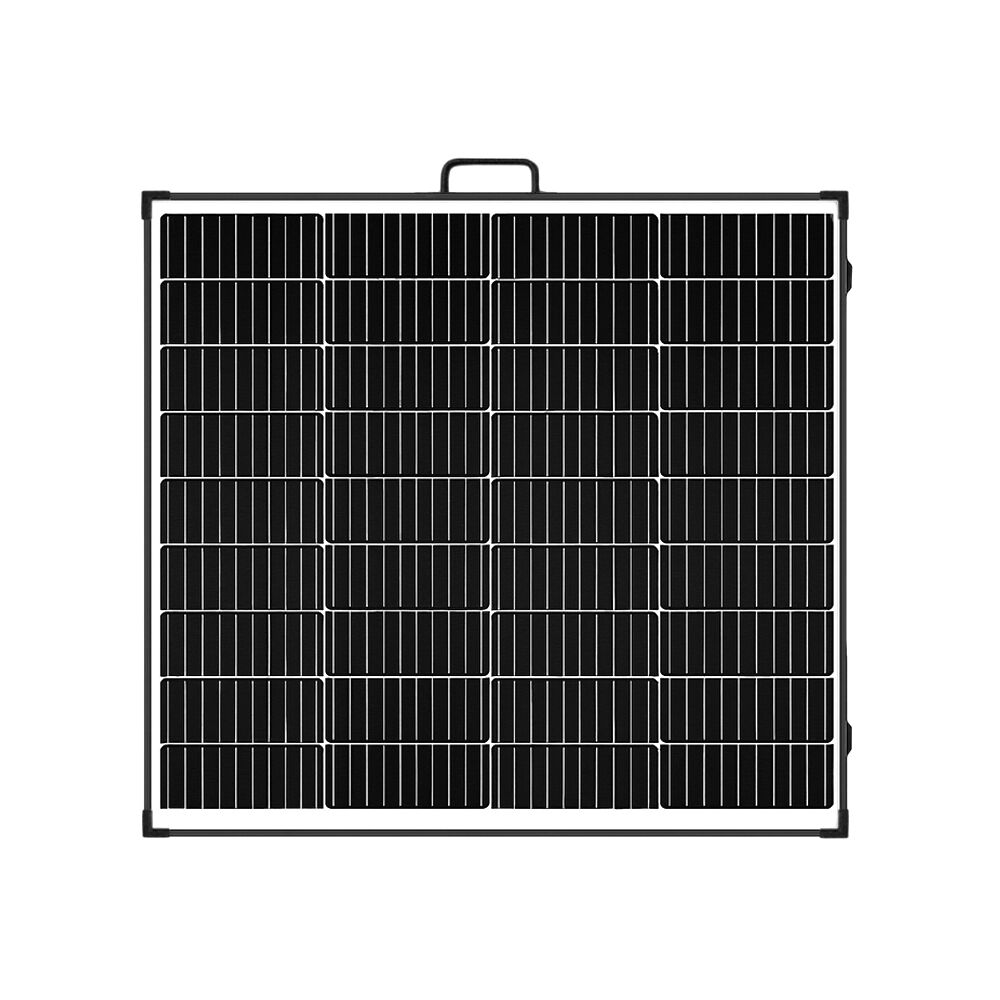

Foldable Solar Panel Specifications
| Module Specifications | ||||||||||
| Model | Power (W) | No. of Cells | Dimensions (mm) Folded | Dimensions (mm) Unfolded | Weight (kg) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | Module Efficiency (%) |
| Exo-FP-200-01 | 200 | 2x 36 (4x9) | 770x675x38 (exc. handle) | 770x1350x19 (exc. handle) | 11.2 | 19.8 | 10.12 | 24.1 | 10.5 | 19.3 |
Note: Electrical specifications are the total output of the two folding panel sections.
| Temperature Ratings | |
| NMOT | 41C +/-3C |
| Temperature Coefficient of Pmax | -0.37%/C |
| Temperature Coefficient of Voc | -0.29%/C |
| Temperature Coefficient of Voc | 0.05%/C |
| Maximum Ratings | |
| Operating Temperature | -40 - +85C |
| Maximum System Voltage | 1000VDC |
| Maximum Fuse Rated Current | 15A |
| Mechanical Characteristics | |
| Front | 3.2mm Tempered Glass |
| Frame | Black Anodized Aluminium Alloy |
| Junction Box | IP65/IP67 |
| Connectors | MC4 Compatible |
Solar Charge Controller Specifications
| Model | TD2207 |
| System Voltage | 12V/24V DC auto |
| Working voltage range | 8~32V |
| Max. PV open circuit voltage | 75V(Min.working temperature) 70V(25°C) |
| MPP voltage range | (Battery voltage+2V)~65V |
| Discharge circuit voltage drop | ≤0.25V |
| Self-consumption | <23mA |
| Rated charge current | 20A |
| Rated discharge current | 20A |
| Max.PV input power | 260W/12V 520W/24V |
| Grounding | Common positive |
| Battery type | Sealed/Gel/Flood/Lithium (Default LITHIUM) |
| LVD※* | 11.0V ADJ 9V...12V ; x2/24V |
| LVR※* | 12.6V ADJ 11V...13.5V ;x2/24V |
| Float Voltage※* | 13.8V ADJ 13V... 15V ; x2/24V (Default 13.5V) |
| Boost Voltage※* | 14.4V ADJ 13V...17V ;x2/24 battery voltage less than 12.6v auto boost 2hours (Default 14.2V) |
| Battery Over Voltage Protection | 16.5V ; x2/24V |
| USB Output | 2x 5VDC/2A |
| Temperature Consumption# | For 12V system:-24mV /°C ;x2/24V |
| Relative humidity | ≤95%, N.C. |
| WorkingTemperature | —20°C~+50°C (Controller can work continuously at full load) |
| LCD temperature range | —20°C~+70°C |
| Waterproof grade | IP32 (Not waterproof) - Install close to battery with weather protection for best life and charging efficiency |
| SKU: | Exo-FP-200-TD-01 |
| Model #: | Exo-FP-200-TD-01 |
| MPN: | Exo-FP-200-TD-01 |
WARRANTY
Warranty Statement
Foldable Solar Panel
Exotronic warrants its foldable solar modules, including framing, to be free of defects in workmanship and materials for a period of 60 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
Accessories (Cables/Connectors, Canvas Bag)
Exotronic warranties its accessories, including cables, connectors, and the canvas bag, to be free of defects in workmanship and materials for a period of 12 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
Solar Charge Controller
Exotronic warrants its solar charge controllers to be free of defects in workmanship and materials for a period of 24 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
