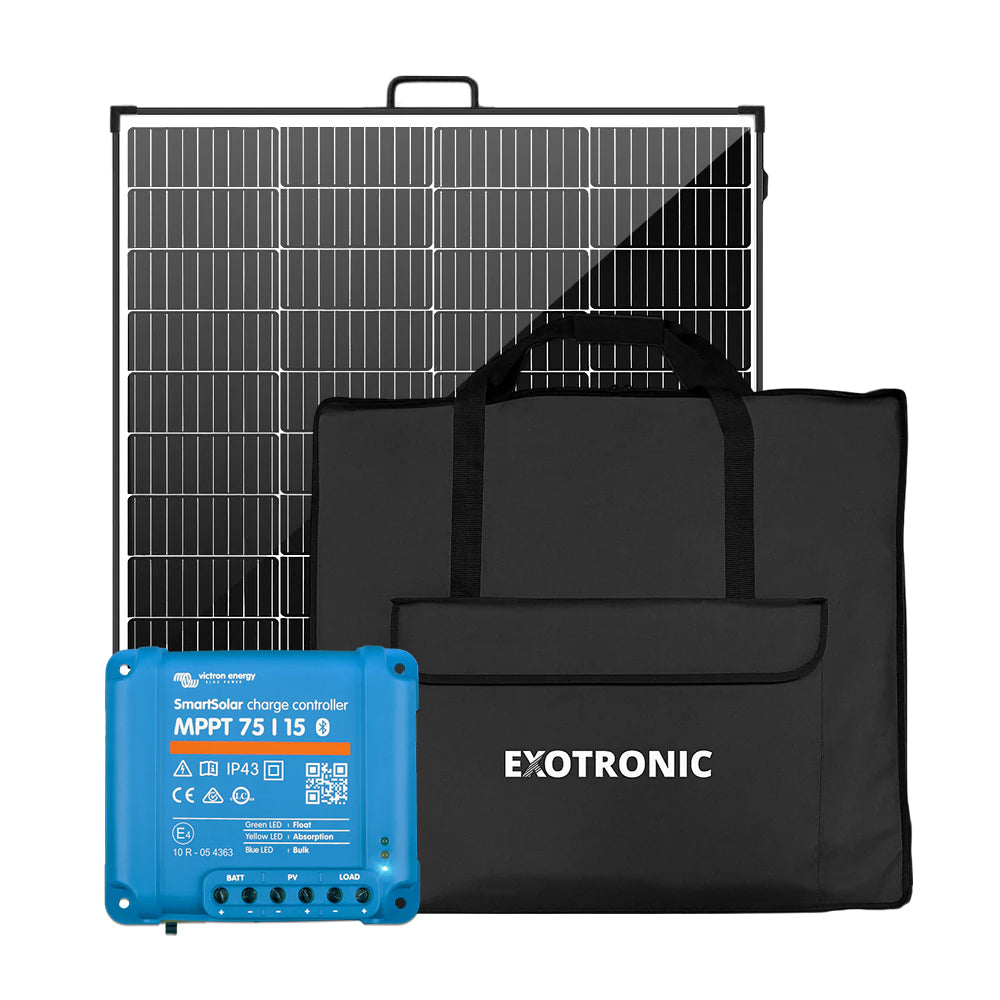

Exotronic 200W Portable Folding Solar Panel Kit with Victron SmartSolar MPPT 75/15
Compact, High-Efficiency Portable Solar for Caravans, Camping, and Off-Grid Power
The Exotronic 200W Portable Folding Solar Panel Kit delivers a complete, ready-to-deploy charging solution for 12V battery systems in caravans, RVs, campers, and marine applications. Combining a lightweight 200W briefcase-style panel with a Victron SmartSolar MPPT 75/15 charge controller, this kit maximises energy harvest in variable conditions while protecting your battery investment.

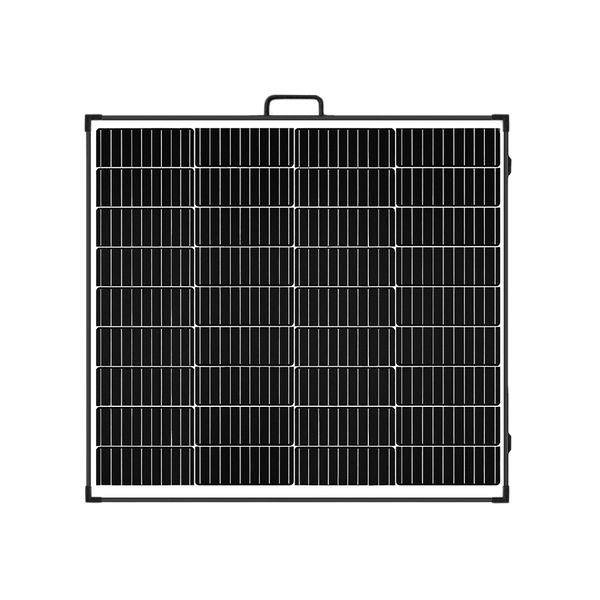

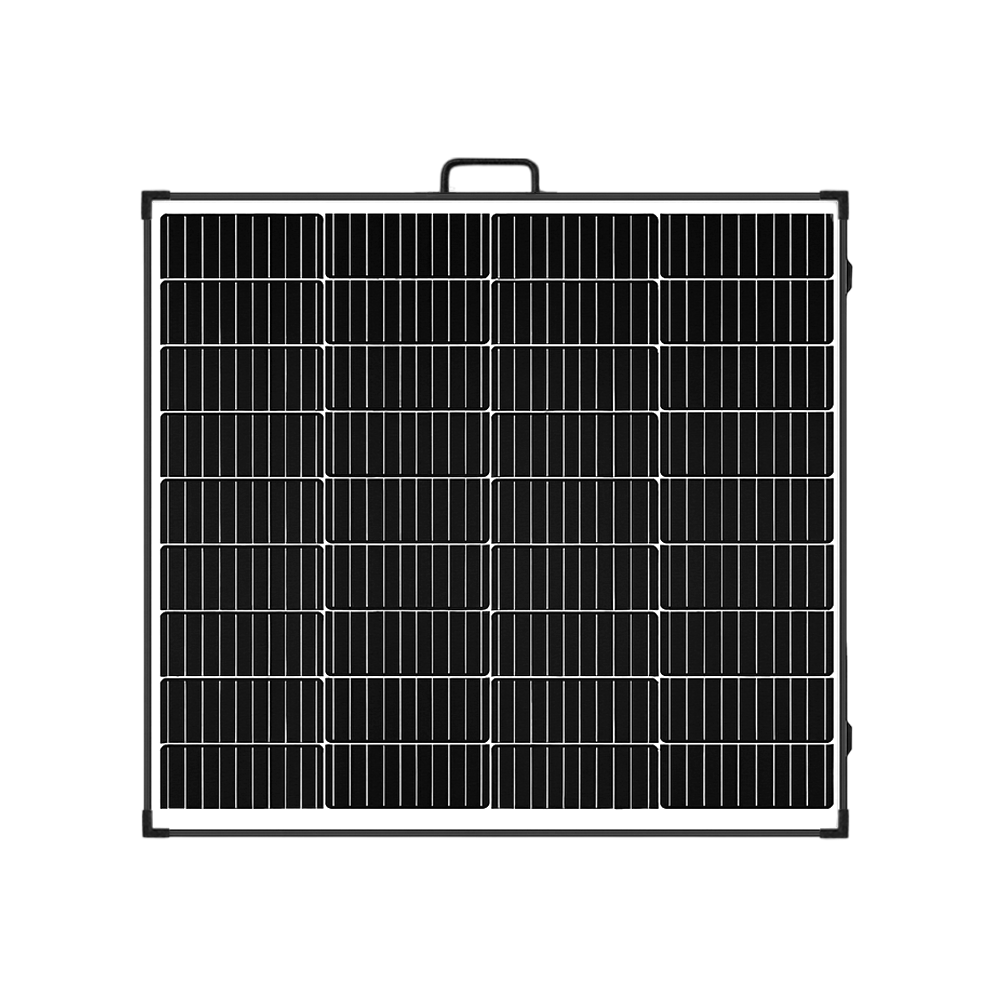

At the core of the panel are Trina half-cut 23% PERC monocrystalline solar cells with a 9-wire busbar design. This configuration reduces resistive losses, improves low-light response, and minimises hot spots, ensuring consistent output even when partial shading occurs. Each 100W module operates independently, so if one side is shaded, the other continues producing power.

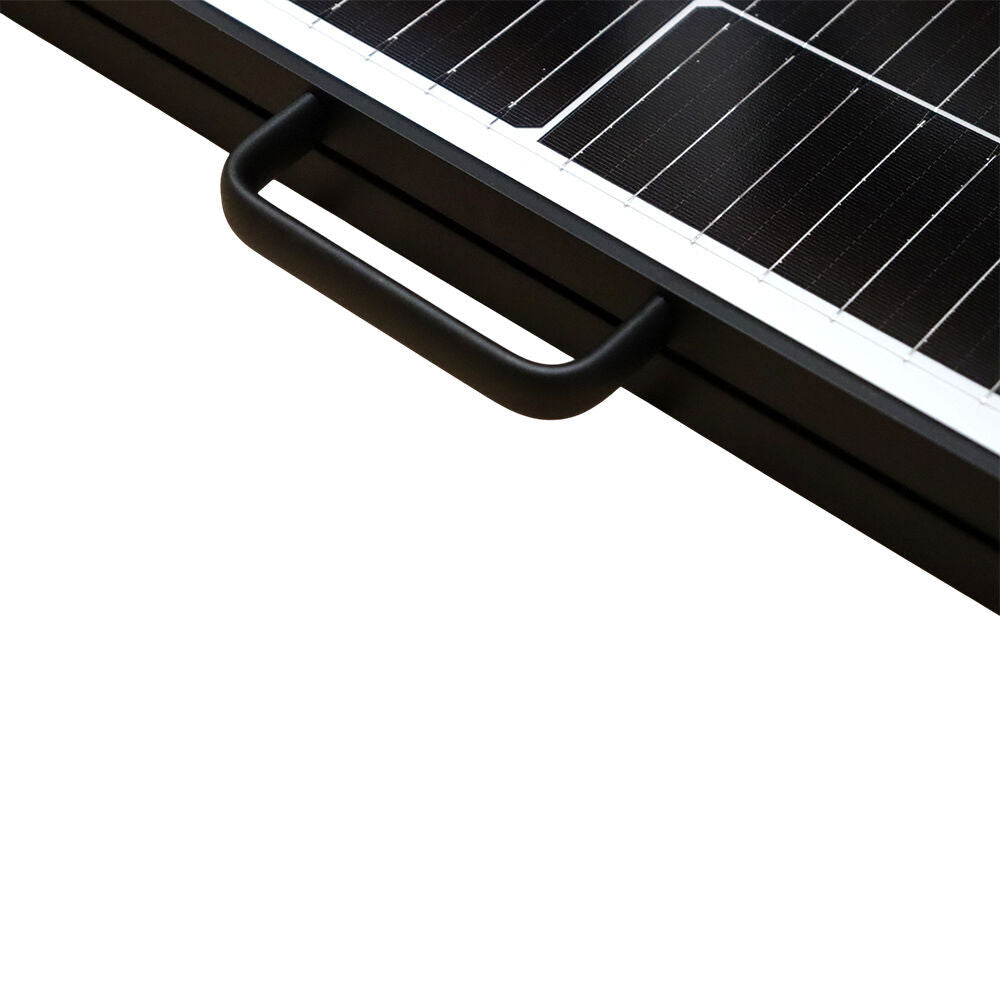

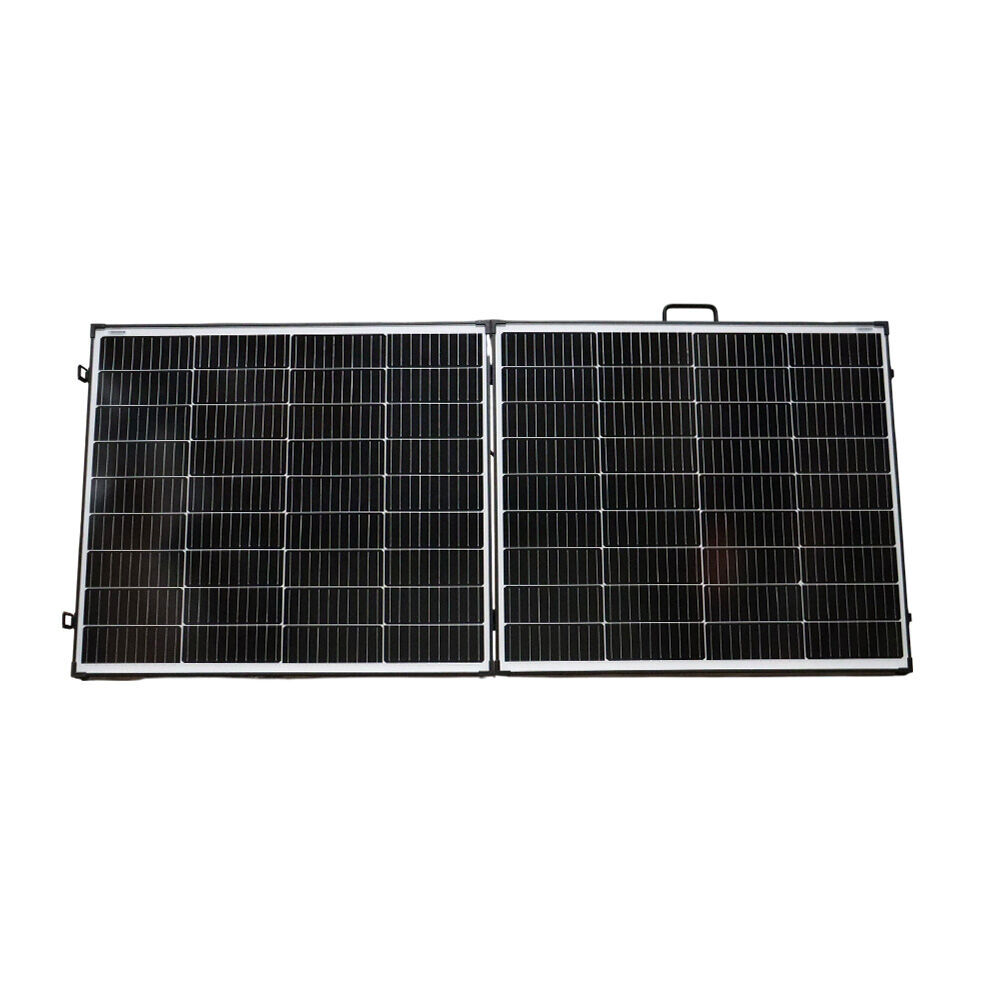

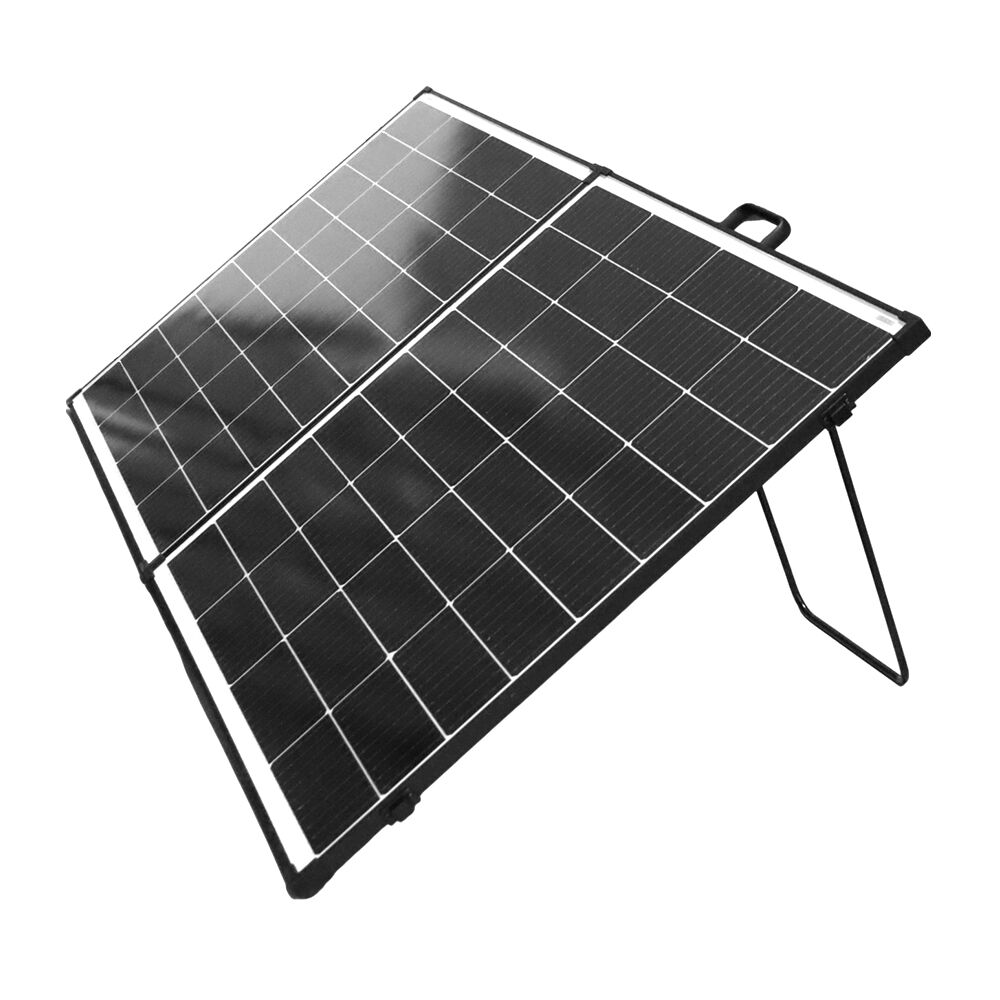

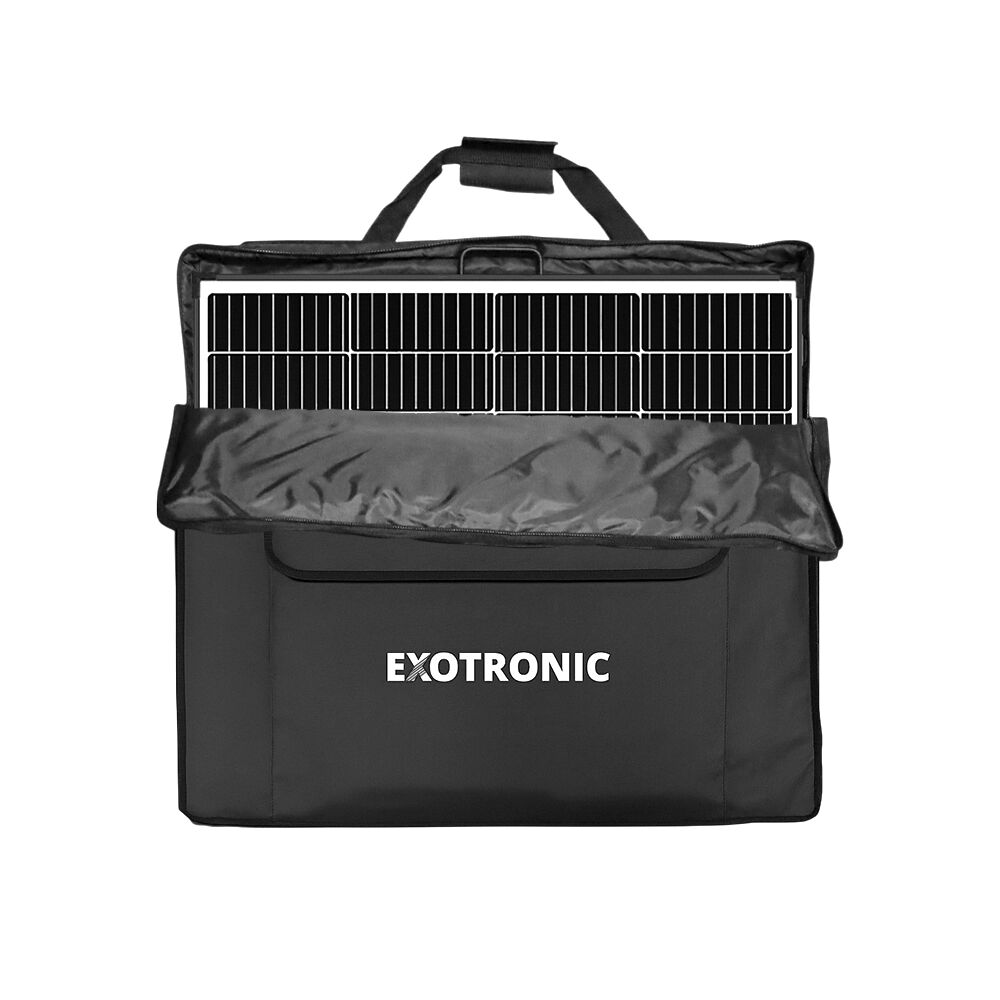

Weighing only 11.2 kg and folding to 770 x 675 x 38 mm, the panel is easy to transport and store. Integrated corner bumpers and fold-away aluminium legs allow quick setup at an optimal angle, while the included padded canvas bag with carry handle and accessory pocket protects the panel during transit.
Premium Cable Set for Flexible Connectivity

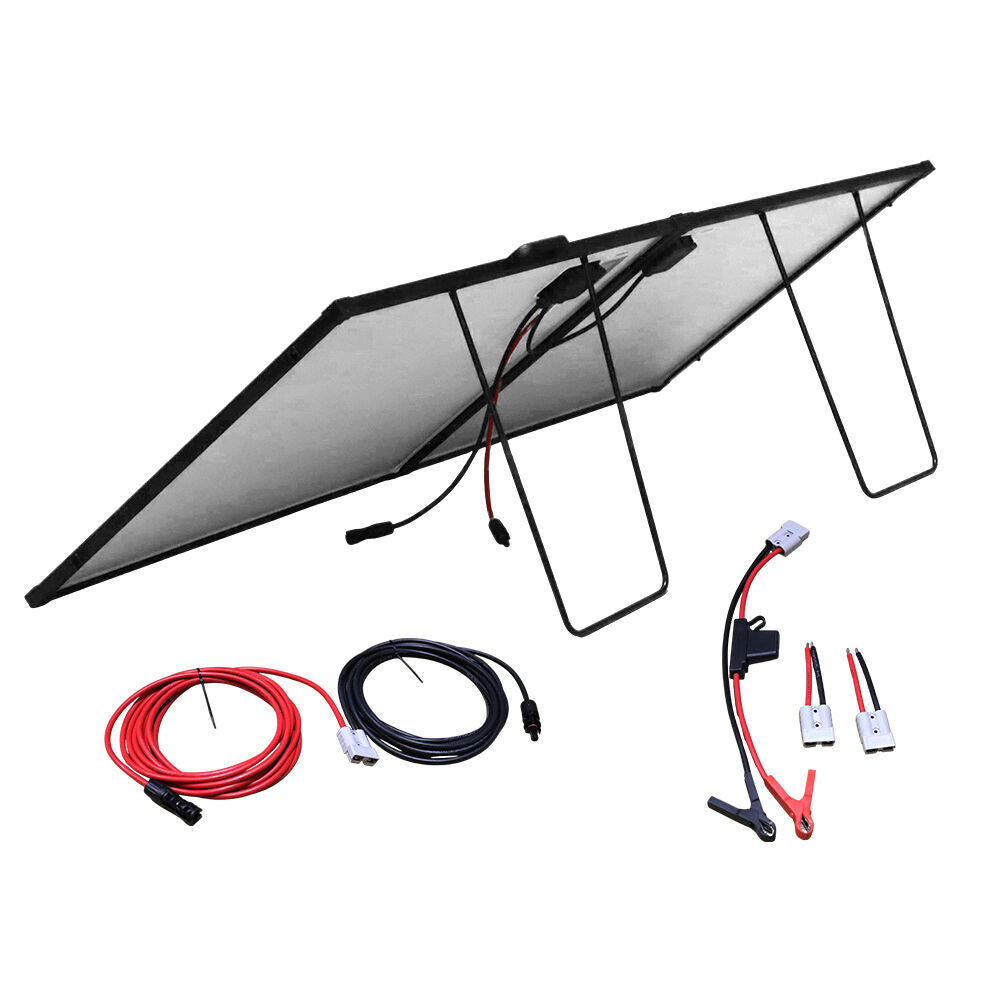

The kit includes a versatile cable set to suit various setups:
- 5 m 4 mm² PV1-F tinned copper cable with MC4 to 50 A grey Anderson connector, ideal for connecting the panel to a solar charge controller or DC-DC charger solar input. Note: Do not connect the panel directly to a battery without a controller.
- Two 50 A grey Anderson tails for easy integration with existing MPPT or PWM controllers.
- Alligator clips to 50 A Anderson with 30 A fuse, useful for jump-starting a lithium battery BMS or charging a starter battery when needed.
Victron SmartSolar MPPT 75/15: Intelligent Charge Control
The included Victron SmartSolar MPPT 75/15 charge controller uses ultra-fast Maximum Power Point Tracking to improve energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT units, particularly under rapidly changing light conditions. Built-in Bluetooth allows wireless monitoring, configuration, and firmware updates via the VictronConnect app, giving you real-time insight into solar yield and battery status.
Key Victron features:
- Bluetooth Smart built-in for wireless setup and monitoring.
- VE.Direct port for wired data connection to GX devices or a PC.
- Programmable load output with low-voltage disconnect to prevent battery over-discharge.
- Battery Life algorithm intelligently manages load disconnect to promote a full recharge cycle weekly, extending lead-acid battery lifespan.
- Internal temperature sensor automatically compensates charge voltages for ambient temperature.
For optimal performance and safety, position the controller near the battery in a covered area to minimise heat transfer.
Durable Construction for Australian Conditions

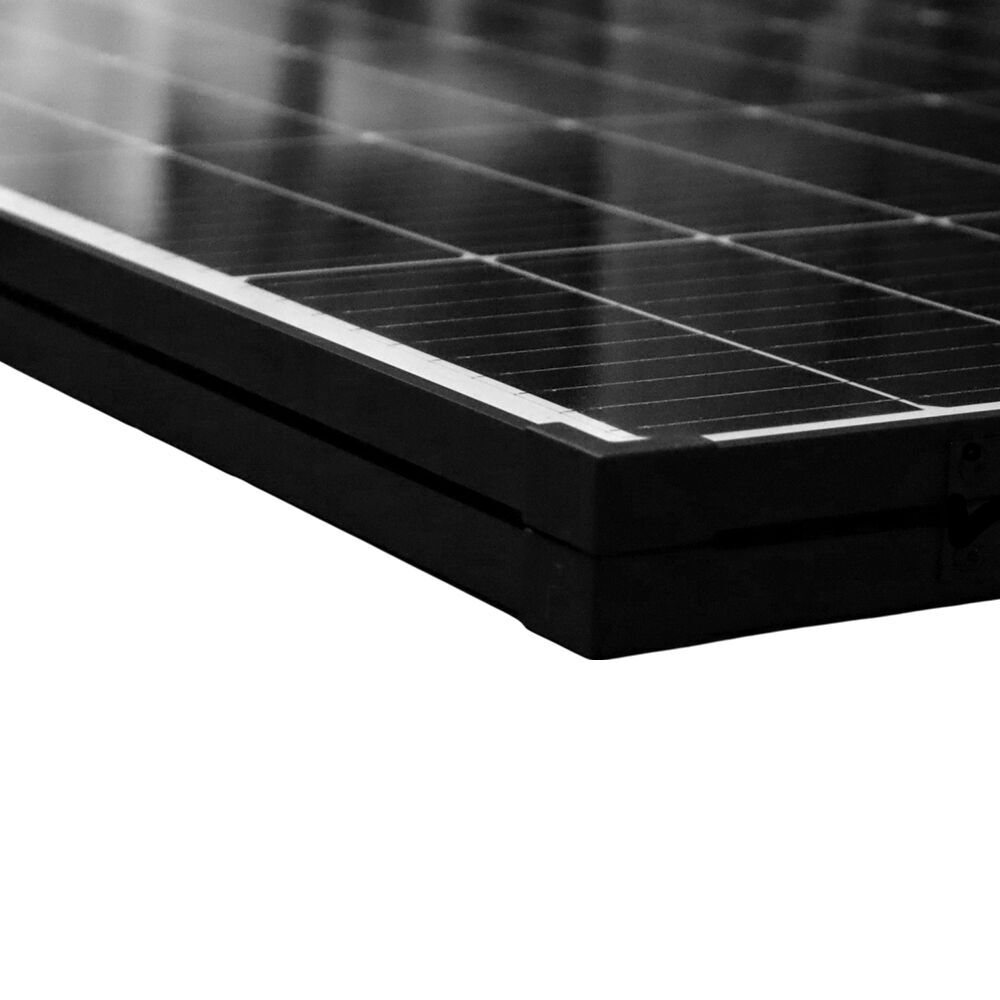

The panel features a robust black anodised aluminium alloy frame and 3.2 mm tempered glass front, providing impact resistance and long-term durability. The IP65/IP67 junction box ensures reliable electrical connections in dusty or wet environments. With an operating temperature range of -40 °C to +85 °C and a maximum system voltage of 1000 VDC, this panel is built to perform in demanding off-grid scenarios.
Why Choose This Kit?
- Independent dual-module design maintains output when one side is shaded.
- 23% efficient PERC cells with 9-busbar layout for superior low-light performance and reduced hot spots.
- Lightweight 11.2 kg foldable design with integrated legs and protective carry bag.
- Victron SmartSolar MPPT 75/15 with Bluetooth for advanced charge control and monitoring.
- Comprehensive cable set for immediate connection to most 12V systems.
Ready to Power Your Next Adventure?
Equip your caravan, camper, or boat with the Exotronic 200W Portable Folding Solar Panel Kit and experience reliable, efficient off-grid charging backed by Victron's intelligent energy management. Order today and take control of your energy independence.
SKU: Exo-FP-200-Vic-01
SPECIFICATIONS
Foldable Solar Panel Specifications
| Module Specifications | ||||||||||
| Model | Power (W) | No. of Cells | Dimensions (mm) Folded | Dimensions (mm) Unfolded | Weight (kg) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | Module Efficiency (%) |
| Exo-FP-200 | 200 | 2x 36 (4x9) | 770x675x38 (exc. handle) | 770x1350x19 (exc. handle) | 11.2 | 19.8 | 10.12 | 24.1 | 10.5 | 19.3 |
Note: Electrical specifications are the total output of the two folding panel sections.
| Temperature Ratings | |
| NMOT | 41C +/-3C |
| Temperature Coefficient of Pmax | -0.37%/C |
| Temperature Coefficient of Voc | -0.29%/C |
| Temperature Coefficient of Voc | 0.05%/C |
| Maximum Ratings | |
| Operating Temperature | -40 - +85C |
| Maximum System Voltage | 1000VDC |
| Maximum Fuse Rated Current | 15A |
| Mechanical Characteristics | |
| Front | 3.2mm Tempered Glass |
| Frame | Black Anodized Aluminium Alloy |
| Junction Box | IP65/IP67 |
| Connectors | MC4 Compatible |
Victron SmartSolar 75/15 Bluetooth Solar Charge Controller Specifications
| SKU: | Exo-FP-200-Vic-01 |
| Model #: | Exo-FP-200-VIC-00 |
| MPN: | Exo-FP-200-VIC-00 |
WARRANTY
Warranty Statement
Foldable Solar Panel
Exotronic warrants its foldable solar modules, including framing, to be free of defects in workmanship and materials for a period of 60 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
Accessories (Cables/Connectors, Canvas Bag)
Exotronic warranties its accessories, including cables, connectors, and the canvas bag, to be free of defects in workmanship and materials for a period of 12 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
Solar Charge Controller
Exotronic warrants its solar charge controllers to be free of defects in workmanship and materials for a period of 24 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
Victron Energy SmartSolar 75/15 Bluetooth Solar Charge Controller Limited Warranty Policy
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.
During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.
Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.
Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.
Life Support Policy
As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.
Warranty on Repairs
The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.
For Australia only
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
