Exotronic 24V 200W Portable Folding Solar Panel + Victron SmartSolar 75/15

23% PERC Cells, Victron MPPT 75/15, 5m Marine Cable, 11.2kg - 770x675x38mm


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
29

DESCRIPTION

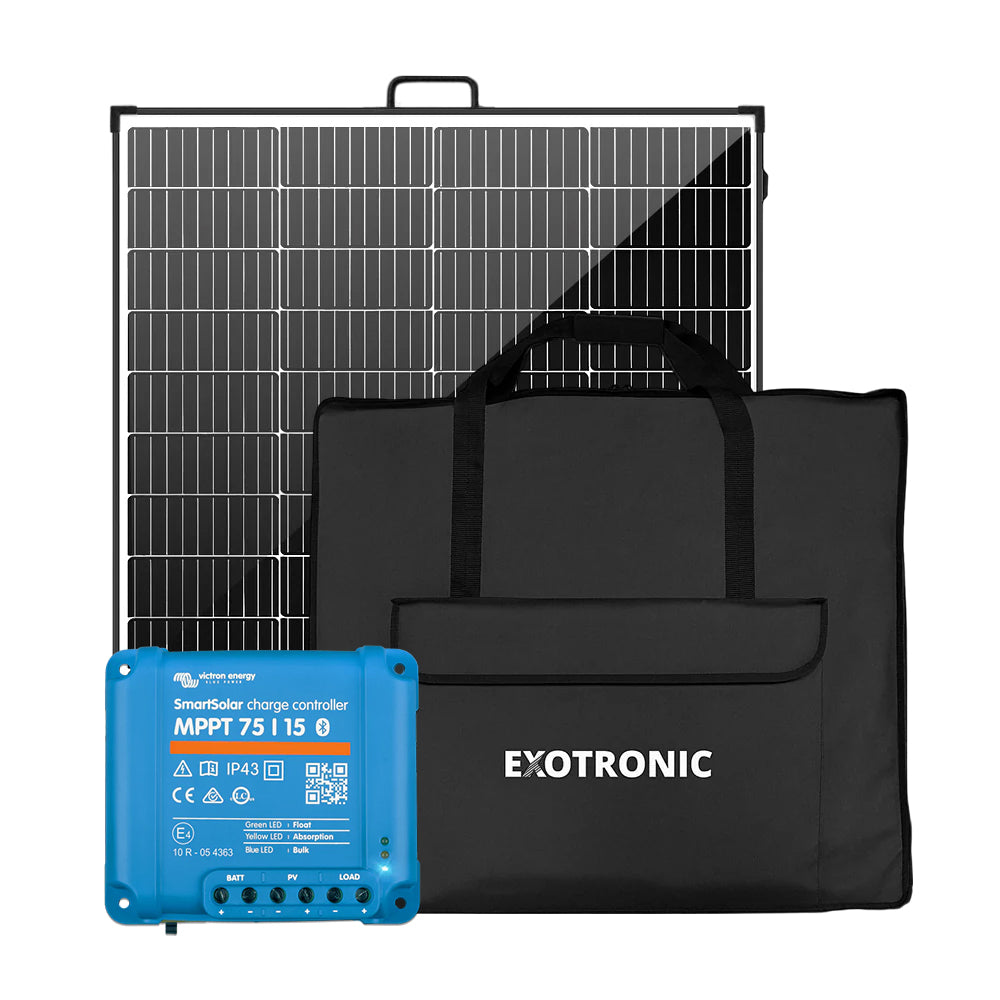

Exotronic 24V 200W Portable Folding Solar Panel Kit with Victron SmartSolar MPPT 75/15

High-Efficiency Portable Solar Power for Off-Grid and Mobile Applications

The Exotronic 24V 200W Portable Folding Solar Panel Kit delivers a complete, high-performance charging solution for caravans, RVs, campers, and marine environments. Combining two 100W monocrystalline modules with a Victron SmartSolar MPPT 75/15 charge controller, this kit maximises energy harvest in variable conditions, ensuring your batteries stay charged wherever you travel.

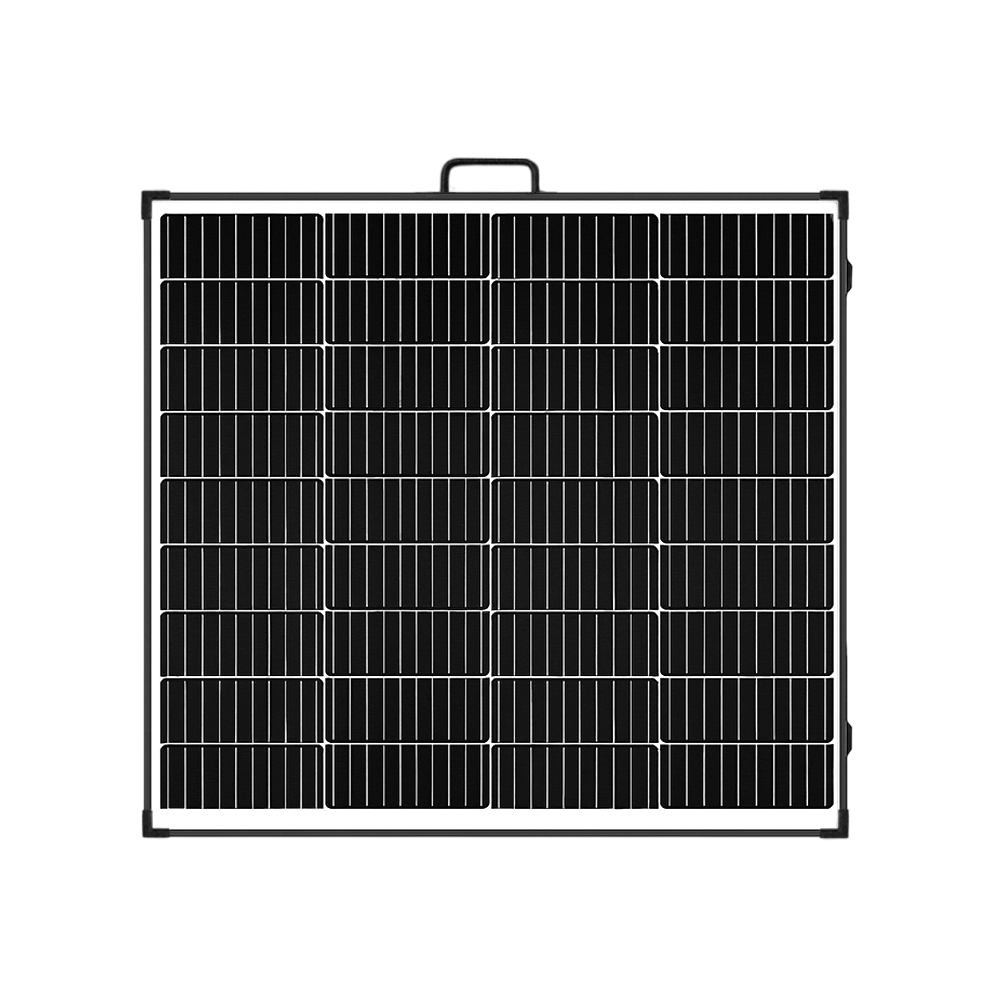

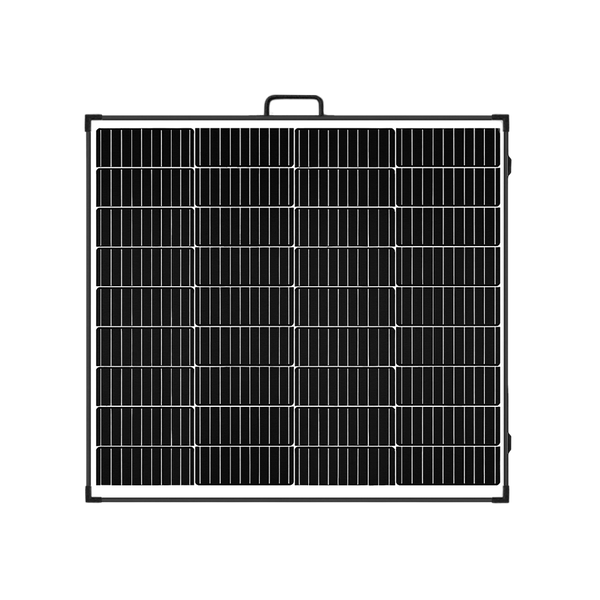

Built around Trina half-cut 23% PERC monocrystalline solar cells with a 9-wire busbar design, the panel achieves excellent efficiency and reliability. The half-cut cell configuration reduces resistive losses and improves performance in partial shading, while the PERC technology enhances low-light response, making it ideal for overcast days or shaded campsites.

Advanced Cell Technology for Consistent Output

The panel’s passivated emitter rear contact (PERC) cells capture more light by reflecting unabsorbed photons back into the cell, boosting energy conversion compared to standard monocrystalline designs. Combined with a 9-wire busbar layout, current is distributed evenly across the cell surface, minimising hot spots and power loss. This results in a module efficiency of 19.3% and a positive power tolerance, providing dependable output in real-world conditions.

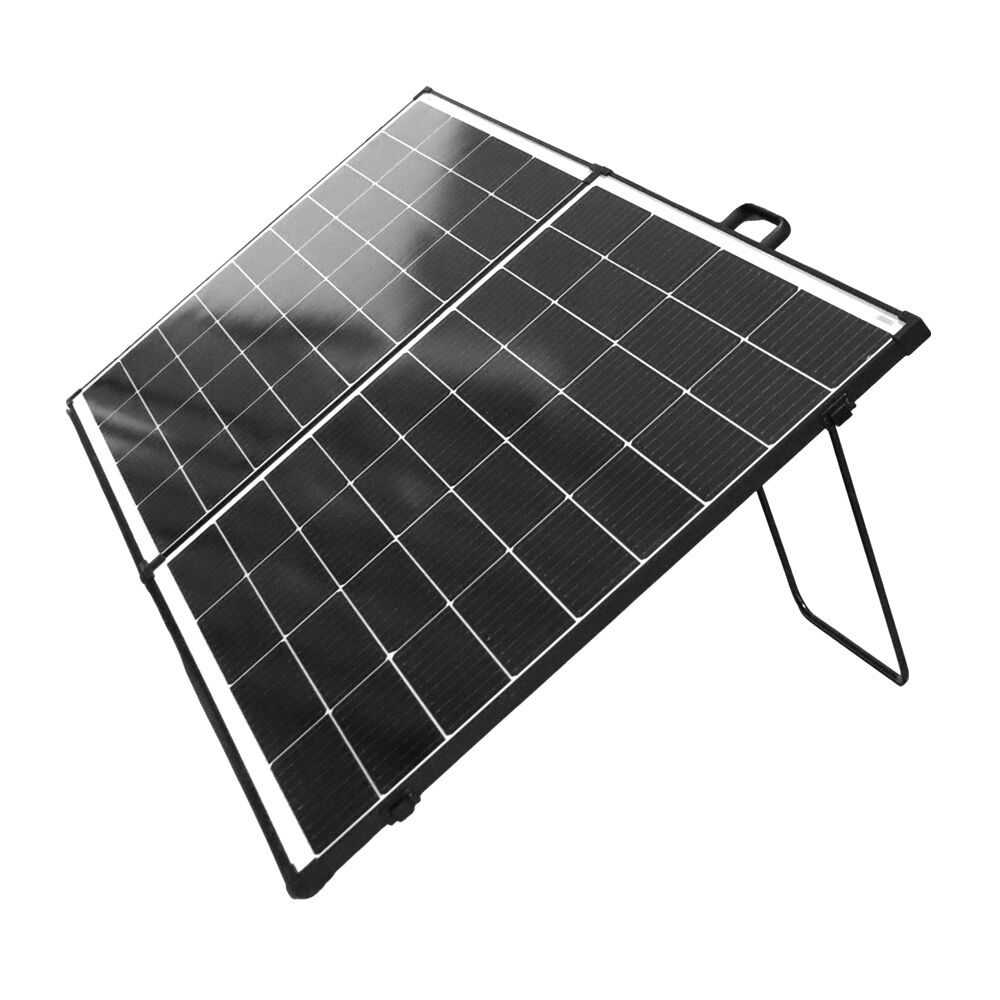

Portable Design with Quick Setup

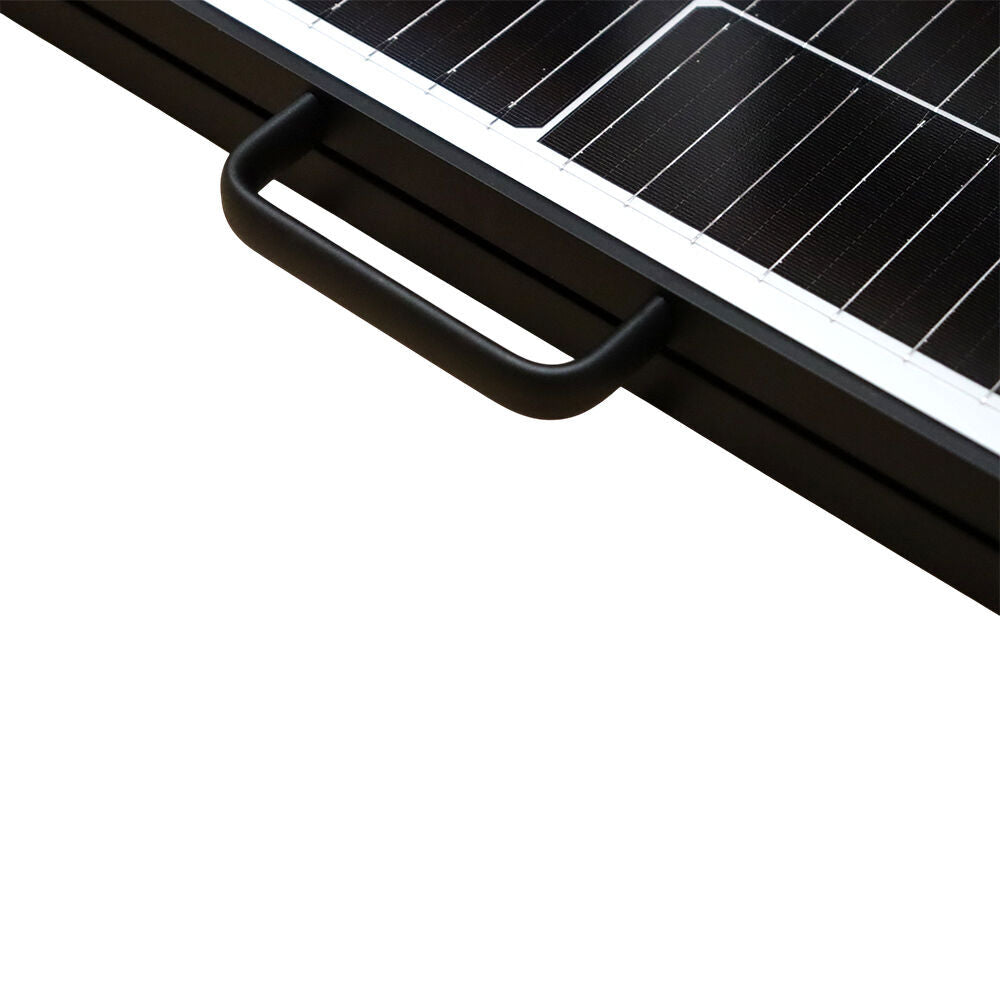

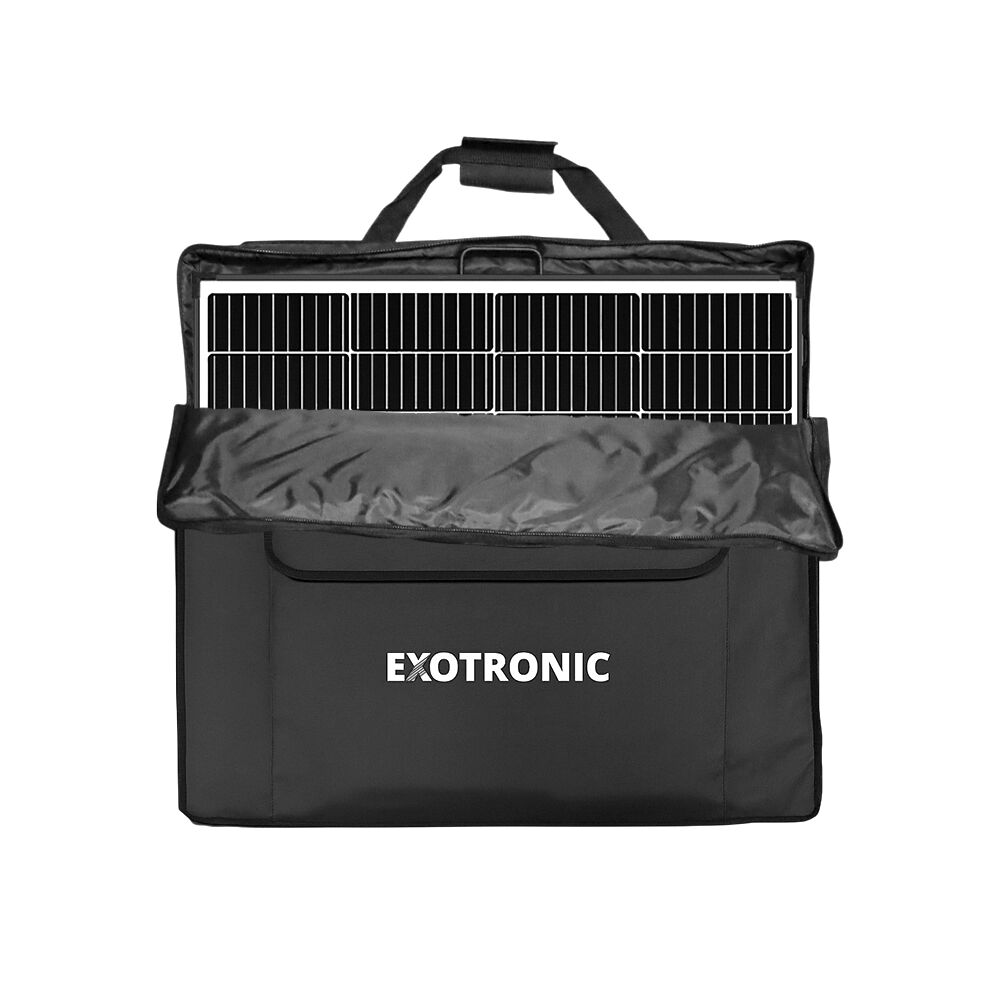

Weighing only 11.2 kg, the folding briefcase design allows effortless transport and storage. Integrated fold-away legs enable optimal tilt angle adjustment for maximum solar exposure, while corner bumpers protect the panel during handling. The included padded canvas carry bag features a handle and accessory pocket, keeping the panel and cables secure and scratch-free when not in use.

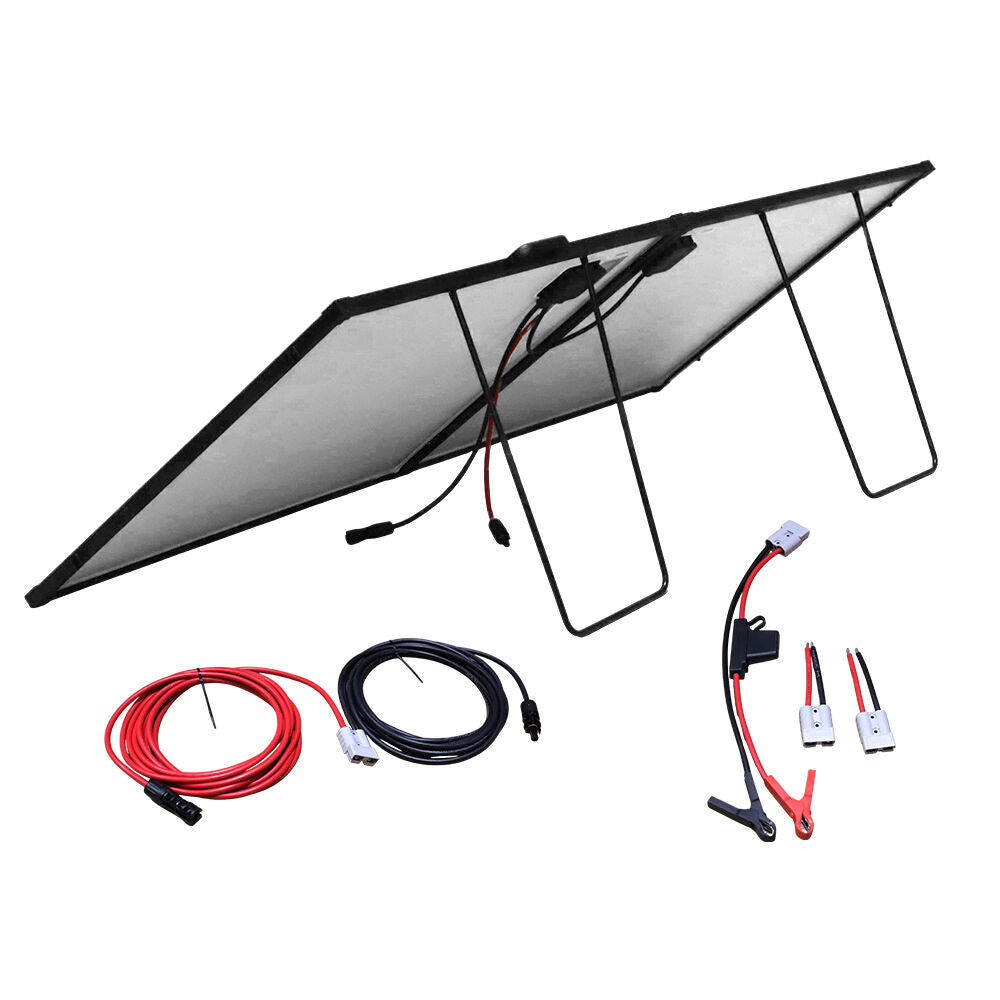

Comprehensive Cable Kit for Versatile Connectivity

The kit includes a premium cable set to suit various setups:

  • 5 m 4 mm² PV1-F tinned copper marine cable with MC4 to 50 A grey Anderson connector, providing a durable, corrosion-resistant link between the panel and charge controller or DC-DC charger solar input.
  • Two 50 A grey Anderson tails for easy connection to existing MPPT or PWM solar controllers.
  • Alligator clips to 50 A grey Anderson with 30 A fuse, useful for jump-starting a lithium battery BMS or charging a starter battery when needed.

Note: Always use a solar charge controller between the panel and battery to prevent overcharging.

Victron SmartSolar MPPT 75/15: Intelligent Charge Control

The included Victron SmartSolar MPPT 75/15 charge controller employs ultra-fast Maximum Power Point Tracking to optimise energy harvest, particularly in fluctuating light conditions. It can improve yield by up to 30% compared to PWM controllers and up to 10% over slower MPPT units.

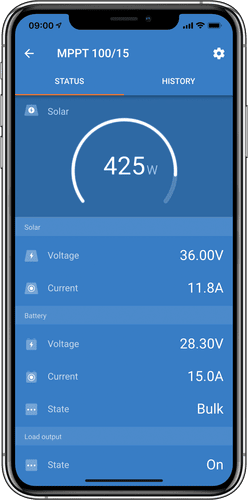

Built-in Bluetooth Smart allows wireless monitoring and configuration via the VictronConnect app, giving you real-time insight into solar yield and battery status. The controller also features a programmable load output with intelligent battery management to prevent deep discharge, extending battery life. An internal temperature sensor automatically compensates charge voltages, ensuring safe and efficient charging across varying climates.

Durable Construction for Australian Conditions

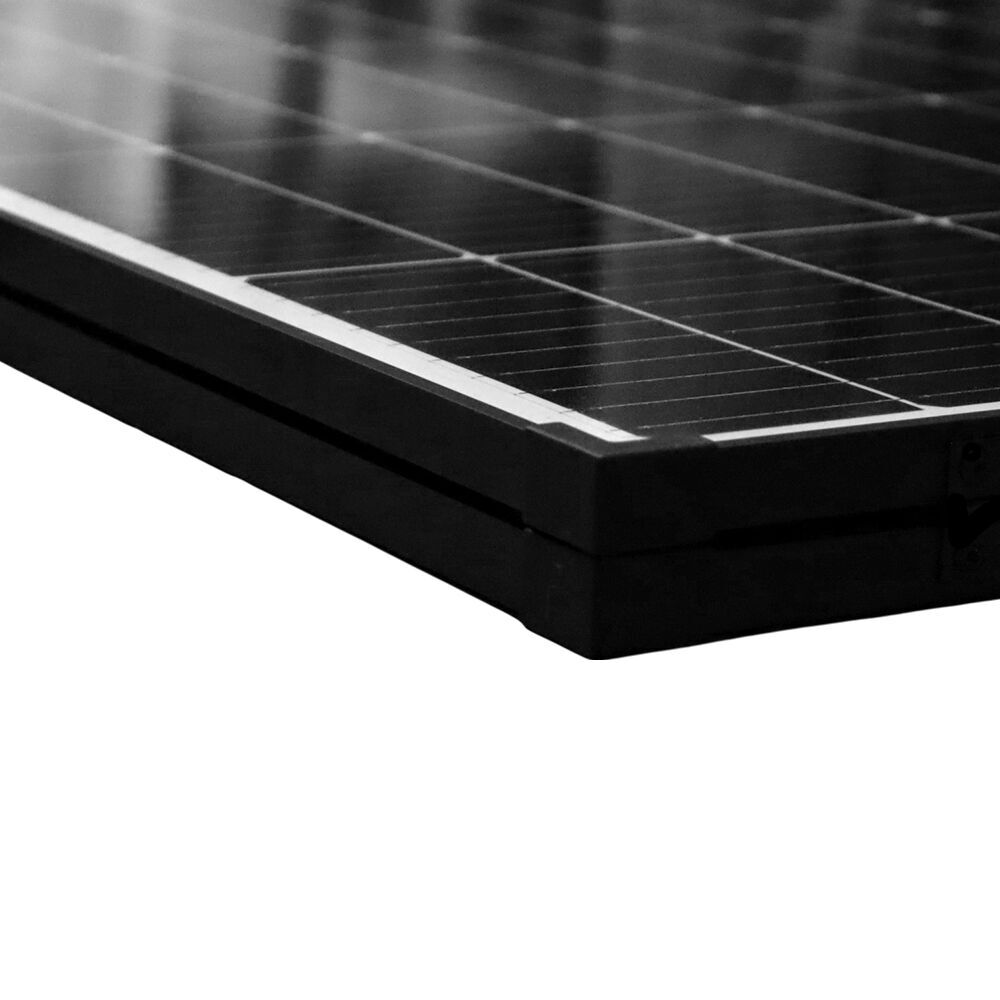

Engineered for reliability, the panel features a robust black anodised aluminium alloy frame and 3.2 mm tempered glass front, providing impact resistance and structural integrity. The IP65/IP67 rated junction box protects electrical connections from dust and moisture, making it suitable for coastal and marine environments. With an operating temperature range of -40 °C to +85 °C and a maximum system voltage of 1000 V DC, this kit is built to perform in demanding off-grid scenarios.

Ideal Applications

This portable solar kit is perfectly suited for:

  • Charging 24 V battery banks in caravans, motorhomes, and boats
  • Supplementing existing DC-DC charger solar inputs
  • Off-grid camping and remote power needs
  • Emergency backup charging for lithium or lead-acid batteries

With its compact folded dimensions of 770 x 675 x 38 mm and lightweight build, the Exotronic 200W kit offers a practical, high-efficiency solution for adventurers seeking reliable solar power without permanent installation.

Power Your Next Adventure

Equip your setup with the Exotronic 24V 200W Portable Folding Solar Panel Kit and experience the convenience of premium portable solar. Order today and harness the sun’s energy with confidence, wherever your journey leads.


SKU: Exo-FP-200-24V-Vic-01

SPECIFICATIONS

Foldable Solar Panel Specifications

Module Specifications
Model Power (W) No. of Cells Dimensions (mm) Folded Dimensions (mm) Unfolded Weight (kg) Vmp (V) Imp (A) Voc (V) Isc (A) Module Efficiency (%)
Exo-FP-200-24V-01 200 2x 36 (4x9) 770x675x38 (exc. handle) 770x1350x19 (exc. handle) 11.2 39.6 5.06 48.2 5.25 19.3

Note: Electrical specifications are the total output of the two folding panel sections.

Temperature Ratings
NMOT 41C +/-3C
Temperature Coefficient of Pmax -0.37%/C
Temperature Coefficient of Voc -0.29%/C
Temperature Coefficient of Voc 0.05%/C



Maximum Ratings
Operating Temperature -40 - +85C
Maximum System Voltage 1000VDC
Maximum Fuse Rated Current 15A



Mechanical Characteristics
Front 3.2mm Tempered Glass
Frame Black Anodized Aluminium Alloy
Junction Box IP65/IP67
Connectors MC4 Compatible

Victron SmartSolar 75/15 Bluetooth Solar Charge Controller Specifications

Victron SmartSolar 75/15 Bluetooth Solar Charge Controller Specifications


SKU: Exo-FP-200-24V-Vic-01
Model #: Exo-FP-200-24V-Vic-01
MPN: Exo-FP-200-24V-Vic-01

WARRANTY

Warranty Statement

Foldable Solar Panel

Exotronic warrants its foldable solar modules, including framing, to be free of defects in workmanship and materials for a period of 60 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:

  • The product is correctly installed and used under normal operating conditions for which it was intended.
  • All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.

Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.

Accessories (Cables/Connectors, Canvas Bag)

Exotronic warranties its accessories, including cables, connectors, and the canvas bag, to be free of defects in workmanship and materials for a period of 12 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:

  • The product is correctly installed and used under normal operating conditions for which it was intended.
  • All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.

Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.

Solar Charge Controller

Exotronic warrants its solar charge controllers to be free of defects in workmanship and materials for a period of 24 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:

  • The product is correctly installed and used under normal operating conditions for which it was intended.
  • All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.

Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.

Victron Energy SmartSolar 75/15 Bluetooth Solar Charge Controller Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy

As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs

The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
