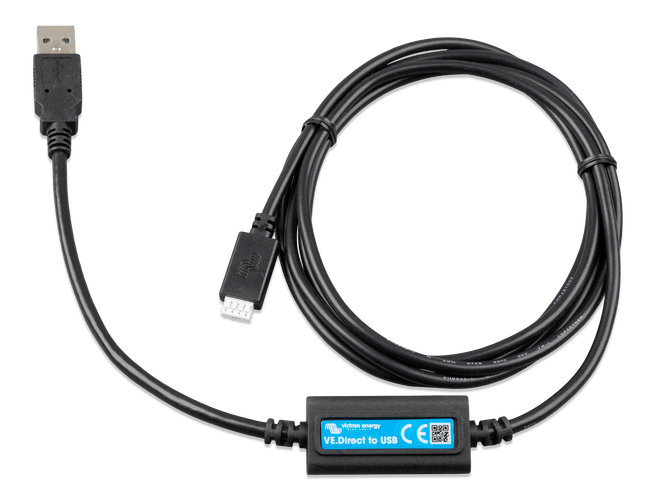

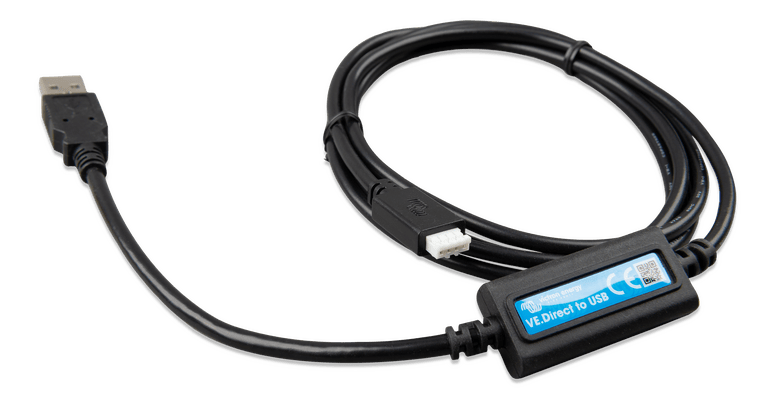

Victron VE.Direct to USB Interface Cable | 1.8m

Plug-and-Play System Monitoring & GX Device Expansion


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
-2

DESCRIPTION

Expand Your Victron Energy System Capabilities

The Victron VE.Direct to USB Interface Cable is an essential tool for managing and expanding your off-grid power setup. Designed to bridge the gap between VE.Direct-compatible devices and USB-enabled equipment, this 1.8-metre cable ensures a seamless flow of data. Whether you need to connect a BMV battery monitor, an MPPT solar charge controller, or a Phoenix inverter to your computer or system controller, this cable provides a highly reliable, hardwired connection.

Seamless GX Device Expansion

Advanced system monitoring often requires connecting multiple components to a central hub like the Cerbo GX or Ekrano GX. However, these monitoring hubs have a limited number of native VE.Direct ports. By using the VE.Direct to USB cable, you can easily bypass this limitation. Simply plug the VE.Direct end into your solar controller or shunt, and connect the standard USB-A plug into an available USB port on your GX device. This plug-and-play method allows you to significantly expand your system, accommodating complex configurations with multiple power sources and monitors without needing a complex interface hub.

Computer Connectivity and Firmware Updates

For users who prefer a direct connection to a computer, this interface module is the perfect solution. By connecting your Victron hardware directly to a PC or Mac running the VictronConnect app, you gain comprehensive access to real-time performance data, historical trends, and deep system configurations. A hardwired VE.Direct USB cable ensures a highly stable connection, completely bypassing potential wireless interference issues. This makes it the most secure method for performing critical firmware updates or diagnosing system performance in challenging marine or caravan environments.

Key Features and Benefits

  • Plug-and-play compatibility: Requires no additional drivers for modern operating systems, ensuring a rapid, hassle-free installation.
  • GX series expansion: Connect additional VE.Direct devices to Cerbo GX and Ekrano GX units via their USB ports.
  • Inline electronic module: Safely houses the data conversion hardware required to translate VE.Direct communication into standard USB protocols.
  • Optimal 1.8m length: Provides ample reach for routing behind bulkheads or inside tight electrical cabinets without creating excessive cable clutter.
  • Standard USB-A connector: Widely compatible with computers, laptops, and Victron GX devices.

Robust Design for Demanding Environments

Reliability is critical when building an off-grid energy system. The durable, black insulated 1.8m cable protects the internal data lines from physical wear and electrical noise. The 4-pin connector is precisely engineered to lock securely into your Victron VE.Direct ports, preventing accidental disconnections in mobile applications like RVs, camper trailers, and boats.

Optimise Your Power Management

Ensure you have full control and visibility over your energy system. Add the Victron VE.Direct to USB interface cable to your toolkit today to streamline firmware updates and unlock the full potential of your GX monitoring setup.


SKU: Vic-ASS030530010

SPECIFICATIONS

Specifications

Product NameVE.Direct to USB interface
Article NumberASS030530010
Product GroupData Cables and Interfaces
ConnectionProducts with a VE.Direct connection to devices with a USB port, for example a computer
CCGX ConnectionPossible to connect more than two VE.Direct products to a single CCGX
GX Device USB Port UseConnect a computer to a VE.Direct product or connect a VE.Direct product to a GX device USB port
VE.Direct Interface4-pin connector
Pin 1GND
Pin 2VE.Direct-RX
Pin 3VE.Direct-TX
Pin 4Power +
USB InterfaceVirtual comport through USB
Galvanic IsolationProvided
Baud Rate19200
Data Bits8
ParityNone
Stop Bits1
Flow ControlNone

SKU: Vic-ASS030530010
Barcode: 8719076019589
Model #: Vic-ASS030530010
MPN: Vic-ASS030530010
