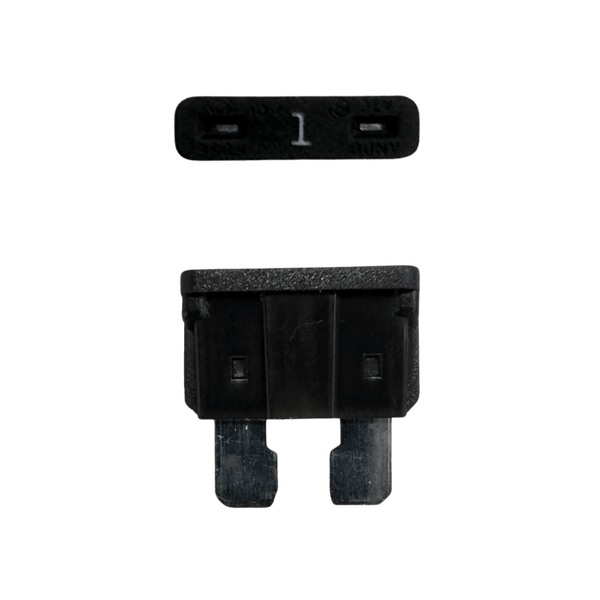

Exotronic 1A ATO/ATC Standard Automotive Blade Fuse

Exotronic 1A ATO/ATC Standard Automotive Blade Fuse: Precision Circuit Protection for 12V and 24V Systems

Engineered for Reliable Overcurrent Protection in Automotive and Marine Applications

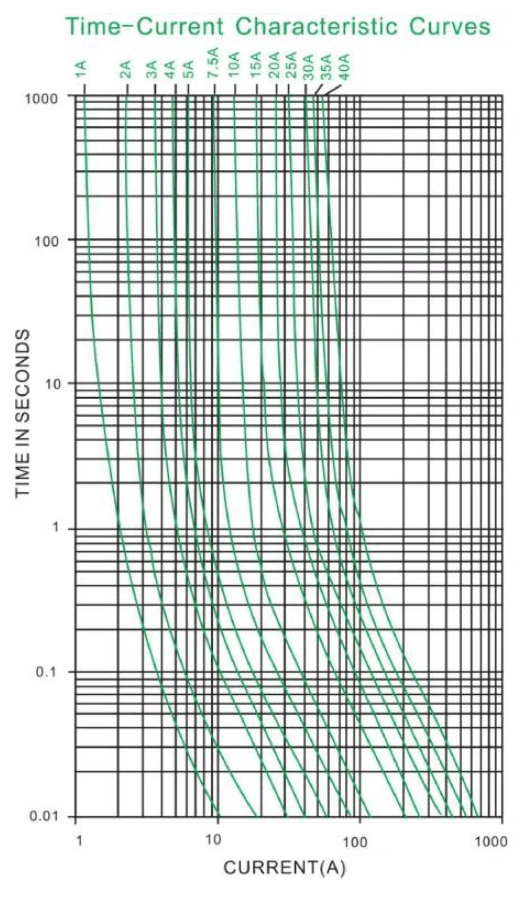

The Exotronic 1A ATO/ATC Standard Automotive Blade Fuse delivers fast-acting, dependable circuit protection for a wide range of 12V and 24V DC electrical systems. Whether you are maintaining a vehicle, caravan, boat, or off-grid setup, this fuse is designed to interrupt excessive current flow before it can damage sensitive electronics or wiring. Its precise time-current characteristics ensure that temporary surges are tolerated while sustained overloads are quickly cleared, reducing the risk of fire and equipment failure.

Unlike generic fuses that may suffer from inconsistent performance or premature failure, this Exotronic blade fuse is manufactured to meet stringent international standards. The result is a component you can trust to protect your investment in automotive blade fuses, car fuses, and marine fuses.

Fast-Acting Protection with High Interrupt Capacity

With a breaking capacity of 1000A at 32V DC, this fuse can safely interrupt severe fault currents. Its fast-acting design responds in as little as 0.03 seconds at 600% of rated current, minimising the duration of fault conditions. This rapid response is critical for protecting modern vehicles and equipment where even brief overcurrent events can cause costly damage.

Durable Construction for Harsh Environments

The fuse features silver-plated zinc alloy terminals that resist corrosion and ensure low-resistance electrical contact, even in humid or salt-laden environments. The nylon housing provides excellent mechanical strength, chemical resistance, and dielectric properties, allowing operation across a wide temperature range from -32°C to 200°C. This robust construction makes it suitable for under-bonnet automotive use, marine engine compartments, and other demanding locations.

Integrated Test Points for Simplified Diagnostics

Each fuse includes accessible test points on the top surface, enabling quick voltage checks with a multimeter without removing the fuse from its holder. This feature streamlines troubleshooting and routine maintenance, helping you identify blown fuses or circuit issues efficiently.

Industry-Standard Colour Coding and Compliance

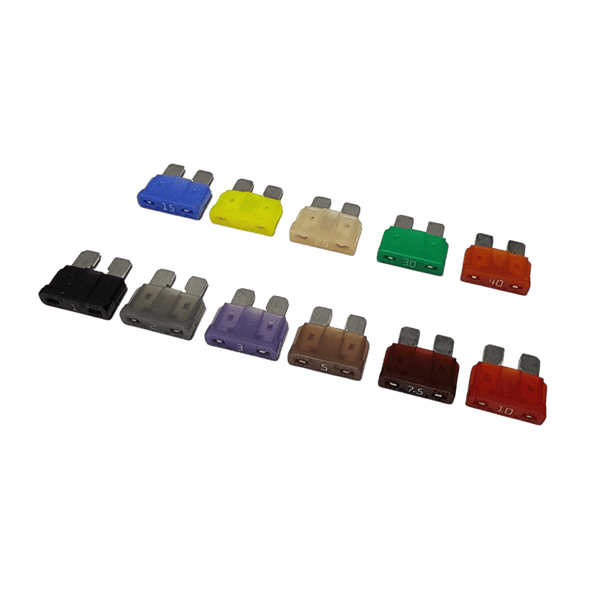

The translucent black housing allows visual inspection of the fuse element, while the industry-standard colour coding provides instant identification of the current rating. Compliance with SAEJ2077, ISO 8820, and UL248 Special Purpose Fuses standards ensures consistent quality and safety.

Key Features

• 1A rated current with colour-coded black housing for easy identification
• 1000A breaking capacity at 32V DC for safe interruption of high fault currents
• Silver-plated zinc alloy terminals for superior corrosion resistance and conductivity
• Nylon body with high dielectric strength and wide operating temperature range (-32°C to 200°C)
• Integrated test points for convenient circuit diagnostics without fuse removal
• Compliant with SAEJ2077, ISO 8820, and UL248 for assured performance and safety

Applications

This ATO/ATC blade fuse is ideal for protecting circuits in:

• Passenger vehicles and light trucks
• Caravans, camper trailers, and motorhomes
• Marine vessels and boat electrical systems
• 4WD and off-road auxiliary lighting and accessories
• Portable solar setups and battery management systems
• General low-voltage DC applications requiring reliable overcurrent protection

Whether you are replacing a failed fuse or building a new circuit, the Exotronic 1A ATO/ATC blade fuse provides the precision and durability needed for long-term reliability. Keep your electrical systems safe and operational with a fuse that meets the demands of Australian conditions.

Add the Exotronic 1A ATO/ATC Standard Automotive Blade Fuse to your toolkit today and ensure your circuits are protected by a component built to perform when it matters most.
