Victron 12V 250VA Sun Inverter 12/250-15 IEC Plug + 15A PWM Solar Charge Controller
250VA Pure Sine Wave Inverter + 15A PWM Solar Charger with Bluetooth
Victron 12V 800VA MultiPlus Compact 12/800/35-1...DESCRIPTION

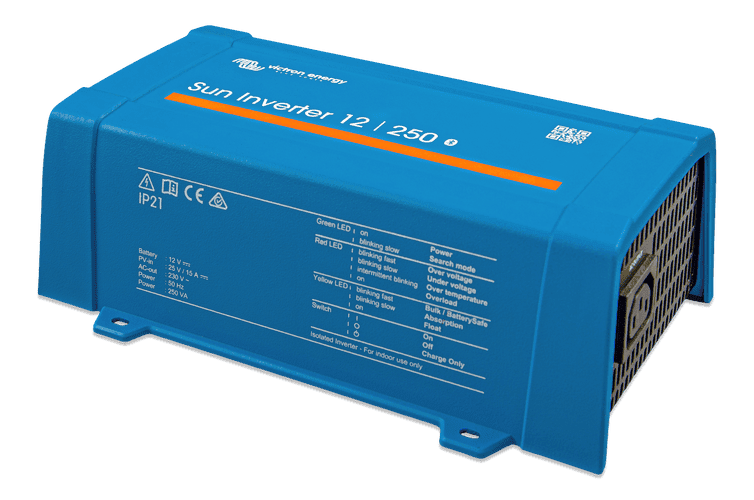

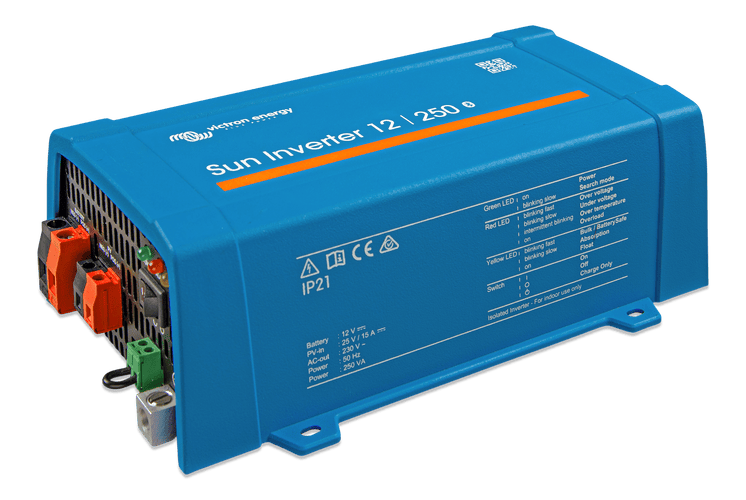

Victron Sun Inverter 12/250-15: Integrated 12V Inverter and Solar Charge Controller for Off-Grid Power
Compact 250VA Pure Sine Wave Inverter with Built-In 15A PWM Solar Charger
The Victron Sun Inverter 12/250-15 combines a 250VA pure sine wave inverter and a 15A PWM solar charge controller in a single, space-saving unit. Designed for 12V off-grid systems, it delivers reliable 230V AC power from your battery bank while simultaneously managing solar charging. This integrated approach simplifies installation and reduces wiring complexity, making it an excellent choice for caravans, motorhomes, boats, and remote cabins where space and efficiency are critical.
Unlike separate inverter and charger setups, the Sun Inverter streamlines your power system. The full bridge toroidal transformer design provides robust, clean power suitable for sensitive electronics, while the integrated PWM controller efficiently harvests solar energy to keep your batteries topped up. With Bluetooth monitoring via the VictronConnect app and a VE.Direct communication port, you have full control and visibility over your energy system, whether you're on the road or at a remote site.
Reliable Power Conversion with High Surge Capability
The inverter section delivers 250VA continuous output (200W at 25°C) with a 400W peak power rating, enabling it to start demanding loads such as LED lighting power converters, small power tools, and halogen lamps. Its toroidal transformer topology has been proven over decades of field use, offering inherent short-circuit protection and thermal resilience. The unit automatically derates output at elevated temperatures, ensuring safe operation even in challenging environments.
For energy-conscious users, the ECO mode reduces idle consumption to just 0.8W by cycling the inverter on and off to detect loads above a preset threshold (default 15W). This feature is particularly valuable in solar-powered installations where every watt-hour counts, extending battery runtime during periods of low solar input.
Integrated 15A PWM Solar Charger for Efficient Battery Management
The built-in 15A PWM charge controller supports up to 375W of solar input (36-cell panels) and is fully programmable via the VictronConnect app. You can adjust charge voltages, battery algorithms, and temperature compensation (with optional sensor) to suit lead-acid, AGM, or lithium batteries. The controller initiates charging as soon as PV voltage exceeds battery voltage, maximising energy harvest throughout the day.

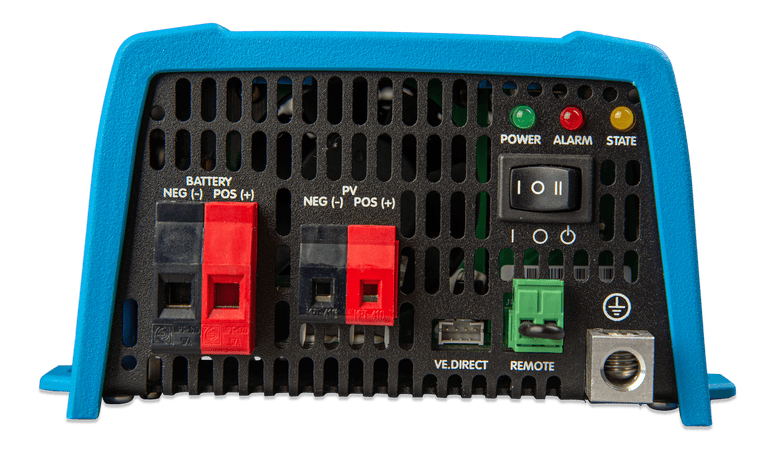

This integration eliminates the need for a separate solar regulator, reducing component count and potential points of failure. The screw terminals for both battery and PV connections accept up to 10mm² (approx. 8 AWG) and 4mm² (approx. 12 AWG) cable respectively, simplifying installation without specialised tools.
Advanced Monitoring and Control
Stay informed with Bluetooth connectivity built into the unit. Using the free VictronConnect app on your smartphone or tablet, you can monitor real-time data including inverter input/output voltage, load percentage, solar power, and battery status. Configure settings such as low battery cut-off levels, output voltage (210-245V), frequency (50/60Hz), and ECO mode sensitivity to match your specific requirements.
The VE.Direct port enables integration with Victron's GX monitoring devices (e.g., Cerbo GX) or the GlobalLink 520 for remote monitoring via the VRM portal. A remote on/off terminal allows connection of an external switch or the optional Phoenix Inverter Control panel for convenient operation.
Key Features
- 250VA pure sine wave output for clean, reliable AC power
- Integrated 15A PWM solar charger supports up to 375W of solar input
- Ultra-low idle consumption of 0.8W in ECO mode for extended battery life
- Bluetooth and VE.Direct for comprehensive monitoring and configuration
- Robust toroidal transformer design with short-circuit and over-temperature protection
- IEC-320 AC outlet with included male plug for standard appliance connections
- Compact, lightweight chassis (2.4kg) with IP21 rating for indoor installation
Designed for Demanding Mobile and Off-Grid Applications
Whether you're powering a caravan's entertainment system, running navigation electronics on a yacht, or maintaining a remote monitoring station, the Victron Sun Inverter 12/250-15 delivers consistent performance. Its wide operating temperature range (-40°C to +60°C) and conformal-coated electronics ensure reliability in harsh Australian conditions, from coastal humidity to outback heat.

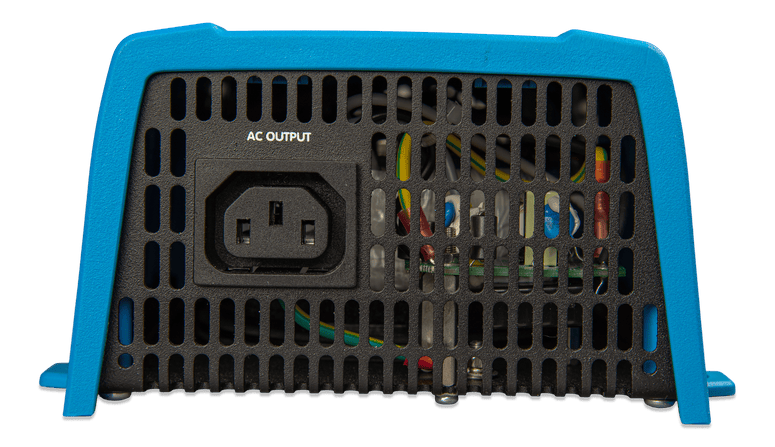

The unit's IEC-320 socket provides a universal connection for standard power leads, while the screw terminal DC connections allow secure, low-resistance wiring. For systems requiring automatic transfer between shore power and inverter, the optional Filax Automatic Transfer Switch offers a sub-20ms switchover time, keeping computers and sensitive equipment running without interruption.
Take Control of Your Off-Grid Power
Upgrade your mobile or remote power system with the Victron Sun Inverter 12/250-15. Its integrated design, advanced monitoring, and proven reliability make it a smart investment for anyone seeking a compact, efficient 12V inverter with solar charging. Order yours today and experience the confidence of Victron-engineered power, wherever your adventures take you.
SKU: VIC-SIN121251100

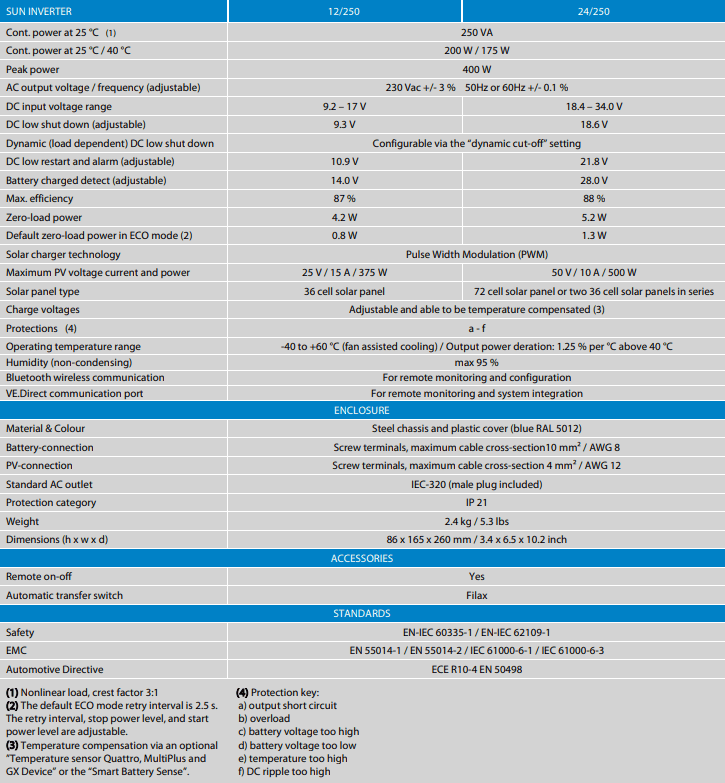

SPECIFICATIONS
Specifications
| Model | Sun Inverter 12/250-15 IEC |
|---|---|
| Continuous Power At 25 °C (VA) | 250 VA |
| Continuous Power At 25 °C / 40 °C (W) | 200 W / 175 W |
| Peak Power | 400 W |
| Output AC Voltage | 230 Vac +/- 3 % |
| Output AC Frequency (Adjustable) | 50 Hz or 60 Hz +/- 0.1 % |
| DC Input Voltage Range | 9.2 - 17 Vdc |
| Low Battery Voltage Shut Down (Adjustable) | 9.3 Vdc |
| Low Battery Voltage Restart & Alarm (Adjustable) | 10.9 Vdc |
| Battery Charged Detect Voltage (Adjustable) | 14.0 Vdc |
| Maximum Efficiency | 87 % |
| Zero Load Power | 4.2 W |
| Default Zero Load Power In ECO Mode | 0.8 W |
| Solar Charger Technology | Pulse Width Modulation (PWM) |
| Maximum PV Array Voltage | 25 Vdc |
| Maximum PV Array Current | 15 A |
| Maximum PV Array Power | 375 W |
| Solar Panel Type | 36 cell solar panel |
| PV Array Voltage To Initiate Battery Charging | Voltage that is higher than the battery voltage |
| Charge Voltages | Adjustable via the VictronConnect app |
| Temperature Compensated Charging | Yes, via an optional temperature sensor |
| Protections | Output short circuit; overload; battery voltage too high; battery voltage too low; temperature too high; DC ripple too high |
| Operating Temperature Range | -40 to +60 °C (fan assisted cooling) / Output power deration: 1.25 % per °C above 40 °C |
| Humidity (Non-condensing) | Max 95 % |
| Bluetooth Wireless Communication | For remote monitoring and configuration |
| VE.Direct Communication Port | For remote monitoring and system integration |
| Material & Colour | Steel chassis and plastic cover (blue RAL 5012) |
| Battery Connection Terminals | Screw terminals |
| Maximum Battery Cable Cross Section | 10 mm² or AWG 8 |
| PV Connection Terminals | Screw terminals |
| Maximum PV Cable Cross Section | 4 mm² or AWG 12 |
| Standard AC Outlet | IEC-320 (male plug included) |
| Protection Category | IP 21 |
| Weight | 2.4 kg / 5.3 lbs |

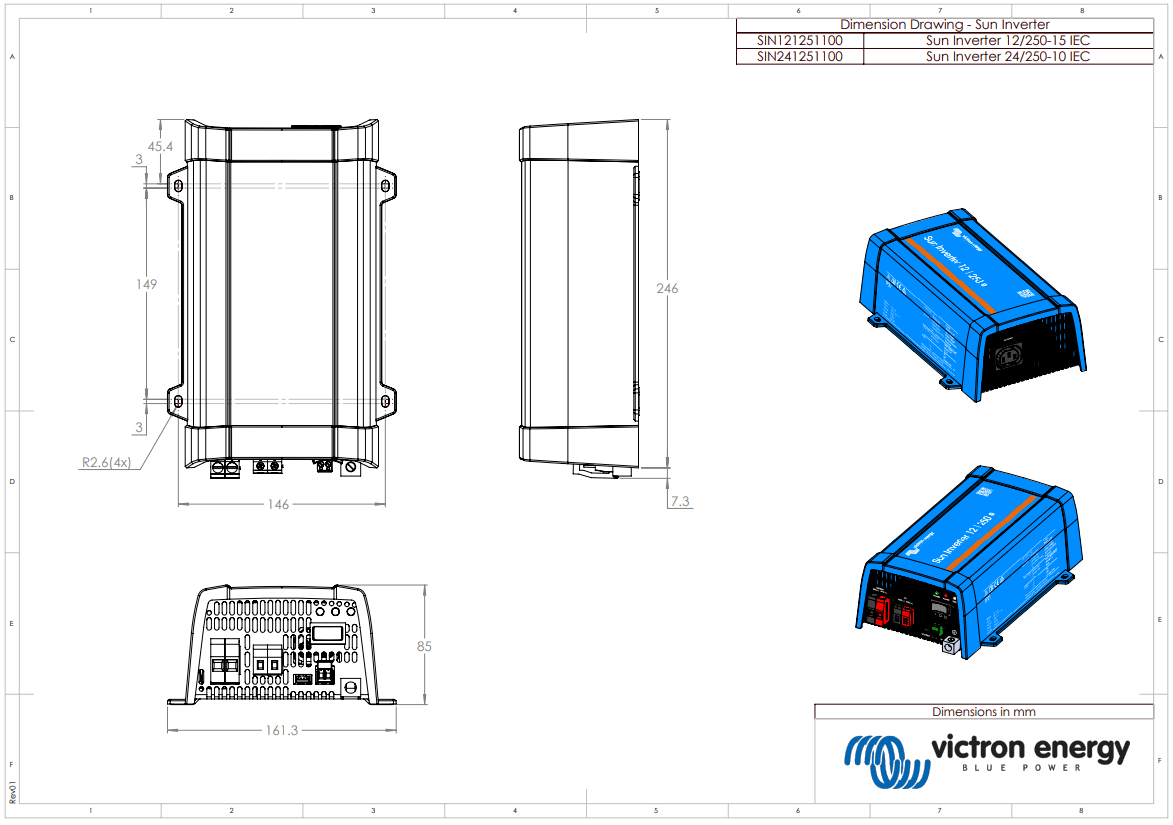

| Dimensions (H x W x D) | 86 x 165 x 260 mm / 3.4 x 6.5 x 10.2 inch |
| Safety | EN-IEC 60335-1 / EN-IEC 62109-1 |
| EMC | EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-3 |
| Automotive Directive | ECE R10-4 EN 50498 |
| SKU: | VIC-SIN121251100 |
| Barcode: | 8719076053699 |
| Model #: | SIN121251100 |
| MPN: | SIN121251100 |
