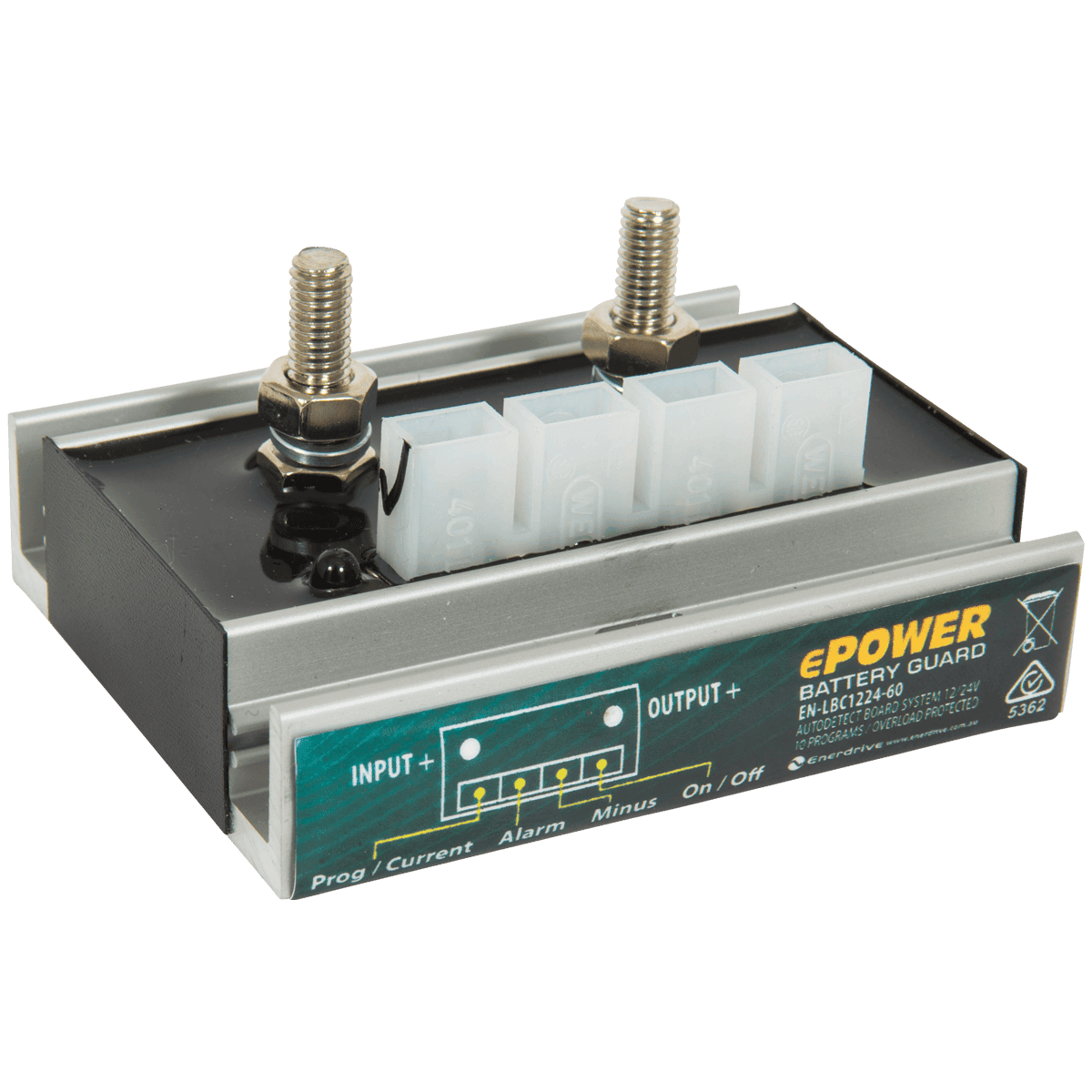

Enerdrive 12V/24V 60A IP66 Battery Guard - Low Battery Cutout

Enerdrive 60A ePOWER Battery Guard: Intelligent Low Voltage Cutout

Safeguarding your power system is critical for long-term reliability. The Enerdrive 12V/24V 60A IP66 Battery Guard acts as a vital defensive layer between your battery bank and connected DC loads. Deeply discharging batteries can lead to irreversible capacity loss or premature failure. By actively monitoring system voltage, this low battery cutout prevents non-essential appliances from draining your batteries to a critical level. Whether you are running a marine vessel, a recreational vehicle, or an off-grid service truck, this device helps preserve your engine cranking power and extends the overall lifespan of your deep cycle batteries.

Microprocessor Precision and Versatility

Driven by an advanced microprocessor, this unit offers high precision over traditional mechanical relays. It features automatic voltage detection for both 12V and 24V systems, allowing for seamless integration across a wide range of setups. Users can select from 10 distinct programmed parameters, ensuring the disconnect and reconnect thresholds closely match the specific requirements of your battery chemistry. This flexibility ensures that connected loads are engaged or disengaged at the optimal moment, reducing stress on the battery cells. Capable of handling a continuous load of up to 60A and brief peak currents of 120A, it is well equipped to manage accessory circuits, lighting, and refrigeration gear.

Solid-State, Ignition-Proof Safety

Operating safely in harsh environments is a core strength of this unit. Designed with solid-state switching, it functions without mechanical relays, ensuring an ignition-proof environment with zero risk of electrical sparking. The solid-state design not only enhances safety but also improves long-term reliability by eliminating moving parts that are prone to mechanical wear and contact arcing. Combined with an IP66 rating, the enclosure is highly resistant to dust ingress and heavy water spray, making it an excellent choice for engine bays, exposed caravan chassis, and maritime applications where moisture is a constant factor.

Advanced Overvoltage and Delayed Switching

Beyond low voltage protection, the device also shields your valuable sensitive electronics from dangerous voltage spikes. If the DC voltage exceeds 16V in a 12V system or 32V in a 24V system, the unit immediately disconnects the load circuit, preventing damage from alternator faults or solar controller spikes. Additionally, it incorporates a delayed alarm output and a delayed load disconnect. This sophisticated feature prevents false tripping caused by temporary voltage sags that often occur when high-draw appliances, such as compressor fridges, initially cycle on.

Key System Benefits

• Automatic 12V or 24V system detection for simplified setup and installation
• 10 selectable voltage profiles to suit diverse battery specifications and chemistries
• 60A continuous load rating with a 120A peak capacity for demanding startup currents
• Solid-state, ignition-proof design suitable for marine and enclosed battery compartments
• IP66 rated construction offering strong protection against dust and heavy water spray
• Overvoltage isolation protects sensitive DC appliances from dangerous power spikes
• Delayed disconnect prevents unwanted shutdowns during momentary voltage drops

Reliable Power Management

With a compact footprint and robust construction, this low voltage disconnect is ideal for recreational vehicles, 4WD canopies, service vehicles, and boats. By cutting off parasitic loads before they cause irreversible damage, it reduces the risk of being stranded with a flat battery and lowers the long-term costs associated with premature battery replacement.

Secure your electrical system and extend the life of your battery bank today. Integrate the Enerdrive 60A Battery Guard to ensure your critical power is always available when you need it most.
